Chapter 2: Jumpers and Connectors

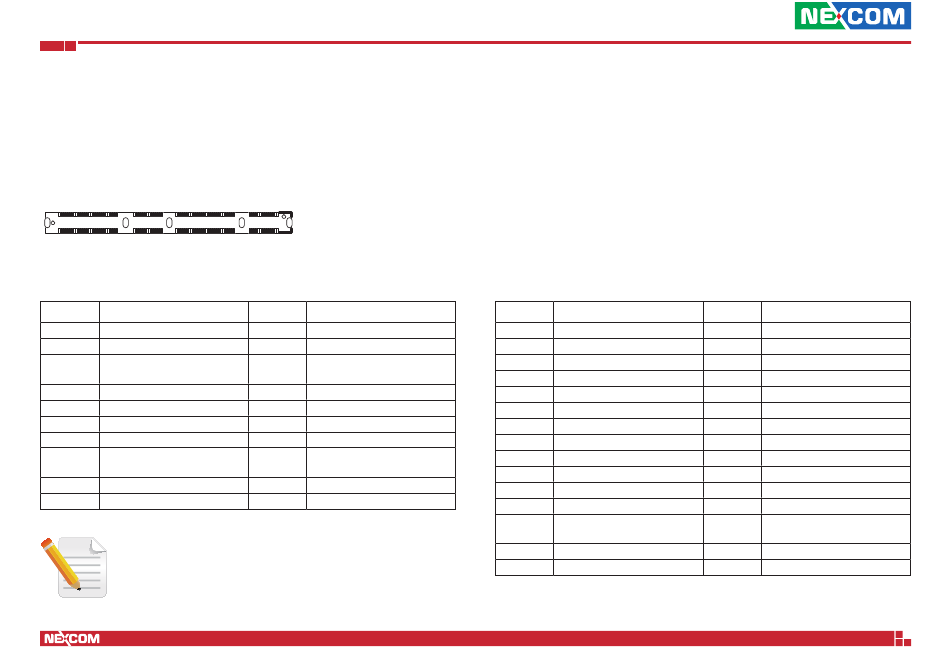

Riser Right Connector

Connector type: 2x70 140-pin header
Connector location: CN21
B70 B43 B42 B28
A70 A43 A42 A28
Pin Definition
OA1 PE_SLOT7_R_PRSNTB0#
OA2 PE_SLOT7_R_PRSNTB1#
OA3 FM_LAN_WAKE_SLOT78_N
OA4 PE_SLOT7_R_PRSNTB2#
OA5 PE_SLOT7_R_PRSNTB3#
OA6 NC
OA7 GND
PE_SLOT78_CLK_RETIMER_
OA8
DN
OA9 PE_SLOT78_CLK_RETIMER_DP
OA10 GND
Note that the definition on this connector is not the standard
pin definition of an OCP connector.
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
B1 OB1
A1 OA14
Pin Definition
OB1 PE_SLOT8_NIC_PWR_GOOD
OB2 MAIN_PWR_EN_SLOT
PE_SLOT7_NIC_PWR_
OB3
GOOD_R
OB4 NC
OB5 SLOT7_R2_SCL
OB6 SLOT7_R2_SDA
OB7 GND
OB8 PE_SLOT9_CLK0_DN
OB9 PE_SLOT9_CLK0_DP
OB10 GND
Pin Definition
OA11 PE_SLOT7_CLK1_DN
OA12 PE_SLOT7_CLK1_DP
OA13 GND
OA14 NC
A1 GND
A2 GND
A3 GND
A4 GND
A5 GND
A6 GND
A7 SLOT8_EXPANSION_R2_SCL
A8 SLOT8_EXPANSION_R2_SDA
RST_SMB_HOST_MUX_PE_
A9
BUFF_N
A10 GND
A11 PE_EXPANSION_RST_N
24
Pin Definition
OB11 PE_SLOT7_CLK0_DN
OB12 PE_SLOT7_CLK0_DP
OB13 GND
OB14 PE_SLOT9_PWRBRK0#
B1 P3V3
B2 P3V3
B3 P3V3
B4 P3V3
B5 P3V3
B6 P3V3
B7 P3V3_AUX
B8 RETIMER_CPLD_SMB_SCL_R2
B9 RETIMER_CPLD_SMB_SDA_R2
B10 PE_SLOT78_RST_N
B11 P3V3_AUX
