Chapter 2: Jumpers and Connectors

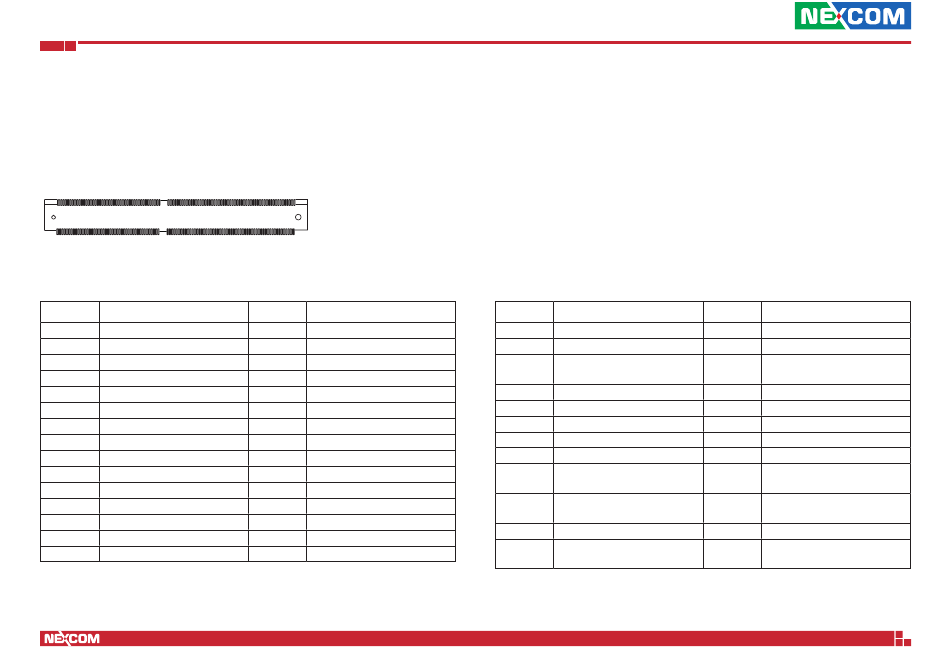

Run BMC Connector

Connector type: 260-pin header
Connector location: DIMM1
259 145 143
260 146 144
Pin Definition
1 P12V_AUX
3 P3V3_BMC
5 P3V3_BMC
7 P3V3_BMC
9 GND
11 GND
13 SGPIO_BMC_LD_R_N
15 SGPIO_BMC_DIN
17 SGPIO_BMC_DOUT
19 SGPIO_BMC_CLK_R
21 BMC_RXD5
23 BMC_TXD5
25 FP_ID_LED_R_N
27 BMC_FAN3_PWM
29 BMC_FAN5_PWM
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
1
2
Pin Definition
2 NC
4 P3V3_BMC
6 P3V3_BMC
8 GND
10 V_BMC_GFX_REAR_GRN
12 V_BMC_GFX_REAR_BLU
14 V_BMC_GFX_REAR_RED
16 V_BMC_GFX_REAR_HSYN
18 V_BMC_GFX_REAR_VSYN
20 SMB_BMC_DDC_SCL_R
22 SMB_BMC_DDC_SDA_R
24 GND
26 BMC_FAN1_PWM
28 BMC_FAN2_PWM
30 BMC_FAN4_PWM
Pin Definition
31 IRQ_BMC_CPU_NMI_R
33 RNBMC_R1_PRSNT#
IRQ_BMC_PCH_SMI_LPC_N_
35
BMC
37 FM_P1V2_BMC_AUX_EN_R
39 GND
41 BMC_CPLD_UART1_R_RXD
43 BMC_CPLD_UART1_R_TXD
45 GND
SMB_CPLD_STBY_LVC3_
47
MM8_R3_CLK
SMB_CPLD_STBY_LVC3_
49
MM8_R3_DATA
51 GND
SMB_SENSOR_STBY_LVC3_
53
R1_CLK
27
Pin Definition
32 BMC_FAN6_PWM
34 CPLD_BMC_SMI_R#
36 BMC_GPIO19
38 BMC_CPLD_UART1_R_CTS#
40 BMC_CPLD_UART1_R_NDCD
42 ID_LED_BMC_OUT
44 BMC_GPIO24
46 BMC_CPLD_UART1_R_NDSR
48 SMB_CPU_PIROM_BMC_SCL
50 SMB_CPU_PIROM_BMC_SDA
52 GND
SMB_SMLINK0_STBY_LVC3_
54
R2_SCL
