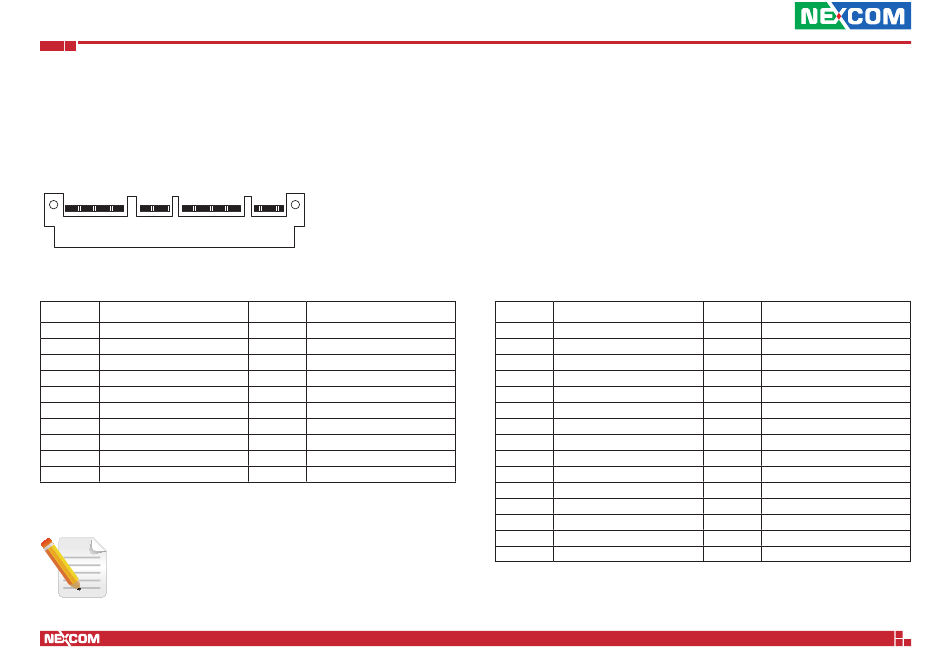

IO Slot Connector (for NSK1107 only)

Connector type: 2x84 168-pin header
Connector location: CN6
B70 B43 B42 B28
B29
Pin Definition
OA1 P3V3_AUX
OA2 P3V3_AUX
OA3 P3V3_AUX
OA4 GND
OA5 P3V3_BMC
OA6 P3V3_BMC
OA7 GND
OA8 NVM_SO_A
OA9 NVM_SI_A
OA10 GND
Note that the definition on this connector is not the standard
pin definition of an OCP connector.
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
B1 OB1
OB14
Pin Definition
OB1 P12V
OB2 P12V
OB3 GND
OB4 P3V3_CPLD
OB5 P3V3_CPLD
OB6 P3V3_CPLD
OB7 GND
OB8 P3V3
OB9 P3V3
OB10 GND
Pin Definition
OA11 NVM_SK_B
OA12 GND
OA13 GND
OA14 GND
A1 GND
A2 GND
A3 GND
A4 GND
A5 GND
A6 GND
A7 NVM_CS_N_A
A8 NVM_CS_N_B
A9 NVM_SO_B
A10 GND
A11 NVM_SI_B
14
Pin Definition
OB11 NVM_SK_A
OB12 GND
OB13 GND
OB14 GND
B1 P5V
B2 P5V
B3 P5V
B4 P5V
B5 P5V
B6 P5V
B7 GND
B8 GND
B9 GND
B10 GND
B11 GND
