Chapter 4: BIOS Setup
Advanced > Hardware Monitor

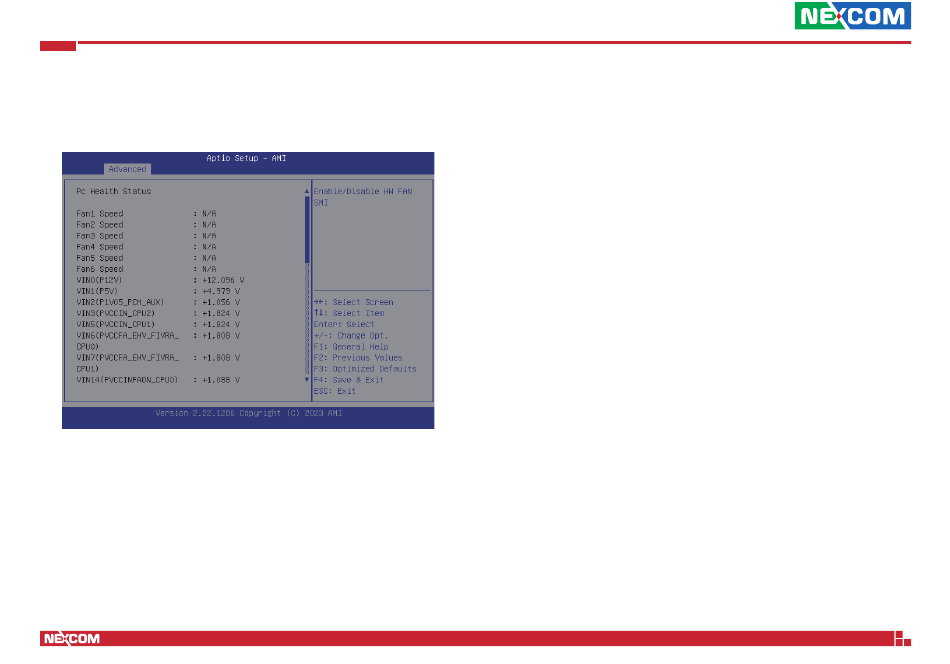

This section is used to monitor hardware status such as temperature, fan
speed and voltages.
Fan1/2/3/4/5/6 Speed
Detects and displays the fan speeds.
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
VIN0(P12V)/
VIN1(P5V)/
VIN2(P1V05_PCH_AUX)/
VIN3(PVCCIN_CPU2)/
VIN5(PVCCIN_CPU1)/
VIN6(PVCCFA_EHV_FIVRA_CPU0)/
VIN7(PVCCFA_EHV_FIVRA_CPU1)/
VIN14(PVCCINFAON_CPU0)/
VIN16(PVNN_PCH_AUX)/
VCC3V/
VBAT
Detects and displays the output voltages.
HW FAN SMI
Enables or disables the HW FAN SMI.
FAN SMI1/2/3/4/5/6
Enables or disables the FAN SMI1/2/3/4/5/6.
HW Voltage SMI
VIN0(P12V) SMI/
VIN1(P5V) SMI/
VIN2(P1V05_PCH_AUX) SMI/
VIN3(PVCCIN_CPU2) SMI/
VIN5(PVCCIN_CPU1) SMI/
VIN6(PVCCFA_EHV_FIVRA_CPU0) SMI/
VIN7(PVCCFA_EHV_FIVRA_CPU1) SMI/
VIN14(VIN14(PVCCINFAON_CPU0) SMI/
VIN15(VIN14(PVCCINFAON_CPU1) SMI/
VIN16(PVNN_PCH_AUX) SMI/
VCC3V SMI/
VBAT SMI
Enables or disables the HW Voltage SMI.
