Chapter 1: Product Introduction

Knowing Your NSA 7160R

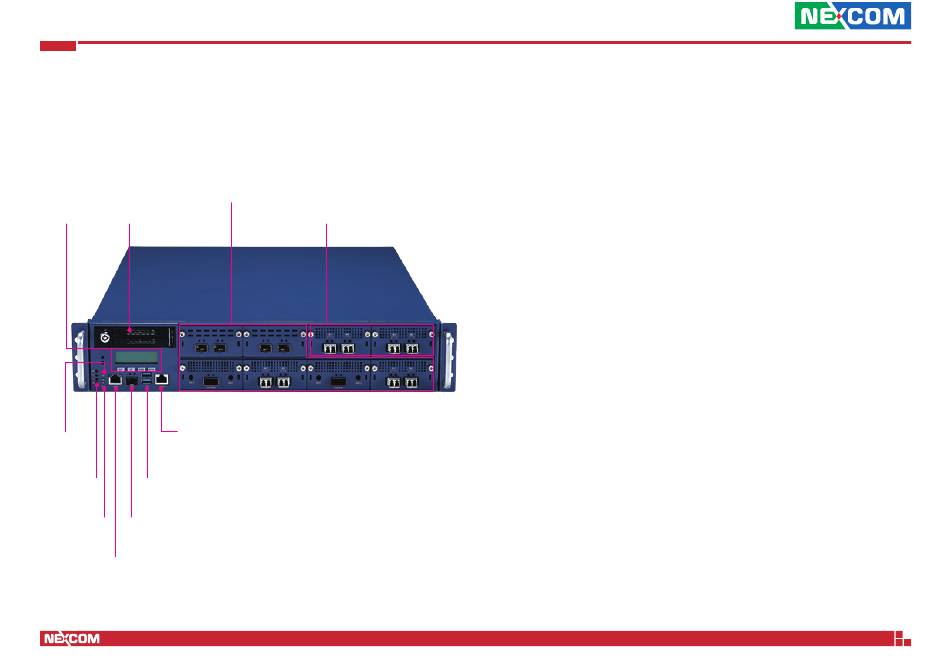

Front Panel

LCM HDD/SSD bays
RJ45 type console port
NMI
button
LED USB Ports
indicators
Reset button SFP type management LAN
RJ45 type management LAN
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
PCIe 5x16 LAN modules
PCIe 5x8 LAN modules
LCM (Liquid Crystal Display Module)
Reserved for the user to define.
NMI Button
Press to issue a Non-Maskable Interrupt (NMI) for debugging purposes.
HDD/SDD Bays
Two 2.5" HDD/SSD swappable bays for installing HDD/SSDs.
LED Indicators
Indicates the power status, error status, and storage drive activity of the
system.
Reset Button
Press to restart the system.
RJ45 Type Management LAN Port
RJ45 type LAN port used for managing the system.
SFP Type Management LAN Port
SFP port used for managing the system.
USB Ports
Used to connect USB 3.0/2.0/1.1 devices.
RJ45 Type Console Serial Port
Used to connect console device with RJ45 type connection.
LAN Modules
PCIe 5x16 LAN modules. (SFF OCP 4C+ standard interface)
PCIe 5x8 LAN modules. (SFF OCP 4C+ standard interface)
