Fieldbus Cable Connections

3 Fieldbus Cable Connections

3.1 Prerequisites for Installation

Communication interfaces are integrated in the control board in iC7 drives.
The position of the connections differs based on the control board concept and frame, for example. For more information on the
location of the connections, cabling, and shielding, refer to the drive design guide.

3.2 Installation in Frequency Converters

3.2.1 Communication Interface X1/X2 in Frames FA02–FA12
The communication interface is on the top of the frequency converter as shown in Illustration 5. Industrial-grade RJ45 connectors
are recommended for optimal connection. A combined shield/fixing plate, the Fieldbus EMC plate, is available as an accessory to
strengthen the mechanical fixation of the cables.
X1 X2

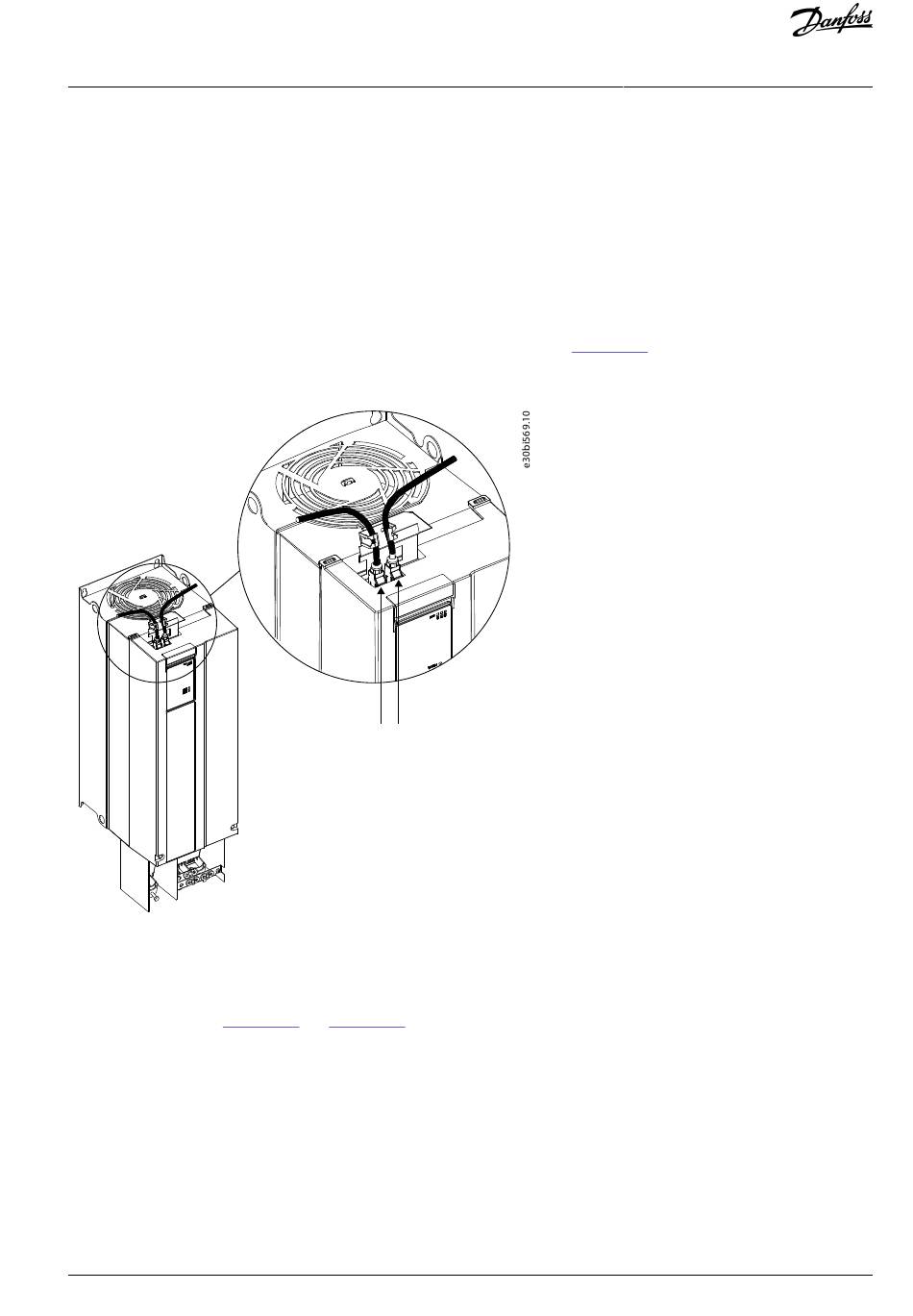

Illustration 5: Location of the Communication Interface, X1/X2 in FA02-FA12 Frames (with the Optional EMC Plate)
3.2.2 Communication Interface X1/X2 in Frames FK06–FK12
The communication interface ports are located inside the frequency converter. The position of the ports and the recommended
wiring path are shown in Illustration 6 and Illustration 7.
