Offline Device Preview

Opening a new device tab for an offline device displays the interface and configuration options for the device
without connecting to it. However, settings cannot be changed.
To open the transmitter device tab:
1. From the Configuration File drop‑down list, select New Configuration File (see figure 14).

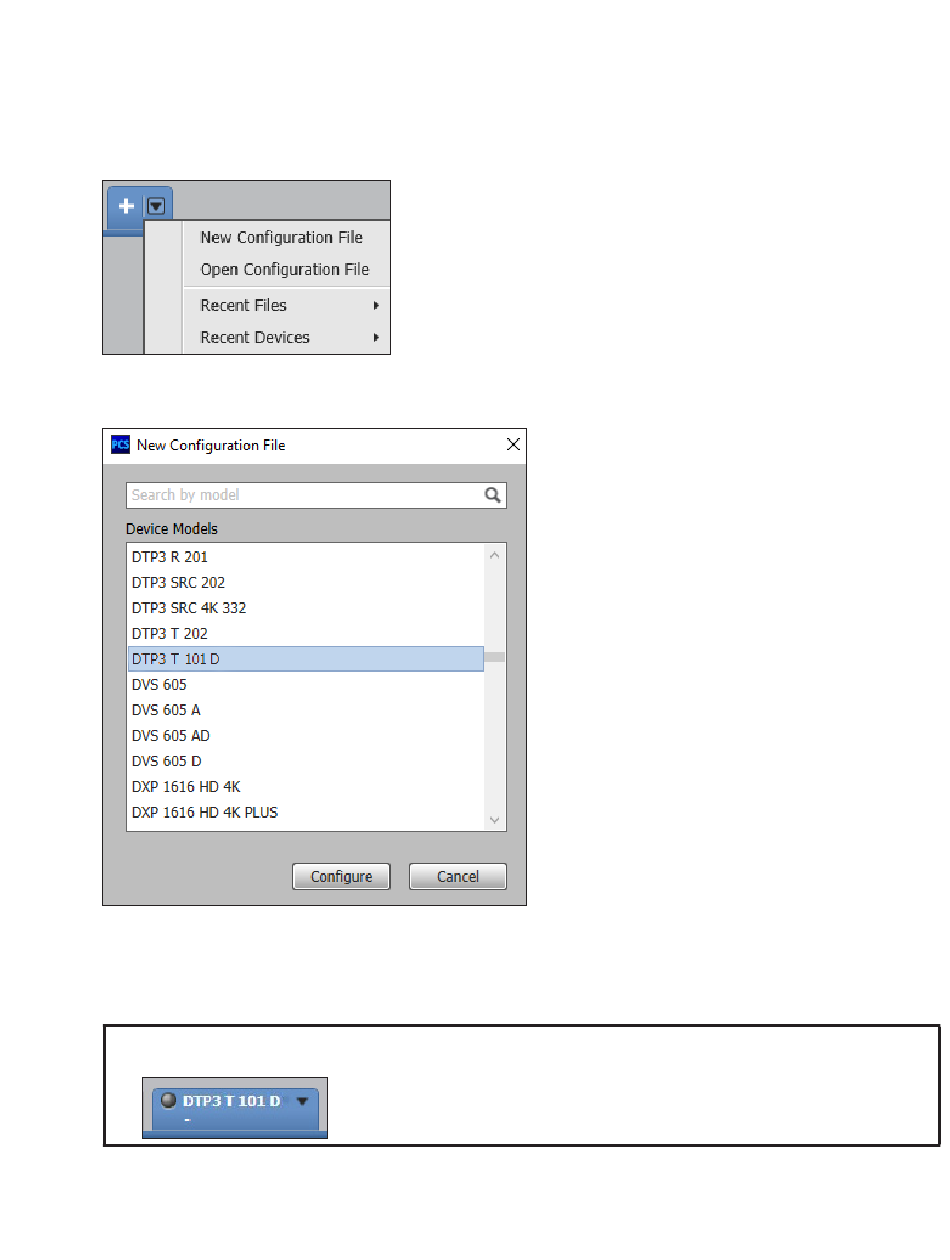

Figure 14. Configuration File Drop‑Down List
The New Configuration File dialog box opens (see figure 15).
Figure 15. New Configuration File Dialog Box
2. Select the desired device model from the Device Models list.
3. Click Configure.
A new offline device configuration tab opens.
NOTE: The
DTP3 T 101 D
that there is no device connected and the software is running in offline configuration mode.
device tab (see the image below) has a grayed out indicator (circle) to indicate
DTP3 T 101 D • Proudct Configuration Sotware 19
