To wire the power supply:

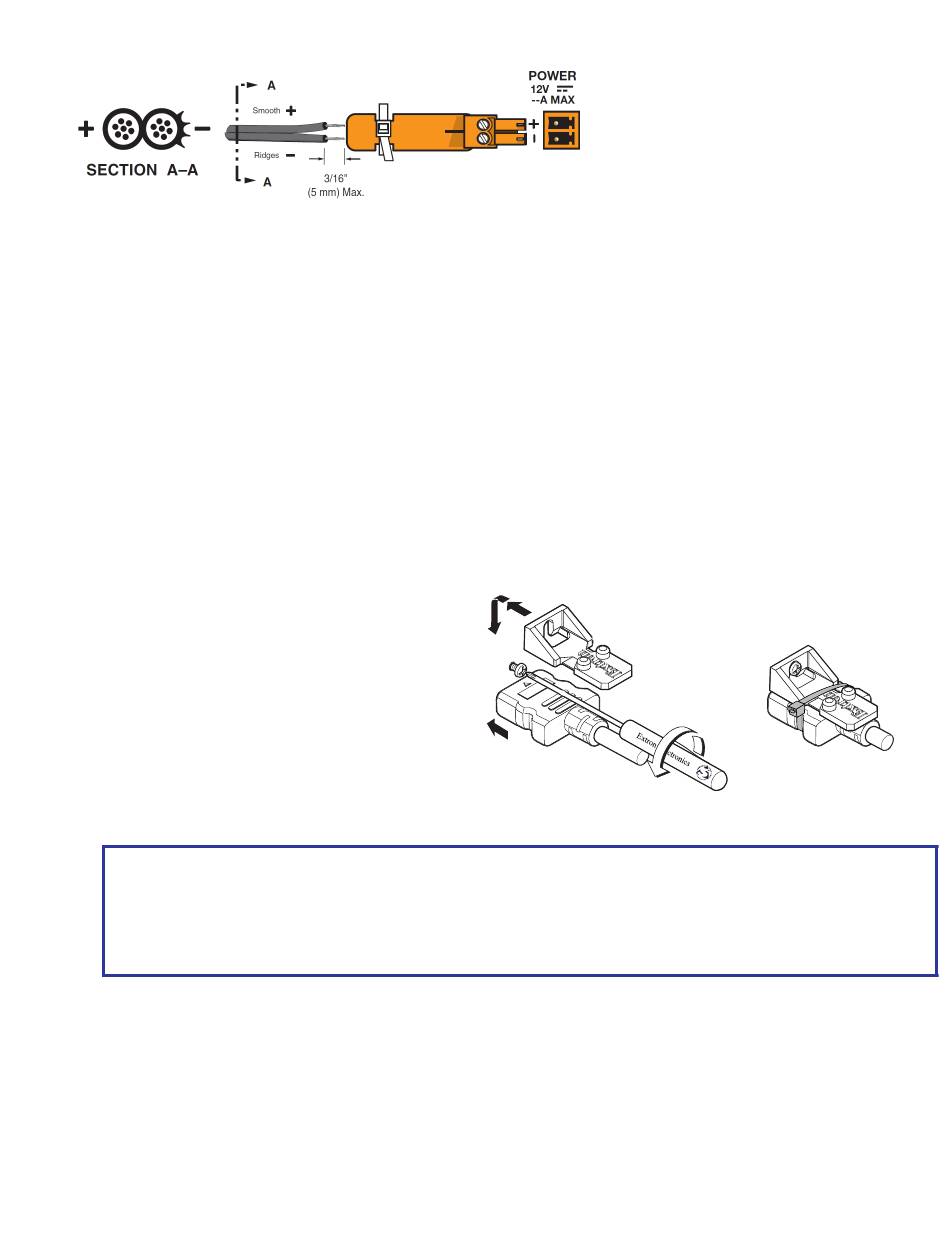

Figure 7. Power Connectiong Wiring
1. Cut the DC output cord to the length needed.
2. Strip the jacket to expose 3/16 inch (5 mm) of the conductor wire.
3. Ensure the connections have the correct polarity as shown in the figure above. The wire with ridges is the
ground wire.
4. Slide the exposed ends of the wire into the captive screw connector and secure by tightening the screws.
5. Use the supplied tie wrap to strap the power cord to the extended tail of the connector.

LockIt HDMI Lacing Bracket Installation

HDMI signals run at a very high frequency and are especially prone to errors caused by bad video connections,
too many adapters, or excessive cable length. To avoid the loss of an image or jitter, follow these guidelines:
•
Limit or avoid the use of adapters.
• Use only cables specifically intended for HDMI or DVI signals.
To securely fasten an HDMI cable to a device:
1. Plug the HDMI cable into the panel
connection (see figure 8,
2. Loosen the HDMI connection mounting
screw from the panel enough to allow the
LockIt lacing bracket to be placed over it
( ). The screw does not have to be
2
removed.
3. Place the LockIt lacing bracket on the
screw and against the HDMI connector,
then tighten the screw to secure the
bracket ( ).
3
ATTENTION:
• Do not overtighten the HDMI connector mounting screw. The shield to which it fastens is very thin
and can easily be stripped.
•
Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle est attachée
est très fin et peut facilement être dénudé.
4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket (
5. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie
wrap, then remove any excess length (
).
1
).
5
3 3
2 2
1 1
Figure 8. LockIt Lacing Bracket
4 4
3
5 5
).
4
