Front and Rear Panel Connections
A
HDMI input
A
Power inlet
B
Reset button
C
Figure 4.

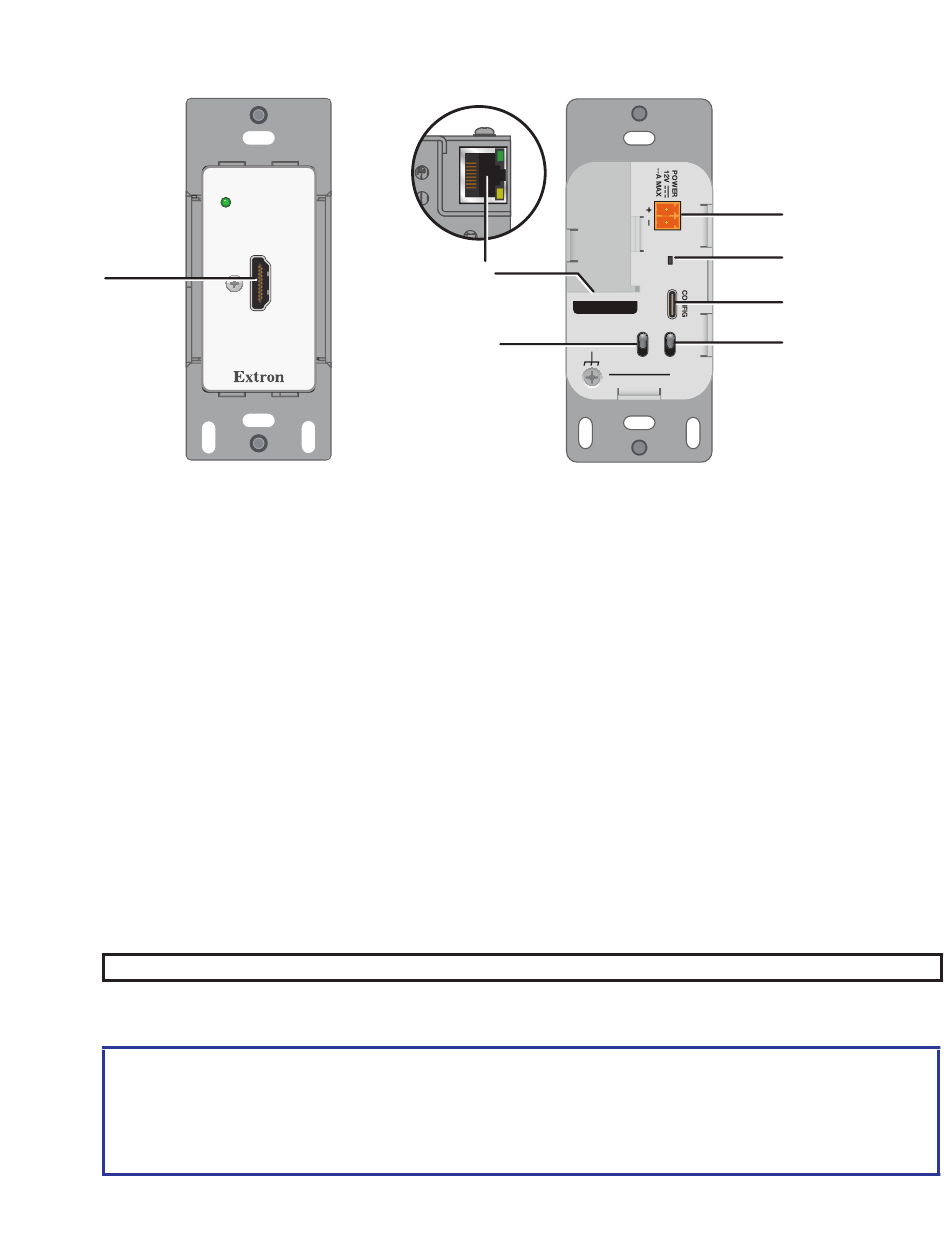

DTP3 T 101 D Front and Rear Panel Connections
HDMI input — Connect an HDMI cable between this port and the HDMI output port of the digital video source
A
(see
LockIt HDMI Lacing Bracket Installation
A
Bracket).
Power inlet —Plug the included external 12 VDC power supply into either this 2‑pole connector
B
Supply Wiring
for more information).
Reset button — This recessed button initiates two levels of reset on the transmitter. To initiate the different
C
reset levels, use a pointed object such as a small Philips screwdriver or a stylus to press and hold the button
while the transmitter is running or while it is being powered up (see
Configuration port — Connect a USB‑C cable to a computer to configure the device and update the
D
firmware via Product Configuration Software (PCS) or Firmware Loader (see the Firmware Loader Help File
for details).
NOTE: If needed, configure the device before moutning in the wall box or mud ring.
DTP/HDBT toggle switch — Set this switch to DTP or HDBT according to the receiving device connected to
E
the switcher.
ATTENTION:
•
Position this switch BEFORE connecting the appropriate device to the TP connector. Failure to
comply can damage the endpoint.
•
Positionnez le sélecteur AVANT de connecter l'appareil approprié au connecteur TP. Ne pas
respecter cette procédure pourrait endommager le point de connexion.
HDMI IN
HDMI IN
a
DTP3 T 101 D
Front Panel
Configuration port
D
DTP/HDBT toggle switch
E
HDMI IN
HDMI IN
on page 11) or the power input connector on the receiver (see the user guide of your receiver
a
DTP3 T 101 D
Front Panel
Top View
G
OUT
F
SEND POWER
OFF
DTP3 T 101 D
DTP3 T 101 D
Rear Panel
Send Power toggle switch
F
TP output
G
on page 12 to use the included Extron Lock‑It Lacing
Resetting
B
C
RESET
D
E
HDBT
DTP
(see
on page 13 for details).
DTP3 T 101 D • Installation
Power
7
