STAC5 Ethernet Hardware Manual

Programmable Outputs

The MSSTAC5-S drives feature two digital outputs.
These outputs can be set to automatically control a motor brake, to
signal a fault condition, to indicate when the motor is moving or to
provide an output frequency proportional to motor speed (tach out).
Or the outputs can be turned on and off by program instructions
like Set Output. MSSTAC5-Q drives include four additional
programmable outputs.
The outputs can be used to drive LEDs, relays and the inputs of
other electronic devices like PLCs and counters. For Y1, Y2 and
OUT4, the "+" (collector) and "-" (emitter) terminals of each transistor
are available at the connector. This allows you to configure each
output for current sourcing or sinking. OUT1, OUT2 and OUT3 can
only sink current. The COM terminal must be tied to power supply
(-).

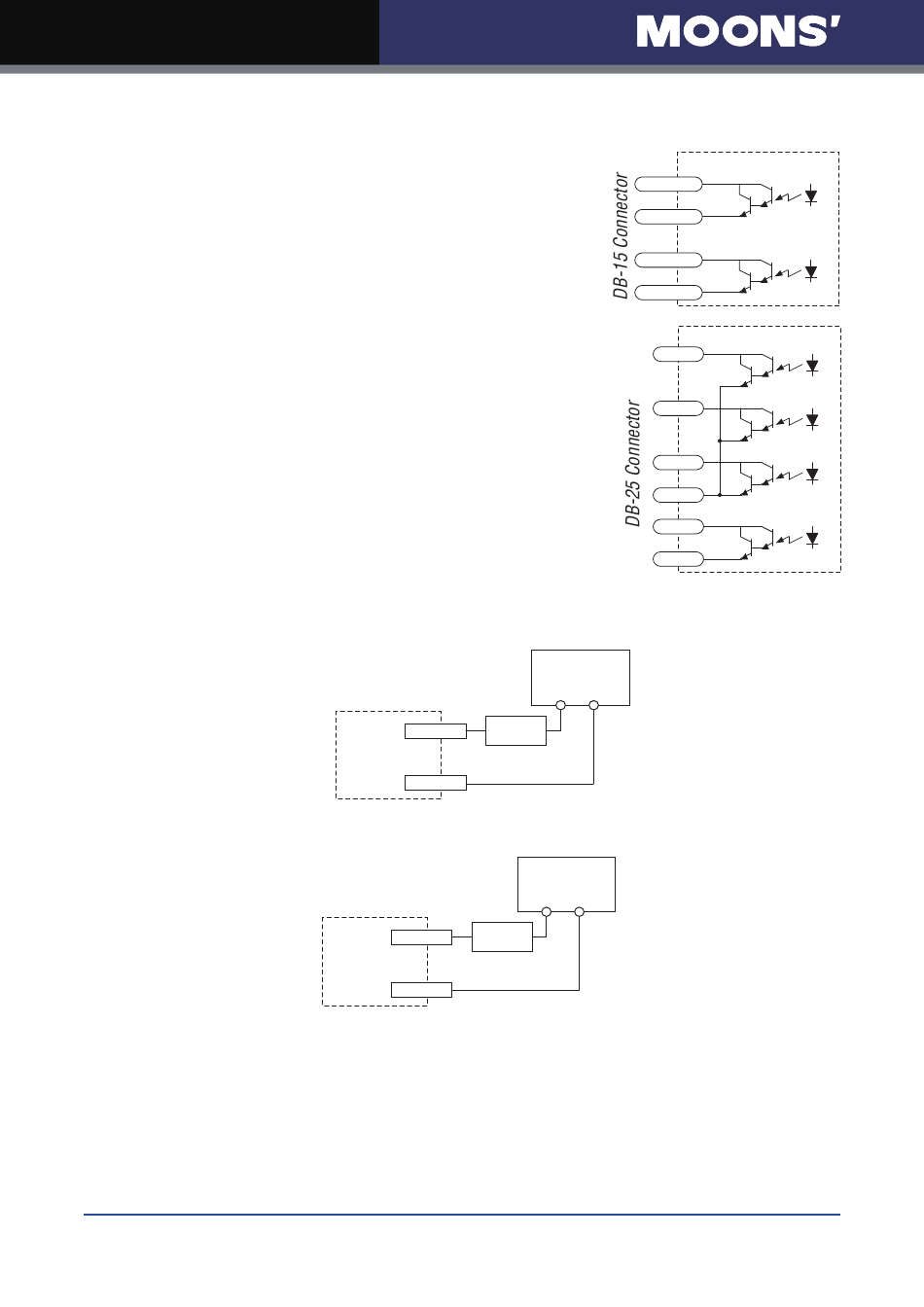

Diagrams of each type of connection follow.
Do not connect the outputs to more than 30VDC.
The current through each output terminal must not exceed 100 mA.
OUT1/2/3
IN/OUT2
OUTCOM
Sinking Output Using OUT1, OUT2 or OUT3
Load
OUT+
STAC5
OUT-
Sinking Output Using Y1, Y2 or OUT4
21
11
Y1/FAULT+
12
Y1/FAULT-
13
Y2+
14
Y2-
14
OUT1
15
OUT2
16
OUT3
17
COM
20
OUT4+
21
OUT4-
5-24 VDC
Power Supply
+
Load
5-24 VDC
Power Supply
+
IN/OUT 1
IN/OUT 2
Rev. 1.0
05/07/2013
