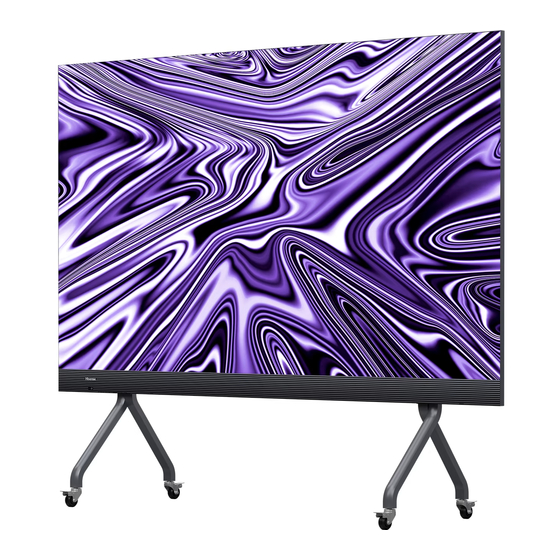

Hisense HAIO138 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HAIO138
HAIO163
USER MANUAL
Read the manual carefully and ensure you have fully understood its contents
before operation this device for the first time
English
1303262 RSAG2.025.8462(0002)SS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAIO138 and is the answer not in the manual?

Questions and answers

Related Manuals for Hisense HAIO138

Summary of Contents for Hisense HAIO138

  • Page 1 HAIO138 HAIO163 USER MANUAL Read the manual carefully and ensure you have fully understood its contents before operation this device for the first time English 1303262 RSAG2.025.8462(0002)SS...
  • Page 2 Safety Precautions Declaration Any content and service accessed through this device shall be the property of the applicable third party and subject to protection by regulations and laws on copyright, patent, trademark and other intellectual property rights. part of such content and service may be modified, duplicated, published, uploaded,...
  • Page 3 AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage. DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage. Class I product: This symbol indicates that it requires a safety connection of protective earthing. Disposal of Used Electrical &...
  • Page 4 Safeguards Please read the following safeguards for your device and retain for future reference. Always follow all warnings and instructions marked on the device. 1. A note about safety and operating instructions Read and follow all safety and operating instructions, and retain them safely for future reference. 2.
  • Page 5 13. Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 14.

  • Page 6: Table Of Contents

    4. Making Connections.......................4 5. Initial Start........................8 6. Use of Menu........................12 7. Serial Protocol.......................17 8. Other Infomation......................18 9. Trouble Shooting......................19 10. Other Infomation......................21 11. Installation Guideline (HAIO138)..................23 12. Installation Guide (HAIO163)..................40 Accessory Contents User Manual× 1 Remote Control× 1 7# Battery× 2 NOTE: The accessories may be different from the list above due to different models, countries / regions, please refer to the actual accessory bag.

  • Page 7: Remote Control

    Remote Control Standby Mute Enter /exit standby Activate/exit mute state Remote Lock Setting Lock/Unlock Open the Settings menu Source Select Source Confirm operation(OK) Move focus up/down Move focus left/right Menu Call out function menu Back Back to previous menu Home Enter home page Volume up (+) Volume down (-)

  • Page 8: Front Panel | Interface

    Precautions 1. If the remote control is not working properly, is unstable, or can’t control the device, please replace the batteries. 2. If you do not use the remote control for a long time or the battery is exhausted, remove the battery. (Waste batteries pollute the environment and must be handled properly.) 3.

  • Page 9: Making Connections

    The front HDMI interface allows digital audio and video signals to be transmitted using a single cable without compression. HDMI supports HDMI IN multi-channel digital audio, and can be connected to external devices with HDMI port. Audio out to Headphones HEADPHONE Serial interface, used for mutual transfer of data between devices RS232...
  • Page 10 Connect to a network • Enter the Settings menu and select the Network item. The device can receive network signals directly through a Wireless router • The available wireless network list is automatically displayed when WIFI is selected. • Select an available network, enter the password, and tap Connect. If the selected network is not encrypted, you can connect directly.
  • Page 11 Switching on/off the OPS • After inserting OPS to the device, you turn on the device, change the signal source to enter OPS and stays on the OPS syetem interface. When you turn off the device, you should use the standby button to go into standby mode, the OPS module is switched off, and then you shut off the device.
  • Page 12 【Description】 • Powering off the unit directly may damage the hard disk of the OPS module. It is strongly recommended that you use the following two methods to shut down: 1. When switching off the unit, please use the remote control to make the unit be in a standby mode. At this time, the OPS module will be shut down normally, followed by the power cutoff.

  • Page 13: Initial Start

    Initial Start Switching on/off • Connect the power cord of the device to a 110V to 240V AC outlet. • Connect the power cord of the device to a 100V to 240V AC outlet. • Press the standby button [ ] on the remote control in the power on state to switch the device to standby;...
  • Page 14 Ap p . Choose the App icon to select Application and File. LED All-In-One User Manual...
  • Page 15 • Hisense Screen Share • Guide for Dongle (1) Pairing Pairing method: Insert the Miracast into the USB port of the whole machine, and pair it. After successful, insert it into the USB port of computer, and automatically run Miracast software. Click Miracast button according to the prompts.
  • Page 16 • Guide for Phone 1. Download method: Official website of Hisense Commercial Display or scan QR code at the large-screen terminal. This app can also be found by searching for “HisenseScreeShare” in the Google App Store and Apple App Store 2.

  • Page 17: Use Of Menu

    Use of Menu Common Input method: switch the input method. The default input method is Kika. ・ Language setting: Select menu language as Chinese/English/French/German/Spanish/Italian / ・ Polish/Arabic. Time zone setting: Set the current time zone, the default is China UTC+8, and it is sorted by the first ・...
  • Page 18 Wireless hotspot: When switched on, the TV turns into a router to share the wireless network. You ・ can choose on, off and on-by-default. Wireless display: The mobile device can be connected to display contents on the mobile device. ・ Wireless network card/Miracast support is required.
  • Page 19 Picture Picture mode: Select the appropriate picture effect according to the content you are watching. You ・ can select Standard, Conference, Cinema, Exhibition hall, HDR Standard, HDR Exhibition Hall, and Default Standard. (When playing HDR source, you can select HDR Standard and HDR Exhibition Hall) Intelligent backlight adjustment: Featured display technology to realize independent control of ・...
  • Page 20 Sound Sound Mode: Select the appropriate sound effect according to the content you are watching. You ・ can select Standard, Sports, Movie, Music, Custom Settings, and Default Standard. DTS Sound: Switch on or off DTS Bass Boost, DTS Virtual Sky Tone, DTS Clear Dialogue, DTS ・...
  • Page 21 System One-touch play: After switched, connect the set-top box, computer and other external devices, ・ and the TV will automatically play the device screen. You can select On or Off. Debug mode: Call native Android settings. ・ Local key: When it is switched on, it will not be shielded, and when it is switched off, the local key ・...

  • Page 22: Serial Protocol

    Serial Protocol Serial port status The device can receive the serial port command sent by the external controller or OPS of the device. Refer to the following table for the specific command protocol: 1. Baud rate: 115200 2. Control section: PC → The device 3. Response section: TV → PC Protocol header Length Command code...

  • Page 23: Other Infomation

    Other Infomation Recycling/Licenses WEEE (Waste Electronic Electric Equipment) European Directive 2012/19/EU This symbol on the product or on its packaging indicates that this product must not be disposed of with your household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 24: Trouble Shooting

    Trouble Shooting Before preparing for repair, check according to the table below to see if you can find the cause of the problem. If you strictly follow the instructions but still can’t resolve the problem, you can turn to professional servicemen for help.
  • Page 25 Maintenance of LED display screen 1. The control PC, video processor and other equipment shall be placed in a dry and clean environment with good ventilation.Avoid direct sunlight to all the equipment. The ambient temperature should be kept between 18 ℃ and 25 ℃.

  • Page 26: Other Infomation

    Specification Pixel Pitch 1.59 mm 1.875 mm Pixel Configuration 3 in one SMD 3 in one SMD Screen Resolution (W × H) 1,920 × 1,080 1,920 × 1,080 Screen Dimensions (W x H x D) (mm) o Screen Frame) o Screen Frame) 6 ×...
  • Page 27 Andriod 9.0 Andriod 9.0 4 core A73+Mali-G52 CPU System 64GB 64GB Chinese/English(Defalt)/ French, German, Language Spanish, Italian, Polish, ,Arabic Speaker Built in 60W（15W*4） Built in 60W（15W*4） Servicing Front Front Optional Accessory Mobile Cart/Wall bracket/OPS/Dongle Controller Embedded Embedded The supported video formats are as follows: Video decoding Encapsulation Audio Decoding...

  • Page 28: Installation Guideline (Haio138)

    Installation Guideline (HAIO138) • Installation environment requirements 1. Before the installation of LED display screen, it is necessary to confirm the site environment. The site need to be decoration and the ground has been cleaned up. 2. Temperature on site: 0-30 degrees;...
  • Page 29 Step 1: As shown in the figure below, use the existing worktable or the packing box as temporarily worktable, with a length not less than 1300mm, a width not less than 1000mm, a height not less than 410mm, and lay a protective worktable cloth.
  • Page 30 Step 4: Fix the connecting blocks (in another storage box) on the beam with 2 Pcs M6×15 screws according to the direction shown in the figure. Total of 9 connecting blocks and 18 screws are fixed at intervals as shown in the figure. NOTE: During the fixing process, the connecting blocks is in a natural drooping state.
  • Page 31 Screw (M6×15) ×4 LED All-In-One User Manual...
  • Page 32 2. Cabinet Assembly The overall shape after assembly is as follows: Take out cabinet No. 13-18 in the bottom row. The serial number of each cabinet is as shown in the Figure. Fix bottom row of cabinets on the bottom beam at first, and then fix No. 15 cabinet (or No. 16 cabinet) according to in the order from middle to both sides, and place the cabinets on the bottom beam (Media Bar).
  • Page 33 Screw (M6×15) 30 in total Fixation between cabinet and bottom beam (Media Bar) 6 Cabinets, M6×16 2 PCS FOR FIRST FLOOR CABINET WITH BOTTOM BEAM TOTAL 12 PCS LED All-In-One User Manual...
  • Page 34 (4) Use the same method to fix No. 16 cabinet (or No. 15 cabinet). Then use three special silver M6 x 22mm set screws shown in the Figure to attach cabinets to cabinets from bottom center outward. Hand tighten. Use 6mm hex wrench to fix the sides of the two cabinets, adjust the front surface of the cabinet and the flatness of the upper side, and then tighten the screws.
  • Page 35 Note: In the above installation process, if the deviation between the cabinet and the screw position of the connecting block is too large to be fixed, there is need to loosen the two screws of the connecting block and the mobile cart frame in Page- Step 4, so that the connecting block and the surrounding cabinets can be connected normally, and then tighten the above-mentioned screws.
  • Page 36 M3×6, Total 26 Pcs 5. LED Module Assembly Check the cabinet packaging of LED module. The LED module installation should be after finished of all cabinets’ installation, power and network cables connection according to the sequence number. LED module sequence is the same as marked cabinet sequence.
  • Page 37 LEDModule S/N 15-4 15-3 15-2 15-1 15-8 15-7 15-6 15-5 15-12 15-11 15-10 15-9 (5) Conduct power-on check during the installation of LED moduleas required. Finally, conduct overall power-on check. LED All-In-One User Manual...
  • Page 38 REMARK: 1. The No.1, 2, 3...18 , Represent the sequence number of Cabinet; 2. The 1-1, 1-2, 1-3 …1-12 represent the module sequence number on Cabinet 1. For Example: 1-1 corresponds to the upper left corner of the Cabinet 1； 1-4 corresponds to the upper right corner of the Cabinet 1；...
  • Page 39 （3）Use two pieces of M4 screws and fasten the bracket to the rear surface of the bottom beam. Description: 1. During the above-mentioned installation process, if the deviation between the cabinet and the screw position of the connecting block is too large to be fixed, there is need to loosen the two fixing screws of the connecting block and the mobile bracket in Page 25-Step 4, so that the connecting block and the surrounding cabinets can be connected normally, and then tighten the above-mentioned screws.
  • Page 40 Wall-mounted Bracket 1.Wall-mounted Structural Accessories 1527mm 30×30 aluminum 1712mm 30 ×30 aluminum bracket× 4 bracket × 8 L-shaped 30 bracket iron M6 × (14) hexagon socket head corner connector × 48 cap screw× 72PCS M6 T-Nut ×72 Slotted bracket connector ×8 M4 Slotted profile connector fixing screws ×32 Overall appearance diagram of wall-mounted structure (size: mm): LED All-In-One User Manual...
  • Page 41 2. BracketStructure Installation 1） Use bracket connectors to connect 2 pieces of profiles with the length 1527, with 2 pieces used for each group (connection diagram as shown below) 2） Install the bottom bracket rod. Installation preparation: Please use a spirit level or a laser level meter to ensure that the bottom bracket rod keeps vertical and flat.
  • Page 42 Detailed Drawing： Installation /Step2: Fix transverse profile rod to the vertical profile rod by use of profile iron corner connectors, and M6×14 screws according to the interval size shown in the following Figure. Note: The interval size shall be strictly followed. LED All-In-One User Manual...
  • Page 43 3. Installation of Display Unit Cabinet After the wall-mounted bracket is installed, follow the steps below to install the cabinet in the bracket: (1) For the integrated packaging method of flight case, it is required to take out two sets of 3×3 combinations, totaling 18 units of display cabinets.
  • Page 44 4. Bottom Beam Assembly (1) Take out the already-assembled bottom beam, remove the 13 fixing screws on the ground side, and remove the front cover (left cover and right cover). (2) Place the bottom beam under the already-assembled display unit cabinet, and respectively fix the cabinet at the bottom with the bottom beam by use of 12 pieces of M6X16 positioning screws.

  • Page 45: Installation Guide (Haio163)

    Installation Guide (HAIO163) 1. Preparatory Process Check the package integrity： 2. Mobile Bracket Assembly (1) Unpack and check the material integrity of mobile bracket, including four pieces of cross beams, two pieces of columns on the left and right, totaling six components. (2) Use the existing table top or packing cabinets to temporarily form a table top, with a length of not less than 1800 mm, a width of not less than 1000 mm, a height of not less than 410mm, and pavement of a protective table cloth.
  • Page 46 （5）Erect the mobile bracket, and fix 30 fixing screws tightly after checking that there are no abnormalities in the trolley. Columns on both sides M8 fixing screws and gaskets (30 in total) （6）Use 2 pieces of screws M6×16 to fix on the cross beam according to the direction shown in the Figure, and fix the connecting block (in another storage box) with a total of 12 connecting blocks and 24 screws at intervals as shown in the Figure.
  • Page 47 3. Installation of side frame and upper frame (1)Unpack and check the integrity of components, including two sections of upper front shells, two side front shells on left and right side, and two sections of bottom beams (including the covers fixed on them), a total of six components.
  • Page 48 Cabinet fixation (4)Use the same method to secure No. 34 cabinet (or No. 33 cabinet). Then use the two stainless steel stepped screws shown in the Figure to fix the sides of the two cabinets, adjust the front surface of the cabinet and the flatness of the upper side, and then tighten the screws. You can also pre-connect the sides of No.
  • Page 49 Note: In the above installation process, if the deviation between the cabinet and the screw position of the connecting block is too large to be fixed, there is need to loosen the two fixing screws of the connecting block and the mobile bracket in Page- Step 4, so that the connecting block and the surrounding cabinets can be connected normally, and then tighten the above- mentioned screws.
  • Page 50 6. Side Front Shell Installation (1)For the front cover installation, a total of 12 hand screws are required. (2)Left front shell installation, a total of 12 hand screws + 1pc M3 screw. (3)Right front shell installation, a total of 12 hand screws + 1 pcM3 screw. Details A Details B 7.
  • Page 51 (5) Conduct power-on check during the installation of LED module as required. Finally, conduct overall power- on check. REMARK: 1. The No.1, 2, 3...18 , Represent the sequence number of Cabinet; 2. The 1-1, 1-2, 1-3 …1-12 represent the module sequence number on Cabinet 1. For Example: 1-1 corresponds to the upper left corner of the Cabinet 1；...
