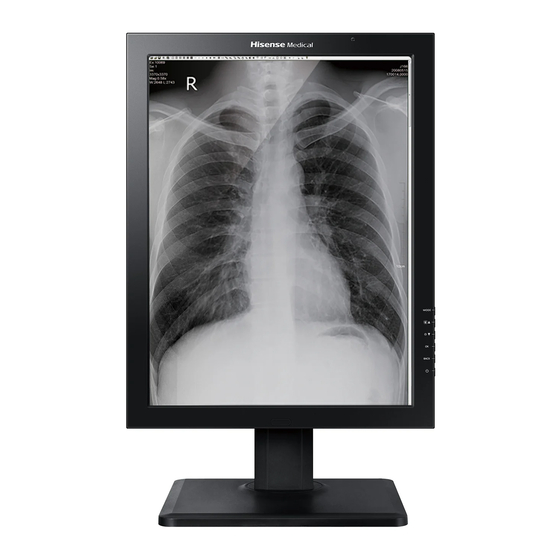

- Page 1 HMD2C21A User Guide Read the User Guide thoroughly before using Hisense LCD monitor and keep it properly for future reference. RSAG2.025.6099SS B Version You can download the latest user guide from Hisense website: Hisense website: www.hisense.com...
- Page 3 Read the User Guide thoroughly before using the LCD monitor and keep it properly for future reference. Hisense shall not be liable for any accidents arising from violations of the safety precautions and use instructions of the User Guide.
-
Page 4: Safety Information And Precautions
It is recommended that you use the specified accessories of the LCD monitor, which can be used only with the spare parts and accessories that are manufactured or specified by Hisense. It takes about 30 minutes for the electronic components of the LCD monitor to achieve stable performance. - Page 5 To avoid hazards, do not place the LCD monitor on a soft pad. If the LCD monitor will not be used for a long time, disconnect its power cable. The LCD monitor contains hazardous high voltage inside, so do not disassemble it by yourself. If the LCD monitor is abnormal, contact Hisense or an authorized distributor.
-
Page 7: Table Of Contents
Advanced User Menu – Mode Control ........ 20 Advanced User Menu – SelfQC Settings ......20 Troubleshooting ..........................22 Safety Statement ..........................23 Environmental Protection Information ..................24 Maintenance Disclaimer ........................25 Appendix: List of Terms ......................... 26 1 | Contents | Hisense Product User Guide |... -
Page 8: Overview
Overview Thank you for purchasing Hisense LCD monitor, which complies with the DICOM Part 14 standard and is applicable to DSA, MRI, DR, CR, CT, and PET medical imaging. It is intended for professionally trained medical staff and provides the image viewing and medical diagnostic functions. -
Page 9: Technical Specifications
Storage/Transportation: –20°C to +60°C Environment Operation: 20% to 90% RH, non-condensing Humidity conditions Storage/Transportation: 10% to 90% RH, non-condensing Operation: 70–106 kPa Atmospheric pressure Storage/Transportation: 20–106 kPa Execution standard Q/0202RSR 631 LCD Monitor 3 | Overview | Hisense Product User Guide |... -
Page 10: Accessories
The accessory list is for reference only. If any component is lost or damaged, promptly contact Hisense or the specified distributor. Keep the original package properly. If you need to return this product, be sure to use the original package. Do not place any heavy weight on top of the package during transportation. -
Page 11: Installation
Do not put your hands directly under the monitor to avoid pinching your hands when the monitor reaches the lowest level. When rotating the monitor, adjust the monitor to the highest point of the base to prevent the monitor from touching the base. 5 | Installation | Hisense Product User Guide |... -
Page 12: Front View Of The Lcd Monitor And Side Buttons
Installation Front View of the LCD Monitor and Side Buttons Indicator Note For instructions on using the buttons, see the "Operational Instructions and Function Adjustment" section. | Hisense Product User Guide | Installation | 6... -
Page 13: Rear View Of The Lcd Monitor And Input Ports
Connected to the digital output port on the graphics card of the PC. Two USB ports Connected to the keyboard and mouse only. Output: 5 V, 0.5 A. Used with USB1 port. (downlink) 7 | Installation | Hisense Product User Guide |... -
Page 14: Instructions On Removing And Installing The Rear Housing Cover
The following figure shows the rear housing with the cover correctly installed. Hanging Arm Installation Remove the base assembly to install the required hanging arm or base. Follow the instructions in the User Guide when installing the hanging arm or base. | Hisense Product User Guide | Installation | 8... -
Page 15: Pc Connection
Fix the monitor on the hanging arm or base by using the screws specified by the User Guide. PC Connection The LCD monitor provides multiple connections to a PC and allows you to switch to any of the 9 | Installation | Hisense Product User Guide |... -
Page 16: Usb Connection
USB Connection Connect the LCD monitor to a PC by using the provided USB cable. The following figure shows the PC connection diagram. USB port (Delivered with the LCD monitor) USB port | Hisense Product User Guide | Installation | 10... -
Page 17: Operational Instructions And Function Adjustment
Button indication bar The button indication bar displays the information of some (mechanical) buttons of the LCD monitor to facilitate operations. 11 | Operational Instructions and Function Adjustment | Hisense Product User Guide |... -
Page 18: Mode Selection
; compliant with DICOM Part 14. Custom Compliant with Gamma, with support for custom parameter settings. Applicable to display processed text or electronic tables, with support for custom Text parameter settings. | Hisense Product User Guide | Operational Instructions and Function Adjustment | 12... -
Page 19: Light Box
3) Press BACK to return to the Home screen. Note This feature is available only when no display mode is selected or no menu is displayed and Display Lock is set to Lock. 13 | Operational Instructions and Function Adjustment | Hisense Product User Guide |... -
Page 20: Menu Adjustment
In each menu, you can perform the following operations: Press to select an item. The selected item is highlighted. Press OK to confirm the operation or go to the next menu. | Hisense Product User Guide | Operational Instructions and Function Adjustment | 14... -
Page 21: User Menu - Display Settings
Select the display mode to be adjusted. The following table lists the initial values of all modes. Mode Brightness (cd/m Gamma Value DICOM300 300 DICOM DICOM350 350 DICOM DICOM400 400 DICOM DICOM450 450 DICOM DICOM500 500 DICOM DICOM600 600 DICOM 15 | Operational Instructions and Function Adjustment | Hisense Product User Guide |... - Page 22 The image is displayed in full screen mode. Full The image may be deformed due to the difference between the image resolution and screen resolution. Enlarged The image is enlarged proportionally. | Hisense Product User Guide | Operational Instructions and Function Adjustment | 16...
-
Page 23: User Menu - Power Saving Manager
Set Power to enable or disable the power indicator. When it is enabled, you can select the High or Low option. The default value is Low. 17 | Operational Instructions and Function Adjustment | Hisense Product User Guide |... -
Page 24: User Menu - Monitor Settings
The startup logo is displayed only when the LCD monitor is shut down in AC mode and restarted. Signal Input Set Signal Input to select an input signal format. | Hisense Product User Guide | Operational Instructions and Function Adjustment | 18... -
Page 25: Advanced User Menu - Menu Location
OK to confirm the selection and go to the next menu. 4) Press to select an option. 5) Press BACK to return to the previous menu. 19 | Operational Instructions and Function Adjustment | Hisense Product User Guide |... -
Page 26: Advanced User Menu - Mode Control
OK to confirm the selection and go to the next menu. 4) In each menu, press to select an option. 5) Press BACK to return to the previous menu. | Hisense Product User Guide | Operational Instructions and Function Adjustment | 20... - Page 27 SelfQC Frequency Set SelfQC Frequency to configure a calibration cycle. Option Definition Routine The LCD monitor performs automatic calibration every 500 hours. Manual calibration is required. 21 | Operational Instructions and Function Adjustment | Hisense Product User Guide |...
-
Page 28: Troubleshooting
Check whether the PC and operating system are compatible with USB. detected. (To check the USB compatibility of each device, consult the manufacturer.) When the Windows operating system is used, check USB settings in the PC's BIOS settings. 22 | Troubleshooting | Hisense Product User Guide |... -
Page 29: Safety Statement
Consult Hisense. Use the power adapter and power cable provided by Hisense, and ensure that the LCD monitor is properly connected to ground. Do not modify or retrofit the LCD monitor by yourself. Failure to comply with cause interference and damage to the LCD monitor. -
Page 30: Environmental Protection Information
○: The content of the hazardous substances in all the homogeneous materials of the components does not exceed the limits specified in GB/T 26572. X: The content of the harmful substance in at least one homogeneous material of the components exceeds the limits specified in GB/T 26572. 24 | Environmental Protection Information | Hisense Product User Guide |... -
Page 31: Maintenance Disclaimer
User Guide but encounters equipment failure, parts damage, or monitor brightness not reaching the brightness value recommended in the User Guide, Hisense will repair or replace the product according to its own judgment. -
Page 32: Appendix: List Of Terms
Video Electronics Standards Association (VESA) VESA is an international organization that develops video equipment standards for computers and small workstations, and has been committed to developing and promoting display-related standards. | Hisense Product User Guide | Appendix: List of Terms | 26... - Page 33 Qingdao Hisense Medical Equipment Co., Ltd. Address: North, 3F, Outsourcing Center of Software Park, No. 169, Songling Road, Laoshan District, Qingdao, P.R.China Hisense national customer service hotline: 4009940707 Hisense service supervision email: haixinfuwu@hisense.com...
