Part 1.2: FPGA Chip

The FPGA development board uses Xilinx's KINTEX UltraScale chip, model number
XCKU040-2FFVA1156I. The speed class is 2 and the temperature class is industrial.
This model is a FFVA1156 package with 1156 pins and a 1.0mm pitch. The chip

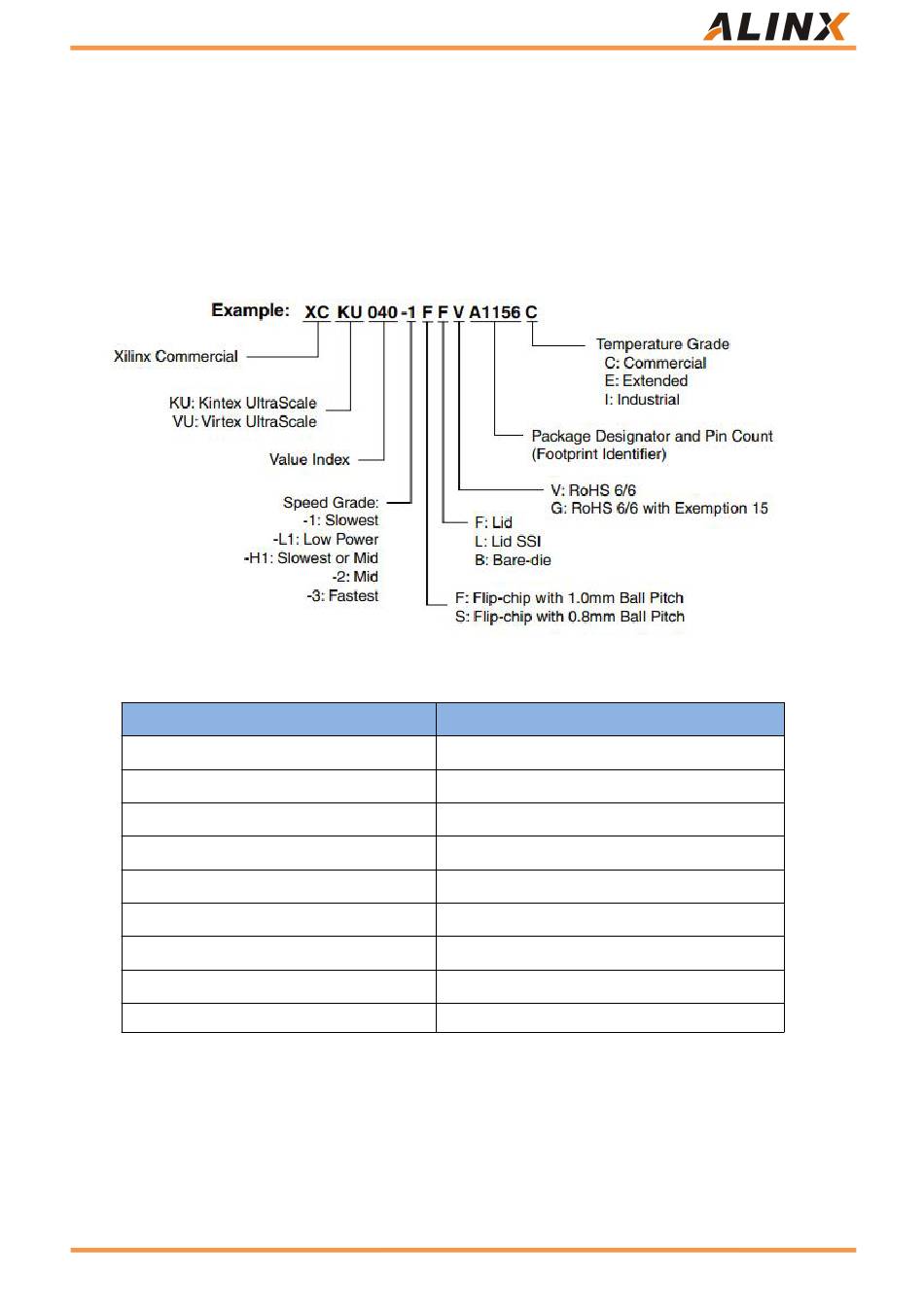

naming rules for Xilinx KINTEX UltraScale FPGA are shown in Figure 1-2-1 below:
Figure 1-2-1 The Chip Model Definition of KINTEX UltraScale Series
The main parameters of AXKU042 are as follows：
Logic Cells
CLB LUTs
CLB flip-flops
Block RAM（Mb）
DSP Slices
PCIe Gen3 x8
GTH Transceiver
Speed Grade
Temperature Grade

Part 1.3: DDR4 DRAM

The AXKU042 FPGA development board is equipped with four Micron 1GB DDR4
chips, model MT40A512M16LY-062EIT. Four DDR4 SDRAMs form a 64-bit bus width.
