Part 1.5: Clock configuration

200Mhz differential clock source
A differential 200MHz clock source is provided on the FPGA development board
to provide the system clock to the FPGA. The crystal differential output is connected
to the FPGA BANK45, which can be used to drive the DDR controller operating clock

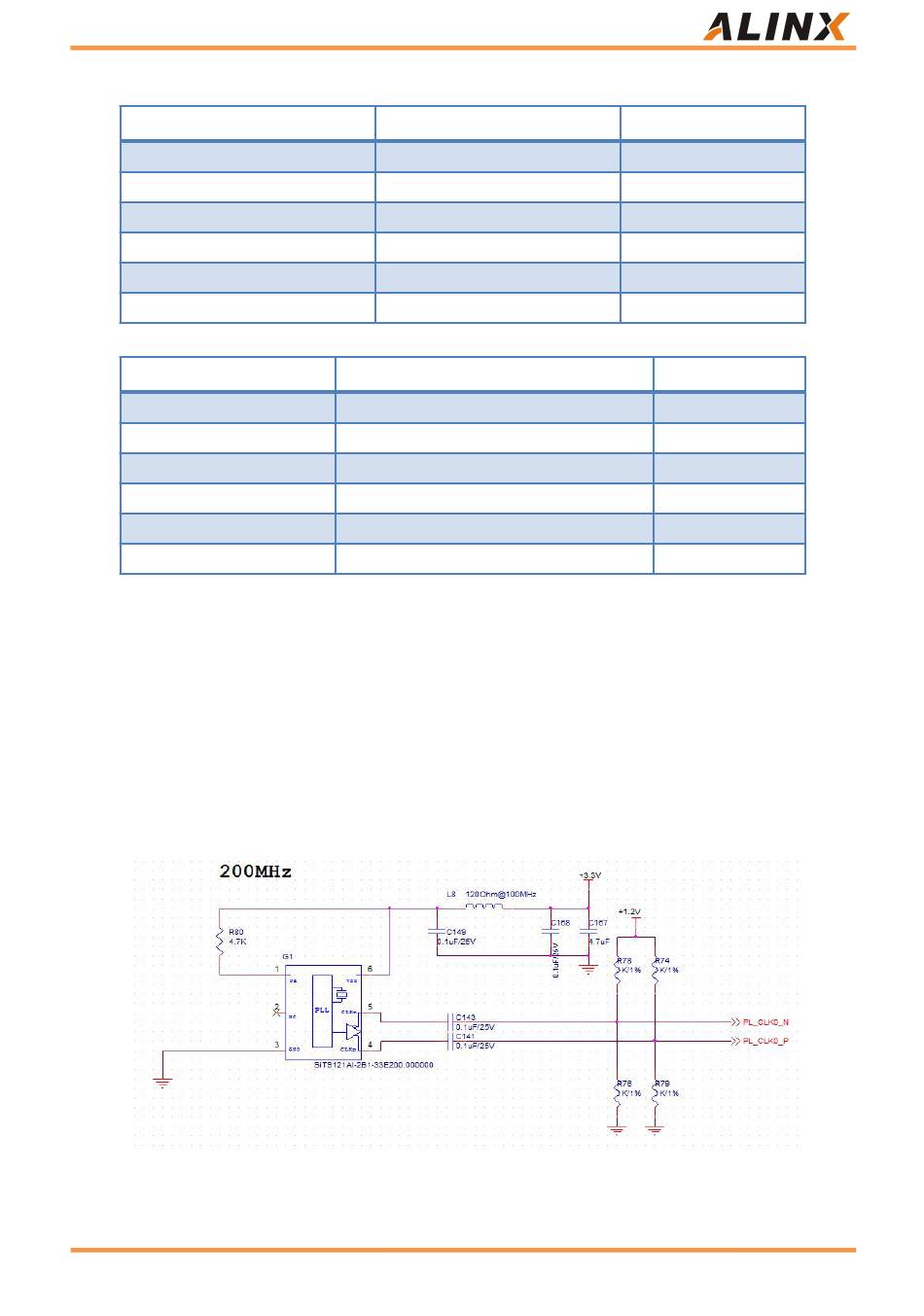

and other user logic in the FPGA. The schematic diagram of the clock source is shown
in Figure 1-5-1.
