Part 1 AXKU042 Development Board

Part 1.1: FPGA Development Board Introduction

AXKU042(core board model, the same below) FPGA core board,FPGA chip is based
on XCKU040-2FFVA1156I of XILINX company XC7K325 series.This core board uses
four Micron's MT40A512M16LY-062EIT, each of which has a capacity of 1GB, total
capacity is 4 GB. In addition, FPGA chip configuration uses two128MBit QSPI FLASH,
used as FPGA data storage and system files.
The six board-to-board connectors of the core board AXKU042 expand 359 IOs,
Of which 104 IO levels of BANK64 and BANK65 is 3.3V, while other IOs levels of bank
is 1.8V; In addition,the core board also extended 20 pairs of high-speed Transceiver
GTH interfaces. For users who need a lot of IO, this core board will be a good choice.
And IO connection part, the line between the chip and the interface have been done
the equal length and differential processing, and the core board size is only 80 * 60
(mm), very suitable for secondary development.

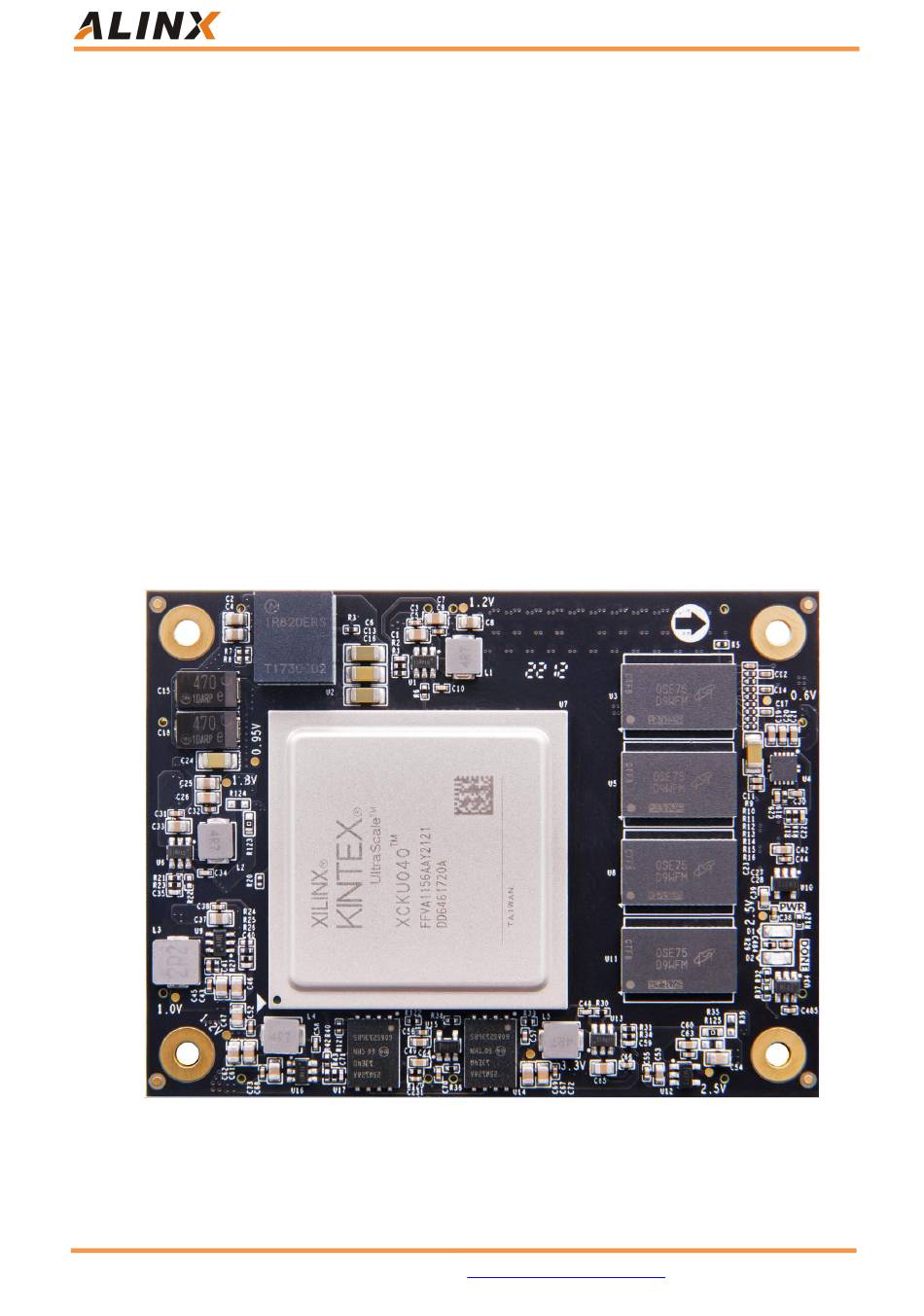

AXKU042
Core Board (Front View)
