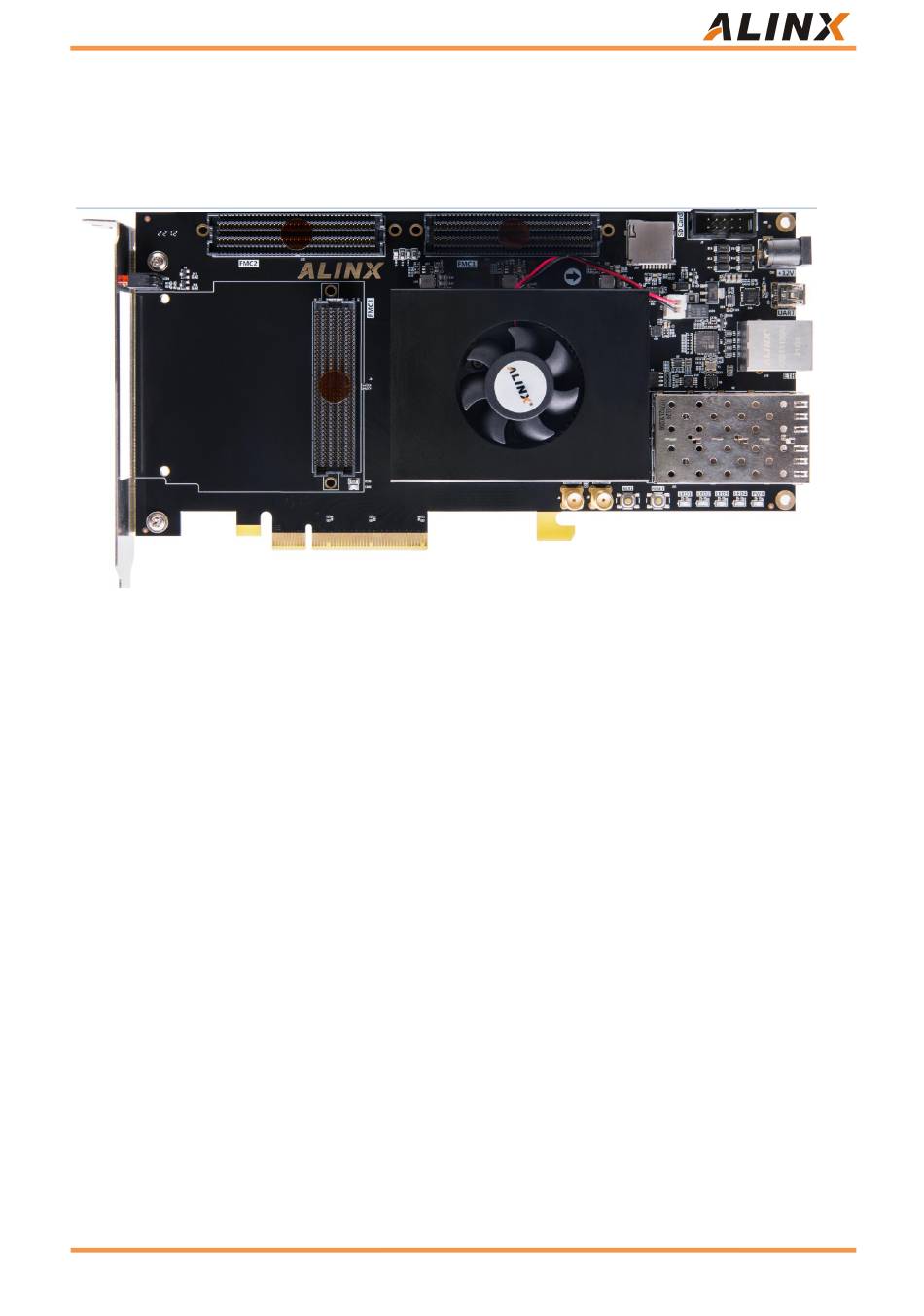

KINTEX UltraScale+ FPGA Board AXKU042 User Manual
Alinx Electronic Technology (Shanghai) Co., Ltd, based on KINTEX UltraSacale series
development platform for the architecture (model: AXKU042) has been officially released. In order
to let you quickly understand this development platform, we have compiled this user manual.
AXKU042 adopts a core board and expansion board model, which facilitates users' secondary
development and utilization of the core board. The core board is equipped with four 1GB
high-speed DDR4 SDRAM chips and two 128Mb QSPI FLASH chips.
In terms of expansion board design, we have extended a variety of interfaces for users: two
10G SFP+fiber optic interfaces, 3 FMC expansion interfaces (1 HPC, 2 LPC), 1 gigabit network port, 1
UART serial port, 1 SD card interface, LED buttons, and so on.
The following figure is a schematic diagram of the entire development system structure:
