Alinx KINTEX UltraScale FPGA AXKU042 User Manual page 35

st
The 1 FMC LPC Connectors Pin Assignment:
Signal Name
FMC1_LPC_CLK0_N
FMC1_LPC_CLK0_P
FMC1_LPC_CLK1_N
FMC1_LPC_CLK1_P
FMC1_LPC_LA00_CC_N
FMC1_LPC_LA00_CC_P
FMC1_LPC_LA01_CC_N
FMC1_LPC_LA01_CC_P
FMC1_LPC_LA02_N
FMC1_LPC_LA02_P
FMC1_LPC_LA03_N
FMC1_LPC_LA03_P
FMC1_LPC_LA04_N
FMC1_LPC_LA04_P
FMC1_LPC_LA05_N
FMC1_LPC_LA05_P
FMC1_LPC_LA06_N
FMC1_LPC_LA06_P
FMC1_LPC_LA07_N
FMC1_LPC_LA07_P
FMC1_LPC_LA08_N
FMC1_LPC_LA08_P
KINTEX UltraScale+ FPGA Board AXKU042User Manual

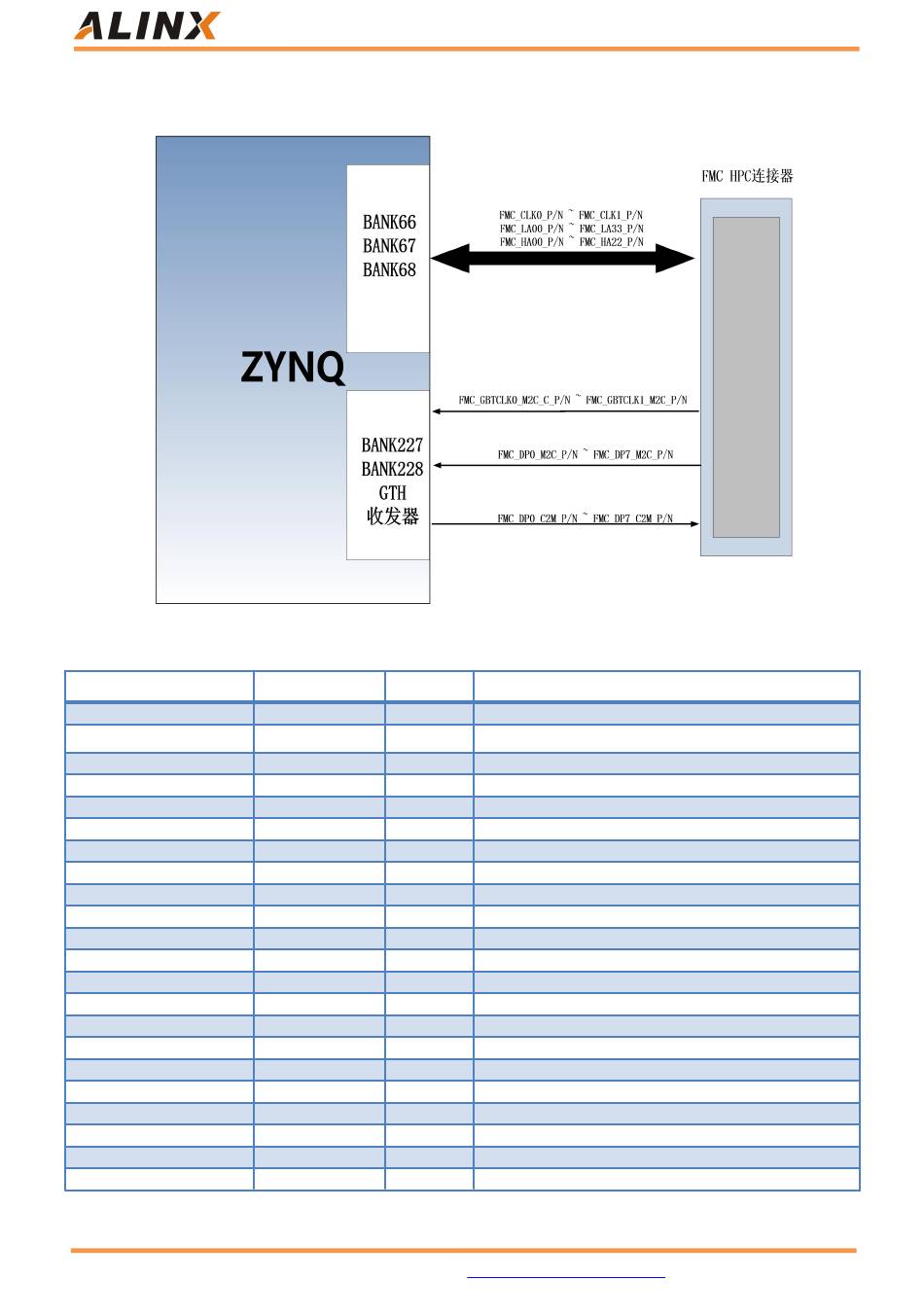

Figure 2-6-3 HPC FMC3 schematic diagram
Pin Name Pin No.
B47_L11_N AA23
B47_L11_P Y23
B48_L14_N AB31
B48_L14_P AB30
B47_L13_N W24
B47_L13_P W23
B47_L12_N AA25
B47_L12_P AA24
B47_L18_N W21
B47_L18_P V21
B47_L16_N V23
B47_L16_P V22
B47_L6_N AB26
B47_L6_P AB25
B47_L23_N W29
B47_L23_P V29
B47_L1_N Y27
B47_L1_P Y26
B47_L15_N U22
B47_L15_P U21
B47_L24_N W26
B47_L24_P V26
Description
FMC reference 1 st reference Clock N
FMC reference 1 st reference Clock P
FMC reference 2 nd reference Clock N
FMC reference 2 nd reference Clock P
FMC reference 0 th Data ( Clock ) N
FMC reference 0 th Data ( Clock ) P
FMC reference 1 st Data ( Clock ) N
FMC reference 1 st Data ( Clock ) P
FMC reference 2 nd Data N
FMC reference 2 nd Data P
FMC reference 3 rd Data N
FMC reference 3 rd Data P
FMC reference 4 th Data N
FMC reference 4 th Data P
FMC reference 5 th Data N
FMC reference 5 th Data P
FMC reference 6 th Data N
FMC reference 6 th Data P
FMC reference 7 th Data N
FMC reference 7 th Data P
FMC reference 8 th Data N
FMC reference 8 th Data P
