Newland NLS-HR52 User Manual

Newland NLS-HR52 User Manual

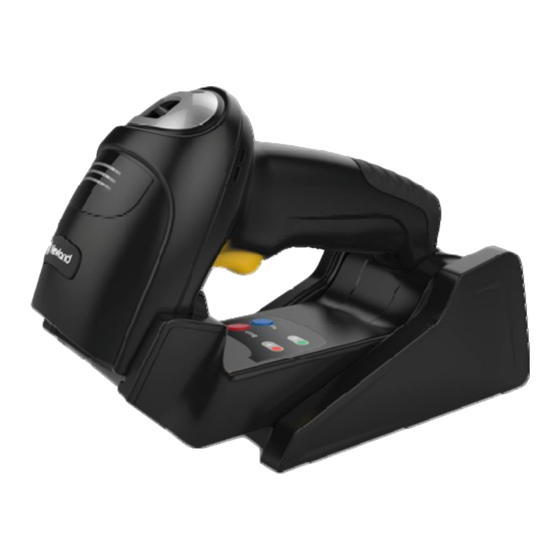

Hand-held barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

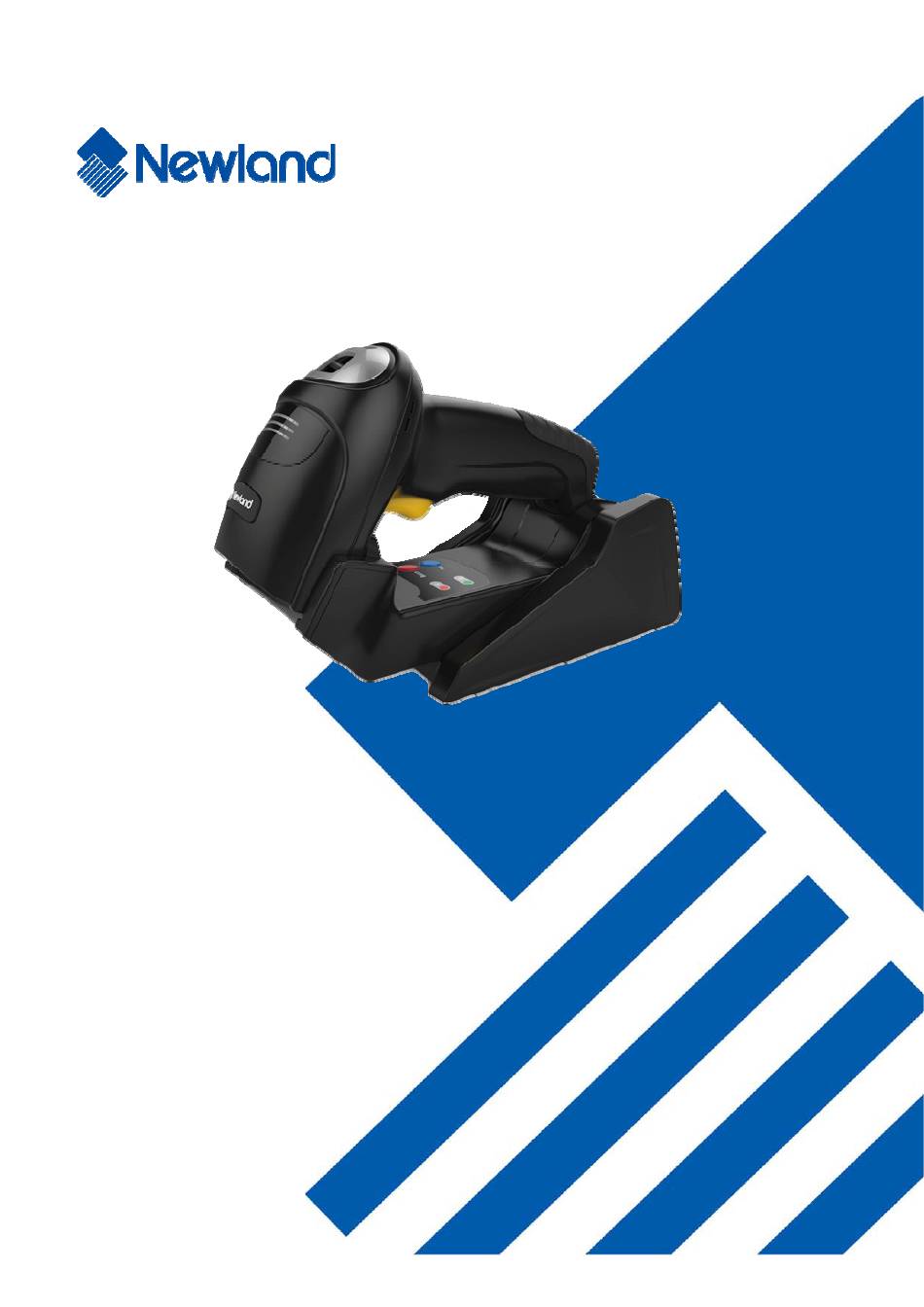

NLS-HR52
Hand-held Barcode Scanner
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Newland NLS-HR52

Summary of Contents for Newland NLS-HR52

  • Page 1 NLS-HR52 Hand-held Barcode Scanner User Guide ...
  • Page 2 All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice.
  • Page 3 Revision History Version Description Date V1.0.0 Initial release. December 4, 2016...

  • Page 4: Table Of Contents

    Table of Contents Revision History ..................................- 3 - Preface ......................................1 Introduction ..................................1 Chapter Description ................................. 1 Explanation of Icons ................................. 2 Chapter 1 Getting Started ................................3 Introduction ..................................3 Features of the HR52 ............................... 3 Unpacking ..................................3 HR52 Scanner ..................................
  • Page 5 Command Programming ............................17 EasySet Programming ............................17 Programming Barcode/ Programming Command/Function .................... 18 Use of Programming Command ............................. 19 Command Syntax ..............................19 Query Commands ..............................19 Responses ................................20 Examples ................................20 Use of Programming Barcodes ............................21 Illumination ..................................
  • Page 6 Factory Defaults ..............................42 Custom Defaults ..............................43 Query Scanner Information ............................44 Query Product Name .............................. 44 Query Firmware Version ............................44 Query Decoder Version ............................44 Query Data Formatter Version ..........................45 Query Hardware Version ............................45 Query Serial Number .............................. 45 Query Manufacturing Date ............................
  • Page 7 Set Date and Time ................................. 57 Query Current Date and Time ............................57 Time Stamp ..................................57 Set Time Stamp Format ............................58 Chapter 5 RS-232 Interface ................................ 59 Introduction ..................................59 Baud Rate ..................................59 Parity Check ................................... 60 Data Bit ..................................
  • Page 8 Chapter 7 Symbologies ................................86 Introduction ..................................86 Global Settings ................................86 Enable/Disable All Symbologies ..........................86 Enable/Disable 1D Symbologies ..........................86 Enable/Disable 2D Symbologies ..........................87 Enable/Disable Postal Symbologies ........................87 1D Twin Code ................................. 88 Surround GS1 Application Identifiers (AI’s) with Parentheses ................. 89 Code 128 ..................................
  • Page 9 Enable/Disable UPC-E ............................103 Transmit Check Character ............................ 103 2-Digit Add-On Code ............................. 104 5-Digit Add-On Code ............................. 105 Transmit Preamble Character ..........................106 Convert UPC-E to UPC-A ............................. 106 UPC-A ..................................107 Restore Factory Defaults ............................107 Enable/Disable UPC-A ............................107 Transmit Check Character ............................
  • Page 10 Code 39 ..................................126 Restore Factory Defaults ............................126 Enable/Disable Code 39 ............................126 Set Length Range for Code 39 ..........................127 Check Character Verification ..........................128 Transmit Start/Stop Character ..........................129 Enable/Disable Code 39 Full ASCII ........................129 Enable/Disable Code 32 (Italian Pharma Code) ....................130 Code 32 Prefix ..............................
  • Page 11 Restore Factory Defaults ............................145 Enable/Disable GS1 Composite ..........................145 Enable/Disable UPC/EAN Composite ........................145 Code 11 ..................................146 Restore Factory Defaults ............................146 Enable/Disable Code 11 ............................146 Set Length Range for Code 11 ..........................147 Check Character Verification ..........................148 Transmit Check Character ............................
  • Page 12 Transmit Check Character ............................ 165 AIM 128 ..................................166 Restore Factory Defaults ............................166 Enable/Disable AIM 128 ............................166 Set Length Range for AIM 128 ..........................167 ISBT 128 ..................................168 Restore Factory Defaults ............................168 Enable/Disable ISBT 128 ............................168 Code 49 ..................................
  • Page 13 Micro QR Code ................................185 Restore Factory Defaults ............................185 Enable/Disable Micro QR ............................185 Set Length Range for Micro QR ..........................186 Aztec .................................... 187 Restore Factory Defaults ............................187 Enable/Disable Aztec Code ........................... 187 Set Length Range for Aztec Code ......................... 188 Read Multi-barcodes on an Image ........................
  • Page 14 Restore Factory Defaults ............................205 Enable/Disable Code One ............................. 205 Set Length Range for Code One ........................... 206 USPS Postnet ................................207 Restore Factory Defaults ............................207 Enable/Disable USPS Postnet ..........................207 Transmit Check Character ............................ 207 USPS Intelligent Mail ..............................208 Restore Factory Defaults ............................
  • Page 15 Non-Match Error Beep ..............................220 Data Format Selection ..............................221 Change Data Format for a Single Scan ........................222 Clear Data Format ................................ 223 Query Data Formats ..............................223 Formatter Command Type 6 ............................224 Send Commands ..............................224 Move Commands ..............................228 Search Commands ...............................
  • Page 16 Use Batch Barcode ..............................259 Appendix ....................................260 Digit Barcodes ................................260 Save/Cancel Barcodes ..............................263 Factory Defaults Table ..............................264 AIM ID Table ................................. 278 Code ID Table ................................280 Symbology ID Number ..............................282 ASCII Table .................................. 284 Unicode Key Maps ...............................

  • Page 17: Preface

    Preface Introduction This manual provides detailed instructions for setting up and using the NLS-HR52 wireless 2D barcode scanner (hereinafter referred to as “the HR52” or “the scanner”) and NLS-CD52 cradle (hereinafter referred to as “the CD52” or “the cradle”). Chapter Description Chapter 1 Getting Started : Gives a general description of HR52 scanner and CD52 cradle.

  • Page 18: Explanation Of Icons

    Explanation of Icons This icon indicates something relevant to this manual. This icon indicates this information requires extra attention from the reader. This icon indicates handy tips that can help you use or configure the scanner with ease. This icon indicates practical examples that can help you to acquaint yourself with operations.

  • Page 19: Chapter 1 Getting Started

    The HR52 wireless 2D barcode scanner reads a 1D or 2D barcode by capturing its image. Adopting the advanced technology independently developed by Newland Auto-ID Tech, it provides five scan modes, including Level mode, Sense mode, Continuous mode, Pulse mode and Batch mode, tailored to different scanning needs.

  • Page 20: Hr52 Scanner

    HR52 Scanner Good Read/Network LED: Red LED flashes - Low battery alert. Red LED on - Scanner not paired to cradle. Blue LED flashes slowly - Paired but no connection established. Blue LED on - Connection established. Blue LED flashes quickly - Batch transmission in progress.

  • Page 21: Dimensions Of The Scanner (Unit: Mm)

    Dimensions of the Scanner (unit: mm)

  • Page 22: Cd52 Cradle

    CD52 Cradle Red/Green LEDs: Red LED on - No scanner placed on cradle. Red LED flashes - Charging in progress, low battery level. Green LED flashes - Charging in progress, medium battery level. Green LED on - Fully charged. Data Port Pinouts: Signal Type Function...

  • Page 23: Dimensions Of The Cradle (Unit: Mm)

    Dimensions of the Cradle (unit: mm)

  • Page 24: Mounting The Cradle

    Mounting the Cradle The CD52 cradle can be set up in a horizontal or vertical position. Choose a mounting position that fits your need. Horizontal Mount The cradle is originally assembled in the horizontal position, as shown below. Vertical Mount 1.
  • Page 25 2. Grab and pull the right board horizontally away from the cradle. Then remove the main piece. 3. Insert the protruding part on the left side of the main piece into the groove on the left board, so that the main piece is vertical.

  • Page 26: Wall Mount

    Wall Mount 1. Remove the plate from the chassis by pressing the plastic clip F in with an appropriate tool. 2. Install the two plastic wall anchors in a wall and use screws to secure the plate to the wall with its A side facing the wall. Slide the vertical cradle onto the plate.

  • Page 27: Connecting The Cradle To A Host

    Connecting the Cradle to a Host The cradle must be connected to a host in actual application, such as PC, POS or any intelligent terminal with USB or RS-232 port, using a communication cable (USB or RS-232 cable). USB port on the Host RS-232 RS-232 port on the Host Note: Please check the port on the host and purchase the cable accordingly.

  • Page 28: Using Rs-232 Cable

    Using RS-232 Cable Connect the cradle to a Host using an RS-232 cable with RJ45 and RS-232 connectors and a power jack: Plug the RJ45 connector of the cable into the data port on the cradle. Plug the RS-232 connector of the cable into the RS-232 port on the Host. Plug the supplied power adapter into the power jack on the cradle.

  • Page 29: Pairing The Scanner To A Cradle

    Pairing the Scanner to a Cradle Before configuring or using the scanner, you must pair it to a cradle first. A cradle can pair with up to seven scanners if Multipoint-to-Point mode is enabled. You need to perform the pairing operation manually: After the scanner and cradle are turned on, insert the scanner in the cradle and then press the Pair button on the cradle.

  • Page 30: Power On, Power Off, Reboot

    Power On, Power Off, Reboot Power on the scanner Hold down the trigger on the scanner until it beeps. Note: When using the scanner for the first time or after scanning the Battery Off barcode in Chapter 3, you MUST insert the scanner in a powered cradle to exit battery protection mode before turning it on.

  • Page 31: Scanning Instructions

    Scanning Instructions When the scanner is in the Level scan mode, you can follow the steps below to scan a barcode: Press and hold the Trigger. Then the scanner will project a red aiming pattern. Aim the aiming pattern across the center of barcode. Release the Trigger when the aiming pattern goes off.

  • Page 32: Chapter 2 Easyset

    Chapter 2 EasySet EasySet, developed by Fujian Newland Auto-ID Tech. Co., Ltd., is a configuration tool for Newland’s 1D/2D handheld barcode scanner, fixed mount barcode scanners and OEM scan engines. Its main features include:  View device & configuration information of online device ...

  • Page 33: Chapter 3 System Settings

    Besides the two methods mentioned above, you can conveniently perform scanner configuration through EasySet too. EasySet is a Windows-based configuration tool particularly designed for Newland products, enabling users to gain access to decoded data and captured images and to configure scanners. For more information about this tool, refer to the EasySet User Guide.

  • Page 34: Programming Barcode/ Programming Command/Function

    Enter Setup Programming Barcode/ Programming Command/Function The figure above is an example that shows you the programming barcode and command for the Enter Setup function: 1. The No Case Conversion barcode. 2. The No Case Conversion command. 3. The description of feature/option. 4.

  • Page 35: Use Of Programming Command

    Enter Setup Use of Programming Command Besides the barcode programming method, the scanner can also be configured by serial commands (HEX) sent from the host device. All commands must be entered in uppercase letters. Command Syntax Prefix StorageType Tag SubTag {Data} [,SubTag {Data}] [;Tag SubTag {Data}] […] Suffix Prefix: “~<SOH>0000”...

  • Page 36: Responses

    Enter Setup The value of the StoreType field in a query command can be either “@” (HEX: 40) or “#” (HEX: 23). A query command with the SubTag field omitted means to query all the settings concerning a tag. For example, to query all the current settings about Code 11, you should enter 7E 01 30 30 30 30 40 43 31 31 2A 3B 03 (i.e.

  • Page 37: Use Of Programming Barcodes

    Enter Setup Use of Programming Barcodes Scanning the Enter Setup barcode can enable the scanner to enter the setup mode. Then you can scan a number of programming barcodes to configure your scanner. To exit the setup mode, scan the Exit Setup barcode or a non-programing barcode, or reboot the scanner.

  • Page 38: Illumination

    Enter Setup Illumination A couple of illumination options are provided to improve the lighting conditions during every image capture: Normal: Illumination LEDs are turned on during image capture. Always On: Illumination LEDs keep ON after the scanner is powered on. Off: Illumination LEDs are OFF all the time.

  • Page 39: Aiming

    Enter Setup Aiming When scanning/capturing image, the scanner projects an aiming pattern which allows positioning the target barcode within its field of view and thus makes decoding easier. Normal: The scanner projects an aiming pattern only during barcode scanning/capture. Always On: Aiming pattern is constantly on after the scanner is powered on. Off: Aiming pattern is off all the time.

  • Page 40: Good Read Led Duration

    Enter Setup Good Read LED Duration This parameter sets the amount of time that the Good Read LED to remain on following a good read. ** Short (20ms) Medium (120ms) Long (220ms) Prolonged (320ms) Custom (1 - 2,500ms） Set the Good Read LED duration to 800ms: 1.

  • Page 41: Power On Beep

    Enter Setup Power On Beep The scanner can be programmed to beep when it is powered on. Scan the Off barcode if you do not want a power on beep. ** On Good Read Beep Scanning the Off barcode can turn off the beep that indicates successful decode; scanning the On barcode can turn it back ** On ** Exit Setup...

  • Page 42: Good Read Beep Duration

    Enter Setup Good Read Beep Duration This parameter sets the length of the beep the scanner emits on a good read. It is programmable in 1ms increments from 20ms to 300ms. Short (40ms) ** Medium (80ms) Long (120ms) Custom (20 – 300ms) Set the Good Read Beep duration to 200ms: 1.

  • Page 43: Good Read Beep Frequency

    Enter Setup Good Read Beep Frequency This parameter is programmable in 1Hz increments from 20Hz to 20,000Hz. Extra Low (800Hz) Low (1600Hz) ** Medium (2730Hz) High (4200Hz) Custom (20 - 20,000Hz) Set the Good Read Beep frequency to 2,000Hz: 1. Scan the Enter Setup barcode. 2.

  • Page 44: Good Read Beep Volume

    Enter Setup Good Read Beep Volume ** Loud Medium Good Read Vibration You may choose whether or not to let the scanner vibrate when a barcode is successfully read by scanning the appropriate barcode below. ** Off ** Exit Setup...

  • Page 45: Good Read Vibration Duration

    Enter Setup Good Read Vibration Duration This parameter sets the length for the Good Read Vibration. It is programmable in 1ms increments from 1ms to 2,500ms. Short (40ms) ** Medium (80ms) Long (120ms) Custom (1 – 2,500ms) Set the Good Read Vibration duration to 200ms: 1.

  • Page 46: Scan Mode

    Enter Setup Scan Mode Level Mode: A trigger pull activates a decode session. The decode session continues until a barcode is decoded or the decode session timeout expires or you release the trigger. Sense Mode: The scanner activates a decode session every time it detects a barcode presented to it. The decode session continues until a barcode is decoded or the decode session timeout expires.

  • Page 47: Decode Session Timeout

    Enter Setup Decode Session Timeout This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 1ms increments from 100ms to 3,600,000ms. When it is set to 0, the timeout is infinite. The default setting is 3,000ms. Decode Session Timeout Set the decode session timeout to 1,500ms: 1.

  • Page 48: Image Stabilization Timeout (Sense Mode)

    Enter Setup Image Stabilization Timeout (Sense Mode) This parameter defines the amount of time the scanner will spend adapting to ambient environment after it decodes a barcode and “looks” for another. It is programmable in 1ms increments from 0ms to 3,000ms. The default setting is 200ms. Image Stabilization Timeout Set the image stabilization timeout to 800ms: 1.

  • Page 49: Reread Timeout

    Enter Setup Reread Timeout Reread Timeout can avoid undesired rereading of same barcode in a given period of time. This feature is only applicable to the Sense and Continuous modes. Enable Reread Timeout: Do not allow the scanner to reread same barcode before the reread timeout expires. Disable Reread Timeout: Allow the scanner to reread same barcode.

  • Page 50: Image Decoding Timeout

    Enter Setup You may wish to restart the reread timeout when the scanner encounters the same barcode that was decoded in the last scan session before the reread timeout expires. To enable this feature, scan the Reread Timeout Reset On barcode. This feature is only effective when Reread Timeout is enabled.

  • Page 51: Sensitivity (Sense Mode)

    Enter Setup Sensitivity (Sense Mode) This specifies the degree of acuteness of the scanner’s response to changes in images captured. There are 20 levels to choose from. The smaller the value, the higher the sensitivity and the lower requirement in image change to trigger the scanner.

  • Page 52: Scanning Preference

    Enter Setup Scanning Preference Normal Mode: Select this mode when reading barcodes on paper. Screen Mode: Select this mode when reading barcodes on the screen. ** Normal Mode Screen Mode Read Barcode On/Off Sending the Read Barcode Off command ~<SOH>0000#SCNENA0;<ETX> to the scanner can disable it from reading barcode, and the scanner is unable to scan barcode unless you send the Read Barcode On command ~<SOH>0000#SCNENA1;<ETX>...

  • Page 53: Smart Stand Mode

    Enter Setup Smart Stand Mode After this feature is turned on, the scanner will switch from its current scan mode to the Sense mode when it is inserted in the stand, and it will operate in its previous scan mode when it is removed from the stand. ** On Decode Area Whole Area Decoding: The scanner attempts to decode barcode(s) within its field of view, from the center to the periphery,...
  • Page 54 Enter Setup ** Whole Area Decoding Specific Area Decoding Acuread Decoding If Specific Area Decoding is enabled, the scanner only reads barcodes that intersect the predefined decoding area. The default decoding area is an area of 40% top, 60% bottom, 40% left and 60% right of the scanner’s field of view You can define the decoding area using the Top of Decoding Area, Bottom of Decoding Area, Left of Decoding Area and Right of Decoding Area barcodes as well as numeric barcode(s) that represent(s) a desired percentage (0-100).
  • Page 55 Enter Setup Barcode 1 Barcode 2 Program the scanner to only read Barcode 1 in the figure above by setting the decoding area to 10% top, 45% bottom, 15% left and 30% right: 1. Scan the Enter Setup barcode. 2. Scan the Top of Decoding Area barcode.

  • Page 56: Image Flipping

    Enter Setup Image Flipping ** Do Not Flip Flip Horizontally Flip Vertically Flip Horizontally & Vertically Example of image not flipped Example of image flipped horizontally Example of image flipped vertically Example of image flipped horizontally & vertically ** Exit Setup...

  • Page 57: Bad Read Message

    Enter Setup Bad Read Message You may scan the appropriate barcode below to select whether or not to send a bad read message (user-programmable) when a good read does not occur before trigger release, or the decode session timeout expires. ** Bad Read Message OFF Bad Read Message ON Set Bad Read Message...

  • Page 58: Power Off/Battery Off

    Enter Setup Power Off/Battery Off Power Off Scanner Battery Off (For Long-term Storage/Shipping) Note: After scanning the Battery Off barcode, you MUST insert the scanner in a powered cradle to exit battery protection mode before turning it on. Default Settings Factory Defaults Scanning the Reset Scanner/Reset Cradle barcode can restore the scanner/cradle to the factory defaults.

  • Page 59: Custom Defaults

    Enter Setup Custom Defaults Scanning the Restore All Custom Defaults barcode can reset all parameters to the custom defaults. Scanning the Save as Custom Defaults barcode can set the current settings as custom defaults. Custom defaults are stored in the non-volatile memory. Save as Custom Defaults Restore All Custom Defaults Restoring the scanner to the factory defaults will not remove the custom defaults from the scanner.

  • Page 60: Query Scanner Information

    Enter Setup Query Scanner Information After scanning the barcode below, the scanner information (including product name, firmware version, decoder version, hardware version, product serial number, OEM serial number and manufacturing date) will be sent to the host device. Query Scanner Information Query Product Name Query Product Name Query Firmware Version...

  • Page 61: Query Data Formatter Version

    Enter Setup Query Data Formatter Version Query Data Formatter Version Query Hardware Version Query Hardware Version Query Serial Number Query Serial Number Query Manufacturing Date Query Manufacturing Date ** Exit Setup...

  • Page 62: Query Oem Serial Number

    Enter Setup Query OEM Serial Number Query OEM Serial Number Query Cradle Information After scanning the barcode below, the cradle information (including model number, firmware version, hardware information, product serial number, and manufacturing date) will be sent to the host device. Query Cradle Information Query Model Number Query Model Numer...

  • Page 63: Query Hardware Information

    Enter Setup Query Hardware Information Query Hardware Information Query Serial Number Query Serial Number Query OEM Serial Number (ESN) Query OEM Serial Number Query Manufacturing Date Query Manufacturing Date ** Exit Setup...

  • Page 64: Query Remaining Battery Of Scanner

    Enter Setup Query Remaining Battery of Scanner After scanning the barcode below, the percentage of battery power remaining will be sent to the host device. Query Remaining Battery of Scanner ** Exit Setup...

  • Page 65: Chapter 4 Wireless Communications

    Enter Setup Chapter 4 Wireless Communications Operating Modes The scanner provides the following two operating modes: Bluetooth HID Mode allows your scanner to communicate with a remote host using Bluetooth. You must first pair your scanner to the host before these two Bluetooth devices can communicate with each other. All features available for USB HID Keyboard are applicable to Bluetooth HID.

  • Page 66: Prevent Same Barcode Storage

    Enter Setup ** Off Automatic Batch Mode Manual Batch Mode Prevent Same Barcode Storage This feature is available only when scanning barcodes in the Automatic or Manual Batch mode. On: The scanner discards the data and generates an error beep when encountering a barcode that has existed in the flash memory.

  • Page 67: Batch Mode Transmit Delay

    Enter Setup Batch Mode Transmit Delay Sometimes when multiple barcodes stored in the flash memory are sent to the host, the transmission of those barcodes is too fast for the application to process. To program a transmit delay between barcodes, scan one of the following delays. ** No Transmit Delay (0ms) Short Transmit Delay (50ms) Medium Transmit Delay (100ms)

  • Page 68: End Of Transmission Message For Batch Mode

    Enter Setup End of Transmission Message for Batch Mode You may scan the appropriate barcode below to select whether or not to send an end of transmission message (user-programmable) to notify the host when transmission of all stored data is done. ** End of Transmission Message Off End of Transmission Message On An end of transmission message can contain up to 10 characters (HEX values from 0x00 to 0xFF).

  • Page 69: Transmit Stored Data

    Enter Setup Transmit Stored Data You may scan the barcode below to send the stored data in the flash memory to the host. Transmit Stored Data Auto Clear Stored Data after Transmission You may scan the appropriate barcode below to choose whether to clear or keep the stored data in the flash memory after transmission This feature is only available to the Manual Batch mode.

  • Page 70: Retransmission

    Enter Setup Retransmission If the Transmission feature is on, the scanner awaits an ACK response from the host following a data packet transmission, and resends the packet when it receives an NAK response or the retransmission timeout expires. Note that Data Packing must be enabled for this feature to function (See the “Data Packing Options”...

  • Page 71: Retransmission Count

    Enter Setup Retransmission Count This parameter specifies the number of times the scanner resends a data packet when it awaits an ACK response from the host. The selection range is from 1 to 10 retransmissions. The default value is 3 (retransmissions). Note that the Retransmission feature must be turned on for this to function.

  • Page 72: Scanner(S) To Cradle Support

    Enter Setup Scanner(s) to Cradle Support Wireless Communication Modes Point-to-Point Mode: Only one scanner can be paired to one cradle at a time. Multiple-to-Point Mode: Up to seven scanners can be paired to one cradle. ** Point-to-Point Mode Multiple-to-Point Mode Clear Pairing Info on Scanner/Cradle Clear Pairing Info on Cradle Clear Pairing Info on Scanner...

  • Page 73: Set Date And Time

    Enter Setup Set Date and Time You may use the following command to set the date and time on your scanner: WLSTIMyyyymmddhhmmss (yyyy: The desired year; mm: The desired month; dd: The desired day; mm: The desired month; ddmmss: The desired time) Example: Set the date to February 5 2018 and time to 10:30:11 Enter:...

  • Page 74: Set Time Stamp Format

    Enter Setup Set Time Stamp Format ** Format 1: (YYYY/MM/DD,HH:MM:SS) (example: 2018/01/23,10:30:20) Format 2: (DD/MM/YYYY,HH:MM:SS) (example: 23/01/2018,10:30:20) Format 3: (MM/DD/YYYY,HH:MM:SS) (example: 01/23/2018,10:30:20) ** Exit Setup...

  • Page 75: Chapter 5 Rs-232 Interface

    Enter Setup Chapter 5 RS-232 Interface Introduction When the cradle is connected to the RS-232 port of a host device, you need to set communication parameters (including baud rate, parity check, data bit and stop bit) on the cradle to match the host device so that two devices can communicate with each other.

  • Page 76: Parity Check

    Enter Setup 4800 2400 1200 Parity Check Set the parity type to match the host requirements. Odd Parity: If the data contains an odd number of 1 bits, the parity bit value is set to 0. Even Parity: If the data contains an even number of 1 bits, the parity bit value is set to 0. None: Select this option when no parity bit is required.

  • Page 77: Data Bit

    Enter Setup Data Bit Set the number of data bits to match the host requirements. 7 Data Bits ** 8 Data Bits Stop Bit The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream.

  • Page 78: Hardware Auto Flow Control

    Enter Setup Hardware Auto Flow Control If CTS flow control is enabled, the cradle determines whether to transmit data based on CTS signal level. When CTS signal is at low level which means the serial port’s cache memory of receiving device (such as PC) is full, the cradle stops sending data through serial port until CTS signal is set to high level by receiving device.

  • Page 79: Chapter 6 Usb Interface

    Enter Setup Chapter 6 USB Interface Introduction There are four options for USB connection between the cradle and host device:  USB HID Keyboard: The cradle’s transmission is simulated as USB keyboard input with no need for command configuration or a driver. Barcode data could be entered by the virtual keyboard directly and it is also convenient for the host device to receive data.

  • Page 80: Usb Hid Keyboard

    Enter Setup USB HID Keyboard When the cradle is connected to the USB port on a host device, you can enable the USB HID Keyboard feature by scanning the barcode below. The cradle’s transmission will be simulated as USB keyboard input. The Host receives keystrokes onthe virtual keyboard.

  • Page 81: Usb Country Keyboard Types

    Enter Setup USB Country Keyboard Types Keyboard layouts vary from country to country. The default setting is U.S. keyboard. ** U.S. (English) Belgium Brazil Canada (French) Czechoslovakia Denmark Finland (Swedish) ** Exit Setup...
  • Page 82 Enter Setup France Germany/ Austria Greece Hungary Israel (Hebrew) Italy Latin America/ South America Netherlands (Dutch) ** Exit Setup...
  • Page 83 Enter Setup Norway Poland Portugal Romania Russia Slovakia Spain Sweden ** Exit Setup...
  • Page 84 Enter Setup Switzerland (German) Turkey_F Turkey_Q Japan ** Exit Setup...

  • Page 85: Emulate Alt+Keypad

    Enter Setup Emulate ALT+Keypad When Emulate ALT+Keypad is turned on, any character whose ASCII value is greater than or equal to 0x20 is sent over the numeric keypad no matter which keyboard type is selected. ALT Make Enter the number corresponding to a desired character on the keypad. ALT Break After Emulate ALT+Keypad ON is selected, you need to choose the code page with which the barcodes were created and to turn Unicode Encoding On or Off depending on the encoding used by the application software.

  • Page 86: Code Page

    Enter Setup Code Page Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the barcode being scanned was created using a code page that is different from the one the host program is expecting.
  • Page 87 Enter Setup Code Page 1256 (Arabic) Code Page 1257 (Baltic) Code Page 1258 (Vietnamese) Code Page 936 (Simplified Chinese, GB2312, GBK) Code Page 950 (Traditional Chinese, Big5) Code Page 874 (Thai) Code Page 932 (Japanese, Shift-JIS) ** Exit Setup...

  • Page 88: Unicode Encoding

    Enter Setup Unicode Encoding Different host program may use different character encodings for handling incoming barcode data. For instance, Microsoft Office Word uses Unicode encoding and therefore you should turn Unicode Encoding on, whereas Microsoft Office Excel or Notepad uses Code Page encoding and therefore you should turn Unicode Encoding off. This feature is only effective when Emulate ALT+Keypad is turned on.

  • Page 89: Function Key Mapping

    Enter Setup Function Key Mapping When Ctrl+ASCII Mode is selected, function characters (0x00 - 0x1F) are sent as ASCII sequences. ** Disable Ctrl+ASCII Mode Alt+Keypad Mode If Ctrl+ASCII Mode is selected and other parameters of USB HID Keyboard adopt factory defaults, barcode data “A<HT>(i.e.

  • Page 90: Ascii Function Key Mapping Table

    Enter Setup ASCII Function Key Mapping Table ASCII Function ASCII Value (HEX) Function Key Mapping Disabled Ctrl+ASCII Null Ctrl+@ Keypad Enter Ctrl+A Caps Lock Ctrl+B Ctrl+C Null Ctrl+D CTRL Ctrl+E Null Ctrl+F Enter Ctrl+G Left Arrow Ctrl+H Horizontal Tab Ctrl+I Down Arrow Ctrl+J Vertical Tab...

  • Page 91: Ascii Function Key Mapping Table (Continued)

    Enter Setup ASCII Function Key Mapping Table (Continued) The last five characters (0x1B~0x1F) in the table above apply to US keyboard layout only. The following chart provides the equivalents of these five characters for other countries. Country Ctrl+ASCII United States Ctrl+[ Ctrl+\ Ctrl+]...

  • Page 92: Inter-Keystroke Delay

    Enter Setup Inter-Keystroke Delay This parameter specifies the delay between emulated keystrokes. ** No Delay Long Delay (40ms) Short Delay (20ms) ** Exit Setup...

  • Page 93: Convert Case

    Enter Setup Convert Case You may scan the appropriate barcode below to convert all bar code data to your desired case. ** No Case Conversion Convert All to Upper Case Convert All to Lower Case When the Convert All to Lower Case feature is enabled, barcode data “AbC” is transmitted as “abc”. If Emulate ALT+Keypad ON is selected, Convert All to Lower Case and Convert All to Upper Case do not function.

  • Page 94: Emulate Numeric Keypad

    Enter Setup Emulate Numeric Keypad Do Not Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on main keyboard. Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on numeric keypad. The state of Num Lock on the simulated numeric keypad is determined by its equivalent on the host device.
  • Page 95 Enter Setup ** Do Not Emulate Numeric Keypad 2 Emulate Numeric Keypad 2 Emulate ALT+Keypad ON prevails over Emulate Numeric Keypad. Supposing the Emulate Numeric Keypad 1 feature is enabled: if Num Lock on the host device is ON, “A4.5” is transmitted as “A4.5”; if Num Lock on the host device is OFF, “A4.5”...

  • Page 96: Polling Rate

    Enter Setup Polling Rate This parameter specifies the polling rate for a USB keyboard. If the Host drops characters, change the polling rate to a bigger value. ** 4ms ** Exit Setup...
  • Page 97 Enter Setup 10ms ** Exit Setup...

  • Page 98: Usb Cdc

    Enter Setup USB CDC If your cradle is connected to the USB port on a host device, the USB CDC feature allows the host device to receive data in the way as a serial port does. A driver is needed when using this feature. You may download it from our website at www.newlandaidc.com.

  • Page 99: Hid Pos (Pos Hid Barcode Scanner)

    Enter Setup HID POS (POS HID Barcode Scanner) Introduction The HID-POS interface is recommended for new application programs. It can send up to 56 characters in a single USB report and appears more efficient than keyboard emulation. Features: HID based, no custom driver required. Way more efficient in communication than keyboard emulation and traditional RS-232 interface.

  • Page 100: Acquire Scanned Data

    Barcode Length 2-57 Decoded Data (1-56) 58-61 Reserved Newland Symbology Identifier or N/C: 0x00 Decoded data continued Send Command to the Cradle This output report is used to send commands to the cradle. All programming commands can be used. Byte...

  • Page 101: Ibm Surepos (Tabletop)

    USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers Forum. Newland’s vendor ID is 1EAB (Hex). A range of PIDs are used for each Newland product family. Every PID contains a base number and interface type (keyboard, COM port, etc.).

  • Page 102: Chapter 7 Symbologies

    Enter Setup Chapter 7 Symbologies Introduction Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner.

  • Page 103: Enable/Disable 2D Symbologies

    Enter Setup Enable/Disable 2D Symbologies Enable 2D Symbologies Disable 2D Symbologies Enable/Disable Postal Symbologies Enable All Postal Symbologies Disable All Postal Symbologies ** Exit Setup...

  • Page 104: 1D Twin Code

    Enter Setup 1D Twin Code 1D twin code is two 1D barcodes of a symbology or of different symbologies paralleled vertically. Both barcodes must have similar specifications and be placed closely together. There are 3 options for reading 1D twin code: ...

  • Page 105: Surround Gs1 Application Identifiers (Ai's) With Parentheses

    Enter Setup Surround GS1 Application Identifiers (AI’s) with Parentheses When Surround GS1 AI’s with Parentheses is selected, each application identifier (AI) contained in scanned data will be enclosed in parentheses in the output message. ** Do Not Surround GS1 AI’s with Parentheses Surround GS1 AI’s with Parentheses If Surround GS1 AI’s with Parentheses is selected, the barcode above is output as (01)00614141999996(10)10ABCEDF123456.

  • Page 106: Code 128

    Enter Setup Code 128 Restore Factory Defaults Restore the Factory Defaults of Code 128 Enable/Disable Code 128 Enable Code 128 Disable Code 128 If the scanner fails to identify Code 128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 128 barcode.

  • Page 107: Set Length Range For Code 128

    Enter Setup Set Length Range for Code 128 The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes Code 128...

  • Page 108: Restore Factory Defaults

    Enter Setup EAN-8 Restore Factory Defaults Restore the Factory Defaults of EAN-8 Enable/Disable EAN-8 ** Enable EAN-8 Disable EAN-8 If the scanner fails to identify EAN-8 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable EAN-8 barcode. Transmit Check Character EAN-8 is 8 digits in length with the last one as its check character used to verify the integrity of the data.

  • Page 109: 2-Digit Add-On Code

    Enter Setup 2-Digit Add-On Code An EAN-8 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a two-digit add-on code. ** Disable 2-Digit Add-On Code Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when...

  • Page 110: 5-Digit Add-On Code

    Enter Setup 5-Digit Add-On Code An EAN-8 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a five-digit add-on code. ** Disable 5-Digit Add-On Code Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when...

  • Page 111: Convert Ean-8 To Ean-13

    Enter Setup Convert EAN-8 to EAN-13 Convert EAN-8 to EAN-13: Convert EAN-8 decoded data to EAN-13 format before transmission. After conversion, the data follows EAN-13 format and is affected by EAN-13 programming selections (e.g., Check Character). Do Not Convert EAN-8 to EAN-13: EAN-8 decoded data is transmitted as EAN-8 data, without conversion. ** Do Not Convert EAN-8 to EAN-13 Convert EAN-8 to EAN-13 ** Exit Setup...

  • Page 112: Restore Factory Defaults

    Enter Setup EAN-13 Restore Factory Defaults Restore the Factory Defaults of EAN-13 Enable/Disable EAN-13 ** Enable EAN-13 Disable EAN-13 If the scanner fails to identify EAN-13 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable EAN-13 barcode. ** Exit Setup...

  • Page 113: Transmit Check Character

    Enter Setup Transmit Check Character ** Transmit EAN-13 Check Character Do Not Transmit EAN-13 Check Character 2-Digit Add-On Code An EAN-13 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a two-digit add-on code.

  • Page 114: 5-Digit Add-On Code

    Enter Setup 5-Digit Add-On Code An EAN-13 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a five-digit add-on code. ** Disable 5-Digit Add-On Code Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when...

  • Page 115: Ean-13 Beginning With 290 Add-On Code Required

    Enter Setup EAN-13 Beginning with 290 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “290”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “290” must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted.

  • Page 116: Ean-13 Beginning With 414/419 Add-On Code Required

    Enter Setup EAN-13 Beginning with 414/419 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a “414” or “419”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with a “414” or “419” must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted.

  • Page 117: Ean-13 Beginning With 977 Add-On Code Required

    Enter Setup EAN-13 Beginning with 977 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “977”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “977” must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted.

  • Page 118: Ean-13 Beginning With 979 Add-On Code Required

    Enter Setup EAN-13 Beginning with 979 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “979”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “979” must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted.

  • Page 119: Upc-E

    Enter Setup UPC-E Restore Factory Defaults Restore the Factory Defaults of UPC-E Enable/Disable UPC-E ** Enable UPC-E Disable UPC-E If the scanner fails to identify UPC-E barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable UPC-E barcode. Transmit Check Character UPC-E is 8 digits in length with the last one as its check character used to verify the integrity of the data.

  • Page 120: 2-Digit Add-On Code

    Enter Setup 2-Digit Add-On Code A UPC-E barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is a two-digit add-on code. ** Disable 2-Digit Add-On Code Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when...

  • Page 121: 5-Digit Add-On Code

    Enter Setup 5-Digit Add-On Code A UPC-E barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is a five-digit add-on code. ** Disable 5-Digit Add-On Code Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when...

  • Page 122: Transmit Preamble Character

    Enter Setup Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E barcode. Select one of the following options for transmitting UPC-E preamble to the host device: transmit system character only, transmit system character and country code (“0”...

  • Page 123: Upc-A

    Enter Setup UPC-A Restore Factory Defaults Restore the Factory Defaults of UPC-A Enable/Disable UPC-A Enable UPC-A Disable UPC-A If the scanner fails to identify UPC-A barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable UPC-A barcode. Transmit Check Character UPC-A is 13 digits in length with the last one as its check character used to verify the integrity of the data.

  • Page 124: 2-Digit Add-On Code

    Enter Setup 2-Digit Add-On Code A UPC-A barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a two-digit add-on code. ** Disable 2-Digit Add-On Code Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when...

  • Page 125: 5-Digit Add-On Code

    Enter Setup 5-Digit Add-On Code A UPC-A barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a five-digit add-on code. ** Disable 5-Digit Add-On Code Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when...

  • Page 126: Transmit Preamble Character

    Enter Setup Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A barcode. Select one of the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system character and country code (“0”...

  • Page 127: Coupon

    Enter Setup Coupon UPC-A/EAN-13 with Extended Coupon Code The following three types of coupon code + extended coupon code are supported:  UPC-A (starting with “5”) + GS1-128  UPC-A (starting with “5”) + GS1 Databar  EAN-13 (starting with “99”) + GS1-128 Use the appropriate barcode below to enable or disable UPC-A/EAN-13 with Extended Coupon Code.

  • Page 128: Coupon Gs1 Databar Output

    Enter Setup Coupon GS1 Databar Output If you scan coupons that have both UPC and GS1 Databar codes, you may wish to scan and output only the data from the GS1 Databar code. Scan the GS1 Output On barcode below to scan and output only the GS1 Databar code data. When GS1 Output Off is selected, coupons that have both UPC and GS1 Databar codes are transmitted depending on your selection for the “UPC-A/EAN-13 with Extended Coupon Code”...

  • Page 129: Interleaved 2 Of 5

    Enter Setup Interleaved 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 ** Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 If the scanner fails to identify Interleaved 2 of 5 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Interleaved 2 of 5 barcode.

  • Page 130: Set Length Range For Interleaved 2 Of 5

    Enter Setup Set Length Range for Interleaved 2 of 5 The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 6) Set the Maximum Length (Default: 80) If minimum length is set to be greater than maximum length, the scanner only decodes Interleaved 2 of 5...

  • Page 131: Check Character Verification

    Enter Setup Check Character Verification A check character is optional for Interleaved 2 of 5 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Interleaved 2 of 5 barcodes as is. ...

  • Page 132: Febraban

    Enter Setup Febraban Disable/Enable Febraban ** Disable Febraban Enable Febraban, Do Not Expand Enable Febraban, Expand Transmit Delay per Character Transmit Delay per Character applies to both Expanded and Unexpanded Febraban. This feature is available only when USB HID Keyboard is enabled. ** Disable Transmit Delay per Character Enable Transmit Delay per Character ** Exit Setup...
  • Page 133 Enter Setup You may select an appropriate delay value from the options below as per your actual needs. 10ms 15ms 20ms 25ms 30ms 35ms ** Exit Setup...
  • Page 134 Enter Setup 40ms 45ms 50ms 55ms 60ms 65ms ** 70ms 75ms ** Exit Setup...

  • Page 135: Transmit Delay Per 12 Characters

    Enter Setup Transmit Delay per 12 Characters Transmit Delay per 12 Characters applies to Expanded Febraban only. This feature is available only when USB HID Keyboard is enabled. ** Disable Transmit Delay per 12 Characters Enable Transmit Delay per 12 Characters You may select an appropriate delay value from the options below as per your actual needs.
  • Page 136 Enter Setup ** 500ms 600ms 700ms 800ms 900ms ** Exit Setup...

  • Page 137: 121

    Enter Setup ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character. ITF-14 priority principle: Forthe Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as the check character, the ITF-14 configurations shall take precedence over the Interleaved 2 of 5 settings.

  • Page 138: 122

    Enter Setup ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character. ITF-6 priority principle: For the Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as the check character, the ITF-6 configurations shall take precedence over the Interleaved 2 of 5 settings.

  • Page 139: Matrix 2 Of 5

    Enter Setup Matrix 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 ** Enable Matrix 2 of 5 Disable Matrix 2 of 5 If the scanner fails to identify Matrix 2 of 5 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Matrix 2 of 5 barcode.

  • Page 140: Set Length Range For Matrix 2 Of 5

    Enter Setup Set Length Range for Matrix 2 of 5 The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 4) Set the Maximum Length (Default: 80) If minimum length is set to be greater than maximum length, the scanner only decodes Matrix 2 of 5...

  • Page 141: Check Character Verification

    Enter Setup Check Character Verification A check character is optional for Matrix 2 of 5 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Matrix 2 of 5 barcodes as is. ...

  • Page 142: Code 39

    Enter Setup Code 39 Restore Factory Defaults Restore the Factory Defaults of Code 39 Enable/Disable Code 39 ** Enable Code 39 Disable Code 39 If the scanner fails to identify Code 39 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 39 barcode.

  • Page 143: Set Length Range For Code 39

    Enter Setup Set Length Range for Code 39 The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes Code 39...

  • Page 144: Check Character Verification

    Enter Setup Check Character Verification A check character is optional for Code 39 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Code 39 barcodes as is. ...

  • Page 145: Transmit Start/Stop Character

    Enter Setup Transmit Start/Stop Character Code 39 uses an asterisk (*) for both the start and the stop characters. You can choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below. ** Do Not Transmit Start/Stop Character Transmit Start/Stop Character Enable/Disable Code 39 Full ASCII The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode below.

  • Page 146: Enable/Disable Code 32 (Italian Pharma Code)

    Enter Setup Enable/Disable Code 32 (Italian Pharma Code) Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable or disable Code 32. Code 39 must be enabled and Code 39 check character verification must be disabled for this parameter to function.

  • Page 147: Transmit Code 32 Start/Stop Character

    Enter Setup Transmit Code 32 Start/Stop Character Code 32 must be enabled for this parameter to function. ** Do Not Transmit Code 32 Start/Stop Character Transmit Code 32 Start/Stop Character Transmit Code 32 Check Character Code 32 must be enabled for this parameter to function. ** Do Not Transmit Code 32 Check Character Transmit Code 32 Check Character ** Exit Setup...

  • Page 148: Codabar

    Enter Setup Codabar Restore Factory Defaults Restore the Factory Defaults of Codabar Enable/Disable Codabar ** Enable Codabar Disable Codabar If the scanner fails to identify Codabar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Codabar barcode. ** Exit Setup...

  • Page 149: Set Length Range For Codabar

    Enter Setup Set Length Range for Codabar The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 2) Set the Maximum Length (Default: 60) If minimum length is set to be greater than maximum length, the scanner only decodes Codabar...

  • Page 150: Check Character Verification

    Enter Setup Check Character Verification A check character is optional for Codabar and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Codabar barcodes as is. ...

  • Page 151: Start/Stop Character

    Enter Setup Start/Stop Character You can set the start/stop characters and choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below. ** Do Not Transmit Start/Stop Character Transmit Start/Stop Character ** ABCD/ABCD as the Start/Stop Character ABCD/TN*E as the Start/Stop Character abcd/abcd as the Start/Stop Character abcd/tn*e as the Start/Stop Character...

  • Page 152: Code 93

    Enter Setup Code 93 Restore Factory Defaults Restore the Factory Defaults of Code 93 Enable/Disable Code 93 Enable Code 93 ** Disable Code 93 If the scanner fails to identify Code 93 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 93 barcode.

  • Page 153: Set Length Range For Code 93

    Enter Setup Set Length Range for Code 93 The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes Code 93...

  • Page 154: Check Character Verification

    Enter Setup Check Character Verification Check characters are optional for Code 93 and can be added as the last two characters, which are calculated values used to verify the integrity of the data.  Disable: The scanner transmits Code 93 barcodes as is. ...

  • Page 155: China Post 25

    Enter Setup China Post 25 Restore Factory Defaults Restore the Factory Defaults of China Post 25 Enable/Disable China Post 25 Enable China Post 25 ** Disable China Post 25 If the scanner fails to identify China Post 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable China Post 25 barcode.

  • Page 156: Set Length Range For China Post 25

    Enter Setup Set Length Range for China Post 25 The scanner can be configured to only decode China Post 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes China Post 25...

  • Page 157: Check Character Verification

    Enter Setup Check Character Verification A check character is optional for China Post 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits China Post 25 barcodes as is. ...

  • Page 158: Gs1-128 (Ucc/Ean-128)

    Enter Setup GS1-128 (UCC/EAN-128) Restore Factory Defaults Restore the Factory Defaults of GS1-128 Enable/Disable GS1-128 ** Enable GS1-128 Disable GS1-128 If the scanner fails to identify GS1-128 barcodes, you may first try this solution by scanning the EnterSetup barcode and then Enable GS1-128 barcode. ** Exit Setup...

  • Page 159: Set Length Range For Gs1-128

    Enter Setup Set Length Range for GS1-128 The scanner can be configured to only decode GS1-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes GS1-128...

  • Page 160: Gs1 Databar (Rss)

    Enter Setup GS1 Databar (RSS) Restore Factory Defaults Restore the Factory Defaults of GS1 Databar Enable/Disable GS1 Databar ** Enable GS1 Databar Disable GS1 Databar If the scanner fails to identify GS1 Databar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GS1 Databar barcode.

  • Page 161: Gs1 Composite (Ean·ucc Composite)

    Enter Setup GS1 Composite (EAN·UCC Composite) Restore Factory Defaults Restore the Factory Defaults of GS1 Composite Enable/Disable GS1 Composite Enable GS1 Composite ** Disable GS1 Composite If the scanner fails to identify GS1 Composite barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GS1 Composite barcode.

  • Page 162: Code 11

    Enter Setup Code 11 Restore Factory Defaults Restore the Factory Defaults of Code 11 Enable/Disable Code 11 Enable Code 11 ** Disable Code 11 If the scanner fails to identify Code 11 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 11 barcode.

  • Page 163: Set Length Range For Code 11

    Enter Setup Set Length Range for Code 11 The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 4) Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes Code 11...

  • Page 164: Check Character Verification

    Enter Setup Check Character Verification Check characters are optional for Code 11 and can be added as the last one or two characters, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits Code 11 barcodes as is. Disable ** One Check Character, MOD11 Two Check Characters, MOD11/MOD11...

  • Page 165: Transmit Check Character

    Enter Setup Transmit Check Character Do Not Transmit Code 11 Check Character Transmit Code 11 Check Character If you select a check character algorithm and the Do Not Transmit Check Character option, Code 11 barcodes with a length that is less than the configured minimum length after having the check character(s) excluded will not be decoded.

  • Page 166: Isbn

    Enter Setup ISBN Restore Factory Defaults Restore the Factory Defaults of ISBN Enable/Disable ISBN Enable ISBN ** Disable ISBN If the scanner fails to identify ISBN barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable ISBN barcode. ** Exit Setup...

  • Page 167: Set Isbn Format

    Enter Setup Set ISBN Format ** ISBN-10 ISBN-13 ** Exit Setup...

  • Page 168: Issn

    Enter Setup ISSN Restore Factory Defaults Restore the Factory Defaults of ISSN Enable/Disable ISSN Enable ISSN ** Disable ISSN If the scanner fails to identify ISSN barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable ISSN barcode. ** Exit Setup...

  • Page 169: Industrial 25

    Enter Setup Industrial 25 Restore Factory Defaults Restore the Factory Defaults of Industrial 25 Enable/Disable Industrial 25 Enable Industrial 25 ** Disable Industrial 25 If the scanner fails to identify Industrial 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Industrial 25 barcode.

  • Page 170: Set Length Range For Industrial 25

    Enter Setup Set Length Range for Industrial 25 The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 6) Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes Industrial 25...

  • Page 171: Check Character Verification

    Enter Setup Check Character Verification A check character is optional for Industrial 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Industrial 25 barcodes as is. ...

  • Page 172: Standard 25

    Enter Setup Standard 25 Restore Factory Defaults Restore the Factory Defaults of Standard 25 Enable/Disable Standard 25 Enable Standard 25 ** Disable Standard 25 If the scanner fails to identify Standard 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Standard 25 barcode.

  • Page 173: Set Length Range For Standard 25

    Enter Setup Set Length Range for Standard 25 The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 6) Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes Standard 25...

  • Page 174: Check Character Verification

    Enter Setup Check Character Verification A check character is optional for Standard 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Standard 25 barcodes as is. ...

  • Page 175: Plessey

    Enter Setup Plessey Restore Factory Defaults Restore the Factory Defaults of Plessey Enable/Disable Plessey Enable Plessey ** Disable Plessey If the scanner fails to identify Plessey barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Plessey barcode. ** Exit Setup...

  • Page 176: Set Length Range For Plessey

    Enter Setup Set Length Range for Plessey The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 4) Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes Plessey barcodes...

  • Page 177: Check Character Verification

    Enter Setup Check Character Verification Check characters are optional for Plessey and can be added as the last two characters, which are calculated values used to verify the integrity of the data.  Disable: The scanner transmits Plessey barcodes as is. ...

  • Page 178: Msi-Plessey

    Enter Setup MSI-Plessey Restore Factory Defaults Restore the Factory Defaults of MSI-Plessey Enable/Disable MSI-Plessey Enable MSI-Plessey ** Disable MSI-Plessey If the scanner fails to identify MSI-Plessey barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable MSI-Plessey barcode. ** Exit Setup...

  • Page 179: Set Length Range For Msi-Plessey

    Enter Setup Set Length Range for MSI-Plessey The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 4) Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey...

  • Page 180: Check Character Verification

    Enter Setup Check Character Verification Check characters are optional for MSI-Plessey and can be added as the last one or two characters, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits MSI-Plessey barcodes as is. Disable ** One Check Character, MOD10 Two Check Characters, MOD10/MOD10...

  • Page 181: Transmit Check Character

    Enter Setup Transmit Check Character Transmit MSI-Plessey Check Character Do Not Transmit MSI-Plessey Check Character If you select a check character algorithm and the Do Not Transmit Check Character option, MSI-Plessey barcodes with a length that is less than the configured minimum length after having the check character(s) excluded will not be decoded.

  • Page 182: Aim 128

    Enter Setup AIM 128 Restore Factory Defaults Restore the Factory Defaults of AIM 128 Enable/Disable AIM 128 Enable AIM 128 ** Disable AIM 128 If the scanner fails to identify AIM 128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable AIM 128 barcode.

  • Page 183: Set Length Range For Aim 128

    Enter Setup Set Length Range for AIM 128 The scanner can be configured to only decode AIM 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes AIM 128...

  • Page 184: Isbt 128

    Enter Setup ISBT 128 Restore Factory Defaults Restore the Factory Defaults of ISBT 128 Enable/Disable ISBT 128 Enable ISBT 128 ** Disable ISBT 128 If the scanner fails to identify ISBT 128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable ISBT 128 barcode.

  • Page 185: Code 49

    Enter Setup Code 49 Restore Factory Defaults Restore the Factory Defaults of Code 49 Enable/Disable Code 49 Enable Code 49 ** Disable Code 49 If the scanner fails to identify Code 49 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 49 barcode.

  • Page 186: Set Length Range For Code 49

    Enter Setup Set Length Range for Code 49 The scanner can be configured to only decode Code 49 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 80) If minimum length is set to be greater than maximum length, the scanner only decodes Code 49...

  • Page 187: Code 16K

    Enter Setup Code 16K Restore Factory Defaults Restore the Factory Defaults of Code 16K Enable/Disable Code 16K Enable Code 16K ** Disable Code 16K If the scanner fails to identify Code 16K barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 16K barcode.

  • Page 188: Set Length Range For Code 16K

    Enter Setup Set Length Range for Code 16K The scanner can be configured to only decode Code 16K barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 80) If minimum length is set to be greater than maximum length, the scanner only decodes Code 16K...

  • Page 189: Pdf417

    Enter Setup PDF417 Restore Factory Defaults Restore the Factory Defaults of PDF417 Enable/Disable PDF417 ** Enable PDF417 Disable PDF417 If the scanner fails to identify PDF417 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable PDF417 barcode. ** Exit Setup...

  • Page 190: Set Length Range For Pdf417

    Enter Setup Set Length Range for PDF417 The scanner can be configured to only decode PDF417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 2710) Minimum length is not allowed to be greater than maximum length.

  • Page 191: Pdf417 Twin Code

    Enter Setup PDF417 Twin Code PDF417 twin code is 2 PDF417 barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading PDF417 twin codes: ...

  • Page 192: Pdf417 Inverse

    Enter Setup PDF417 Inverse Regular barcode: Dark bars on a bright background. Inverse barcode: Bright bars on a dark background. ** Decode Regular PDF417 Barcodes Only Decode Inverse PDF417 Barcodes Only Decode Both Character Encoding ** Default Character Encoding UTF-8 ** Exit Setup...

  • Page 193: Pdf417 Eci Output

    Enter Setup PDF417 ECI Output Disable PDF417 ECI Output Enable PDF417 ECI Output ** Exit Setup...

  • Page 194: Micro Pdf417

    Enter Setup Micro PDF417 Restore Factory Defaults Restore the Factory Defaults of Micro PDF417 Enable/Disable Micro PDF417 Enable Micro PDF417 ** Disable Micro PDF417 If the scanner fails to identify Micro PDF417 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Micro PDF417 barcode.

  • Page 195: Set Length Range For Micro Pdf417

    Enter Setup Set Length Range for Micro PDF417 The scanner can be configured to only decode Micro PDF417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 366) Minimum length is not allowed to be greater than maximum length.

  • Page 196: Qr Code

    Enter Setup QR Code Restore Factory Defaults Restore the Factory Defaults of QR Code Enable/Disable QR Code ** Enable QR Code Disable QR Code If the scanner fails to identify QR Code barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable QR Code barcode.

  • Page 197: Set Length Range For Qr Code

    Enter Setup Set Length Range for QR Code The scanner can be configured to only decode QR Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 7089) Minimum length is not allowed to be greater than maximum length.

  • Page 198: Qr Twin Code

    Enter Setup QR Twin Code QR twin code is 2 QR barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading QR twin codes: ...

  • Page 199: Qr Inverse

    Enter Setup QR Inverse Regular barcode: Dark bars on a bright background. Inverse barcode: Bright bars on a dark background. ** Decode Regular QR Barcodes Only Decode Inverse QR Barcodes Only Decode Both Character Encoding ** Default Character Encoding UTF-8 ** Exit Setup...

  • Page 200: Qr Eci Output

    Enter Setup QR ECI Output Disable QR ECI Output Enable QR ECI Output ** Exit Setup...

  • Page 201: Micro Qr Code

    Enter Setup Micro QR Code Restore Factory Defaults Restore the Factory Defaults of Micro QR Enable/Disable Micro QR ** Enable Micro QR Disable Micro QR If the scanner fails to identify Micro QR barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Micro QR barcode.

  • Page 202: Set Length Range For Micro Qr

    Enter Setup Set Length Range for Micro QR The scanner can be configured to only decode Micro QR barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 35) Minimum length is not allowed to be greater than maximum length.

  • Page 203: Aztec

    Enter Setup Aztec Restore Factory Defaults Restore the Factory Defaults of Aztec Code Enable/Disable Aztec Code Enable Aztec Code ** Disable Aztec Code If the scanner fails to identify Aztec Code barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Aztec Code barcode.

  • Page 204: Set Length Range For Aztec Code

    Enter Setup Set Length Range for Aztec Code The scanner can be configured to only decode Aztec barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 3832) Minimum length is not allowed to be greater than maximum length.

  • Page 205: Read Multi-Barcodes On An Image

    Enter Setup Read Multi-barcodes on an Image There are three options:  Mode 1: Read one barcode only.  Mode 2: Read fixed number of barcodes only.  Mode 3: Composite Reading. Read fixed number of barcodes first. If unsuccessful, read one barcode only. ** Mode 1 Mode 2 Mode 3...

  • Page 206: Set The Number Of Barcodes

    Enter Setup Set the Number of Barcodes ** 1 ** Exit Setup...

  • Page 207: Character Encoding

    Enter Setup Character Encoding ** Default Character Encoding UTF-8 Aztec ECI Output Disable Aztec ECI Output Enable Aztec ECI Output ** Exit Setup...

  • Page 208: Data Matrix

    Enter Setup Data Matrix Restore Factory Defaults Restore the Factory Defaults of Data Matrix Enable/Disable Data Matrix ** Enable Data Matrix Disable Data Matrix If the scanner fails to identify Data Matrix barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Data Matrix barcode.

  • Page 209: Set Length Range For Data Matrix

    Enter Setup Set Length Range for Data Matrix The scanner can be configured to only decode Data Matrix barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 3116) Minimum length is not allowed to be greater than maximum length.

  • Page 210: Data Matrix Twin Code

    Enter Setup Data Matrix Twin Code Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading Data Matrix twin codes: ...

  • Page 211: Rectangular Barcode

    Enter Setup Rectangular Barcode Data Matrix has two formats: Square barcodes having the same amount of modules in length and width: 10*10, 12*12..144*144. Rectangular barcodes having different amounts of models in length and width: 6*16, 6*14...14*22. ** Enable Rectangular Barcode Disable Rectangular Barcode Data Matrix Inverse Regular barcode: Dark bars on a bright background.

  • Page 212: Character Encoding

    Enter Setup Character Encoding ** Default Character Encoding UTF-8 Data Matrix ECI Output Disable Data Matrix ECI Output Enable Data Matrix ECI Output ** Exit Setup...

  • Page 213: Maxicode

    Enter Setup Maxicode Restore Factory Defaults Restore the Factory Defaults of Maxicode Enable/Disable Maxicode Enable Maxicode ** Disable Maxicode If the scanner fails to identify Maxicode barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Maxicode barcode. ** Exit Setup...

  • Page 214: Set Length Range For Maxicode

    Enter Setup Set Length Range for Maxicode The scanner can be configured to only decode Maxicode barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default:150) Minimum length is not allowed to be greater than maximum length.

  • Page 215: Chinese Sensible Code

    Enter Setup Chinese Sensible Code Restore Factory Defaults Restore the Factory Defaults of Chinese Sensible Code Enable/Disable Chinese Sensible Code Enable Chinese Sensible Code ** Disable Chinese Sensible Code If the scanner fails to identify Chinese Sensible Code barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Chinese Sensible Code barcode.

  • Page 216: Set Length Range For Chinese Sensible Code

    Enter Setup Set Length Range for Chinese Sensible Code The scanner can be configured to only decode Chinese Sensible Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 7827) Minimum length is not allowed to be greater than maximum length.

  • Page 217: Chinese Sensible Twin Code

    Enter Setup Chinese Sensible Twin Code Chinese Sensible twin code is 2 Chinese Sensible barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading Chinese Sensible twin codes: ...

  • Page 218: Chinese Sensible Code Inverse

    Enter Setup Chinese Sensible Code Inverse Regular barcode: Dark bars on a bright background. Inverse barcode: Bright bars on a dark background. ** Decode Regular Chinese Sensible Barcodes Only Decode Inverse Chinese Sensible Barcodes Only Decode Both ** Exit Setup...

  • Page 219: Gm Code

    Enter Setup GM Code Restore Factory Defaults Restore the Factory Defaults of GM Enable/Disable GM Enable GM ** Disable GM If the scanner fails to identify GM barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GM barcode. ** Exit Setup...

  • Page 220: Set Length Range For Gm

    Enter Setup Set Length Range for GM The scanner can be configured to only decode GM barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 2751) Minimum length is not allowed to be greater than maximum length.

  • Page 221: Code One

    Enter Setup Code One Restore Factory Defaults Restore the Factory Defaults of Code One Enable/Disable Code One Enable Code One ** Disable Code One If the scanner fails to identify Code One barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code One barcode.

  • Page 222: Set Length Range For Code One

    Enter Setup Set Length Range for Code One The scanner can be configured to only decode Code One barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Set the Minimum Length (Default: 1) Set the Maximum Length (Default: 3550) Minimum length is not allowed to be greater than maximum length.

  • Page 223: Usps Postnet

    Enter Setup USPS Postnet Restore Factory Defaults Restore the Factory Defaults of USPS Postnet Enable/Disable USPS Postnet Enable USPS Postnet ** Disable USPS Postnet If the scanner fails to identify USPS Postnet barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable USPS Postnet barcode.

  • Page 224: Usps Intelligent Mail

    Enter Setup USPS Intelligent Mail Restore Factory Defaults Restore the Factory Defaults of USPS Intelligent Mail Enable/Disable USPS Intelligent Mail Enable USPS Intelligent Mail ** Disable USPS Intelligent Mail If the scanner fails to identify USPS Intelligent Mail barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable USPS Intelligent Mail barcode.

  • Page 225: Royal Mail

    Enter Setup Royal Mail Restore Factory Defaults Restore the Factory Defaults of Royal Mail Enable/Disable Royal Mail Enable Royal Mail ** Disable Royal Mail If the scanner fails to identify Royal Mail barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Royal Mail barcode.

  • Page 226: Usps Planet

    Enter Setup USPS Planet Restore Factory Defaults Restore the Factory Defaults of USPS Planet Enable/Disable USPS Planet Enable USPS Planet ** Disable USPS Planet If the scanner fails to identify USPS Planet barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable USPS Planet barcode.

  • Page 227: Kix Post

    Enter Setup KIX Post Restore Factory Defaults Restore the Factory Defaults of KIX Post Enable/Disable KIX Post Enable KIX Post ** Disable KIX Post If the scanner fails to identify KIX Post barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable KIX Post barcode.

  • Page 228: Australian Postal

    Enter Setup Australian Postal Restore Factory Defaults Restore the Factory Defaults of Australian Postal Enable/Disable Australian Postal Enable Australian Postal ** Disable Australian Postal If the scanner fails to identify Australian Postal barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Australian Postal barcode.

  • Page 229: Specific Ocr-B

    Enter Setup Specific OCR-B Restore Factory Defaults Restore the Factory Defaults of Specific OCR-B Enable/Disable Specific OCR-B Enable Specific OCR-B ** Disable Specific OCR-B If the scanner fails to identify Specific OCR-B barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Specific OCR-B barcode.

  • Page 230: Passport Ocr

    Enter Setup Passport OCR Restore Factory Defaults Restore the Factory Defaults of Passport OCR Enable/Disable Passport OCR Enable Passport OCR ** Disable Passport OCR If the scanner fails to identify Passport OCR barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Passport OCR barcode.

  • Page 231: Chapter 8 Data Formatter

    Enter Setup Chapter 8 Data Formatter Introduction You may use the Data Formatter to modify the scanner’s output. For example, you can use the Data Formatter to insert characters at certain points in barcode data or to suppress/ replace/ send certain characters in barcode data as it is scanned.
  • Page 232 Enter Setup Step 2: Scan the Add Data Format barcode. Add Data Format Step 3: Select a label (Format_0 or Format_1 or Format_2 or Format_3). Scan a numeric barcode 0 or 1 or 2 or 3 to label this data format Format_0 or Format_1 or Format_2 or Format_3. Step 4: Select formatter command type.
  • Page 233 Enter Setup Example: Program a Format_0 data format using formatter command type 6, Code 128 containing 10 characters applicable, send all characters followed by “A”. 1. Scan the Enter Setup barcode Enter the Setup mode 2. Scan the Add Data Format barcode Add a data format 3.

  • Page 234: Programming With Serial Commands

    Enter Setup Programming with Serial Commands A data format can also be created by serial commands (HEX) sent from the host device. All commands must be entered in uppercase letters. The syntax consists of the following elements: Prefix: “~<SOH>0000” (HEX: 7E 01 30 30 30 30), 6 characters. Storage type: “@”...

  • Page 235: Enable/Disable Data Formatter

    Enter Setup Enable/Disable Data Formatter When Data Formatter is disabled, the barcode data is outputted to the host as read, including prefixes and suffixes. ** Disable Data Formatter You may wish to require the data to conform to a data format you have created. The following settings can be applied to your data format: Enable Data Formatter, Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted along with prefixes and suffixes (if prefix and suffix are enabled).

  • Page 236: Non-Match Error Beep

    Enter Setup Enable Data Formatter, Required, Keep Prefix/Suffix Enable Data Formatter, Required, Drop Prefix/Suffix Enable Data Formatter, Not Required, Keep Prefix/Suffix Enable Data Formatter, Not Required, Drop Prefix/Suffix Non-Match Error Beep If Non-Match Error Beep is turned ON, the scanner generates an error beep when a barcode is encountered that does not match your required data format.

  • Page 237: Data Format Selection

    Enter Setup Data Format Selection After enabling the Data Formatter, you can select a data format you want to use by scanning the appropriate barcode below. ** Format_0 Format_1 Format_2 Format_3 ** Exit Setup...

  • Page 238: Change Data Format For A Single Scan

    Enter Setup Change Data Format for a Single Scan You can switch between data formats for a single scan. The next barcode is scanned using the data format selected here, then reverts to the format you have selected above. For example, you may have set your scanner to use the data format you saved as Format_3. You can switch to Format_1 for a single trigger pull by scanning the Single Scan –...

  • Page 239: Clear Data Format

    Enter Setup Clear Data Format There are two methods to remove data format created from your scanner: Delete one data format: Scan the Clear One barcode, a numeric barcode (0-3) and the Save barcode. For example, to delete Format_2, you should scan the Clear One barcode, the 2 barcode and the Save barcode Delete all data formats: Scan the Clear All barcode.

  • Page 240: Formatter Command Type 6

    Enter Setup Formatter Command Type 6 When working with the Data Formatter, a virtual cursor is moved along your input data string. The following commands are used to both move this cursor to different positions, and to select, replace, and insert data into the final output. For the hex value of ASCII characters involved in the commands, refer to the “ASCII Table”...
  • Page 241 Enter Setup F3 Send all characters up to a particular character Syntax=F3ssxx (ss: The particular character’s hex value; xx: The insert character’s hex value) Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the particular character “ss,”...
  • Page 242 Enter Setup B9 Send all characters up to a particular string Syntax=B9nnnns...s (nnnn: The length of the particular string; s...s: The hex value of each character in the particular string) Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the particular string “s...s.”...
  • Page 243 Enter Setup E9 and F4 Example: Send all but the last characters, followed by 2 tabs Send all characters except for the last 8 from the barcode above, followed by 2 tabs. Command string: E908F40902 E9 is the “Send all but the last characters” command 08 is the number of characters at the end to ignore F4 is the “Insert a character multiple times”...

  • Page 244: Move Commands

    Enter Setup B3 and B4 Example: Insert the symbology name and length Send the symbology name and length before the barcode data from the barcode above. Break up these insertions with spaces. End with a carriage return. Command string: B3F42001B4F42001F10D B3 is the “Insert symbology name”...
  • Page 245 Enter Setup F5 Example: Move the cursor forward and send the data Move the cursor forward 3 characters, then send the rest of the barcode data from the barcode above. End with a carriage return. Command string: F503F10D F5 is the “Move the cursor forward a number of characters” command 03 is the number of characters to move the cursor F1 is the “Send all characters”...

  • Page 246: Search Commands

    Enter Setup Search Commands F8 Search forward for a character Syntax＝F8xx (xx: The search character’s hex value) Search the input message forward for “xx” character from the current cursor position, leaving the cursor pointing to the “xx” character. F8 Example: Send barcode data that starts after a particular character Search for the letter “D”...
  • Page 247 Enter Setup B0 Search forward for a string Syntax=B0nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string) Search forward for “S” string from the current cursor position, leaving cursor pointing to “S” string. For example, B0000454657374 will search forward for the first occurrence of the 4-character string “Test.”...
  • Page 248 Enter Setup E6 Search forward for a non-matching character Syntax=E6xx (xx: The search character’s hex value) Search the input message forward for the first non-“xx” character from the current cursor position, leaving the cursor pointing to the non-“xx” character. E6 Example: Remove zeros at the beginning of barcode data This example shows a barcode that has been zero filled.

  • Page 249: Miscellaneous Commands

    Enter Setup Miscellaneous Commands FB Suppress characters Syntax＝FBnnxxyy..zz (nn: The numeric value (00-15) for the number of suppressed characters; xxyy..zz: The hex value of the characters to be suppressed) Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is advanced by other commands.
  • Page 250 Enter Setup E4 Example: Replace zeros with CRs in barcode data If the barcode has characters that the host application does not want included, you can use the E4 command to replace those characters with something else. In this example, you will replace the zeros in the barcode above with carriage returns.
  • Page 251 Enter Setup BA Replace a string with another Syntax＝BAnnNN nn: The count of replacements to be made, if nn=00 or nn>=the number of occurrences of a string to be replaced, then replace all occurrences of that string. : The length of the string to be replaced, NN >0.
  • Page 252 Enter Setup 41 is the hex value for A (character in the replacement string) 42 is the hex value for B (character in the replacement string) 43 is the hex value for C (character in the replacement string) F1 is the “Send all characters” command 00 is the hex value for a NUL The data is output as: 1ABC4AbcABCR01ABCU BA Example: Remove only the first occurrence of “23”s in barcode data...
  • Page 253 Enter Setup EF Insert a delay Syntax＝EFnnnn (nnnn: The delay in 5ms increments, up to 9999) Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting from the current cursor position. This command can only be used with USB HID Keyboard. EF Example: Insert a delay of 1s between the 5 and 6 character...
  • Page 254 Enter Setup B5 Insert key strokes Syntax=B5nnssxx (nn: The number of keys pressed (without key modifiers); ss: the key modifier from the table below; xx: the key number from the “Unicode Key Maps” in Appendix.) Insert a key stroke or combination of key strokes. Key strokes are dependent on your keyboard (see the “Unicode Key Maps”...

  • Page 255: Chapter 9 Prefix & Suffix

    Enter Setup Chapter 9 Prefix & Suffix Introduction A 1D barcode could contain digits, letters, symbols, etc. A 2D barcode could contain more data, such as Chinese characters and other multi-byte characters. However, in real applications, they do not and should not have all information we need, such as barcode type, data acquisition time and delimiter, in order to keep the barcodes short and flexible.

  • Page 256: Global Settings

    Enter Setup Global Settings Enable/Disable All Prefixes/Suffixes Disable All Prefixes/Suffixes: Transmit barcode data with no prefix/suffix. Enable All Prefixes/Suffixes: Allow to append Code ID prefix, AIM ID prefix, custom prefix/suffix and terminating character to the barcode data before the transmission. ** Disable All Prefixes/Suffixes Enable All Prefixes/Suffixes Prefix Sequence...

  • Page 257: Custom Prefix

    Enter Setup Custom Prefix Enable/Disable Custom Prefix If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 10 characters. For example, if the custom prefix is “AB” and the barcode data is “123”, the Host will receive “AB123”. ** Disable Custom Prefix Enable Custom Prefix Set Custom Prefix...

  • Page 258: Aim Id Prefix

    Enter Setup AIM ID Prefix AIM (Automatic Identification Manufacturers) ID defines symbology identifier (For the details, see the “AIM ID Table” section in Appendix). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data after decoding.

  • Page 259: Code Id Prefix

    Enter Setup Code ID Prefix Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist of one or two English letters. ** Disable Code ID Prefix Enable Code ID Prefix Restore All Default Code IDs For the information of default Code IDs, see the “Code ID Table”...
  • Page 260 Enter Setup Modify PDF417 Code ID to be “p” (HEX: 0x70): 1. Scan the Enter Setup barcode. 2. Scan the Modify PDF417 Code ID barcode. 3. Scan the numeric barcodes “7” and “0” from the “Digit Barcodes” section in Appendix. 4.
  • Page 261 Enter Setup 1D symbologies: Modify Code 128 Code ID Modify GS1-128 Code ID Modify EAN-8 Code ID Modify EAN-13 Code ID Modify UPC-E Code ID Modify UPC-A Code ID Modify Interleaved 2 of 5 Code ID ** Exit Setup...
  • Page 262 Enter Setup Modify ITF-14 Code ID Modify ITF-6 Code ID Modify Matrix 2 of 5 Code ID Modify Code 39 Code ID Modify Codabar Code ID Modify Code 93 Code ID Modify China Post 25 Code ID Modify AIM 128 Code ID ** Exit Setup...
  • Page 263 Enter Setup Modify ISBT 128 Code ID Modify ISSN Code ID Modify ISBN Code ID Modify Industrial 25 Code ID Modify Standard 25 Code ID Modify Plessey Code ID Modify Code 11 Code ID Modify MSI-Plessy Code ID ** Exit Setup...
  • Page 264 Enter Setup Modify GS1 Composite Code ID Modify GS1 Databar Code ID Modify Code 49 Code ID Modify Code 16K Code ID ** Exit Setup...
  • Page 265 Enter Setup 2D symbologies: Modify PDF417 Code ID Modify QR Code ID Modify Aztec Code ID Modify Data Matrix Code ID Modify Maxicode Code ID Modify Chinese Sensible Code ID Modify GM Code ID ** Exit Setup...
  • Page 266 Enter Setup Modify Micro PDF417 Code ID Modify Micro QR Code ID Modify Code One Code ID ** Exit Setup...
  • Page 267 Enter Setup Postal symbologies: Modify USPS Postnet Code ID Modify USPS Inteligent Mail Code ID Modify Royal Mail Code ID Modify USPS Planet Code ID Modify KIX Post Code ID Modify Australian Postal Code ID ** Exit Setup...

  • Page 268: Custom Suffix

    Enter Setup Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 10 characters. For example, if the custom suffix is “AB” and the barcode data is “123”, the Host will receive “123AB”. ** Disable Custom Suffix Enable Custom Suffix Set Custom Suffix...

  • Page 269: Data Packing

    Enter Setup Data Packing Introduction Data packing is designed for a specific group of users who want to have the data packed before transmission. Data packing influences data format, so it is advised to disable this feature when it is not required. Data Packing Options Disable Data Packing: Transmit decoded data in raw format (unpacketed).
  • Page 270 Enter Setup ** Disable Data Packing Enable Data Packing, Format 1 Enable Data Packing, Format 2 ** Exit Setup...

  • Page 271: Terminating Character Suffix

    Enter Setup Terminating Character Suffix Enable/Disable Terminating Character Suffix A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) can only be used to mark the end of data, which means nothing can be added after it. ** Disable Terminating Character Suffix Enable Terminating Character Suffix Set Terminating Character Suffix...
  • Page 272 Enter Setup Set the terminating character suffix to 0x0A: 1. Scan the Enter Setup barcode. 2. Scan the Set Terminating Character Suffix barcode. 3. Scan the numeric barcodes “0” and “A” from the “Digit Barcodes” section in Appendix. 4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix. 5.

  • Page 273: Chapter 10 Batch Programming

    Enter Setup Chapter 10 Batch Programming Introduction Batch programming enables users to integrate a batch of commands into a single batch barcode. Listed below are batch programming rules: 1. Command format: Command + Parameter Value. 2. Each command is terminated by a semicolon (;). Note that there is no space between a command and its terminator semicolon.

  • Page 274: Create A Batch Command

    Enter Setup Create a Batch Command A batch command may contain a number of individual commands each of which is terminated by a semicolon (;). For more information, refer to the “Use of Programming Command” section in Chapter 3. Create a Batch Barcode Batch barcodes can be produced in the format of PDF417, QR Code or Data Matrix.

  • Page 275: Use Batch Barcode

    Enter Setup Use Batch Barcode To put a batch barcode into use, scan the following barcodes. (Use the example above.) Enter Setup Enable Batch Barcode Batch Barcode Exit Setup ** Exit Setup...

  • Page 276: Appendix

    Appendix Digit Barcodes...

  • Page 279: Save/Cancel Barcodes

    Save/Cancel Barcodes After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.

  • Page 280: Factory Defaults Table

    Factory Defaults Table Parameter Factory Default Remark System Settings Barcode Programming Disabled (Exit Setup) Programming Barcode Data Do not transmit Illumination Normal Aiming Normal Good Read LED Good Read LED Duration Short (20ms) Power On Beep Good Read Beep Good Read Beep Duration Medium (80ms) Good Read Beep Frequency Medium (2730Hz)
  • Page 281 Reset Reread Timeout Image Decoding Timeout 500ms 1-3,000ms Sensitivity Medium Sensitivity Scanning Preference Normal Mode Trigger Commands Disabled Read Barcode Smart Stand Mode Decode Area Whole Area Decoding Specify Decoding Area 40% top, 60% bottom, 40% left, 60% right Image Flipping Do Not Flip Bad Read Message 1-7 characters...
  • Page 282 Transmission Timeout 200ms Retransmission Count 3 (retransmissions) Wireless Communication Mode Point-to-Point Mode Time Stamp Do Not Send Time Stamp Format Format 1: (YYYY/MM/DD,HH:MM:SS) RS-232 Interface Baud Rate 9600 Parity Check None Data Bits Stop Bits Hardware Auto Flow Control Disabled USB Interface USB Country Keyboard US keyboard...
  • Page 283 1D Twin Code Single 1D Code Only Surround GS1 AI’s with Parentheses Do Not Surround GS1 AI’s with Parentheses Code 128 Code 128 Enabled Maximum Length Minimum Length EAN-8 EAN-8 Enabled Check Character Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Convert EAN-8 to EAN-13 Disabled...
  • Page 284 EAN-13 Beginning with 414/419 Add-On Do Not Require Add-On Code Code Required EAN-13 Beginning with 434/439 Add-On Do Not Require Add-On Code Code Required EAN-13 Beginning with 977 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 978 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 979 Add-On Code...
  • Page 285 UPC-A/EAN-13 with Extended Coupon Disabled Code Coupon GS1 DataBar Output Disabled Interleaved 2 of 5 Interleaved 2 of 5 Enabled Maximum Length Minimum Length No less than 4 Check Character Verification Disabled Febraban Febraban Disabled Disabled Transmit Delay per Character 70ms Disabled Transmit Delay per 12 Characters...
  • Page 286 Start/Stop Character Do not transmit Code 39 Full ASCII Disabled Code 32 Pharmaceutical (PARAF) Disabled Code 32 Prefix Disabled Code 32 Start/Stop Character Do not transmit Code 32 Check Character Do not transmit Codabar Codabar Enabled Maximum Length Minimum Length Check Character Verification Disabled Do not transmit...
  • Page 287 Maximum Length Minimum Length Check Character Verification Disabled GS1-128 (UCC/EAN-128) GS1-128 Enabled Maximum Length Minimum Length GS1 Databar GS1 Databar Enabled Application Identifier “01” Transmit EAN•UCC Composite GS1 Composite Disabled UPC/EAN Composite Disabled Code 11 Code 11 Disabled Maximum Length Minimum Length No less than 4 Check Character Verification...
  • Page 288 ISSN Disabled Industrial 25 Industrial 25 Disabled Maximum Length Minimum Length No less than 4 Check Character Verification Disabled Standard 25 Standard 25 Disabled Maximum Length Minimum Length No less than 4 Check Character Verification Disabled Plessey Plessey Disabled Maximum Length Minimum Length No less than 4 Check Character Verification...
  • Page 289 Code 49 Disabled Maximum Length Minimum Length Code 16K Code 16K Disabled Maximum Length Minimum Length PDF417 PDF417 Enabled Maximum Length 2710 Minimum Length PDF417 Twin Code Single PDF417 Only PDF417 Inverse Decode Regular PDF417 Barcodes Only Character Encoding Default Character Encoding PDF417 ECI Output Enabled Micro PDF417...
  • Page 290 QR Code Enabled Maximum Length 7089 Minimum Length QR Twin Code Single QR Only QR Inverse Decode Regular QR Barcodes Only Character Encoding Default Character Encoding QR ECI Output Enabled Micro QR Code Micro QR Enabled Maximum Length Minimum Length Aztec Aztec Code Disabled...
  • Page 291 Data Matrix Enabled Maximum Length 3116 Minimum Length Data Matrix Twin Code Single Data Matrix Only Rectangular Barcode Enabled Data Matrix Inverse Decode Regular Data Matrix Barcodes Only Character Encoding Default Character Encoding Data Matrix ECI Output Enabled Maxicode Maxicode Disabled Maximum Length Minimum Length...
  • Page 292 Maximum Length 2571 Minimum Length Code One Code One Disabled Maximum Length 3550 Minimum Length USPS Postnet USPS Postnet Disabled Check Character Transmit USPS Intelligent Mail USPS Intelligent Mail Disabled Royal Mail Royal Mail Disabled USPS Planet USPS Planet Disabled Check Character Transmit KIX Post...
  • Page 293 Passport OCR Disabled Data Formatter Data Formatter Disabled Non-Match Error Beep Data Format Selection Format_0 Prefix & Suffix All Prefixes/Suffixes Disabled Prefix Sequence Code ID+ Custom +AIM ID Custom Prefix Disabled AIM ID Prefix Disabled Code ID Prefix Disabled Custom Suffix Disabled Data Packing Disable Data Packing...

  • Page 294: Aim Id Table

    AIM ID Table Symbology AIM ID Possible AIM ID Modifiers (m) Code 128 GS1-128 (UCC/EAN-128) EAN-8 EAN-8 with Addon EAN-13 EAN-13 with Addon UPC-E UPC-E with Addon UPC-A UPC-A with Addon Interleaved 2 of 5, Febraban 0, 1, 3 ITF-14 1, 3 ITF-6 1, 3...
  • Page 295 Symbology AIM ID Possible AIM ID Modifiers (m) PDF417 QR Code Aztec 0-9, A-C Data Matrix Maxicode Chinese Sensible Code (0~9) Micro PDF417 Micro QR Code One USPS Postnet USPS Inteligent Mail Royal Mail USPS Planet KIX Post Australian Postal Specific OCR-B Passport OCR Note: “m”...

  • Page 296: Code Id Table

    Code ID Table Symbology Code ID Code 128 GS1-128 (UCC/EAN-128) EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5, Febraban ITF-14 ITF-6 Matrix 2 of 5 Code 39 Codabar Code 93 China Post 25 AIM 128 ISBT 128 ISSN ISBN Industrial 25 Standard 25 Plessey Code 11...
  • Page 297 Symbology Code ID MaxiCode Chinese Sensible Code GM Code Micro PDF417 Micro QR Code One USPS Postnet USPS Inteligent Mail Royal Mail USPS Planet KIX Post Australian Postal Specific OCR-B Passport OCR...

  • Page 298: Symbology Id Number

    Symbology ID Number Symbology ID Number Code 128 GS1-128 (UCC/EAN-128) EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5, Febraban ITF-14 ITF-6 Matrix 2 of 5 Code 39 Codabar Code 93 China Post 25 AIM 128 ISBT 128 ISSN ISBN Industrial 25 Standard 25 Plessey Code11...
  • Page 299 Symbology ID Number Micro PDF417 Micro QR Code One Specific OCR-B Passport OCR USPS Postnet USPS Inteligent Mail Royal Mail USPS Planet KIX Post Australian Postal...

  • Page 300: Ascii Table
