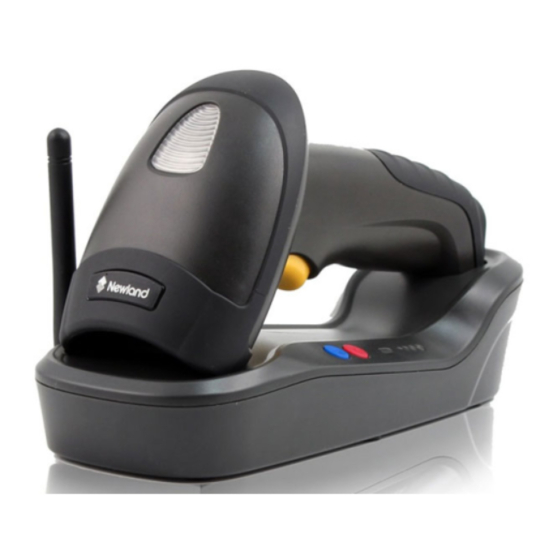

NLS-HR15 Series
NLS-HR1550-3E
Cordless 1D Barcode Scanner
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NLS-HR1550-3E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newland NLS-HR1550-3E

Summary of Contents for Newland NLS-HR1550-3E

  • Page 1 NLS-HR15 Series NLS-HR1550-3E Cordless 1D Barcode Scanner User Guide...
  • Page 2 Please read through the manual carefully before using the product and operate it according to the manual. It is advised that you should keep this manual for future reference. Do not disassemble the device or remove the seal label from the device. Otherwise, FuJian Newland Auto-ID Tech. Co., Ltd. does not assume responsibility for the warranty or replacement.

  • Page 3: Revision History

    Revision History Version Description Date V1.0 Initial release. December 25, 2011 Corrected improper descriptions and moved the Enter/Exit Setup barcodes to page V1.1 August 10, 2012 header and footer. Updates: 1. Added the “Pairing Settings” section in Chapter 2; added the Timeout between Decodes (Same Barcode) programming feature for the Sense and Continuous modes.

  • Page 4: Table Of Contents

    Table of Contents Revision History ..................................- 3 - Preface ......................................1 Introduction ..................................1 Chapter Description ................................1 Document Set ..................................2 Chapter 1 Getting Started ................................3 Introduction ..................................3 Unpacking ................................... 4 Scanner ....................................4 CD15 Cradle ..................................5 Communication Mode .................................
  • Page 5 Format of Command ............................... 20 Configuration Process Flow ............................ 22 Default Settings ................................23 Restore Factory Default Settings ..........................23 Pairing Settings ................................. 24 Pair Scanner with Cradle ............................24 Pair Cradle with Zigbee Router ..........................24 Clear Pairing Settings .............................. 24 Operating Mode Options ..............................
  • Page 6 USB HID-KBW ................................ 50 USB COM Port Emulation ............................50 Keyboard Parameters ............................... 51 Keyboard Layout ..............................51 Inter-Character Delay .............................. 52 Convert Case ................................52 Improve Reliability of Communication between Cradle and PC ..................53 Enable Communication Support ..........................53 Disable Communication Support ..........................
  • Page 7 Enable/Disable AIM 128 ............................66 Set Code ID ................................67 Set Length Range for AIM 128 ..........................68 EAN-8 ....................................69 Restore Default Settings ............................69 Enable/Disable EAN-8 ............................. 69 Set Code ID ................................70 2-Digit Add-On Code ............................... 71 5-Digit Add-On Code ...............................
  • Page 8 Enable/Disable UPC-A ............................87 Set Code ID ................................88 Transmit Check Digit ............................... 89 Transmit Preamble Character “0” ..........................89 2-Digit Add-On Code ............................... 90 5-Digit Add-On Code ............................... 91 Interleaved 2 of 5 ................................92 Restore Default Settings ............................92 Enable/Disable Interleaved 2 of 5 ...........................
  • Page 9 Enable/Disable Industrial 25 ..........................112 Set Code ID ................................113 Parity Check ................................114 Set Length Range for Industrial 25 ........................115 Standard 25 ..................................116 Restore Default Settings ............................116 Enable/Disable Standard 25 ..........................116 Set Code ID ................................117 Parity Check ................................
  • Page 10 Restore Default Settings ............................138 Enable/Disable Plessey ............................138 Set Code ID ................................139 Parity Check ................................140 Set Length Range for Plessey ..........................141 MSI-Plessey ..................................142 Restore Default Settings ............................142 Enable/Disable MSI-Plessey ..........................142 Set Code ID ................................143 Parity Check ................................

  • Page 11: Preface

    Preface Introduction This manual provides detailed instructions for setting up and using the NLS-HR15 series cordless 1D barcode scanner NLS-HR1550-3E (hereinafter referred to as “HR15 cordless scanner” or “the scanner”). Chapter Description  Chapter 1,Getting Started : This chapter gives a general description of HR15 cordless scanner including its technical parameters.

  • Page 12: Document Set

    1D Barcode Scanner Firmware Update Utility Describes how to update the firmware in 1D barcode scanners User Guide with this tool developed by Newland. EzSet123 Scanner Configuration Utility User Describes how to configure scanners with this tool developed by Guide Newland.

  • Page 13: Chapter 1 Getting Started

    2D stacked symbologies such as PDF417 and MicroPDF417. Based on the technology independently developed by Newland, HR15 cordless scanner is able to deliver rapid image acquisition and accurate decoding; it can provide customers with best services. HR15 cordless scanner boasts the ergonomical design that ensures easy and comfortable operation.

  • Page 14: Unpacking

    Unpacking Open the package and take out HR15 cordless scanner and its accessories. Check to make sure everything on the packing list is present and intact. If any contents are damaged or missing, please keep the original package and contact your dealer immediately for after-sale service.

  • Page 15: Cd15 Cradle

    CD15 Cradle Buttons: P：Batch Transmission M：Pair/Search LEDs: Zigbee LED (blue): Zigbee is available. Battery LED (green): Indicates battery level (four levels) Fig. 1-2 Fig. 1-3...

  • Page 16: Communication Mode

    Communication Mode There are three communication modes: synchronous mode (default), asynchronous mode and batch mode.  Synchronous mode: If Zigbee is available, scanned data will be transferred to the cradle immediately after successfully decoded; if Zigbee is unavailable, the transmission of decoded data cannot be accomplished. ...

  • Page 17: Cd15 Data Port

    CD15 Data Port Fig. 1-4 Fig. 1-5 Pinout of CD15 data port Definition Type Description No connection No connection Power+ (+5V) RS-232 output RS-232 input Flow control signal Ground USB signal...

  • Page 18: Usb/Rs-232 Port

    USB/RS-232 Port CD15 cradle must be connected to a Host in actual application, such as PC, POS or any intelligent terminal with USB or RS-232 port, via a communication cable, either USB or RS-232 cable.  USB port on the Host ...

  • Page 19: Connect Cradle To A Host

    Connect Cradle to a Host Use USB Cable Fig. 1-6 Connect the CD15 cradle to a Host through a USB cable with RJ45 and USB connectors: Plug the RJ45 connector into the data port (see Fig.1-3) on CD15 cradle. Plug the USB connector into the USB port on the Host.

  • Page 20: Use Rs-232 Cable

    Use RS-232 Cable Fig. 1-7 Connect the CD15 cradle to a Host through a RS-232 cable with RJ45 and RS-232 connectors: Plug the RJ45 connector into the data port (see Fig.1-3) on CD15 cradle. Plug the RS-232 connector into the RS-232 port on the Host. Plug the supplied power adapter into the power port (see Fig.1-3) on CD15 cradle.

  • Page 21: Power On, Sleep, Power Off, Reboot

    Power on, Sleep, Power off, Reboot Powering on the device Hold down the trigger on the scanner for 1 second or longer. Note: When using the scanner for the first time, the user MUST hold down the trigger for 10-15 seconds to exit battery protection mode and activate the scanner.

  • Page 22: Depth Of Field

    Depth of Field Fig. 1-8...

  • Page 23: Specifications

    Specifications Performance Light Source 620nm visible red LED Image Sensor CCD linear image sensor Code128, EAN-13, EAN-8, Code 39,UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Symbologies ISBN, Code 93, UCC/EAN-128, GS1 Databar, PDF417 (max. 255 bytes), MicroPDF417 (max. 255 bytes), etc. ≥...

  • Page 24: Dimensions Of Scanner

    Dimensions of Scanner Side View Fig. 1-9 Front View Fig. 1-10...

  • Page 25: Top View

    Top View Fig. 1-11 Dimensions of CD15 Cradle Fig. 1-12...

  • Page 26: Scanning Instructions

    Scanning Instructions When the HR15 cordless scanner is in the Manual mode (default), you can follow the steps below to scan a barcode: Hold down the trigger. Then the scanner will project a red aiming beam. Aim the red beam across the center of barcode, as shown in Fig.1-13. Release the trigger when the scanner beeps and the red beam goes off.
  • Page 27 Scan Angle The scanner is designed to function within a certain range of scan angles. Any unreasonable deviation may cause decoding failure. Scan angles of the HR15:  Pitch ：±55° , 0° Roll and 0° Skew (Fig. 1-14)  Roll ：± 30° , 0° Pitch and 0° Skew (Fig. 1-15) ...

  • Page 28: Chapter 2 General Settings

    **【Enter Setup】 Chapter 2 General Settings Introduction There are two ways to configure the HR15 cordless scanner: barcode programming and command programming. Barcode Programming The HR15 cordless scanner scans a series of barcodes to program features. In the following sections, we will explain the available options and features and provide the barcodes to program them.

  • Page 29: Programming Barcode/ Programming Command/Function

    **【Enter Setup】 Programming Barcode/ Programming Command/Function The figure above is an example that shows you the programming barcode and command for the Enter Setup function: 1. The Enter Setup barcode. 2. The Enter Setup command. 3. The function that can be enabled by using the programming barcode or command listed above. 4.

  • Page 30: Use Of Command

    **【Enter Setup】 Use of Command Based on serial port communication, programming commands can be composed of printable ASCII characters, 0x20 (space) through 0x7D (“}”). Programming Mode Before configuring the HR15 cordless scanner through serial communication, the device must enter the programming mode;...
  • Page 31 **【Enter Setup】 If a command involves parameter(s), they shall be combined as per the rule. For example: The combined commands for appending terminating character suffix 0x0D (CR),0x0A (LF) to the scanned data and saving the settings: “#99904112;#99900000;#99900015;#99900000;#99900012;#99900020;”. 【Exit Setup】...

  • Page 32: Configuration Process Flow

    **【Enter Setup】 Configuration Process Flow 【Exit Setup】...

  • Page 33: Default Settings

    **【Enter Setup】 Default Settings Restore Factory Default Settings Scanning the Reset Scanner barcode/the Reset Cradle barcode can restore the scanner/cradle to the factory default settings. You may need to reset your scanner/cradle when: 1. scanner/cradle is not properly configured so that it fails to decode barcodes or to communicate with cradle; 2.

  • Page 34: Pairing Settings

    **【Enter Setup】 Pairing Settings Pair Scanner with Cradle The scanner and cradle must be paired for communication to occur. A cradle can be paired with multiple scanners. You need to perform this operation manually: After the scanner and cradle are powered on, insert the scanner in the cradle and then press the “M”...

  • Page 35: Operating Mode Options

    **【Enter Setup】 Operating Mode Options 【Power Off】 【Test Mode 】 【Reboot Scanner】 【Reboot Cradle】 Note : Pressing the trigger on the scanner or rebooting the device can exit the Test mode. 【Exit Setup】...

  • Page 36: Power-Off Timeout

    **【Enter Setup】 Power-Off Timeout The HR15 cordless scanner that stays in the sleep mode will be automatically powered off when the timeout occurs (default: 5 minutes). Scan the barcode below to set this parameter. **【5 Minutes】 【10 Minutes】 【20 Minutes】 【30 Minutes】...

  • Page 37: Scan Mode

    **【Enter Setup】 Scan Mode Manual Mode Manual Mode (default): A trigger pull activates a decode session. The decode session continues until the barcode is decoded or you release the trigger or the decode session timeout occurs (default: 15 seconds; programmable). **【Manual Mode】...

  • Page 38: Auto Mode

    **【Enter Setup】 Auto Mode Auto Mode: Pressing the trigger activates a decode session. The decode session continues until the barcode is decoded or the decode session timeout occurs (default: 15 seconds; programmable). The scanner automatically starts one session after another until you press the trigger a second time. 【Auto Mode】...
  • Page 39 **【Enter Setup】 Decode Session Timeout: This parameter sets the maximum time decode session continues during a scan attempt. The default timeout is 15s. To program this parameter, scan the Decode Session Timeout barcode and the numeric barcodes. To find the numeric barcodes, see the “Digit Barcodes”...

  • Page 40: Blink Mode

    **【Enter Setup】 Blink Mode Blink Mode: The scanner automatically activates a decode session. The decode session continues until the barcode is decoded or the decode session timeout occurs (100ms; non-programmable). When a decode session is completed, the scanner waits until the timeout between decodes occurs (default: 1s, programmable) and then starts next session. The scanner continues to work in this pattern.

  • Page 41: Sense Mode

    **【Enter Setup】 Sense Mode Sense Mode: The scanner activates a decode session every time when it detects a change in ambient illumination (excluding the situation when change is detected before the timeout between decodes occurs). Decode session continues until the barcode is decoded or the decode session timeout occurs. Pressing the trigger can also activate a decode session.
  • Page 42 **【Enter Setup】 Sensitivity specifies the degree of acuteness of the scanner’s response to changes in ambient illumination. The higher the sensitivity, the lower requirement in illumination change to trigger the scanner. You can select an appropriate degree of sensitivity that fits the ambient environment. By default, High Sensitivity is enabled. **【High Sensitivity】...
  • Page 43 **【Enter Setup】 Timeout between Decodes (Same Barcode): This parameter sets the minimum time between decodes for the same barcode. It protects against accidental rereads of the same barcode. It is programmable in 0.1s increments from 0s to 12s. If you want to stop the scanner from rereading the same barcode, set this parameter to 127. The default timeout is 1.6s.

  • Page 44: Continuous Mode

    **【Enter Setup】 Continuous Mode Continuous Mode: The scanner automatically activates a decode session. The decode session continues until the barcode is decoded. When a decode session is completed, the scanner waits until the timeout between decodes occurs and then starts next session. The scanner continues to work in this pattern. Same barcode cannot be reread before the timeout between decodes (same barcode) occurs.
  • Page 45 **【Enter Setup】 Timeout between Decodes: This parameter sets the time period between the end of one decode session and the start of next session. It is programmable in 0.5s increments from 0s to 7.5s. The default timeout is 1s. To program this parameter, scan the Timeout between Decodes barcode and the numeric barcodes.

  • Page 46: Delayed Sense Mode

    **【Enter Setup】 Delayed Sense Mode Delayed Sense Mode: The scanner automatically activates a decode session when it detects a change in ambient illumination. The decode session continues until the barcode is decoded or the decode session timeout occurs. When a decode session is completed, the scanner waits 200ms and then starts to monitor ambient environment until it detects a change to trigger next decode session.

  • Page 47: Security Setup

    **【Enter Setup】 Security Setup This parameter specifies the number of times to decode a barcode during a scan attempt. The higher the security level, the lower the error rate and decoding efficiency. By default, security is set to be level 1. **【Set Security Level to 1】...

  • Page 48: Decode Beep

    **【Enter Setup】 Decode Beep By default, the scanner emits a medium-pitched loud beep that lasts 150ms after good decode. 【Do Not Beep After Good Decode】 【Medium-Pitched Medium-Loud Beep】 【High-Pitched Loud Beep】 【Medium-Pitched Low Beep】 【High-Pitched Medium-Loud Beep】 【Low-Pitched Loud Beep】 【High-Pitched Low Beep】...
  • Page 49 **【Enter Setup】 **【Set Beep Length to 150ms】 【Set Beep Length to 50ms】 【Set Beep Length to 100ms】 【Exit Setup】...

  • Page 50: Decode Area And Output Interval

    **【Enter Setup】 Decode Area and Output Interval You can set the number of barcodes allowed to be read per scan. By default, the Read One Barcode Nearest to the Center Per Scan option is enabled. You can also set the decoded data output interval. By default, output interval is 0ms. 【Read 2 Barcodes Per Scan】...

  • Page 51: Other Settings

    **【Enter Setup】 Other Settings Temporary Mute 【Enable Temporary Mute】 【Disable Temporary Mute】 Note: Temporary Mute is only applicable to decode beep and will be disabled after you reboot the scanner. 【Exit Setup】...

  • Page 52: Chapter 3 Inquiry Command

    **【Enter Setup】 Chapter 3 Inquiry Command Introduction This chapter provides programming barcodes you may need to obtain device information. Obtain Scanner Information You can scan one of the barcodes below to inquire the scanner information. The results will be sent to the Host. 【Inquire All Information About Scanner】...

  • Page 53: Obtain Cradle Information

    **【Enter Setup】 Obtain Cradle Information You can scan one of the barcodes below to inquire the information about CD15 Cradle. The results will be sent to the Host. 【Inquire All Information About Cradle】 【Inquire the Firmware Version of Cradle】 【Inquire the Serial Number of Cradle】 【Inquire the Manufacture Date of Cradle】...

  • Page 54: Obtain Wireless Module Information

    **【Enter Setup】 Obtain Wireless Module Information You can scan one of the barcodes below to inquire the information about wireless module. The results will be sent to the Host. 【Inquire the Number Barcodes in Flash Memory】 【Delete All Barcodes in Flash Memory】 【Inquire the Wireless Module Status】...

  • Page 55: Chapter 4 Communication Settings

    **【Enter Setup】 Chapter 4 Communication Settings Introduction Three types of wireless communication between scanner and cradle: synchronous, asynchronous and batch modes. Two types of wired communication between cradle and the Host: RS-232 and USB. Wireless Communication Setup Wireless communication modes include Synchronous (default), Asynchronous and Batch modes. ...

  • Page 56: Rs-232 Interface

    **【Enter Setup】 RS-232 Interface Baud Rate When the CD15 cradle is connected to the Host via serial port, you need to set communication parameters (including baud rate, parity check, data bit and stop bit) to match the host device. Baud rate is the number of bits of data transmitted per second. Set the cradle’s baud rate to match the Host requirements.

  • Page 57: Parity Check

    **【Enter Setup】 Parity Check By default, the None option is enabled. **【None】 【Even】 【Odd】 Stop Bit By default, the 1 Stop Bit option is enabled. **【1 Stop Bit】 【2 Stop Bits】 【Exit Setup】...

  • Page 58: Flow Control

    **【Enter Setup】 Flow Control By default, the No Flow Control option is enabled. **【No Flow Control】 【CTS Flow Control】 【RTS Flow Control】 【RTS_CTS Flow Control】 【Exit Setup】...

  • Page 59: Data Bit

    **【Enter Setup】 Data Bit By default, the 8 Data Bits option is enabled. **【8 Data Bits】 【8 Data Bits, No Parity, 2 Stop Bits】 【8 Data Bits, No Parity, 1 Stop Bit】 【8 Data Bits, Even Parity, 2 Stop Bits】 【8 Data Bits, Even Parity, 1 Stop Bit】...

  • Page 60: Usb Interface

    **【Enter Setup】 USB Interface By default, the USB HID-KBW option is enabled. USB HID-KBW **【USB HID-KBW】 USB COM Port Emulation 【USB COM Port Emulation】 【Exit Setup】...

  • Page 61: Keyboard Parameters

    **【Enter Setup】 Keyboard Parameters Keyboard Layout By default, the 1-US (English) option is enabled ** 【1 – US (English)】 【7 - Italy】 【2 - Japanese】 【8 - Norway】 【3 - Denmark】 【9 - Spain】 【4 - Finland】 【10 - Turkey Q】 【5 - France】...

  • Page 62: Inter-Character Delay

    **【Enter Setup】 Inter-Character Delay Inter-character Delay: 00-15 (16 levels), corresponding to 0ms (default), 5ms, 10ms, …, 75ms, in 5ms increments. 【Inter-Character Delay】 Convert Case By default, the No Case Conversion option is enabled. **【No Case Conversion】 【Convert All to Lowercase】 【Convert All to Uppercase】...

  • Page 63: Improve Reliability Of Communication Between Cradle And Pc

    **【Enter Setup】 Improve Reliability of Communication between Cradle and PC There are three options available for users to choose for data communication between CD15 cradle and PC: USB HID- KBW, USB COM Port Emulation and RS-232 serial port. For USB HID-KBW, the hardware design ensures that barcode data is reliably sent to PC.

  • Page 64: Chapter 5 Data Formatting

    **【Enter Setup】 Chapter 5 Data Formatting Introduction After a successful barcode reading, a string containing numbers, letters or symbols will be returned. In real applications, barcode data may be found insufficient for your needs. You may wish to include additional information such as barcode type, data acquisition time or delimiter in data being scanned.

  • Page 65: Custom Prefix

    **【Enter Setup】 Custom Prefix Enable/Disable Custom Prefix If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 11 characters. By default, custom prefix is disabled. For example, if barcode data is “123” and custom prefix is “AB”, the Host will receive “AB123”. **【Disable Custom Prefix】...

  • Page 66: Aim Id Prefix

    **【Enter Setup】 AIM ID Prefix AIM (Automatic Identification Manufacturers) ID defines symbology identifier (For the details, see the “AIM ID Table” section in Chapter 7). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data after decoding.

  • Page 67: Custom Suffix

    **【Enter Setup】 Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 11 characters. By default, custom suffix is disabled. For example, if barcode data is “123” and custom suffix is “AB”, the Host will receive “123AB”. **【Disable Custom Suffix】...

  • Page 68: Terminating Character Suffix

    **【Enter Setup】 Terminating Character Suffix Enable/Disable Terminating Character Suffix A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) can only be used to mark the end of data, which means nothing can be added after it. By default, terminating character suffix is enabled. 【Disable Terminating Character Suffix】...

  • Page 69: Set Terminating Character Suffix

    **【Enter Setup】 Set Terminating Character Suffix To set a terminating character suffix, scan the Set Terminating Character Suffix barcode, the numeric barcodes corresponding to the hexadecimal value of a desired terminating character and the Save barcode. By default, terminating character 0x0D,0x0A is enabled. 【Terminating Character 0x0D】...

  • Page 70: Chapter 6 Symbologies

    **【Enter Setup】 Chapter 6 Symbologies Introduction Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various barcode symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner.

  • Page 71: Set Code Id

    **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Code 128. To set the Code ID, scan the Set Code ID for Code 128 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 72: Set Length Range For Code 128

    **【Enter Setup】 Set Length Range for Code 128 The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 1 to 255 characters.

  • Page 73: Ucc/Ean-128

    **【Enter Setup】 UCC/EAN-128 Restore Default Settings Scan the barcode below to restore all parameters in UCC/EAN-128 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of UCC/EAN-128】 Enable/Disable UCC/EAN-128 UCC/EAN-128 is enabled by default.

  • Page 74: Set Code Id

    **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for UCC/EAN-128. To set the Code ID, scan the Set Code ID for UCC/EAN-128 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 75: Set Length Range For Ucc/Ean-128

    **【Enter Setup】 Set Length Range for UCC/EAN-128 The scanner can be configured to only decode UCC/EAN-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 1 to 255 characters.

  • Page 76: Aim 128

    **【Enter Setup】 AIM 128 Restore Default Settings Scan the barcode below to restore all parameters in AIM 128 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of AIM 128】 Enable/Disable AIM 128 AIM 128 is disabled by default.

  • Page 77: Set Code Id

    **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for AIM 128. To set the Code ID, scan the Set Code ID for AIM 128 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 78: Set Length Range For Aim 128

    **【Enter Setup】 Set Length Range for AIM 128 The scanner can be configured to only decode AIM 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 1 to 255 characters.

  • Page 79: Restore Default Settings

    **【Enter Setup】 EAN-8 Restore Default Settings Scan the barcode below to restore all parameters in EAN-8 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of EAN-8】 Enable/Disable EAN-8 EAN-8 is enabled by default.

  • Page 80: Set Code Id

    **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for EAN-8. To set the Code ID, scan the Set Code ID for EAN-8 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 81: 2-Digit Add-On Code

    **【Enter Setup】 2-Digit Add-On Code An EAN-8 barcode can be augmented with a two-digit add-on code to form a new one.. **【Disable 2-Digit Add-On Code】 【Enable 2-Digit Add-On Code】 【Decode EAN-8 + 2-Digit Add-On Code Only】 Note:  Disable 2-Digit Add-On Code: The scanner only decodes the main part when scanning a new barcode. It can also decode standard EAN-8 barcodes.

  • Page 82: 5-Digit Add-On Code

    **【Enter Setup】 5-Digit Add-On Code An EAN-8 barcode can be augmented with a five-digit add-on code to form a new one. **【Disable 5-Digit Add-On Code】 【Enable 5-Digit Add-On Code】 【Decode EAN-8 + 5-Digit Add-On Code Only】 Note:  Disable 5-Digit Add-On Code: The scanner only decodes the main part when scanning a new barcode. It can also decode standard EAN-8 barcodes.

  • Page 83: Ean-8 Extension

    **【Enter Setup】 EAN-8 Extension  Disable EAN-8 Zero Extend: Transmit EAN-8 barcodes as is.  Enable EAN-8 Zero Extend: Add five leading zeros to decoded EAN-8 barcodes to extend to13 digits.  Convert EAN-8 to EAN-13: Add five leading zeros to decoded EAN-8 barcodes to make them compatible in format to EAN-13 barcodes.

  • Page 84: Restore Default Settings

    **【Enter Setup】 EAN-13 Restore Default Settings Scan the barcode below to restore all parameters in EAN-13 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of EAN-13】 Enable/Disable EAN-13 EAN-13 is enabled by default.

  • Page 85: Transmit Check Digit

    **【Enter Setup】 Transmit Check Digit EAN-13 is 13 digits in length with the last one as its check digit used to verify the accuracy of the data. By default, the scanner transmits EAN-13 check digit. **【Transmit EAN-13 Check Digit】 【Do Not Transmit EAN-13 Check Digit】 Set Code ID Code ID can only consist of one or two English letters.

  • Page 86: 2-Digit Add-On Code

    **【Enter Setup】 2-Digit Add-On Code An EAN-13 barcode can be augmented with a two-digit add-on code to form a new one. **【Disable 2-Digit Add-On Code】 【Enable 2-Digit Add-On Code】 【Decode EAN-13 + 2-Digit Supplement Only】 Note:  Disable 2-Digit Add-On Code: The scanner only decodes the main part when scanning a new barcode. It can also decode standard EAN-13 barcodes.

  • Page 87: 5-Digit Add-On Code

    **【Enter Setup】 5-Digit Add-On Code An EAN-13 barcode can be augmented with a five-digit add-on code to form a new one. **【Disable 5-Digit Add-On Code】 【Enable 5-Digit Add-On Code】 【Decode EAN-13 + 5-Digit Add-On Code Only】 Note:  Disable 5-Digit Add-On Code: The scanner only decodes the main part when scanning a new barcode. It can also decode standard EAN-13 barcodes.

  • Page 88: Issn

    **【Enter Setup】 ISSN Restore Default Settings Scan the barcode below to restore all parameters in ISSN configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of ISSN】 Enable/Disable ISSN ISSN is disabled by default.

  • Page 89: Set Code Id

    **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for ISSN. To set the Code ID, scan the Set Code ID for ISSN barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 90: Isbn

    **【Enter Setup】 ISBN Restore Default Settings Scan the barcode below to restore all parameters in ISBN configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of ISBN】 Enable/Disable ISBN ISBN is disabled by default.

  • Page 91: Set Isbn Format

    **【Enter Setup】 Set ISBN Format The default format is ISBN-13. **【ISBN-13】 【ISBN-10】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for ISBN. To set the Code ID, scan the Set Code ID for ISBN barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 92: Upc-E

    **【Enter Setup】 UPC-E Restore Default Settings Scan the barcode below to restore all parameters in UPC-E configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of UPC-E】 Enable/Disable UPC-E UPC-E is enabled by default.

  • Page 93: Transmit Check Digit

    **【Enter Setup】 Transmit Check Digit UPC-E is 8 digits in length with the last one as its check digit used to verify the accuracy of the data. By default, the scanner transmits UPC-E check digit. **【Transmit UPC-E Check Digit】 【Do Not Transmit UPC-E Check Digit】 Set Code ID Code ID can only consist of one or two English letters.

  • Page 94: 2-Digit Add-On Code

    **【Enter Setup】 2-Digit Add-On Code A UPC-E barcode can be augmented with a two-digit add-on code to form a new one. **【Disable 2-Digit Add-On Code】 【Enable 2-Digit Add-On Code】 【Decode UPC-E + 2-Digit Add-On Code Only】, Note:  Disable 2-Digit Add-On Code: The scanner only decodes the main part when scanning a new barcode. It can also decode standard UPC-E barcodes.

  • Page 95: 5-Digit Add-On Code

    **【Enter Setup】 5-Digit Add-On Code A UPC-E barcode can be augmented with a five-digit add-on code to form a new one. **【Disable 5-Digit Add-On Code】 【Enable 5-Digit Add-On Code】 【Decode UPC-E + 5-Digit Add-On Code Only】 Note:  Disable 5-Digit Add-On Code: The scanner only decodes the main part when scanning a new barcode. It can also decode standard UPC-E barcodes.

  • Page 96: Transmit System Character "0

    **【Enter Setup】 Transmit System Character “0” The first character of UPC-E barcode is the system character “0”. By default, the scanner does not transmit system character “0”. **【Do Not Transmit System Character “0”】 【Transmit System Character “0”】 UPC-E Extension  Disable UPC-E Extend: Transmit UPC-E barcodes as is.

  • Page 97: Upc-A

    **【Enter Setup】 UPC-A Restore Default Settings Scan the barcode below to restore all parameters in UPC-A configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of UPC-A】 Enable/Disable UPC-A UPC-A is enabled by default.
  • Page 98 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for UPC-A. To set the Code ID, scan the Set Code ID for UPC-A barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 99: Transmit Check Digit

    **【Enter Setup】 Transmit Check Digit UPC-A is 13 digits in length with the last one as its check digit used to verify the accuracy of the data. By default, the scanner transmits UPC-A check digit. **【Transmit UPC-A Check Digit】 【Do Not Transmit UPC-A Check Digit】 Transmit Preamble Character “0”...
  • Page 100 **【Enter Setup】 2-Digit Add-On Code A UPC-A barcode can be augmented with a two-digit add-on code to form a new one. **【Disable 2-Digit Add-On Code】 【Enable 2-Digit Add-On Code】 【Decode UPC-A + 2-Digit Add-On Code Only】, Note:  Disable 2-Digit Add-On Code: The scanner only decodes the main part when scanning a new barcode. It can also decode standard UPC-A barcodes.

  • Page 101: Digit Add-On Code

    **【Enter Setup】 5-Digit Add-On Code A UPC-A barcode can be augmented with a five-digit add-on code to form a new one. **【Disable 5-Digit Add-On Code】 【Enable 5-Digit Add-On Code】 【Decode UPC-A + 5-Digit Add-On Code Only】 Note:  Disable 5-Digit Add-On Code: The scanner only decodes the main part when scanning a new barcode. It can also decode standard UPC-A barcodes.

  • Page 102: Interleaved 2 Of 5

    **【Enter Setup】 Interleaved 2 of 5 Restore Default Settings Scan the barcode below to restore all parameters in Interleaved 2 of 5 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of Interleaved 2 of 5】...
  • Page 103 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Interleaved 2 of 5. To set the Code ID, scan the Set Code ID for Interleaved 2 of 5 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 104: Parity Check

    **【Enter Setup】 Parity Check A check digit is optional for Interleaved 2 of 5 and can be added as the last digit. It is a calculated value used to verify the accuracy of the data. By default, the scanner does not transmit Interleaved 2 of 5 check digit after parity check. ...

  • Page 105: Set Length Range For Interleaved 2 Of 5

    **【Enter Setup】 Set Length Range for Interleaved 2 of 5 The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 5 to 255 characters.

  • Page 106: Itf-6

    **【Enter Setup】 ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character. By default, ITF-6 is disabled. ITF-6 priority principle: For the Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as the check character, the ITF-6 configurations shall take precedence over the Interleaved 2 of 5 settings.
  • Page 107 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for ITF-6. To set the Code ID, scan the Set Code ID for ITF-6 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 108: Itf-14

    **【Enter Setup】 ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character. By default, ITF-14 is disabled. ITF-14 priority principle: For the Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as the check character, the ITF-14 configurations shall take precedence over the Interleaved 2 of 5 settings.
  • Page 109 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for ITF-14. To set the Code ID, scan the Set Code ID for ITF-14 barcode, the numeric barcodes for the hexadecimal value of a desired ID and the Save barcode.

  • Page 110: Deutsche 14

    **【Enter Setup】 Deutsche 14 Restore Default Settings Scan the barcode below to restore all parameters in Deutsche14 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of Deutsche14】 Enable/Disable Deutsche14 Deutsche14 is disabled by default.
  • Page 111 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Deutsche14. To set the Code ID, scan the Set Code ID for Deutsche14 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 112: Deutsche 12

    **【Enter Setup】 Deutsche 12 Restore Default Settings Scan the barcode below to restore all parameters in Deutsche12 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of Deutsche12】 Enable/Disable Deutsche 12 Deutsche12 is disabled by default.
  • Page 113 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Deutsche12. To set the Code ID, scan the Set Code ID for Deutsche 12 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 114: Coop 25 (Japanese Matrix 2 Of 5)

    **【Enter Setup】 COOP 25 (Japanese Matrix 2 of 5) Restore Default Settings Scan the barcode below to restore all parameters in COOP 25 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of COOP25】...
  • Page 115 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for COOP 25. To set the Code ID, scan the Set Code ID for COOP 25 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 116: Parity Check

    **【Enter Setup】 Parity Check A check digit is optional for COOP 25 and can be added as the last digit. It is a calculated value used to verify the accuracy of the data. By default, the scanner does not run parity check. ...

  • Page 117: Set Length Range For Coop 25

    **【Enter Setup】 Set Length Range for COOP 25 The scanner can be configured to only decode COOP 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 3 to 255 characters.

  • Page 118: Matrix 2 Of 5 (European Matrix 2 Of 5)

    **【Enter Setup】 Matrix 2 of 5 (European Matrix 2 of 5) Restore Default Settings Scan the barcode below to restore all parameters in Matrix 2 of 5 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of Matrix 2 of 5】...
  • Page 119 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Matrix 2 of 5. To set the Code ID, scan the Set Code ID for Matrix 2 of 5 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 120: Parity Check

    **【Enter Setup】 Parity Check A check digit is optional for Matrix 2 of 5 and can be added as the last digit. It is a calculated value used to verify the accuracy of the data. By default, the scanner does not run parity check. ...

  • Page 121: Set Length Range For Matrix 2 Of 5

    **【Enter Setup】 Set Length Range for Matrix 2 of 5 The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 3 to 255 characters.

  • Page 122: Industrial 25

    **【Enter Setup】 Industrial 25 Restore Default Settings Scan the barcode below to restore all parameters in Industrial 25 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of Industrial 25】 Enable/Disable Industrial 25 Industrial 25 is enabled by default.
  • Page 123 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Industrial 25. To set the Code ID, scan the Set Code ID for Industrial 25 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 124: Parity Check

    **【Enter Setup】 Parity Check A check digit is optional for Industrial 25 and can be added as the last digit. It is a calculated value used to verify the accuracy of the data. By default, the scanner transmits check digit after parity check. ...

  • Page 125: Set Length Range For Industrial 25

    **【Enter Setup】 Set Length Range for Industrial 25 The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 4 to 255 characters.

  • Page 126: Standard 25

    **【Enter Setup】 Standard 25 Restore Default Settings Scan the barcode below to restore all parameters in Standard 25 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of Standard 25】 Enable/Disable Standard 25 Standard 25 is enabled by default.
  • Page 127 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Standard 25. To set the Code ID, scan the Set Code ID for Standard 25 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 128: Parity Check

    **【Enter Setup】 Parity Check A check digit is optional for Standard 25 and can be added as the last digit. It is a calculated value used to verify the accuracy of the data. By default, the scanner does not run parity check. ...

  • Page 129: Set Length Range For Standard 25

    **【Enter Setup】 Set Length Range for Standard 25 The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 4 to 255 characters.

  • Page 130: Restore Default Settings

    **【Enter Setup】 Code 39 Restore Default Settings Scan the barcode below to restore all parameters in Code 39 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of Code 39】 Enable/Disable Code 39 Code 39 is enabled by default.
  • Page 131 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Code 39. To set the Code ID, scan the Set Code ID for Code 39 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 132: Parity Check

    **【Enter Setup】 Parity Check A check digit is optional for Code 39 and can be added as the last digit. It is a calculated value used to verify the accuracy of the data. By default, the scanner does not run parity check. ...

  • Page 133: Transmit Start/Stop Character

    **【Enter Setup】 Transmit Start/Stop Character Code 39 uses an asterisk (*) for both the start and the stop characters. You can choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below. By default, the scanner transmits the start/stop characters.

  • Page 134: Set Length Range For Code 39

    **【Enter Setup】 Set Length Range for Code 39 The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 4 to 255 characters.

  • Page 135: Codabar

    **【Enter Setup】 Codabar Restore Default Settings Scan the barcode below to restore all parameters in Codabar configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of Codabar】 Enable/Disable Codabar Codabar is enabled by default.
  • Page 136 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Codabar. To set the Code ID, scan the Set Code ID for Codabar barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 137: Parity Check

    **【Enter Setup】 Parity Check A check digit is optional for Codabar and can be added as the last digit. It is a calculated value used to verify the accuracy of the data. By default, the scanner does not run parity check. ...

  • Page 138: Start/Stop Character

    **【Enter Setup】 Start/Stop Character By default, the scanner transmits start/stop characters which are in the form of “ABCD/ABCD”. 【Do not Transmit Start/Stop Character】 **【Transmit Start/Stop Character】 **【ABCD/ABCD As the Start/Stop Character】 【ABCD/TN*E As the Start/Stop Character】 【abcd/abcd As the Start/Stop Character】 【abcd/tn*e As the Start/Stop Character】...

  • Page 139: Set Length Range For Codabar

    **【Enter Setup】 Set Length Range for Codabar The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 2 to 255 characters.

  • Page 140: Restore Default Settings

    **【Enter Setup】 Code 93 Restore Default Settings Scan the barcode below to restore all parameters in Code 93 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of Code 93】 Enable/Disable Code 93 Code 93 is enabled by default.
  • Page 141 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Code 93. To set the Code ID, scan the Set Code ID for Code 93 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 142: Parity Check

    **【Enter Setup】 Parity Check Check digits are optional for Code 93 and can be added as the last two digits, which are calculated values used to verify the accuracy of the data. By default, the scanner does not transmit check digits after parity check. ...

  • Page 143: Set Length Range For Code 93

    **【Enter Setup】 Set Length Range for Code 93 The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 1 to 255 characters.

  • Page 144: Restore Default Settings

    **【Enter Setup】 Code 11 Restore Default Settings Scan the barcode below to restore all parameters in Code 11 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of Code 11】 Enable/Disable Code 11 Code 11 is disabled by default.
  • Page 145 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Code 11. To set the Code ID, scan the Set Code ID for Code 11 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 146: Parity Check

    **【Enter Setup】 Parity Check Check digits are optional for Code 11 and can be added as the last one or two digits, which are calculated values used to verify the accuracy of the data. By default, the scanner does not transmit check digit after parity check (One Check Digit, MOD11).

  • Page 147: Set Length Range For Code 11

    **【Enter Setup】 Set Length Range for Code 11 The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 3 to 255 characters.

  • Page 148: Plessey

    **【Enter Setup】 Plessey Restore Default Settings Scan the barcode below to restore all parameters in Plessey configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of Plessey】 Enable/Disable Plessey Plessey is disabled by default.
  • Page 149 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for Plessey. To set the Code ID, scan the Set Code ID for Plessey barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 150: Parity Check

    **【Enter Setup】 Parity Check Check digits are optional for Plessey and can be added as the last two digits, which are calculated values used to verify the accuracy of the data. By default, the scanner does not transmit check digits after parity check. ...

  • Page 151: Set Length Range For Plessey

    **【Enter Setup】 Set Length Range for Plessey The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 4 to 255 characters.

  • Page 152: Msi-Plessey

    **【Enter Setup】 MSI-Plessey Restore Default Settings Scan the barcode below to restore all parameters in MSI-Plessey configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of MSI-Plessey】 Enable/Disable MSI-Plessey MSI-Plessey is disabled by default.
  • Page 153 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for MSI-Plessey. To set the Code ID, scan the Set Code ID for MSI-Plessey barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 154: Parity Check

    **【Enter Setup】 Parity Check Check digits are optional for MSI-Plessey and can be added as the last one or two digits, which are calculated values used to verify the accuracy of the data. By default, the scanner does not transmit check digit after parity check (One Check Digit, MOD10).

  • Page 155: Set Length Range For Msi-Plessey

    **【Enter Setup】 Set Length Range for MSI-Plessey The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 3 to 255 characters.

  • Page 156: Gs1 Databar

    **【Enter Setup】 GS1 Databar Restore Default Settings Scan the barcode below to restore all parameters in GS1 Databar configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of GS1 Databar】 Enable/Disable GS1 Databar GS1 Databar is enabled by default.
  • Page 157 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for GS1 Databar. To set the Code ID, scan the Set Code ID for GS1 Databar barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 158: Pdf417

    **【Enter Setup】 PDF417 Restore Default Settings Scan the barcode below to restore all parameters in PDF417 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of PDF417】 Enable/Disable PDF417 PDF417 is enabled by default.
  • Page 159 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for PDF417. To set the Code ID, scan the Set Code ID for PDF417 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 160: Set Length Range For Pdf417

    **【Enter Setup】 Set Length Range for PDF417 The scanner can be configured to only decode PDF417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 1 to 255 bytes.

  • Page 161: Sample Barcodes

    **【Enter Setup】 Sample Barcodes When reading a PDF417 barcode, you need to scan it horizontally from the top/bottom row of the barcode to the bottom/top. Apart from the influence of barcode density, consecutive horizontal scans are essential for accomplishing a good read. The greater the row height is, the easier it is to decode a PDF417 barcode.

  • Page 162: Micropdf417

    **【Enter Setup】 MicroPDF417 Restore Default Settings Scan the barcode below to restore all parameters in PDF417 configuration to the factory default settings. To find the related default settings, see the “Default Parameters Table” section in Chapter 7. 【Restore the Default Settings of MicroPDF417】 Enable/Disable MicroPDF417 MicroPDF417 is disabled by default.
  • Page 163 **【Enter Setup】 Set Code ID Code ID can only consist of one or two English letters. See the “Code ID Table” section in Chapter 7 to find the default Code ID for MicroPDF417. To set the Code ID, scan the Set Code ID for MicroPDF417 barcode, the numeric barcodes corresponding to the hexadecimal value of a desired ID and the Save barcode.

  • Page 164: Set Length Range For Micropdf417

    **【Enter Setup】 Set Length Range for MicroPDF417 The scanner can be configured to only decode MicroPDF417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. Both lengths can range from 1 to 255 bytes.

  • Page 165: Sample Barcodes

    **【Enter Setup】 Sample Barcodes When reading a MicroPDF417 barcode, you need to scan it horizontally from the top/bottom row of the barcode to the bottom/top. Apart from the influence of barcode density, consecutive horizontal scans are essential for accomplishing a good read. The greater the row height is, the easier it is to decode a MicroPDF417 barcode.
  • Page 166 **【Enter Setup】 【abcdefghijklmnopqrstuvwxyz】 【Exit Setup】...

  • Page 167: Chapter 7 Appendix

    Chapter 7 Appendix Default Parameters Table Parameter Default Remark General Settings Setup Mode Enabled Scan Mode Manual Mode Wireless Communication Mode Synchronous Mode Decode Session Timeout 15 seconds 00~15 (00: Infinite; 01~15: 1~15sec) Timeout between Decodes 1 second 00~15 (0~7.5sec) Sensitivity High Sensibility Applicable to the Sense mode...
  • Page 168 Parameter Default Remark Inter-Character Delay 00-15(0-75ms) Convert Case No Case Conversion Communication Support Disabled HR15PCWidget required Data Formatting Prefix Sequence Code ID+Custom+AIM ID AIM ID Prefix Disabled Code ID Prefix Disabled 1 or 2 English letters Custom Prefix Disabled Max. length: 11 characters Custom Suffix Disabled Max.
  • Page 169 Parameter Default Remark EAN-13 EAN-13 Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Decode EAN-13 + 2-digit Add-On Code Only Disabled Decode EAN-13 + 5-digit Add-On Code Only Disabled ISSN ISSN Disabled ISBN ISBN Disabled ISBN Format ISBN-13 UPC-E UPC-E...
  • Page 170 Parameter Default Remark Check Digit Do not transmit Maximum Length Minimum Length Min. length supported: 5 ITF-6 ITF-6 Disabled Check Digit Do not transmit ITF-14 ITF-14 Disabled Check Digit Do not transmit Deutshe 14 Deutshe 14 Disabled Check Digit Do not transmit Deutshe 12 Deutshe 12 Disabled...
  • Page 171 Parameter Default Remark Standard 25 Standard 25 Enabled Parity Check Disabled Check Digit Do not transmit Maximum Length Minimum Length Min. length supported: 4 Code 39 Code 39 Enabled Parity Check Disabled Check Digit Do not transmit Start/Stop Character Transmit Code 39 Full ASCII Enabled Maximum Length...
  • Page 172 Parameter Default Remark Maximum Length Minimum Length Min. length supported: 3 Plessey Plessey Disabled Parity Check Enabled Check Digit Do not transmit Maximum Length Minimum Length Min. length supported: 4 MSI-Plessey MSI-Plessey Disabled Check Digit Do not transmit Enabled Parity Check 1 Check Digit, MOD10 Maximum Length Minimum Length...

  • Page 173: Aim Id Table

    AIM ID Table Barcode Type AIM ID Possible AIM ID Modifiers (m) Code 128 UCC/EAN-128 AIM 128 EAN-8 EAN-13 EAN-13 with Add-On ISSN ISBN UPC-E UPC-E with Add-On UPC-A UPC-A with Add-On Interleaved 2 of 5 0,1,3 ITF-6 ITF-14 Deutsche 14 Deutsche 12 COOP 25（Japanese Matrix 2 of 5）...

  • Page 174: Code Id Table

    Code ID Table Barcode Type Code ID Code 128 UCC/EAN-128 AIM 128 ISBT 128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Deutsche 14 Deutsche 12 COOP 25（Japanese Matrix 2 of 5） Matrix 2 of 5(European Matrix 2 of 5) Industrial 25 Standard 25 Code 39...

  • Page 175: Digit Barcodes

    Digit Barcodes After scanning numeric barcode(s), you need to scan the Save barcode on the next page to save the data. 【0】 【5】 【1】 【6】 【2】 【7】 【3】 【8】 【4】 【9】...
  • Page 176 【A】 【B】 【C】 【D】 【E】 【F】...

  • Page 177: Save/Cancel Barcodes

    Save/Cancel Barcodes After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel the Current Settings barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All digits barcode and then the digits you want.
