Application Examples

6 Application Examples

6.1 Introduction

The examples in this section are intended as a quick
reference for common applications.
•
Parameter settings are the regional default values
unless otherwise indicated (selected in
parameter 0-03 Regional Settings).
•
Parameters associated with the terminals and
their settings are shown next to the drawings.
6 6 •
Required switch settings for analog terminals A53
or A54 are also shown.
NOTICE
When using the optional STO feature, a jumper wire may
be required between terminal 12 (or 13) and terminal 37
for the frequency converter to operate with factory
default programming values.
NOTICE
The following examples refer only to the frequency
converter control card (right LCP), not the filter.

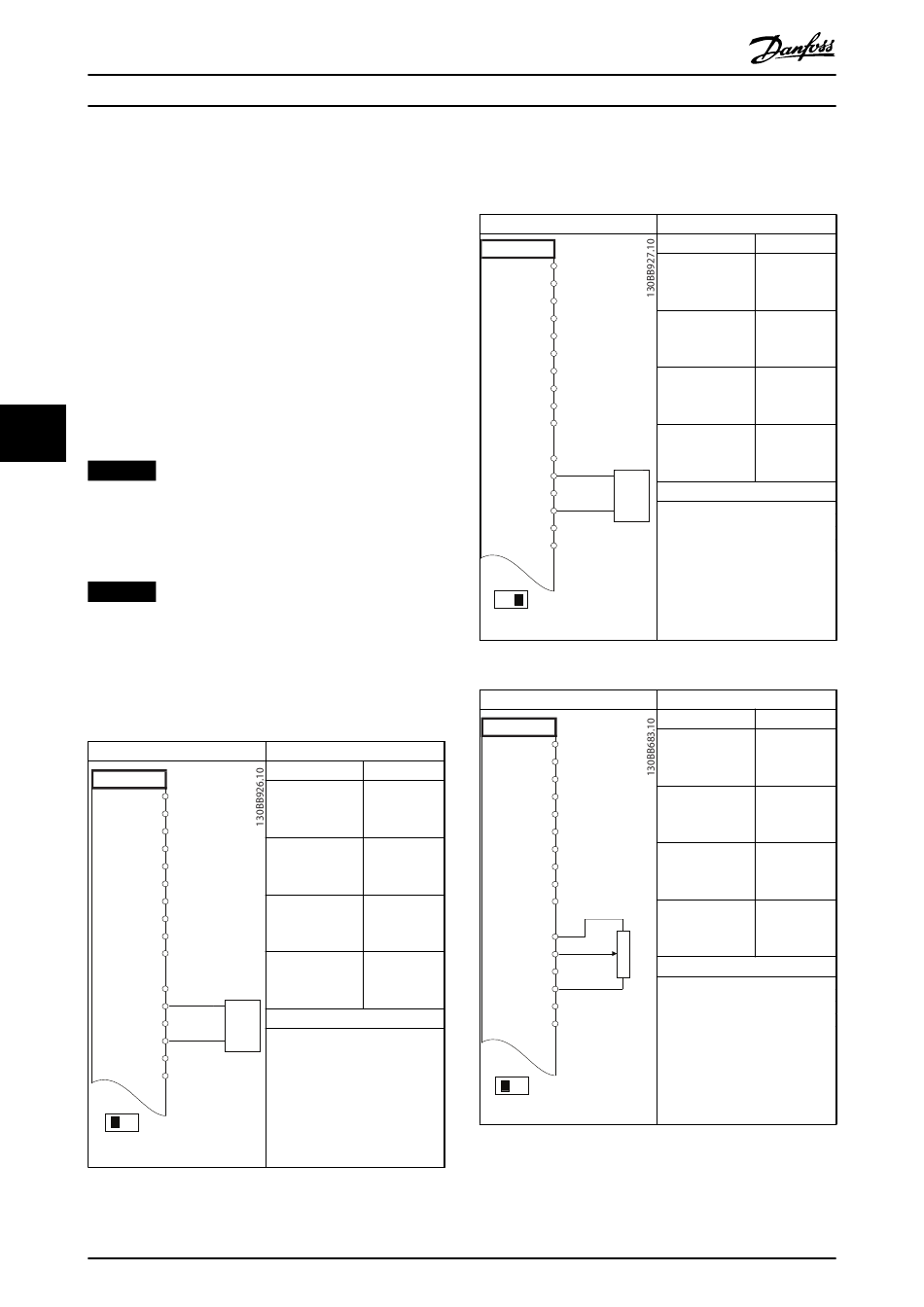

6.2 Application Examples
6.2.1 Speed
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 6.1 Analog Speed Reference (Voltage)
62
®
VLT Refrigeration Drive FC 103 Low Harmonic Drive
Parameters
Function Setting
Parameter 6-10 T 0.07 V*
erminal 53 Low
Voltage
Parameter 6-11 T 10 V*
erminal 53 High
Voltage
Parameter 6-14 T 0 Hz
erminal 53 Low
Ref./Feedb. Value
Parameter 6-15 T 50 Hz
erminal 53 High
Ref./Feedb. Value
+
* = Default value
Notes/comments:
-
D IN 37 is an option.
-10 - +10V
Danfoss A/S © 08/2015 All rights reserved.
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
4 - 20mA
COM
39
U - I
A53
Table 6.2 Analog Speed Reference (Current)
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53 ≈ 5kΩ
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 6.3 Speed Reference (Using a Manual Potentiometer)
Parameters
Function Setting
Parameter 6-12 T 4 mA*
erminal 53 Low
Current
Parameter 6-13 T 20 mA*
erminal 53 High
Current
Parameter 6-14 T 0 Hz
erminal 53 Low
Ref./Feedb. Value
Parameter 6-15 T 50 Hz
erminal 53 High
Ref./Feedb. Value
* = Default value
Notes/comments:
D IN 37 is an option.
Parameters
Function Setting
Parameter 6-10 T 0.07 V*
erminal 53 Low
Voltage
Parameter 6-11 T 10 V*
erminal 53 High
Voltage
Parameter 6-14 T 0 Hz
erminal 53 Low
Ref./Feedb. Value
Parameter 6-15 T 1500 Hz
erminal 53 High
Ref./Feedb. Value
* = Default value
Notes/comments:
D IN 37 is an option.
