4.8.2 Access to Control Terminals

All terminals for the control cables are located beneath the
LCP (both filter and frequency converter LCPs). They are
accessed by opening the door of the unit.
4.8.3 Electrical Installation, Control
Terminals
To connect the cable to the terminal:
1. Strip insulation by about 9–10 mm.

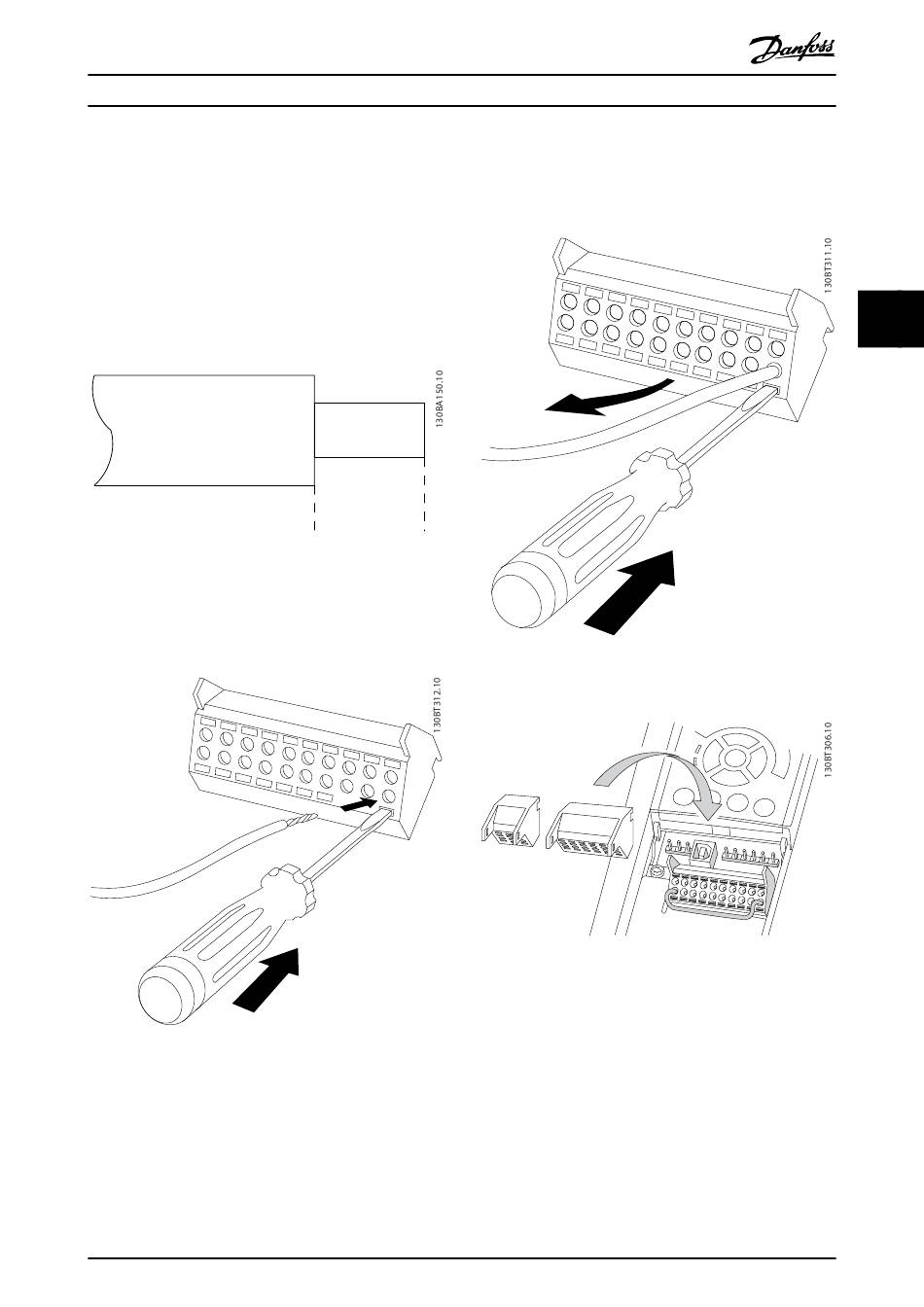

Illustration 4.9 Length to Strip the Insulation
2. Insert a screwdriver (maximum 0.4 x 2.5 mm) in
the square hole.
3. Insert the cable in the adjacent circular hole.
Illustration 4.10 Inserting the Cable in the Terminal Block
4. Remove the screwdriver. The cable is now
mounted in the terminal.
MG16N102
Operating Instructions
To remove the cable from the terminal:
1.
2.
9 - 10 mm
(0.37 in)
Illustration 4.11 Removing the Screwdriver after Cable
Insertion
Illustration 4.12 Control Terminal Locations
Danfoss A/S © 08/2015 All rights reserved.
Insert a screwdriver (maximum 0.4 x 2.5 mm) in
the square hole.
Pull out the cable.
