Electrical Installation

4.8 Control Wiring

4.8.1 Control Cable Routing

Tie down all control wires to the designated control cable
routing as shown in Illustration 4.5, Illustration 4.6,
Illustration 4.7, and Illustration 4.8. Remember to connect
the shields in a proper way to ensure optimum electrical
immunity.
Fieldbus connection
Connections are made to the relevant options on the
control card. For details, see the relevant fieldbus
instruction. The cable must either be entered through the
access point in the top or be placed in the provided path
inside the frequency converter and tied down with other
control wires (see Illustration 4.5, Illustration 4.6, and
Illustration 4.7).

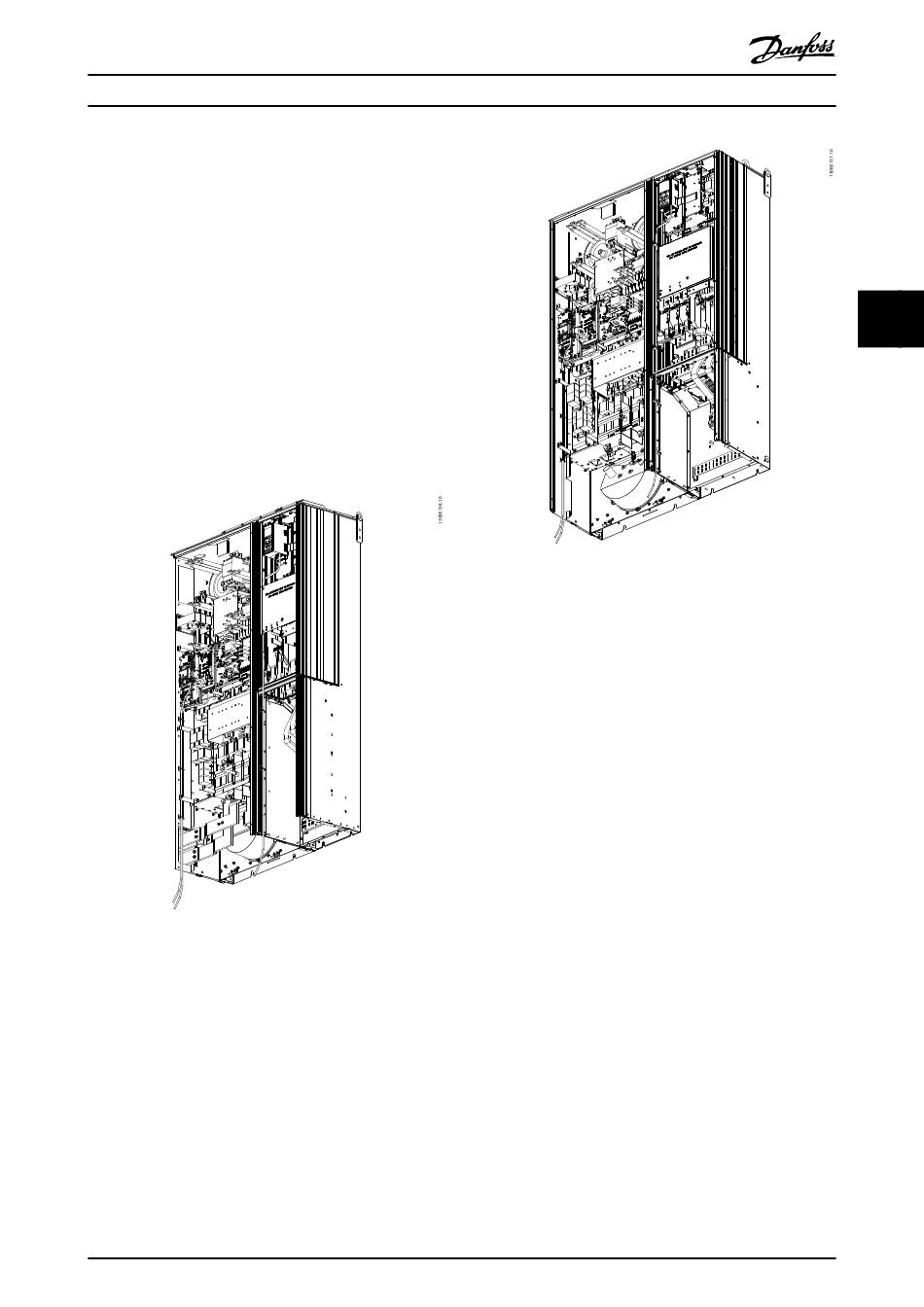

Illustration 4.5 Control Card Wiring Path for Enclosure Size
D1n
MG16N102
Operating Instructions
Illustration 4.6 Control Card Wiring Path for Enclosure Size
D2n
