5.2 Applying Power

WARNING
HIGH VOLTAGE!
Frequency converters contain high voltage when
connected to AC mains. Installation, start-up, and
maintenance should be performed by qualified
personnel only. Failure to comply could result in death or
serious injury.
WARNING
UNINTENDED START!
When the frequency converter is connected to AC mains,
the motor may start at any time. The frequency
converter, motor, and any driven equipment must be in
operational readiness. Failure to comply could result in
death, serious injury, equipment, or property damage.
1. Confirm that the input voltage is balanced within
3%. If not, correct input voltage imbalance before
proceeding.
2. Ensure that optional equipment wiring, if present,
matches the installation application.
3. Ensure that all operator devices are off. Panel
doors should be closed or cover mounted.
4. Apply power to the unit. Do not start the
frequency converter at this time. For units with a
disconnect switch, turn the switch on to apply
power.
NOTICE
If the status line at the bottom of the LCP reads AUTO
REMOTE COASTING or Alarm 60 External Interlock is
displayed, the unit is ready to operate but is missing an
input signal on terminal 27.

5.3 Local Control Panel Operation

5.3.1 Local Control Panel

The local control panel (LCP) is the combined display and
keypad on the front of the unit. The low harmonic drive
includes 2 LCPs: 1 to control the frequency converter side
and 1 to control the filter side.
The LCP has several functions:
•
Control speed of frequency converter when in
local mode.
•
Start and stop in local mode.
•
Display operational data, status, warnings, and
alarms.
MG16N102
Operating Instructions
•
•
NOTICE
For commissioning via PC, install the VLT
Control Tool MCT 10. The software is available for
download (basic version) or for ordering (advanced
version, order number 130B1000). For more information
and downloads, see www.danfoss.com/BusinessAreas/
DrivesSolutions/Software+MCT10/MCT10+Downloads.htm.

5.3.2 LCP Layout

The LCP is divided into 4 functional groups (see
Illustration 5.1).
1
2
4
6
7
10
15
16
17

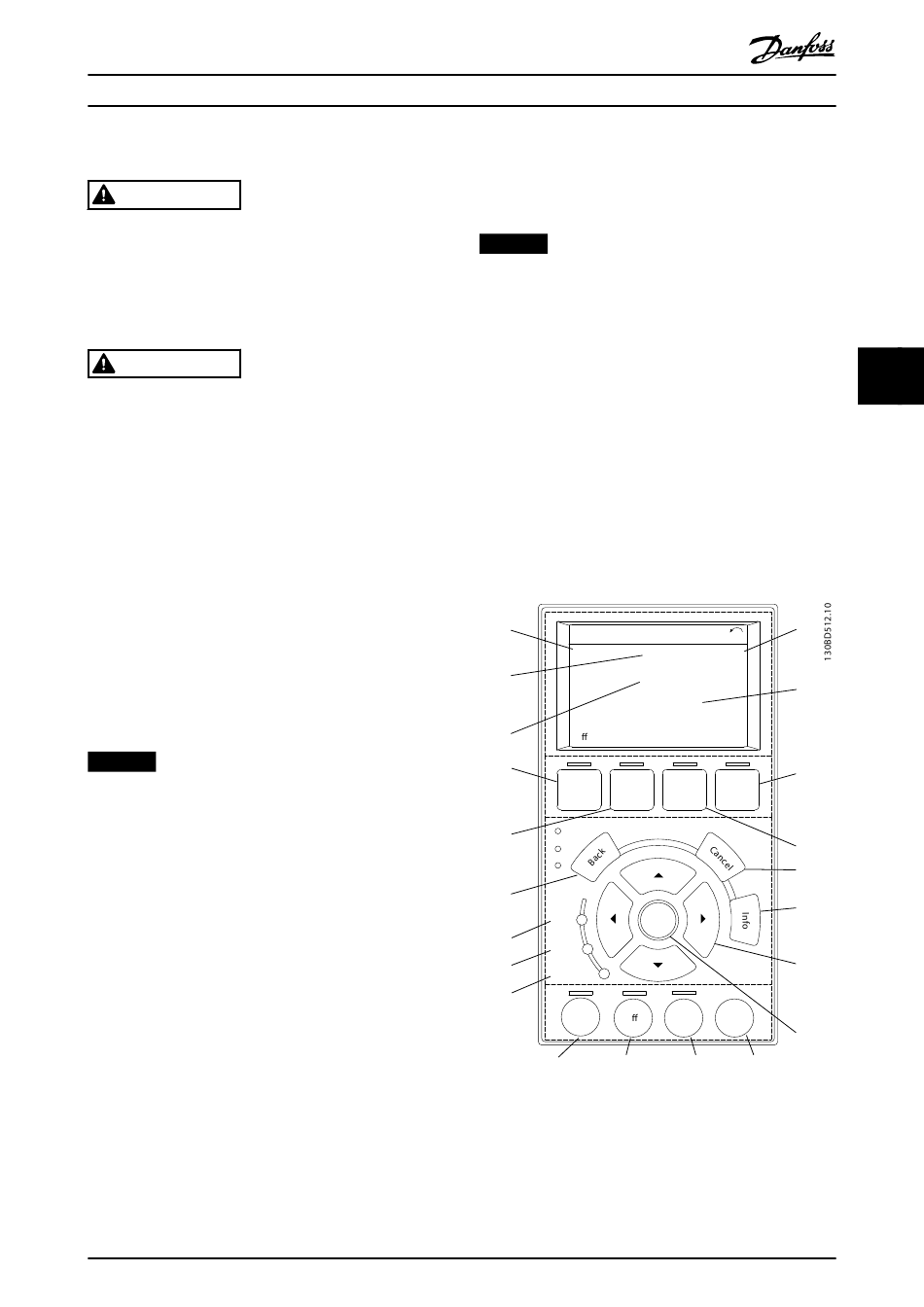

Illustration 5.1 Local Control Panel (LCP)
A. Display area
The display area is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or
an external 24 V DC supply.
Danfoss A/S © 08/2015 All rights reserved.
Programme frequency converter and active filter
functions.
Manually reset the frequency converter or active
filter after a fault when auto-reset is inactive.
A. Display area
B. Display menu keys
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and reset
Status
0.00 A
0.0 % 0.00 kW
0.0Hz
A
2605 kWh
O Remote Stop
Quick Main
Status
B
Menu Menu
C
On
OK
Warn.
Alarm
D Hand Auto
O
on on
18 19 20
®
Motion
5
3
1(1)
5
9
Alarm
Log
8
11
12
13
Reset
14
21
