Introduction
1 1
16
15
14
13
12
11
10
1 Fan transformer
2 DC-link inductor
3 Top cover plate
4 MDCIC board
5 Control card
6 SMPS fuse and fan fuse
7 Motor output bus bar
8 Brake output bus bar

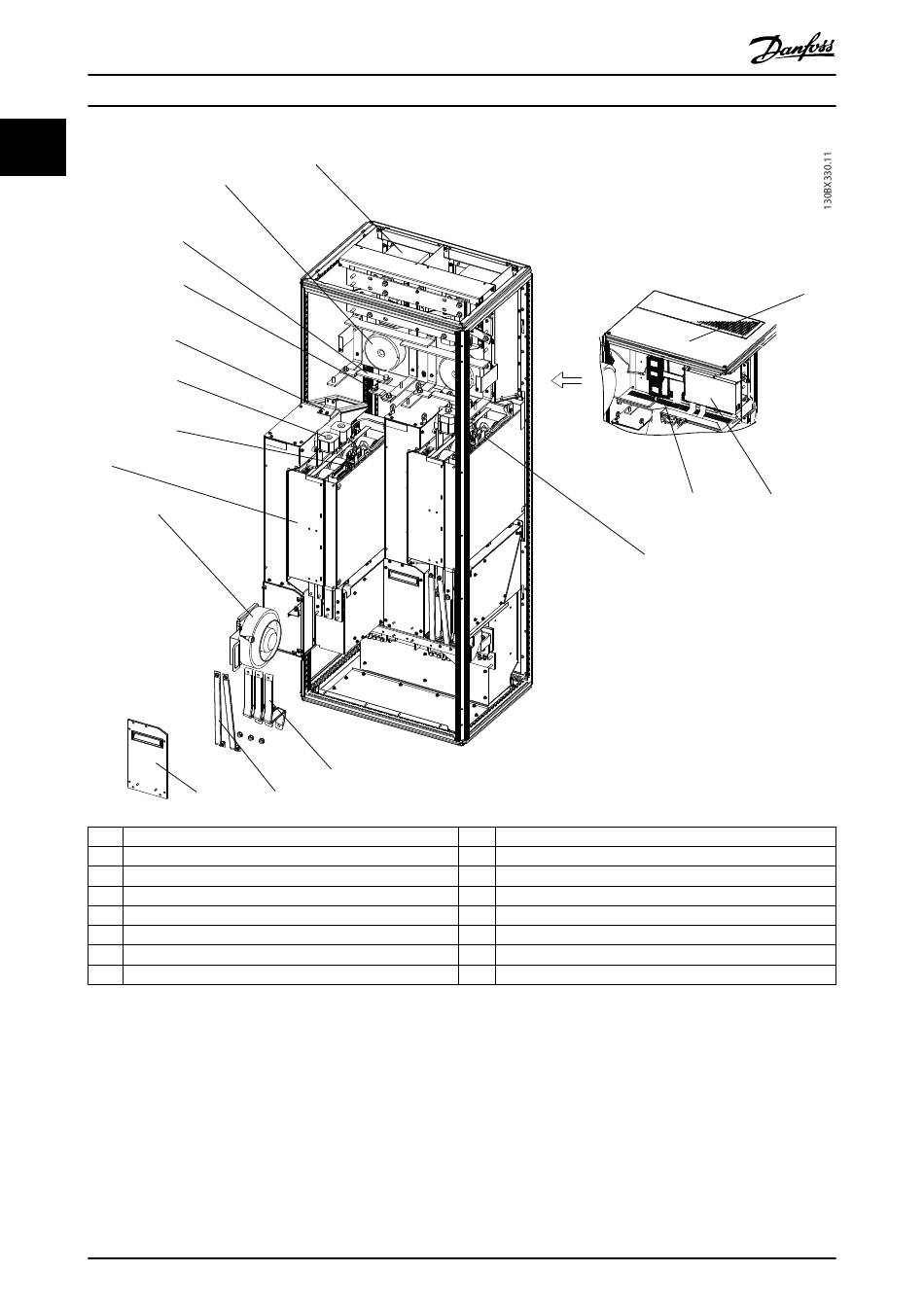

Illustration 1.9 Enclosure Size F18, Inverter Cabinet
14
®
VLT
2
1
7
9 8
Danfoss A/S © 08/2015 All rights reserved.
Refrigeration Drive FC 103 Low Harmonic Drive
9 Fan door cover
10 Module heat sink fan
11 Inverter module
12 Panel connectors
13 DC fuse
14 Mounting bracket
15 (+) DC bus bar
16 (-) DC bus bar
3
5
4
6
MG16N102
