Installation and Assembly
4.2.4

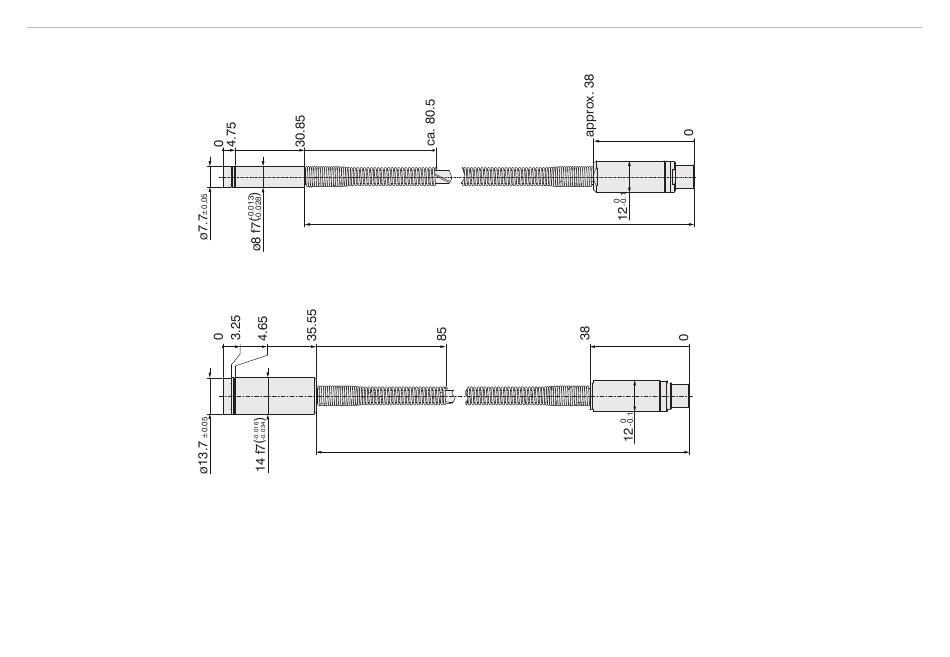

Fig. 7 CSE-1/HT/CA-1,0
Dimensions in mm
(inches)
Circumferential clamp-
ing possible from 3 mm
behind the front face.
Dimensional drawings
of other sensors are
available on request.
Fig. 8 CSE-2/HT/CA-1,0
capaNCDT 6228 / 6238
Dimensional Drawings Sensors
Sensor
Sensor
Connector
1 m ±1%
Connector
1 m ±1%
Page 23
