Installation and Assembly
4.3
The sensor is connected to the controller by the sensor cable. The connection is made by simple plugging.
The connector locks automatically. The tight fit can be checked by pulling the connector housing (cable
bushing). The lock can be released and the connector can be opened by pulling the knurled housing sleeve
of the cable bushing.

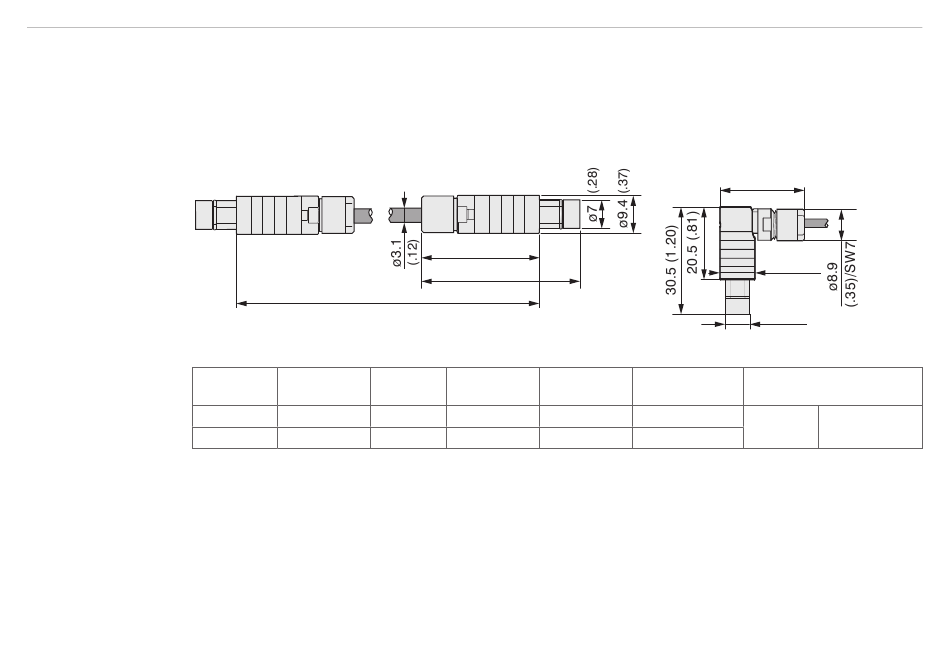

Dimensions in mm (inches), not to scale
Model
CCgxB
CCgxB/90
capaNCDT 6228 / 6238
ensor Cable
S
Sensor cable CCgxB
Cable length x
Cable length Cable ø
2 / 4 or 6 m 3.1 mm
2 / 4 or 6 m 3.1 mm
26.5
(1.04)
36.5
(1.44)
2 axial 1x axial +
connector 1x 90
0
•
•
Sensor cable CCgxB/90
25 (.98)
ø10 (.39)
ø7(.28)
For sensors Min. bending radius
1 ... 10 mm
10 mm
(once)
1 ... 10 mm
22 mm
(permanently)
Page 25
