Installation and Assembly
4.2.2
This sensor mounting option offers maximum reliability because the sensor is clamped around its cylindrical
housing. It is absolutely necessary in difficult installation environments, for example on machines, production
plants et cetera.

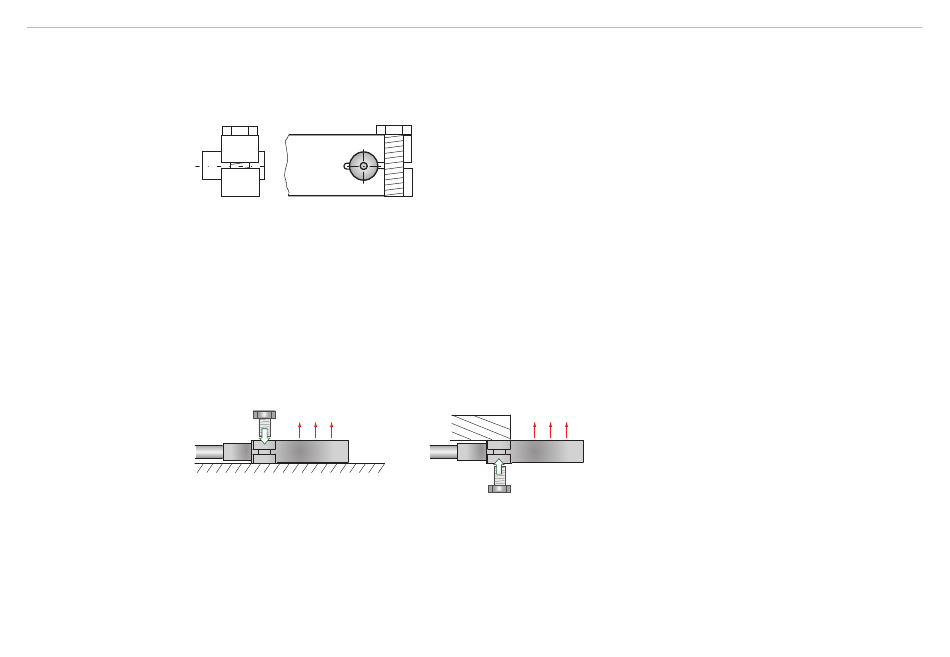

Fig. 6 Circumferential clamping
i
4.2.3
Flat sensors are mounted by means of a tap hole for M2 (in case of sensors 0.2 and 0.5 mm) or by a through
hole for M2 screws. The sensors can be bolted on top or below.
Screwing from above
capaNCDT 6228 / 6238
Circumferential Clamping, Cylindric Sensors
Tension at the cable is inadmissible!
Flat Sensors
Mounting with
clamping ring
Screwing from bottom
t to scale
