Installation and Assembly

4.
4.1
No sharp-edged or heavy objects may get into contact with the sensor cable sheath.
i
4.2
The sensors may be mounted free-standing or flush.
When assembling, make sure that the polished sensor surface is not scratched.
4.2.1
This simple type of fixture is only recommended for a force and vibration-free installation position. The grub
screw must be made of plastic so that it cannot damage or deform the sensor housing.

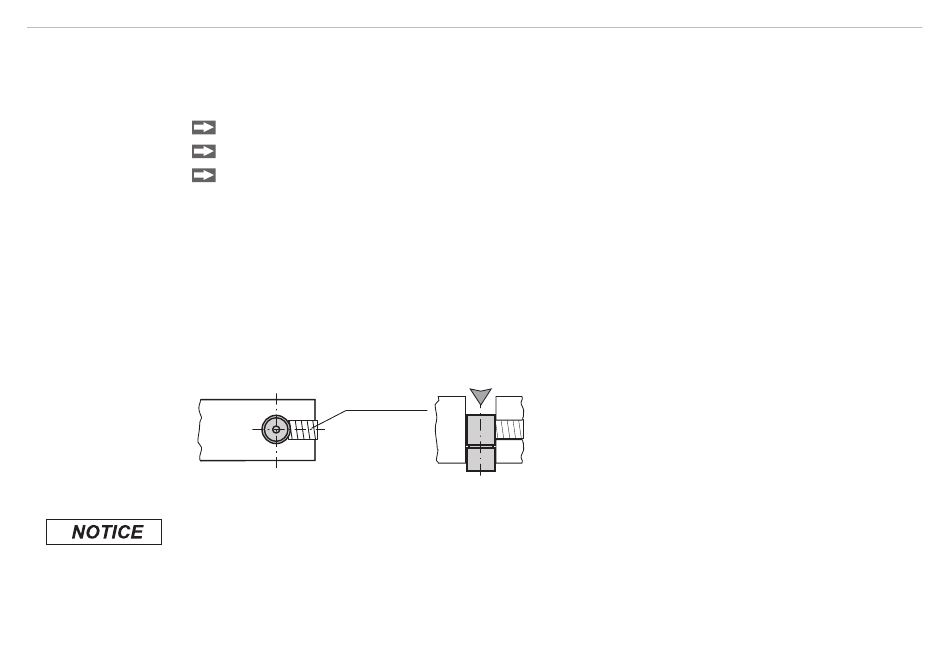

Fig. 5 Radial point clamping with grub screw
Do not use metal grub screws!
> Danger of damaging the sensor
capaNCDT 6228 / 6238
Installation and Assembly

Precautionary Measures

Protect the cable against pressure loads in pressurised rooms.
Avoid kinks in any case.
Check the connections for tight fit.
A damaged cable cannot be repaired.

Sensor

Radial Point Clamping with Grub Screw, Cylindric Sensors

Grub screw
Page 21
