Appendix| Measurements on Balls and Shafts
i
A 5

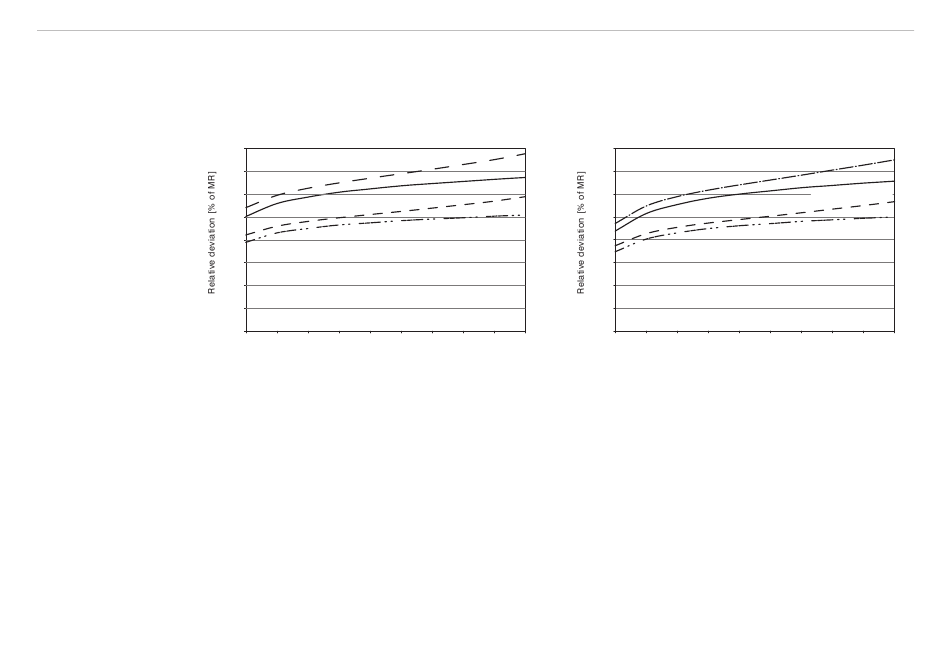

Fig. 41 Measuring value deviation in the case of
measurement on ball-shaped targets
i
capaNCDT 6228 / 6238
Figures give an influence example shown on the sensors CS05 in the case of different sensor distances
to the target as well as target widths. As this results from internal simulations and calculations, please
request for detailed information.
Measurements on Balls and Shafts
16.0%
Ball-Ø30 mm CS1
14.0%
12.0%
Ball-Ø40 mm CS1
10.0%
8.0%
6.0%
4.0%
2.0%
0.0%
10 % 20 % 30 % 40 % 50 % 60 %
Target distance (inner width), [% of MR]
Figures give an influence example shown on the sensors CS02 and CS1 in the case of different sensor
distances to the target as well as target diameters. As this results from internal simulations and calcula-
tions, please request for detailed information.
8,0%
7.0%
Ball-Ø30 mm CS02
6.0%
5.0%
Ball-Ø40 mm CS02
4.0%
3.0%
2.0%
1.0%
0.0%
70 % 80 % 90 % 100 %
Fig. 42 Measuring value deviation in the case of
measurement on cylindrical targets
Cylinder Ø30 mm CS1
Cylinder Ø40 mm CS1
10 % 20 % 30 % 40 % 50 % 60 %
Target distance (inner width), [% of MR]
Cylinder Ø30 mm CS02
Cylinder Ø40 mm CS02
70 % 80 % 90 % 100 %
