8.2.5 Working with layers

Press Matrix #1 button > Press Frame button > Press input #1

Press Matrix #2 button > Press Layer A button > Press input #3

Press TAKE to view the result on both screens

Don't forget to press the correct Matrix # button before pressing the Layer selection button, in order to be

sure doing the manipulation on the correct output.

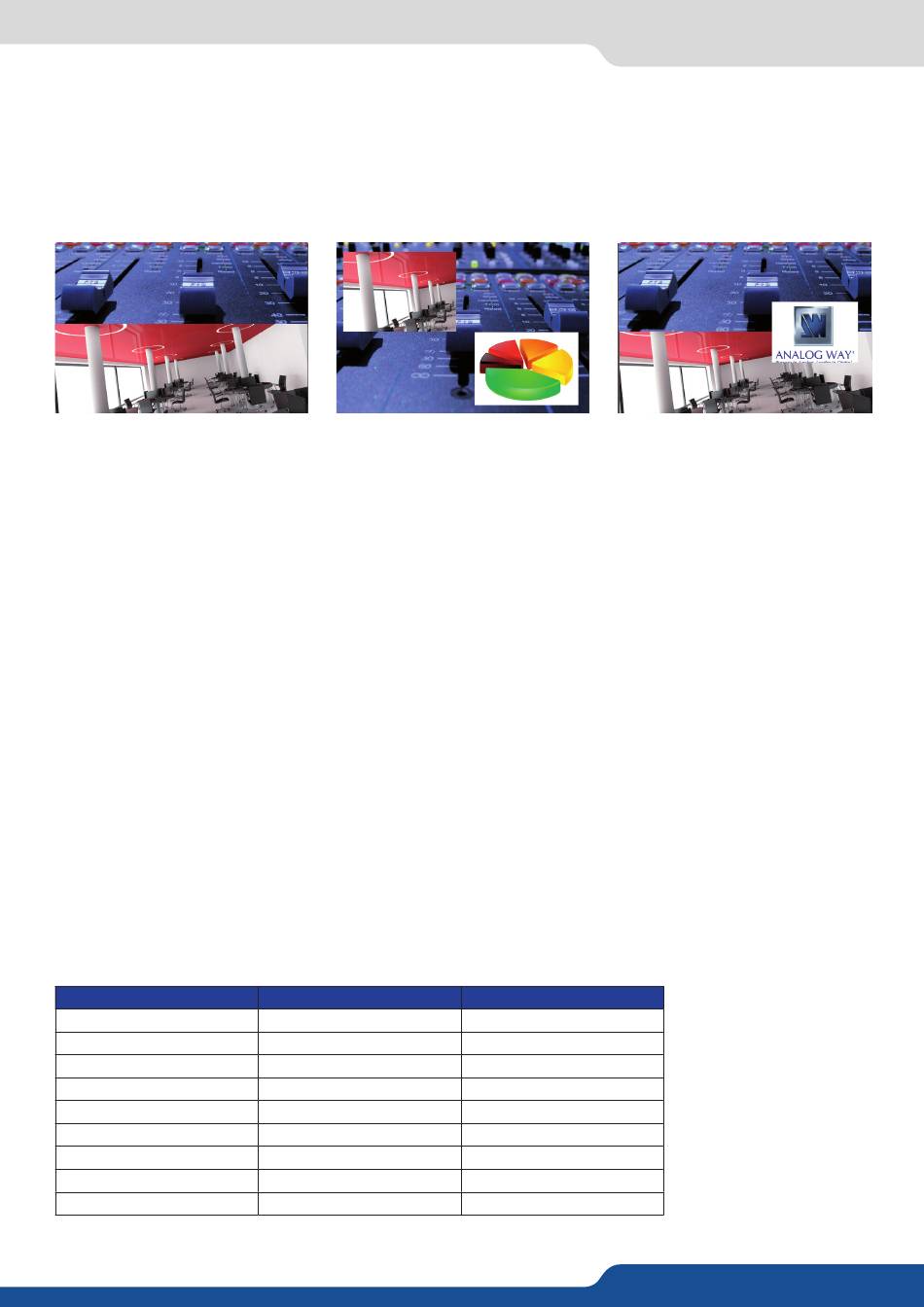

2 layers

8.2.6 Working with layers functions

Once a source is assigned to a layer, you will have access to some layer settings in the Layer menu or direct-

ly by pressing the layer button.

The settings available depend on the layer selected:

- Layer copy mode:

select the copy and adjustment

- Layer adjusts:

set up layer size and position,

- Layer zoom:

set up layer zoom size and position,

- Size Templates:

adjust a specific size (Fullscreen, 1/2, 1/3, ...),

- Transparency:

adjust the layer transparency,

- Border:

choose the border and adjust its properties,

- Force Transition:

enable/disable the selected transitions

- Opening and Closing effect:

- Smooth move:

enable/disable smooth move,

- H&V Flip:

flip the data of the layer,

- Status:

get the selected layer status.

All changes have to be validated by pressing the ENTER button in order to be saved

Press TAKE to view the result on the Program screen.
