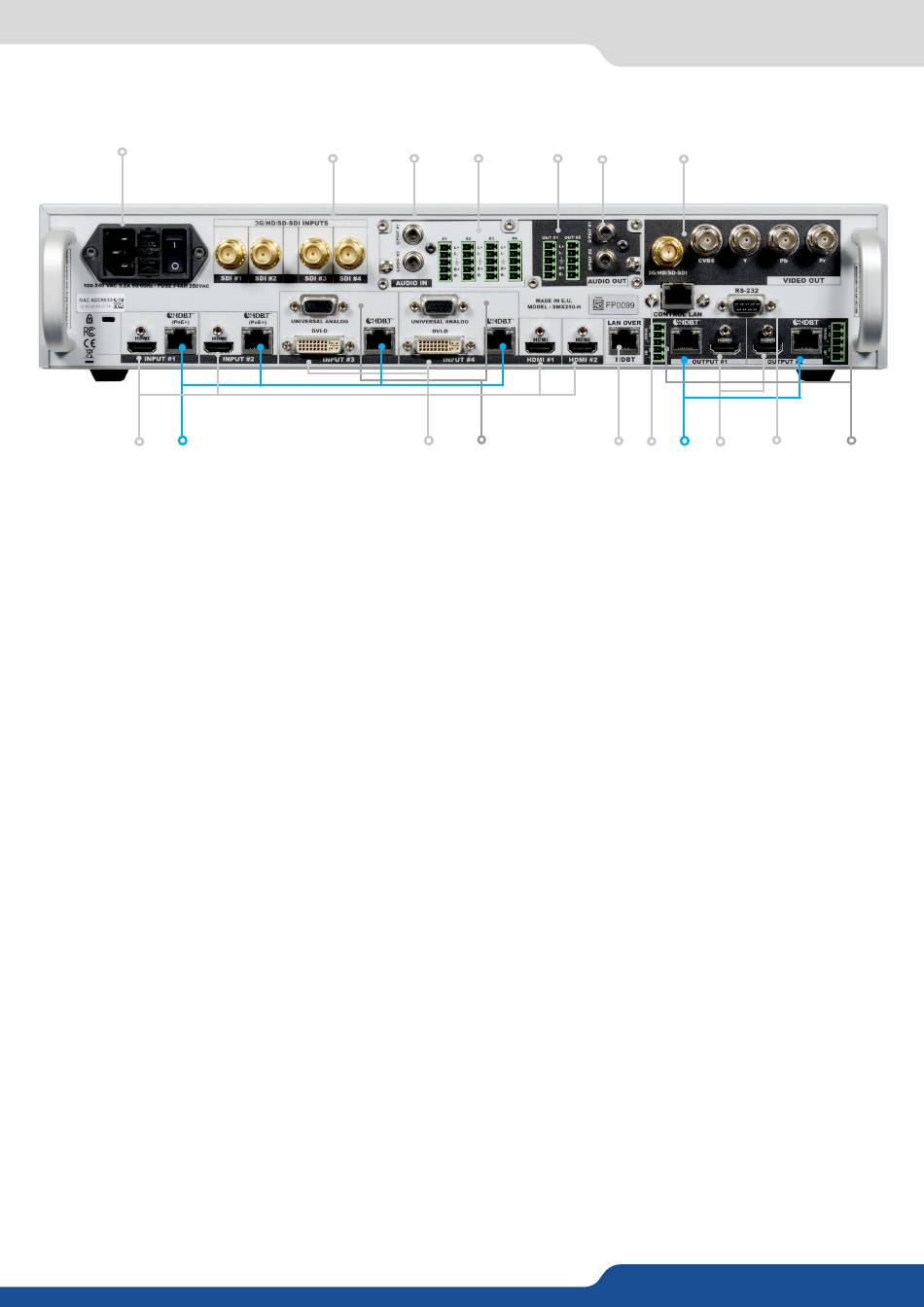

5.1.3 Rear panel SmartMatriX-H - Ref. SMX250-H
5.1.3 Rear panel SmartMatriX²-H - Ref. SMX250-H
1
8
9
1. Power supply:
100-240 VAC 2.5A 50/60HZ / FUSE F4A 250 VAC; internal, autoswitchable; 155W
2. 3G/HD/SD-SDI:
inputs #1 to #4
3. S/PDIF:
audio inputs #1 to #2
4. MCO male connector:
5. MCO male connector:
6. S/PDIF:
audio outputs #1 to #2
7. Video out connectors:
8. HDMI connectors:
HDMI inputs #1 and #2 / HDMI #1 and HDMI #2
9. HDBaseT connectors:
10. DVI connectors:
DVI-D inputs #3 and #4. Capability to receive digital audio signal from HDMI connector
via an adaptor (HDMI-compatible)
11. Universal Analog Computer TV/HDTV:
12. HDBaseT ethernet connector:
13. Ethernet connector:
14. HDBaseT connectors:
15. HDMI connectors:
HDMI multi-plug outputs #1 and #2
16. Communication port:
17. 5-PIN MCO male connectors:
HDBaseT communication signals
28
2
3
10
for audio inputs (balanced) #1 to #4
for audio outputs (balanced) #1 to #2
- 1 x BNC-F: 3G/HD/SD-SDI (with audio embedded)
- 3 x BNC-F: Y-Cb-Cr
- 1 x BNC-F: Composite video PAL/NTSC
HDBaseT inputs #1 to #4
inputs #3 and #4
HDBaseT LAN interface
LAN control for device management
HDBaseT multi-plug outputs #1 and #2
communication port with D89 female connector
HDBaseT 5-pin MCO multi-plug output #1 and #2 for InfraRed and Serial
