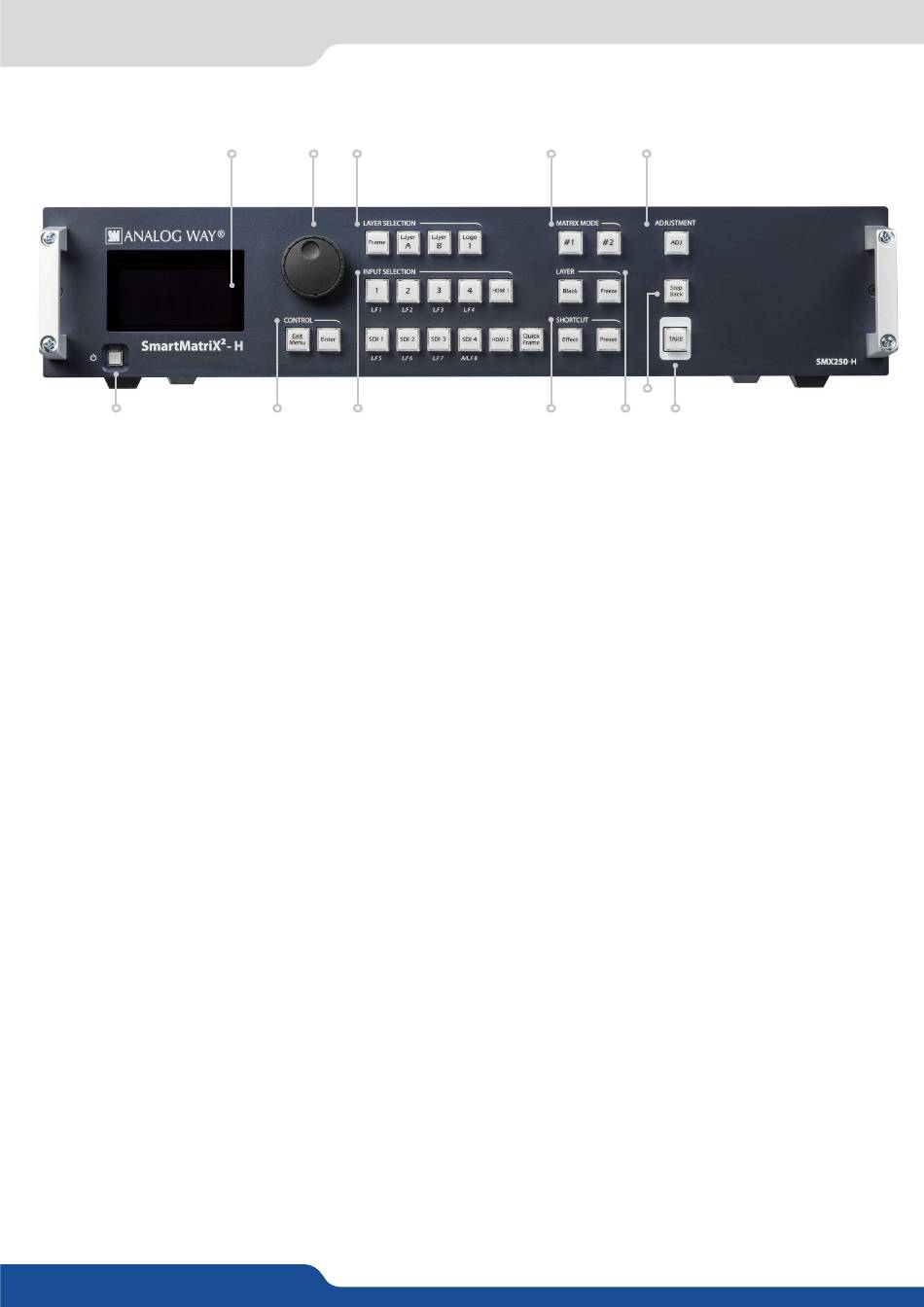

5.1.4 Front panel SmartMatriX²-H - Ref. SMX250-H
1
6
1. Front panel display:
2. Menu scroll knob
3. Layer selection:
- Frame: un-scaled layer for still frames
- Layer A/B: scaled positionable layers for live sources
- Logo 1: un-scaled, positionable layer for still logos
4. Matrix mode:
#1 to #2: select the output #1 or #2, a layer and a source, then press TAKE
5. Adjustment:
adjust layer or logo position, size active layer, zoom active layer
6. On/Off - Stand-by:
hold for 3 seconds for stand-by mode
7. Control:
Exit/menu: Home menu or back one level - Enter: validate the menu or command
8. Input selection:
- 1 to 4: access source 1 to 4, display frame/logo 1 to 4
- HDMI®1/2: access HDMI®1 or HDMI®2
- SDI 1 to SDI 4: access SDI 1 to SDI 4, display frame/logo 5 to 8
- Quick Frame: allows to quickly display a foreground frame
9. Shortcut:
Effect: shorcut to transition menu - Preset: recall a custom stored preset
10. Layer:
- Black: clear the layer
- Freeze: freeze/unfreeze the input selected in the currently selected layer
11. Step Back:
recall the last preset
12. TAKE:
transition the pre-selected sources onto the Program output with the selected effects
2
3
7
8
4-line VFD
5.1.4 Front panel SmartMatriX²-H - Ref. SMX250-H
4
5
11
9
10
12
