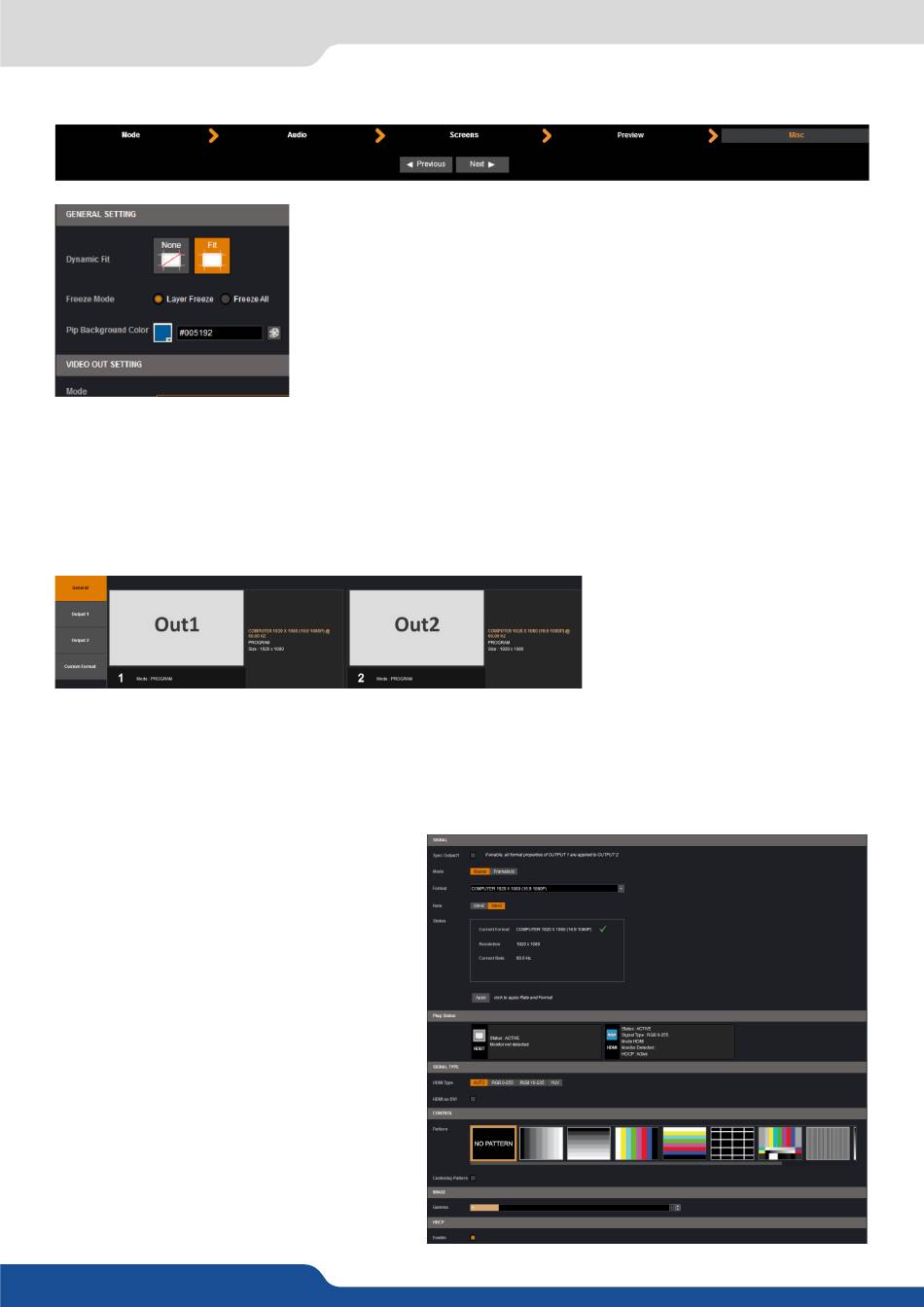

7.2.4 Misc
In the VIDEO OUT SETTING
RECORDING: allow to configure the video output. Configuration shall be done in section 7.2.9.
OUTPUT#1 and OUTPUT#2 PLUGS:
7.2.5 Output management
Into the output section, you will be able to manage your output resolutions, formats, sync types, test patterns,
etc. On the SETUP > OUTPUT TAB, the following screen will appear:
A short summary of each output settings appears on the main page. You can see the number of outputs, their
resolution, rate and HDCP status.
Select an output to adjust by either clicking on it from the column on the left, or clicking the configuration
cog icon for that output.
Once the individual output setup page is opened, you have access to:
- MODE:
choose your rate generation mode,
internal (free-running within the unit) or
Framelock by choosing an input as a reference
input,
- FORMAT: choose the output resolution format,
- RATE: choose the signal timing standards, if
the mode is set to internal
- STATUS: the status menu will show you the
current output status,
- APPLY: click on this button to apply the new
format/rate,
- PLUG STATUS: indicates the status of the
attached monitor and confirms connectivity,
- TYPE: you can choose the type of output
synchronization on the analog plug, for
example RGsB for sync on green, or RGBHV for
separate H and V sync wires,
In the GENERAL SETTING
DYNAMIC FIT: enable or disable the automatic recognition of black band for
digital content. The size and the aspect ratio of the layer are automatically
adapted.
FREEZE MODE: choose to freeze all inputs or only one input when you use
the freeze function.
PIP BACKGROUND COLOR:
background, black is the default color.
section, you have access to:
auto configure the video output as a copy of the output #1 and #2.
section, you have access to:
here you chose the automatic color of PIP
7.2.4 Misc
