Analog way Digi Scan 1600 User Manual

Analog way scan 1600 user's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

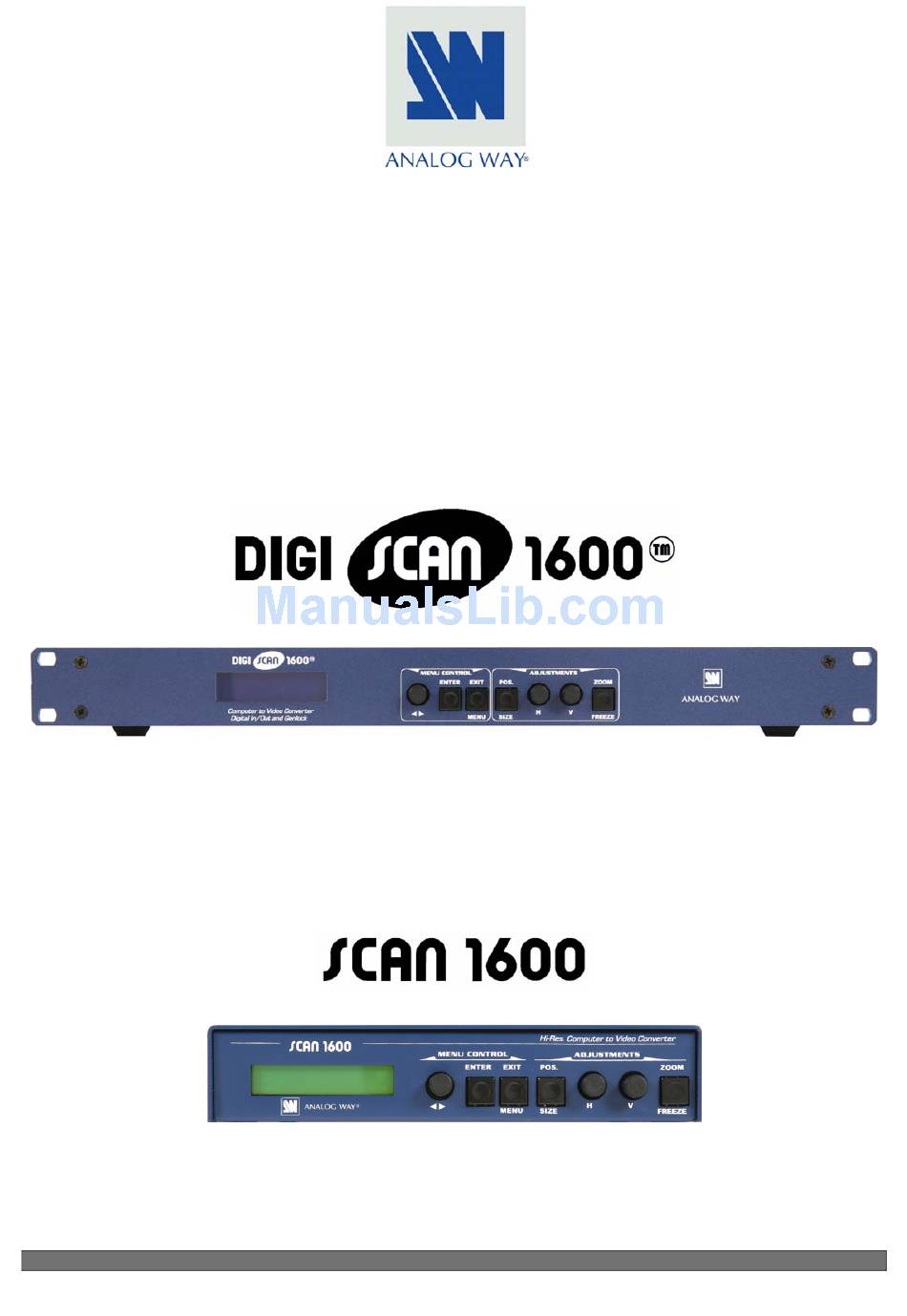

User's Manual
MODEL: DSV1600
MODEL: SSV1600
ANALOG WAY®
SCAN 1600 / DIGI SCAN 1600
EDITION : 06 / 07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digi Scan 1600 and is the answer not in the manual?

Questions and answers

Related Manuals for Analog way Digi Scan 1600

Summary of Contents for Analog way Digi Scan 1600

  • Page 1 User’s Manual MODEL: DSV1600 MODEL: SSV1600 ANALOG WAY® SCAN 1600 / DIGI SCAN 1600 EDITION : 06 / 07...

  • Page 2: Safety Instructions

    SCAN 1600 / DIGI SCAN 1600 SAFETY INSTRUCTIONS All of the safety and operating instructions should be read before the product is operated and should be retained for further reference. Please follow all of the warnings on this product and its operating instructions.
  • Page 3 SCAN 1600 / DIGI SCAN 1600 INSTRUCTIONS DE SÉCURITÉ Afin de mieux comprendre le fonctionnement de cet appareil nous vous conseillons de bien lire toutes les consignes de sécurité et de fonctionnement de l’appareil avant utilisation. Conserver les instructions de sécurité et de fonctionnement afin de pouvoir les consulter ultérieurement. Respecter toutes les consignes marquées dans la documentation, sur le produit et sur ce document.
  • Page 4 SCAN 1600 / DIGI SCAN 1600 SICHERHEITSHINWEISE Um den Betrieb dieses Geräts zu verstehen, raten wir Ihnen vor der Inbetriebnahme alle Sicherheits- und Betriebsanweisungen genau zu lesen. Diese Sicherheits- und Betriebsanweisungen für einen späteren Gebrauch sicher aufbewahren. Alle in den Unterlagen, an dem Gerät und hier angegebenen Sicherheitsanweisungen einhalten.

  • Page 5: Table Of Contents

    SCAN 1600 / DIGI SCAN 1600 TABLE OF CONTENTS SAFETY INSTRUCTIONS ................................2 QUICK START GUIDE – DIGI SCAN 1600 ..........................6 QUICK START GUIDE – SCAN 1600............................7 Chapter 1 : INTRODUCTION ...............................8 1-1. ACCESSORIES SUPPLIED WITH THE DIGI SCAN 1600.....................8 1-2. ACCESSORIES SUPPLIED WITH THE SCAN 1600......................8 1-3.

  • Page 6: Quick Start Guide - Digi Scan 1600

    • RGB/COMPONENT output connection: SETTINGS: We recommend resetting the DIGI SCAN 1600 to all of its default values, with the front panel display menu (Control > default value > yes) before proceeding. Select the Input source (ANALOG or DVI) with the front panel display menu (Input > Input select.).

  • Page 7: Quick Start Guide - Scan 1600

    Connect your display devices (TV monitor, VCR...) to the outputs. Connect the external power supply to an AC power outlet and to the DC input connector of the SCAN 1600. Then turn ON your input sources and then your display devices.

  • Page 8: Chapter 1 : Introduction

    Auto-Scan and converts in real time, full screen image, with overscan /underscan and frame freeze functions. Digi Scan 1600 outputs at the same time SDI, RGB/S or YUV, S.Video and Composite in NTSC or PAL (4 pin Mini DIN, BNC).

  • Page 9: Scan 1600 General Information

    It makes this device ideal and very useful for rental or multi- computer applications. Scan 1600 features linear Pan/Zoom up to 500% to display from 100% to 4% of any part of the total input image area.

  • Page 10: Digi Scan 1600 Front Panel Description

    Chapter 1 : INTRODUCTION (continued) SCAN 1600 / DIGI SCAN 1600 1-7. DIGI SCAN 1600 FRONT PANEL DESCRIPTION DIGI SCAN 1600 ANALOG WAY MENU CONTROL Allows to scroll thru the different menus. ENTER: Validates a selected item. A long push on this button allows to activate the STANDBY mode. A short push on this push button allows to wake up the device.

  • Page 11: Scan 1600 Front Panel Description

    SCAN 1600 / DIGI SCAN 1600 Chapter 1 : INTRODUCTION (continued) 1-9. SCAN 1600 FRONT PANEL DESCRIPTION SCAN 1600 ANALOG WAY MENU CONTROL Allows to scroll thru the different menus (in Control mode). ENTER: Validates a selected item. A long push on this button allows to activate the STANDBY mode. A short push on this push button allows to wake up the device.

  • Page 12: Chapter 2 : Starting

    NOTE: The MONITOR OUT is available only if the COMPUTER source is analog. Connect your display devices (TV monitor, VCR...) to the outputs (analog or SDI). Turn ON the DIGI SCAN 1600 (rear panel switch). Then turn ON your input source and then your display devices. • DIGI SCAN 1600 connection diagram: Ω...

  • Page 13: Scan 1600 Connections

    Connect your display device (TV monitor, VCR…) to the outputs. Connect the external power supply to an AC power outlet and to the DC input connector of the SCAN 1600. Then turn ON your input source and then your display devices.

  • Page 14: Chapter 3 : Front Panel Display Menu Description

    SCAN 1600 / DIGI SCAN 1600 Chapter 3 : FRONT PANEL DISPLAY MENU DESCRIPTION 3-1. INTRODUCTION The front panel display menu presents 2 modes: the STATUS MODE and the CONTROL MODE. • The STATUS MODE indicates the input and output status of the device.

  • Page 15: Control Mode

    SCAN 1600 / DIGI SCAN 1600 Chapter 3 : FRONT PANEL DISPLAY MENU DESCRIPTION (continued) 3-4. CONTROL MODE The menus of the device are configured as follow: 1 Input 1 Input status 2 Input select Analog 3 SOG input 4 H. sync. load...

  • Page 16: Functions Description

    Chapter 3 : FRONT PANEL DISPLAY MENU DESCRIPTION (continued) SCAN 1600 / DIGI SCAN 1600 3-5. FUNCTIONS DESCRIPTION 1 [INPUT] + ENTER. 1-1 [Input status] + ENTER. Displays the input status. 1-2 [Input type] + ENTER. Select one of the following input types with + ENTER: •...
  • Page 17 SCAN 1600 / DIGI SCAN 1600 Chapter 3 : FRONT PANEL DISPLAY MENU DESCRIPTION (continued) 3-5. FUNCTIONS DESCRIPTION (continued) 3 [IMAGE] + ENTER. 3-1 [Flicker filter] + ENTER. Select one of the 8 levels of the anti-flicker with and validate with ENTER.

  • Page 18: Chapter 4 : Updating The Device

    Connect the RS232 connector of the device to the serial port of your computer with a DB9 M/F straight cable. Open the file: Scan 1600.exe (in Start > Program > ANALOGWAY > SCAN1600 updater). In the Port menu select the Com port connected to the device.

  • Page 19: Chapter 5 : Remote Control Software

    Turn your computer ON and wait for Windows to completely start. Insert the CD-ROM into your drive: the ANALOG WAY home window will open automatically. Select the language of the CD-ROM menus, then click on "Install a Remote Control Software" and select the name of your device.

  • Page 20: Using The Software

    Chapter 5 : REMOTE CONTROL SOFTWARE (continued) SCAN 1600 / DIGI SCAN 1600 5-4. USING THE SOFTWARE Click on the Input tab and select the Computer input type. Click on the Output tab, and then select the needed adjustment (output standard, output rate...).
  • Page 21 SCAN 1600 / DIGI SCAN 1600 Chapter 5 : REMOTE CONTROL SOFTWARE (continued) 5-4. USING THE SOFTWARE (continued) Click on the Image tab and adjust your input. For the DSV1600 only, click on the Genlock tab and make the genlock adjustments.

  • Page 22: Chapter 6 : Technical Specifications

    SCAN 1600 / DIGI SCAN 1600 Chapter 6 : TECHNICAL SPECIFICATIONS 6-1. COMPUTER INPUTS • ANALOG COMPUTER INPUT HD15 female. Connector: From 29 kHz to 110 kHz. Line frequency: Up to 130 Hz. Frame frequency: Up to 1600 x 1200.

  • Page 23: Genlock

    SCAN 1600 / DIGI SCAN 1600 Chapter 6 : TECHNICAL SPECIFICATIONS 6-2. VIDEO OUTPUTS (continued) • COMPOSITE VIDEO BNC female. Connector: PAL : 15.625 kHz / 50 Hz - 625 lines. Standard: NTSC : 15.734 kHz / 60 Hz - 525 lines - 7.5 IRE.

  • Page 24: Appendix A: Programmer's Guide

    SCAN 1600 / DIGI SCAN 1600 APPENDIX A: PROGRAMMER'S GUIDE ANNEXE A: GUIDE DE PROGRAMMATION A-1: INTRODUCTION A-1: INTRODUCTION If you need to use your own Software Control program Si vous souhaitez utiliser votre propre logiciel de from a PC or WORKSTATION with an RS-232 port, contrôle avec votre PC, MAC ou Station de Travail par...
  • Page 25 SCAN 1600 / DIGI SCAN 1600 APPENDIX A / ANNEXE A A-4: COMMANDS AND RESPONSES TABLE A-4: TABLE DES COMMANDES ET RÉPONSES COMMAND RESPONSE COMMAND DESCRIPTION VALUE /VALEUR TYPE MIN MAX DESCRIPTION COMMANDE RÉPONSE DESCRIPTION DE LA COMMANDE FRONT PANEL COMMANDS / COMMANDES DE LA FACE AVANT FREEZE.
  • Page 26 APPENDIX A / ANNEXE A SCAN 1600 / DIGI SCAN 1600 COMMAND RESPONSE COMMAND DESCRIPTION VALUE /VALEUR TYPE MIN MAX DESCRIPTION COMMANDE RÉPONSE DESCRIPTION DE LA COMMANDE STATUS COMMANDS / COMMANDES D’ETAT UNIT Measures unity in kHz. 65535 This command allows to calculate the 65535 Line frequency (in kHz) = (UNIT VALUE) ÷...
  • Page 27 SCAN 1600 / DIGI SCAN 1600 APPENDIX A / ANNEXE A A-5: ASCII / HEX / DEC TABLE A-5: TABLE ASCII / HEX / DEC ASCII ASCII ASCII space " & ’ < > PAGE 27...

  • Page 28: Warranty

    SCAN 1600 / DIGI SCAN 1600 WARRANTY Analog Way warrants the product against any defects in materials and workmanship for a period of three years from the date of purchase (back to the factory). In the event of any malfunction during the warranty period, Analog Way will, at its discretion, repair or replace the defective units, including free materials and labor.

This manual is also suitable for:

Dsv1600Ssv1600
