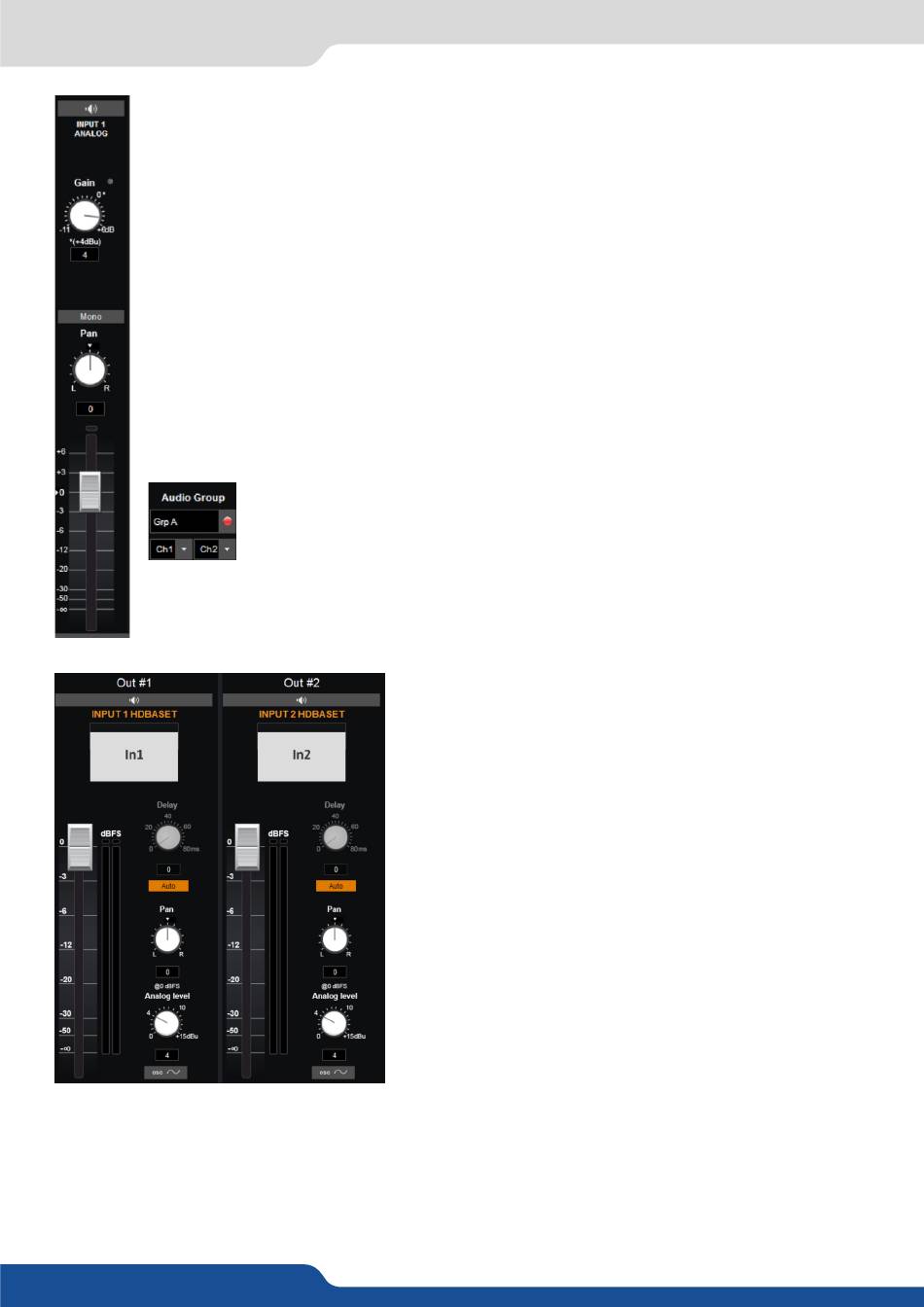

To setup your analog audio input, simply click on "ON PRELIST", if you have a Preview output,
the audio input will be played on it. Then adjust the GAIN from -11 to +6dB.
A red indicator light will be displayed if you reach the input clip. If the input clip light is being
illuminated, it means that the input gain is too high and the signal is being distorted. To solve this
issue, decrease the gain value. The 0dB corresponds to a +4dBu signal in input.
The gain manual adjustment is only available for analog input.
For every input, you have the possibility to set up your source as a mono audio or stereo audio
source.
You have the possibility to adjust the level vs right level using the Pan knob.
All input still have their own level which is 0 by default, decrease or increase the value to modify
the sound level:
Specific feature:

- DIGITAL SOURCE:

- SDI SOURCE:
all digital sources will have their sample rate displayed,
on SDI source you can choose 2 channels on one of the 4 groups.
The available audio output controls depend on the device
setup configuration. As you are in matrix mode, you will have
2 programs audio outputs.
For the audio output, you will find:
- A LEFT/RIGHT PAN ADJUSTMENT
- A GAIN ADJUSTMENT:
the analog audio output component. Depending on the device
you will use after the analog way device, adjust carefully the
analog gain. Basically, for a 0 level, the default value is 4 dBu.
- A MASTER LEVEL:
right, a bar will move up and down to indicate the audio level
in real time. A red button will turn on if the maximum level
is reached.
- A DELAY ADJUSTMENT:
calculated or manually adjusted. To adjust it manually, first
disable the Auto button.
7.2.9 Audio management
this setting will help you to calibrate
it indicates the level of your input. On its
the delay can be automatically
