In this case, you can enter manually into each input settings by using the left menu:

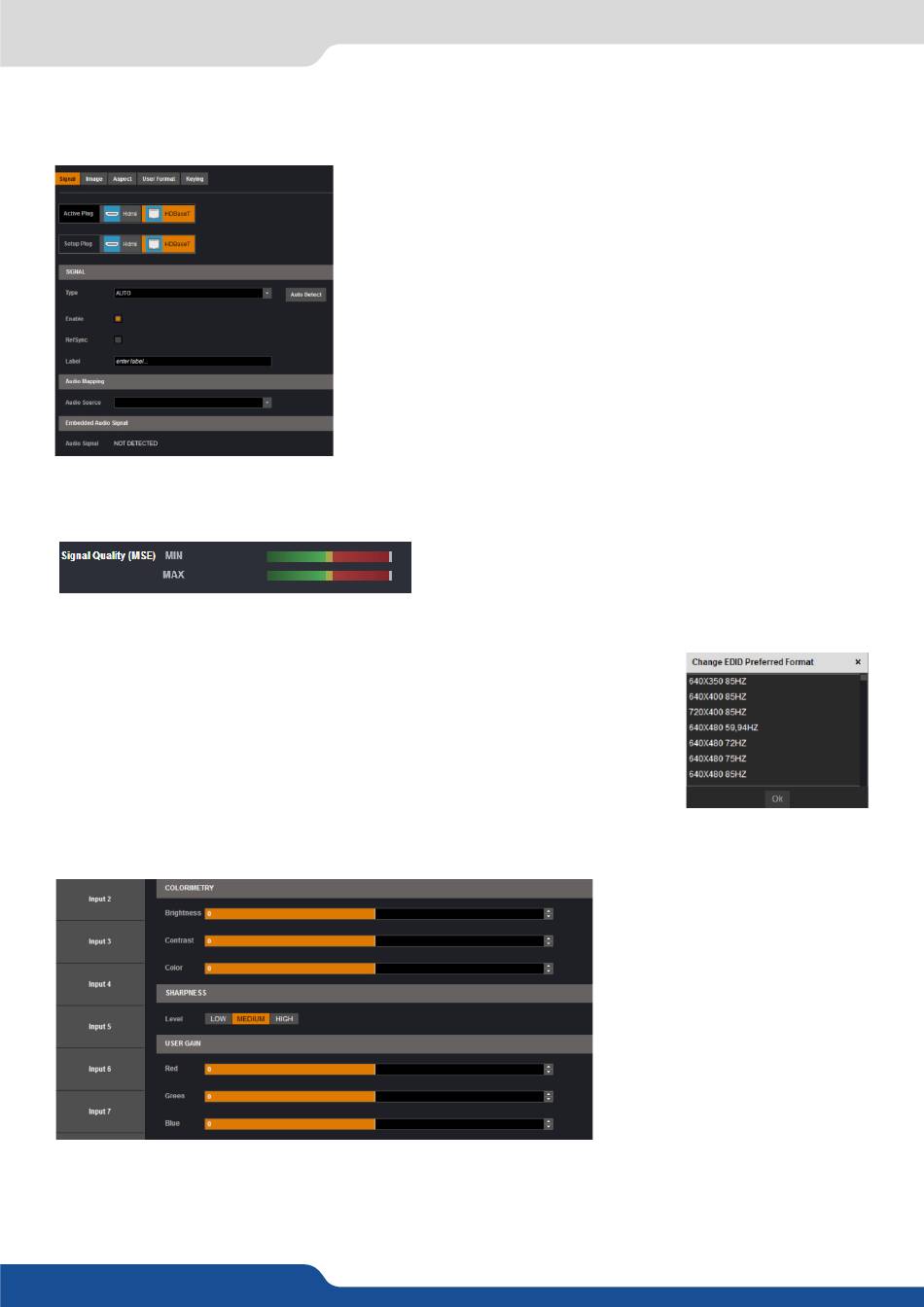

Under the SIGNAL tab, you will find:
- EMBEDDED SIGNAL AUDIO:
- STATUS: format and size of the input.
For the HDBaseT input, the status also provides the Signal Quality of the HDBaseT link.
- CONTROL: Black: select Black to transform your input in a uniform color,
Freeze: use this button to freeze the specific input,
- EDID:
choose the EDID for the selected plug.
Under the HDCP section, you can:
- Enable/disable the HDCP communication feature
- Read the HDCP status, If the HDCP status says Active, this input connection is
currently utilizing HDCP to protect the signal. if the HDCP status indicates Idle,
this input connection is currrently not utilizing HDCP.
Next is the IMAGE tab, where you can find all settings about the display of your input:
Under the COLORIMETRY section, you have:
- BRIGHTNESS: define the selected input luminosity level,
- CONTRAST: define the selected input contrast level,
- COLOR: define the selected input color level (0:black and white, full: full color),
- ACTIVE PLUG:
this plug can be displayed on your output,
- SETUP PLUG:
be applied to this plug, even if this plug is active or not (do not
mismatch with the active plug),
- SIGNAL TYPE:
or Computer HV/SOG etc.,
- ENABLE: enable/disable the input,
- REF SYNC: affect the input to the ref sync input. Use this box only
if your source is genlocked with the referenced source (framelock
feature),
- LABEL: rename your input according to your source,
- AUDIO MAPPING:
video input,
status indicates if an embedded audio signal is detected or not,
select the plug used by the unit at the moment. Only
select the plug you want to set up, all changes will
define the type of your signal, video SD/HD YUV/RGB
select the audio input that will be linked with the
