7.2.6 Input management
Under the SHARPNESS section, you find:
- LEVEL: define the selected input luinosity level.
Under the USER GAIN section, you find:
- RED/GREEN/BLUE: increase/decrease the Red/Green/Blue level of your input.
Next you have the ASPECT tab. All settings about the blanking and aspect ratio are available there:
For the analog inputs, the blanking section is available.

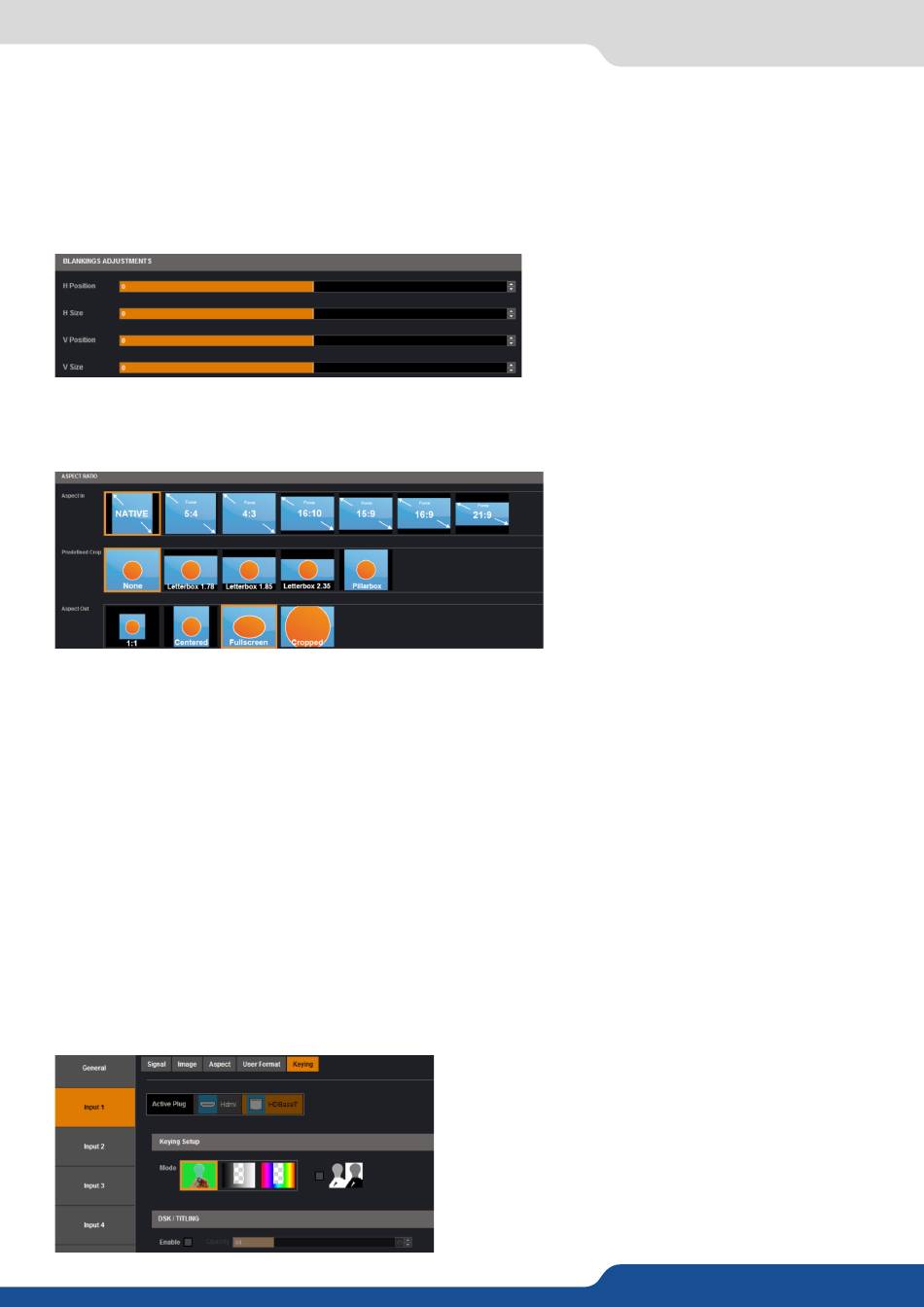

Under the BLANKING ADJUSTMENTS:
- H&V POSITION SIZE: you can manually adjust the input blanking with the H&V size or position.
Under the ASPECT RATIO section:
- ASPECT IN: forces a particular aspect ratio for the source. (5:4, 4:3, etc). This setting has no effect when set
to native,
- PREDEFINED CROP: choose a specific cropped ratio if you use a source with black bands on top/bottom or
left/right,
- ASPECT OUT: define the way the image will be displayed into a layer (full screen, centered, cropped or 1:1),
- OVERSCAN: choose to apply or not a predefined zoom on the image (use with video signal).
Under the CROP section:
- TOP / BOTTOM / LEFT / RIGHT:
The next tab is the USER FORMAT:
In this tab, you can explicitly define the input format. The input format is automatically detected by the
SmartMatriX² but you can change it or force it. The available formats are close to the current one, in terms
of lines. This is only available for analog computer formats.
Keying Feature
38
use the Top, Bottom, Left and Right values to crop your input.
