QUICK START GUIDE
VIO 4K
- Ref. V701
Thank you for choosing Analog Way
use within minutes your brand new Video Processing Tool Box. Discover the VIO 4K capabilities and intuitive interface
designed to meet all needs in terms of image processing and conversion.
WHAT'S IN THE BOX
• 1 x VIO 4K (V701)
• 1 x Power supply cord
• 1 x Ethernet cross cable (for device control)
• 1 x MCO 5 pin connector
• 1 x Web-based Remote Control Software included and hosted on the device
• 1 x Rack mount kit (the parts are stowed in the packaging foam)
• 1 x User manual*
• 1 x Quick start guide*
* The User Manual and the Quick Start Guide are also available on
QUICK SETUP & OPERATION
You can quickly control and configure your new VIO 4K unit from the VIO 4K unit itself, via the front panel buttons and
the front panel menu tree.
• Switch ON the unit to access the front panel menu tree:

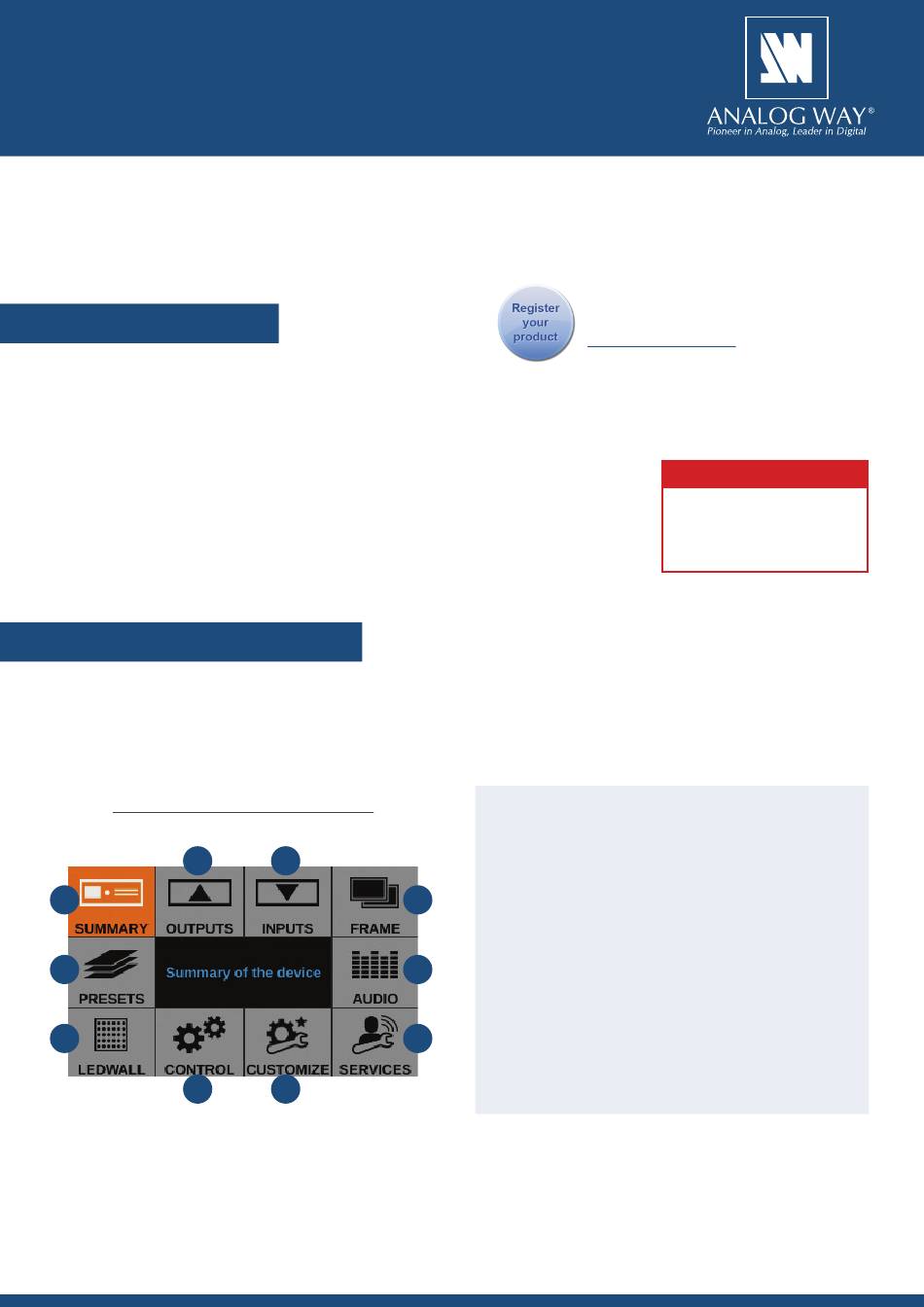

Front panel menus on LCD display
1
10
9
8
7
• Rotate the front panel control knob and press the
ENTER and EXIT/MENU buttons to navigate through
the menus and adjust your setup.
and the VIO 4K. By following these simple steps, you will be able to set up and
2
3
4
5
6
Go to our website to register your product(s)
and be notified about new firmware updates:
http://bit.ly/AW-Register
www.analogway.com
1. Set up your outputs and outputs plugs
2. Set up your inputs and inputs plugs
3.
Import frames and manage frame features
4. Set up the audio and manage A/V mapping
5. Access technical support information and device
control services
6.
Create custom formats, manage transitions, adjust
the screen background color ...
7. Manage the device settings and control functions like
LAN and the Safe Input Select feature
8.
Adjust the LED wall area of interest (AOI) and set up
the view
9. Save and load preset configurations
10. Check your current VIO 4K configuration
• Select the input to display on the output by choosing
the corresponding INPUT SELECTION button, or use
BLACK to output to the screen background color.
CAUTION!
Additional support such as
the rear rack or slide rails is
strongly recommended for all
mounting applications.
