7.3.3 Effects

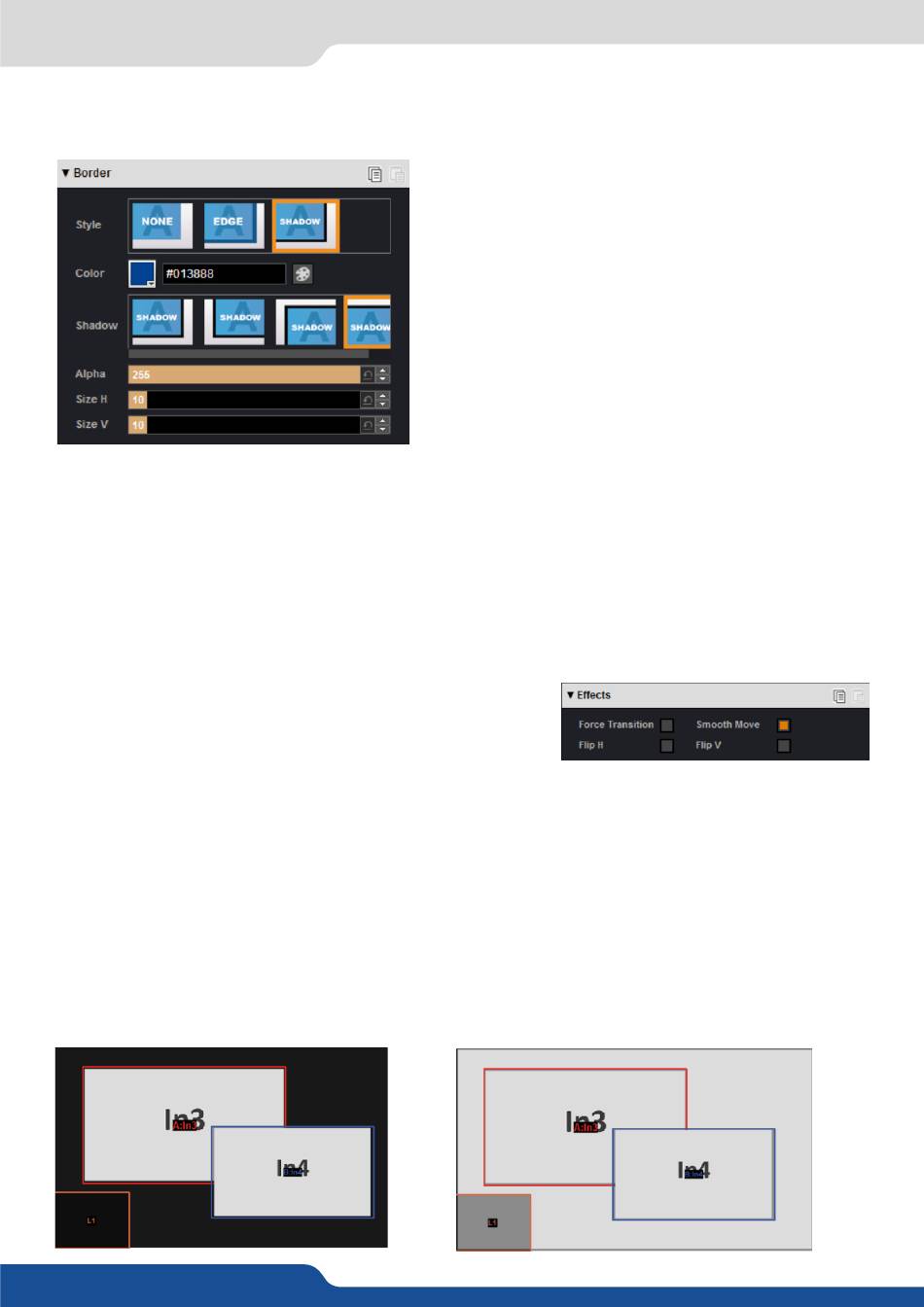

Borders (only for live layers)
Choose a border for this layer from the available patterns including EDGE and SHADOW. For each pattern you
will have specific values to adjust like colors, transparency, width/height or position V and position H.
Transitions
On the Transitions section, you can filter which transitions you want to see. For Example, you can show just
the Slide, Wipe, Circle or Stretch transitions.
Each layer has an opening and a closing transition. The opening effect will be applied when the layer switch
from a source to another source or when the layer is switching from empty and appears with a source.
To set up the duration of the transition, please see below the timing and duration settings. If you want to
force the layer to perform a closing and opening transition, see FORCE TRANSITION.
7.3.3 Effects
Force transition
The Force Transition button disables the cross-transition between
two sources into the same layers. Enabling the Force Transition,
it forces the layer to go out and then go in with the desired effect
instead of mixing directly the two sources.
Smooth Move
Enable the Smooth Move to perform a smooth transition on the layer. Disable the smooth move if you require
a constant speed move.
H&V Flip (only for live layers)
The H&V Flip rotates the PIP on a horizontal or vertical axe. All image data will be flipped.
7.3.4 Background frame
The Background frame layer acts like any other layer. Simply select it and drag and drop a saved frame.
The frame 1 is now assigned to the Background frame into the Preview preset.
