7.2.7 Logo management
7.2.7 Logo/frame management

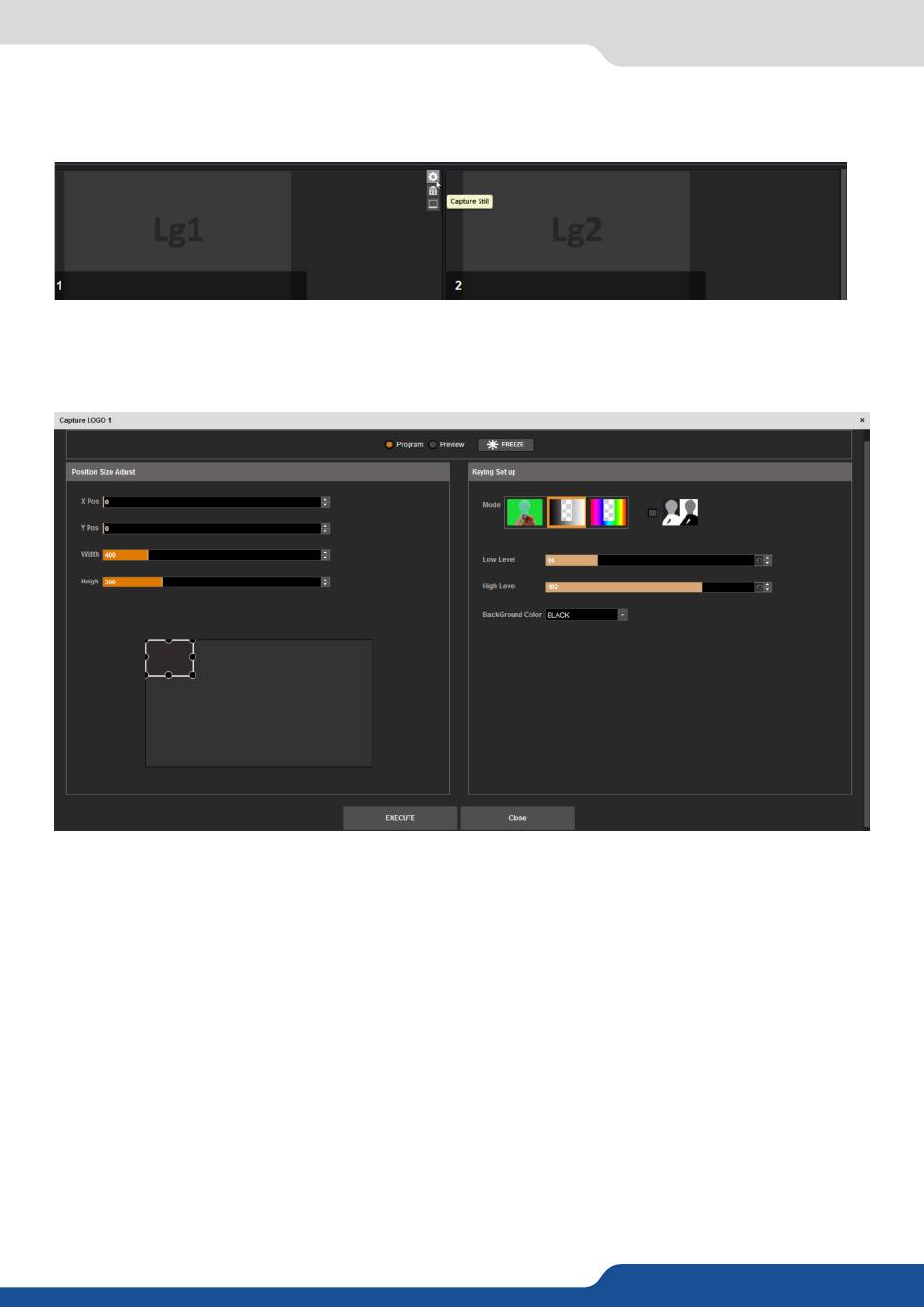

To save a logo/frame click on this button:
The next page opens.
From here you can capture from the main or from the Preview.
You can still freeze the output before saving your logo/frame.
You can also utilize the logo keying feature to key away part of the image before saving the logo.
Select the area you want to save using the adjustable white square.
Once it is ok, simply click on execute to save the logo.
How to save a frame:
Choose first Program or Preview, click on FREEZE if you want to freeze your output. Then click on EXECUTE to
save your frame into the selected slot.
