Analog way QuickMatriX QMX150 User Manual

Hi-resolution seamless matrix scaler with 8 seamless inputs and 2 mirrored dvi / analog outputs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
QuickMatriX
Ref. QMX150 / QMX150-H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QuickMatriX QMX150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog way QuickMatriX QMX150

Summary of Contents for Analog way QuickMatriX QMX150

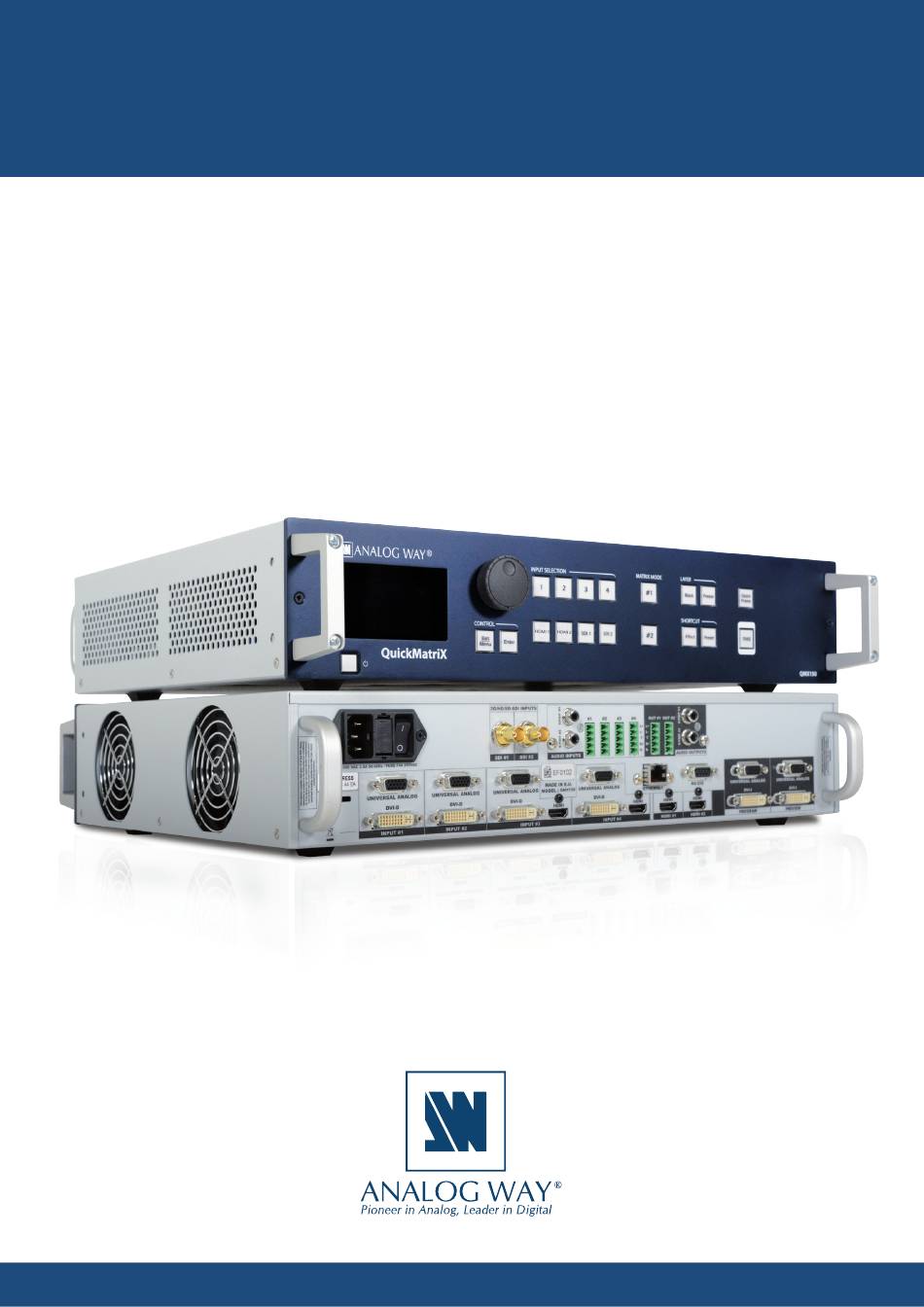

  • Page 1 USER MANUAL QuickMatriX Ref. QMX150 / QMX150-H...
  • Page 2 Information contained in this document, in particular data, pictures, information, trademarks and logos are exclusive property of Analog Way and are protected by copyrights and other intellectual property rights. 2014, Analog Way, all rights reserved – 11/2017 Consequently, any representation and/or reproduction, in part or in full, is prohibited and would be considered a violation of Analog Way’s copyright and other intellectual property rights.

  • Page 3: Table Of Contents

    THANK YOU By following these simple steps you will be able to obtain the most from your powerful QuickMatriX and its many features. 1. TRADEMARKS 2. INTRODUCTION 3. TERMS AND DEFINITIONS 4. HARDWARE SPECIFICATIONS 4.1 Safety instructions 4.1.1 English 4.1.2 French 4.1.3 Italian 4.1.4 German 4.1.5 Spanish...
  • Page 4 4.10 HDCP management 4.10.1 Input HDCP detection 4.10.2 Output HDCP detection 4.10.3 Keys’ checking 4.10.4 Output management 4.10.5 HDCP Classification 4.10.6 Status 5. CONNECTING THE QUICKMATRIX 5.1 Description 5.1.1 Rear panel - Ref. QMX150 5.1.2 Front panel - Ref. QMX150 5.1.3 Rear panel - Ref.
  • Page 5 8. OPERATING THROUGH THE FRONT PANEL 8.1 Front panel 8.1.1 Menu navigation 8.1.2 Home menu 8.1.3 Operating modes 8.1.4 Reseting default values 8.1.5 QuickMatriX color codes 8.2 Settings in Matrix mode 8.2.1 Source Input selection 8.2.2 Input selection settings 8.2.3 Source Output selection 8.2.4 Output selection settings 8.2.5 Working with layers 8.2.6 Working with layers functions...

  • Page 6: Trademarks

    HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. 2. INTRODUCTION Thank you for choosing the Analog Way QuickMatriX. Before you start setting up your QuickMatriX for the first time, please read through all of the documentation to become familiar with its powerful features. The QuickMatriX can be used in several configurations, which results in a versatile video production tool for live event staging and fixed installation applications.

  • Page 7: Terms And Definitions

    3. Terms and definitions 3. TERMS AND DEFINITIONS LAYER: a “layer” is an image display element that has a visual priority. PIP: a “PIP” (Picture In Picture) is a picture, typically of reduced size, which is positioned over another background image or other PIPs. PIPs can be repositioned, reduced, enlarged and displayed with borders. PIPs can overlap, depending on their visual priority.

  • Page 8: Hardware Specifications

    4.1.1 English 4. HARDWARE SPECIFICATIONS 4.1 Safety instructions 4.1.1 English For optimal use of this device, read all safety and operating instructions before use. Keep the safety and operating instructions for future reference. Please follow all of the warnings on this product and its operating instructions.

  • Page 9: 4.1.2 French

    4.1.2 French 4.1.2 French Pour une utilisation optimale de cet appareil, nous vous conseillons de bien lire toutes les consignes de sécurité et de fonctionnement avant utilisation. Conservez les instructions de sécurité et de fonctionnement afin de pouvoir les consulter ultérieurement. Respectez toutes les consignes marquées dans la documentation, sur le produit et sur ce document.

  • Page 10: 4.1.3 Italian

    4.1.3 Italian 4.1.3 Italian Per un utilizzo ottimale dell’apparecchio, leggere tutte le istruzioni di sicurezza e di utilizzo prima dell’uso. Conservare le istruzioni di sicurezza e di funzionamento al fine di poterle consultare ulteriormente. Seguire tutti i consigli indicati su questo manuale e sull’apparecchiatura. •...

  • Page 11: 4.1.4 German

    4.1.4 German 4.1.4 German Zum optimalen Gebrauch dieses Gerätes lesen Sie bitte vorher alle Sicherheits- und Bedienhinweise. Diese Sicherheits- und Betriebsanweisungen für einen späteren Gebrauch sicher aufbewahren. Alle in den Unterlagen, an dem Gerät und hier angegebenen Sicherheitsanweisungen einhalten. • ACHTUNG: um jegliches Risiko eines Stromschlags oder Feuers zu vermeiden, das Gerät nicht Regen, Feuchtigkeit oder intensiven Wärmequellen aussetzen.

  • Page 12: 4.1.5 Spanish

    4.1.5 Spanish 4.1.5 Spanish Para un uso óptimo de este equipo, lea las instrucciones de seguridad y operación antes de utilizarlo. Conserve las instrucciones de seguridad y de funcionamiento para que pueda consultarlas posteriormente. Respete todas las consignas indicadas en la documentación, relacionadas con el producto y este documento. •...

  • Page 13: Unpacking And Inspection

    Before racking and plugging any inputs and outputs, it is advised to power on the unit. Should you encounter any issue, you must contact immediately your local distributor or dealer, or closest Analog Way technical (see chapter: 12. Contact support offices information).

  • Page 14: Cable And Adaptor Information

    4.4 Cable and adaptator information 4.4 Cable and adaptor information A large choice of cables and adaptors are compatible with the QuickMatriX. Please refer to the hardware specifications chapter to find the most suitable cables for your operations. 4.5 Hardware specifications 4.5.1 Signal descriptions For each type of signal, here are the levels and the impedance accepted by the QuickMatriX.

  • Page 15: 4.5.2 Supported Video Formats

    4.5.2 Supported video formats Analog computer Digital computer Type Levels Impedance Type Characteristics RGsB R = 0,7 Vpp RGB – 8 bits – 4.4.4 – 0/255 - TMDS G = 0,7 Vpp + 0,3 Vpp 75 Ω HDMI® RGB or YUV – 8 bits – 4.4.4 or 4.2.2 B = 0,7 Vpp –...

  • Page 16: Input Specifications

    4.5.5 Output computer formats 4.5.5 Output Computer formats The QuickMatriX outputs support GTF (version 1.1), CVT (version 1.1) and DMT (version 1.0 rev 12) stan- dards. Other non-standard formats are supported via the custom format capability of the framework. The QuickMatriX offers a list of pre-defined output formats. The list of output formats is always displayed from increasing number of pixels per line and then number of lines.
  • Page 17 4.6 Input specifications The QuickMatriX uses an HDMI plug with a standard M3x0,5 mm mounting screw above the connector. Please see the diagram below. This hole is occupied by a Torx10 screw when you receive the unit. If desired, this screw can be removed and 27 mm replaced by a compatible aftermarket HDMI plug locking mechanism to ensure a secure HDMI connection.
  • Page 18 4.6 Input specifications Each input can display only one active plug at a time. It is instantly available on the device and can be dis- played simultaneously on many layers or outputs, with different sizes and positions. Single-Link Standard Size HD-15 3G-SDI HDMI...

  • Page 19: Output Specifications

    4.7 Output specifications 4.7 Output specifications 4.7.1 Standard output for Ref. QMX150 The QuickMatriX (QMX150) has two standard outputs. The standard output contains: - Analog Computer/Video (HD15), - HDMI output over a DVI-I connector or DVI-I output (DVI-Analog and DVI-Digital). Please see the formats available on the output: Output Type Format...

  • Page 20: Communication Specifications

    4.8 Communication specifications 4.8 Communication specifications 4.8.1 Serial interface A standard RS232 interface is available through a DB9 female connector: - It permits controlling the device - It permits updating the device Data Rate: 1200 to 115200 Bauds, 8 data bits, 1 stop bit, no parity bit, no flow control by default. DTR &...

  • Page 21: Environmental Specifications

    4.9 Environmental specifications 4.9 Environmental specifications For QMX150: Dimensions: Weight:  D 15.75’’x W 19’’ x H 3.46’’ with rack mount and handles  6,3kg / 13.9 lb  D 400 mm x W 483 mm x H 88 mm (Compatible with a Standard 19”...
  • Page 22 4.9 Environmental specifications For QMX150-H: Dimensions: Weight:  D 18.70’’x W 19’’ x H 3.46’’ with rack mount and handles  7,2kg / 15.9 lb  D 475 mm x W 483 mm x H 88 mm (Compatible with a Standard 19” rack, Height = 2 U) ...
  • Page 23 4.10 HDCP management 4.10 HDCP management 4.10.1 Input HDCP detection The input HDCP detection is managed by the input components according to HDCP specification. 4.10.2 Output HDCP detection The QuickMatriX manages the output HDCP detection according to one of the following criteria: - Hot plug, - 3-second period attempt.
  • Page 24 5.1.1 Rear panel - Ref. QMX150 5. CONNECTING THE QUICKMATRIX 5.1 Description 5.1.1 Rear panel - Ref. QMX150 1. Power supply: 100-240 VAC 2.5A 50/60HZ / FUSE F4A 250 VAC; internal, autoswitchable; 110W 2. 3G/HD/SD-SDI: inputs #1 to #2 3. S/PDIF: audio inputs #1 to #2 4.
  • Page 25 5.1.2 Front panel - Ref. QMX150 5.1.2 Front panel - Ref. QMX150 1. Front panel display: 4-line VFD 2. Menu scroll knob 3. Input selection: - 1 to 4: access source 1 to 4 - HDMI 1/2: access HDMI 1 or HDMI 2 - SDI 1 to SDI 2: access SDI 1 to SDI 2 4.
  • Page 26 5.1.3 Rear panel - Ref. QMX150-H 5.1.3 Rear panel - Ref. QMX150-H 12 13 14 1. Power supply: 100-240 VAC 2.5A 50/60HZ / FUSE F4A 250 VAC; internal, autoswitchable; 110W 2. 3G/HD/SD-SDI: inputs #1 and #2 3. S/PDIF: audio inputs #1 and #2 4.
  • Page 27 5.1.4 Front panel - Ref. QMX150-H 5.1.4 Front panel - Ref. QMX150-H 1. Front panel display: 4-line VFD 2. Menu scroll knob 3. Input selection: - 1 to 4: access source 1 to 4 - HDMI 1/2: access HDMI 1 or HDMI 2 - SDI 1 to SDI 2: access SDI 1 to SDI 2 4.
  • Page 28 6.1 RCS² requirement 6. CONTROLLING THE QUICKMATRIX The QuickMatriX can be controlled and operated either via the Front Panel, from your computer via the RCS², or via one of our Event Controllers. (Control of the QuickMatriX can also be integrated into automation and control systems, contact your local technical support for more details.) 6.1 RCS²...
  • Page 29 6.2 Connecting with the RCS² Enter the IP address of the device and then the remote port. Click on Connect to start the connection. Once connected, you have access to this screen: In case of difficulties: - Verify that you are using the correct network cable and that it is free from defects. (Crossover or straight cable as required.) - Check the IP address of both the device and the computer.
  • Page 30 6.3 RCS² top menu 6.3 RCS² top menu 6.3.1 Setup The Setup page is where you will review and modify the device configuration, such as output resolutions, input settings, and more. 6.3.2 Edit The Edit mode is the place where you will manage preset creation. You will make input selections, manage your inputs, adjust the layer attributes such as size, position, effect, etc.
  • Page 31 7.1 Operating mode 7. OPERATING THE QUICKMATRIX FROM THE RCS² 7.1 Operating mode Before you start setting up your QuickMatriX for the first time, take some time to think about how you will be using it. The QuickMatriX offers one operating mode, which results in a versatile video production tool for live event staging and fixed installation applications.
  • Page 32 7.2.2 Audio 7.2.2 Audio In this section, you will setup the audio of your device, you have several modes. In all modes, you have the possibility to output the audio in AES3 or SPDIF: NO AUDIO: the audio of your device is switched off PRESET MODE: the standard mode of use of the device You have two possibilities:...
  • Page 33 7.2.4 Misc 7.2.4 Misc DYNAMIC FIT: enable or disable the automatic recognition of black band for digital content. The size and the aspect ratio of the layer are automatically adapted. FREEZE MODE: choose to freeze all inputs or only one input when you use the freeze function.
  • Page 34 7.2.6 Input management - PATTERN: a selection of patterns is available to test your output. These patterns will override any input selection that you might have. You can choose from: • No Pattern – turns the pattern off • Vertical or horizontal Grey Bars – displays grey bars •...
  • Page 35 7.2.6 Input management In this case, you can enter manually into each input settings by using the left menu: Under the SIGNAL tab, you will find: ACTIVE PLUG: select the plug used by the unit at the moment. Only this plug can be displayed on your output, - SETUP PLUG: select the plug you want to set up, all changes will be applied to this plug, even if this plug is active or not (do not mismatch...
  • Page 36 7.2.6 Input management Under the COLORIMETRY section, you have: - BRIGHTNESS: define the selected input luminosity level, - CONTRAST: define the selected input contrast level, - COLOR: define the selected input color level (0:black and white, full: full color), - HUE: set up the hue phase of your NTSC signal.
  • Page 37 7.2.6 Input management The next tab is the USER FORMAT: In this tab, you can explicitly define the input format. The input format is automatically detected by the QuickMatriX but you can change it or force it. The available formats are close to the current one, in terms of lines.
  • Page 38 7.2.7 Frame management - Grabber: activate the grabber to grab the color you want to key. Move the cursor and click on the grab button to grab the color. 7.2.7 Frame management To save a frame click on this button: The next page opens.
  • Page 39 7.2.8 VIDEO OUT (only for Ref. QMX150-H) - FLICKER: choose the value of the flicker filter to disable the flicker effect on your screen (interlaced lines effect), - GAMMA: increase or decrease the gamma of your output Then you will be able to configure the Layout - LAYOUT: configure the layout by selecting either the OUT #1 or the OUT #2 or a mix of OUT #1 and OUT #2.
  • Page 40 7.2.9 Audio management 7.2.9 Audio management The audio section permits the management of level, balance, and other audio settings for each input. Before modifying the audio settings, be sure to check the audio input mapping. Each video input has one audio source mapped to it.
  • Page 41 Depending on the device you will use after the analog way device, adjust carefully the analog gain. Basically, for a 0 level, the default value is 4 dBu.
  • Page 42 7.2.10 Service management 7.2.10 Service management In the Service section, you will find the following tools: IMPORT / EXPORT: Export or locally import the Local Presets, the Thumbnails and the Shortcuts. TEMPERATURE and HARDWARE INFO: Provide the status of the FPGA and boards via alarm tabs.
  • Page 43 7.3.1 Layer management Erase memories Into this section, you can erase individual settings. • Erase input settings memory: all input settings will return to their default value. This includes image, aspect, user format and keying parameters. • Erase thumbnail: all the thumbnails you store on your computer will be erased. •...
  • Page 44 7.3.2 Layer adjustments You can assign a source to a layer by dropping the selected source into the layer letter icon, located on the left side of the layout window. This is particularly useful when the desired layer is hidden or blocked by other layers.
  • Page 45 7.3.3 Effects Transparency Use the Transparency to give at your layer a transparent effect. Layers behind the transparency layer will show through more or less based on the transparency value. Cropping (only for live layers) The Cropping feature allows you to cut the part of the image you don’t want. Simply adjust the size horizontally or vertically and then adjust the position to display only the desired content.
  • Page 46 7.3.3 Effects Layer position A layer position shortcut is also available. After having selected a layer, simply click on the Pos. button to have quickly access to a layer position. Choose the new position. The change is applied straight away on your preset. Layer size You can choose between several aspect ratio.
  • Page 47 7.3.4 Preset load and save management 7.3.4 Preset load and save management Save a preset Once your preset is set up, you can store it into one of the 64 preset slots. To do that, click on SAVE MM and choose the number corresponding to the slot number.
  • Page 48 7.4 Live 7.4 Live The Live mode is designed for easy live operation of the device after you have created some presets. On the right, you will find all your saved presets under the tab called “MASTER MEMORIES”. A simple drag and drop on the screen will load your preset into the screen (Program or Preview).
  • Page 49 Use the loop button to load again your timeline when it’s finished. Take a look at the global time of your timeline thanks to the clock on the right of the toolbar. Note: To control the QuickMatriX, Analog Way also provides Crestron and AMX modules. For more details, see appendices.

  • Page 50: Operating Through The Front Panel

    8.1.1 Menu navigation 8. OPERATING THROUGH THE FRONT PANEL 8.1 Front panel 8.1.1 Menu navigation To access the QuickMatriX menu, press the EXIT/MENU button in the control section. To highlight items in the menu which will appear on the VFD screen, turn the scroll knob left or right to the desired menu item. When you have reached the desired menu item, press the ENTER button in the control section to access that menu function.

  • Page 51: Settings In Matrix Mode

    Analog Way engineers have developed a handy, user friendly way of identifying machine status on the front panel, via the use of color codes on the buttons of the machine. All new Analog Way machines use the same codes, for quick recognition of the status of any device of the range, at any given time.

  • Page 52: 8.2.3 Source Output Selection

    8.2.3 Source Output selection You can find several settings for each input (some settings are specific to some signal type): - INPUT STATUS: display the input status, - AUTOSET: launch an automatic setup on the inputs, FREEZE: freeze the input, - ACTIVE PLUG: choose the active plug of the input, - TYPE:...

  • Page 53: 8.2.5 Working With Layers

    8.2.5 Working with layerss - DVI TYPE: set up the type of color space of your DVI output, - DVI as HDMI: DVI output content as HDMI. Audio is included, - HDMI TYPE: set up the type of color space of your HDMI output, - HDMI as DVI: HDMI output content as DVI, - HDCP DETECT:...

  • Page 54: 8.2.7 Layer Adjustment Menu

    8.2.7 Layers adjsutment menu Press TAKE to view the result on the Program screen. Settings available: Settings Background live / PIP#1 PIP#2 Position Size Zoom Opening effects Closing effects Smooth Move The Program output can displayed simultaneously up to 3 layers stacked from bottom to top as follows: - Layer A: one source selected from 8 inputs available, - Quick Frame:...

  • Page 55: 8.2.8 Layers With Transitions

    8.2.8 Layers with transitions • Adjustable cross-fading duration, - WIPE: • Numerous wipes can be selected horizontal and vertical, from the center or outside, Zoom in and out, • Horizontal: from left, center -or- vertical: from up, down, center, - SLIDE: •...

  • Page 56: 8.2.9 Capturing Frames

    8.2.9 Capturing frames STRETCH CENTER STRETCH UP STRETCH RIGHT HARD STRETCH LEFT HARD STRETCH CENTER STRETCH CURTAIN HARD OUT HARD IN HARD IN HARD 8.2.9 Capturing frames It is possible to store up to 8 frames in the QuickMatriX non volatile memory. To capture a frame, display the exact content you want to save on one of your outputs, at the exact resolution, you can use the freeze button if you want.

  • Page 57: 8.2.13 Working With Presets

    8.2.13 Working with presets 8.2.13 Working with presets In Matrix mode, you will find a new menu into Preset menu called “Preset management”. This will help you to define what kind of preset you want to save: - BOTH OUTPUT: preset saved for both outputs, - CURRENT OUTPUT: preset saved only for the current output,...

  • Page 58: 8.2.15 Working With Mirror Modes

    8.2.15 Working with Mirror modes Using the Mirror mode: the mirror mode can be activated layer by layer thanks to the layers menu. Select the chosen layer and go in the layer menu, then select the “Layer Copy Mode” menu. There are several mirror positioning options: 1.

  • Page 59: 8.2.16 Special Features

    8.2.16 Special features 8.2.16 Special features - DYNAMIC FIT (automatically activates the transparent background) • Automatic adjustment of the layer (Ratio) to fit the source image borders during a transition. Layer • Dynamic & Automatic adjustment of the layer to fit the source image borders (Black Stripe). Image live 1 Image live 2...

  • Page 60: 8.2.16 Special Features

    8.2.16 Special features - SMOOTH MOVE EFFECT • Smooth Move layer control the acceleration of the layer. The time can be different between the opening and closing layer, - WORKING WITH DSK (Chroma / Luma key) • QuickMatriX allows to use a live source with green or blue (or any color) background and to key it over another live input, •...

  • Page 61: 8.2.16 Special Features

    8.2.16 Special features For Chroma Key: Chroma Keying is used to key from a particular color. It produces a key which is most suitable for moving images and “weatherman” style applications. - Color grabber: Select Chroma Key menu > Select Color grabber menu Using a crosshair, you can select a particular hue based on what is on screen.

  • Page 62: Menu Tree

    8.3 Menu tree 8.3 Menu tree MATRIX MODE OUTPUT #1 FORMAT:1920X1080 RATE: 50.00HZ LOCK: INTERNAL |SCR#1 |SCR#2 ---------+----------+--------- Layer2|Input3 |SDI 1 Layer1|Input1 |SDI 2 OUTPUT #2 FORMAT:1920X1080 RATE: 50.00HZ LOCK: INTERNAL...
  • Page 63 8.3 Menu tree The following menu tree provides the sections of the MIDRA’s menus. Please note that the availability of the sections depends of the reference and the configuration of your device. MENU [...] VIDEO OUT MODE OUTPUT SYNC W.OUT1 CONFIG MODE MIXER MATRIX...
  • Page 64 8.3 Menu tree MENU [...] IMAGE INPUTS PRESET PRESET MNGT AUTO CENTERING CONFIG STATUS AUTOSET ALL PRESET LAYOUTS BLANKING ADJUST SYNC. STATUS STEP BACK CROPPING SAVE PRESET INPUT # OPTIMIZE LOAD PRESET UNDER/OVER INPUT STATUS ERASE PRESET ASPECT IN AUTOSET PREDIFINE CROP FREEZE ASPECT OUT...
  • Page 65 8.3 Menu tree MENU [...] LAYER KEYING TITLING SCREEN SETTINGS SCREEN # LAYER COPY MODE TYPE LUMA KEY LAYER ADJUST BACKGRND COLOR CHROMA KEY LAYER ZOOM QUICK FRAME TITLING ALPHA SIZE TEMPLATES AUTO TAKE INVERT KEYING TRANSPARENCY PRESET TOOGLE BORDER OPENING EFFECT CLOSING EFFECT SMOOTH MOVE...
  • Page 66 8.3 Menu tree MENU [...] LAYER LOGOS FRAME AUDIO AUDIO MODE VERSIONS ORIGIN FOR REC. RECORD FRAMES SOURCE SETTINGS CONNECTION # INPUT RS232/LAN RECORD LOGOS MUTE RS232 BAURATE RECORD ANIM STEREO LAN SETUP ERASE ANALOG GAIN FUNCTIONS AUTOLOCK LEVEL BALANCE DIGITAL OUTPUT AUTO QUICKFRAME DYNAMIC FIT...
  • Page 67 8.3 Menu tree [...] RESET ERASE RESET LAYERS ERASE MEMORIES ERASE PRESETS ERASE CUST. FRMT DEFAUT VALUES TECH SUPPORT...

  • Page 68: Maintenance And Support

    9.1 Dashboard (RCS²) 9. MAINTENANCE AND SUPPORT 9.1 Dashboard (RCS²) On the RCS², you have access to a chart with general information on the unit. Please click on the Dashboard button: On this chart, you will find under the INFO tab, the Device name, the Serial number of your product, the actual firmware and the software version of the RCS².

  • Page 69: Applications Note And Tips

    The QuickMatriX is fully HDCP compliant, meaning that you will be able to use the QuickMatriX to accept HDCP protected sources and route them to any HDCP protected outputs. As Analog Way is a licensed HDCP adoptor, this also means that the QuickMatriX is prevented from displaying any HDCP protected images on any non-HDCP compliant outputs (as is the case for all licensed HDCP compliant devices).

  • Page 70: Hdbaset

    10.2 HDBaseT™ 10.2 HDBaseT™ HDBaseT is a global standard of the transmission of high-definition video and audio, Ethernet, controls, USB and up to 100W of power over a single cable, for up to 100M/328ft. The QuickMatriX-H (Ref. QMX150-H) is fully compliant with the HDBaseT Specifications. Equipped with HDBaseT receivers and transmitters, the QuickMatriX-H is able to input video, embedded audio, Ethernet pass-through and manage a Power over Ethernet feed (30W) and to output video, embedded audio, Ethernet, plus a bidirectional Serial connection and a IR connection.
  • Page 71 10.2 HDBaseT™ 5. Thou shalt keep your cables away from power sources Cables should be kept at a distance of at least 12 inches from power cables. In an environment prone to high EMI, it is best to use shielded cables. Most Cat5e cables are unshielded, which makes them more flexible, durable and inexpensive.

  • Page 72: Warranty

    • Analog Way’s direct employees are solely authorized to make this determination. • Analog Way reserves the right to refuse for repair and service a product for which the warranty is void. • In no way shall Analog Way be responsible for direct or indirect loss of profit or consequential damages resulting from any defect in this product.

  • Page 73: Contact Information

    UNITED STATES SINGAPORE The Americas Europe, Middle East & Africa Asia Pacific Analog Way SAS - Headquarters Analog Way Inc. Analog Way Pte Ltd Tel.: +33 (0)1 81 89 08 60 Tel.: +1 (678) 487 6644 Tel.: +65 6292 5800...

  • Page 74: Appendices

    13.1 Crestron 3 series Midra™ Driver 13. APPENDICES 13.1 Crestron 3 series Midra™ Driver Using this driver, software developers and integrators can easily provide powerful solutions for remotely controlling any Midra™ series Switchers through Crestron 3-series Control Systems®. The package includes: - The precompiled driver modules that can be used for recalling presets, selecting source inputs, changing PIP content, configuring audio inputs and outputs…, - One sample SIMPL program that demonstrates the use of all the features available within this driver,...
