7.3.1 Layer management
To display a logo, open the logo list column (next to the source list) and then drag and drop the desired logo
onto the logo layer. The same procedure is used to display a Background Frame.
You can assign a source to a layer by dropping the selected source into the layer letter icon, located
on the left side of the layout window. This is particularly useful when the desired layer is hidden or
blocked by other layers.
When a layer contains an input and is not empty, the RCS² displays the input number or a customizable
thumbnail icon that represents your input. Please note: this thumbnail is not a live image.

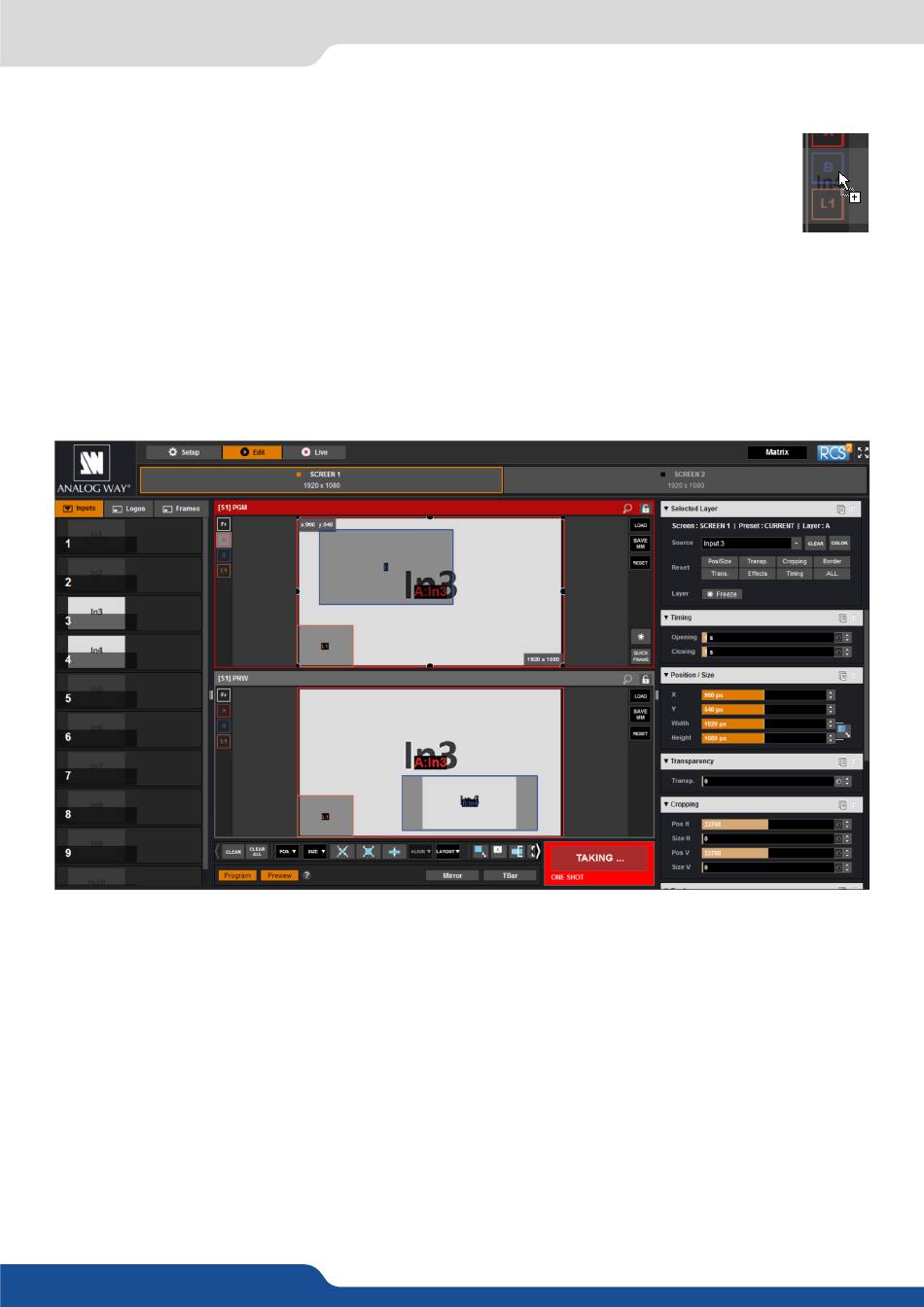

In this example, 1 input is affected to 1 layer into the Screen 1 Program and 2 inputs are affected to 2 layers
into the Screen 1 Preview. The TAKE button on the bottom right side allows sending your configuration, made
on the Preview screen, to the Program screen.
With each press of the TAKE button, the Preview screen is transitioned to the Program screen. By default,
PRESET TOGGLE mode is disabled. That means, after a TAKE, the Preview stays as it was before. The Program
and Preview will have the same content.
if desired, you can activate the PRESET TOGGLE mode from the SETUP > PRECONFIG >MISC menu, which will
automatically swaps preview and program with each TAKE. After each TAKE, the Preview is reloaded with the
previous Program.
Layers management
In this Edit mode, you have access to a lot of preset tools that can help you to create the preset you imagined.
