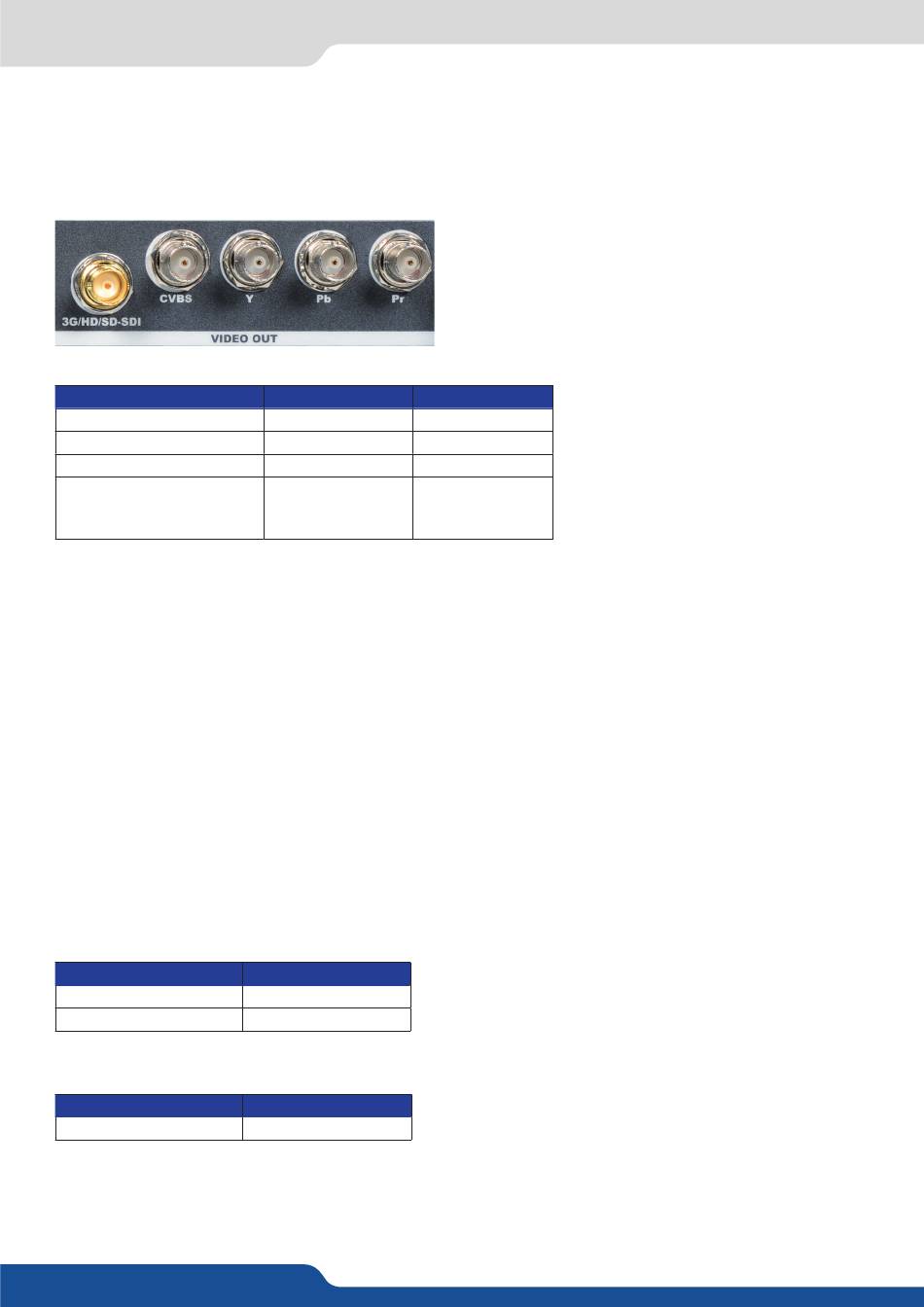

4.7.3 Video output

The SmartMatriX² has one video output.
This video output contains:
- 3G/HD/SD-SDI (BNC),
- Analog SDTV (4 × BNC: Composite, YC, YUV, RGBS).
Please see the output formats of the monitoring output:
Output Type
Video Y/C Output
Video Y Pb Pr Output
Video RGBSTTL Output
SD-HD-3G-SDI Output

4.8 Communication specifications

4.8.1 Serial interface
A standard RS232 interface is available through a DB9 female connector:
- It permits controlling the device
- It permits updating the device
Data Rate: 1200 to 115200 Bauds, 8 data bits, 1 stop bit, no parity bit, no flow control by default.
DTR & RTS needed for firmware upgrade.
4.8.2 LAN interface
A standard LAN interface is available through a RJ-45 connector
- It permits controlling the device
- It permits transferring configuration
- It permits connectivity with the RCS² application
- It permits updating the device
4.8.2.1 Protocol
Protocol
TCP
UDP
4.8.2.2 IP address
Address allocation
Static user defined address
Default IP address: 192.168.2.140
Format Signal
SDTV Analog SDTV
SDTV Analog SDTV
SDTV Analog SDTV
SDTV Digital SDTV
HDTV Digital HDTV
Cinema DCDM - 2K
Availability
Yes
Yes
Availability
Yes
