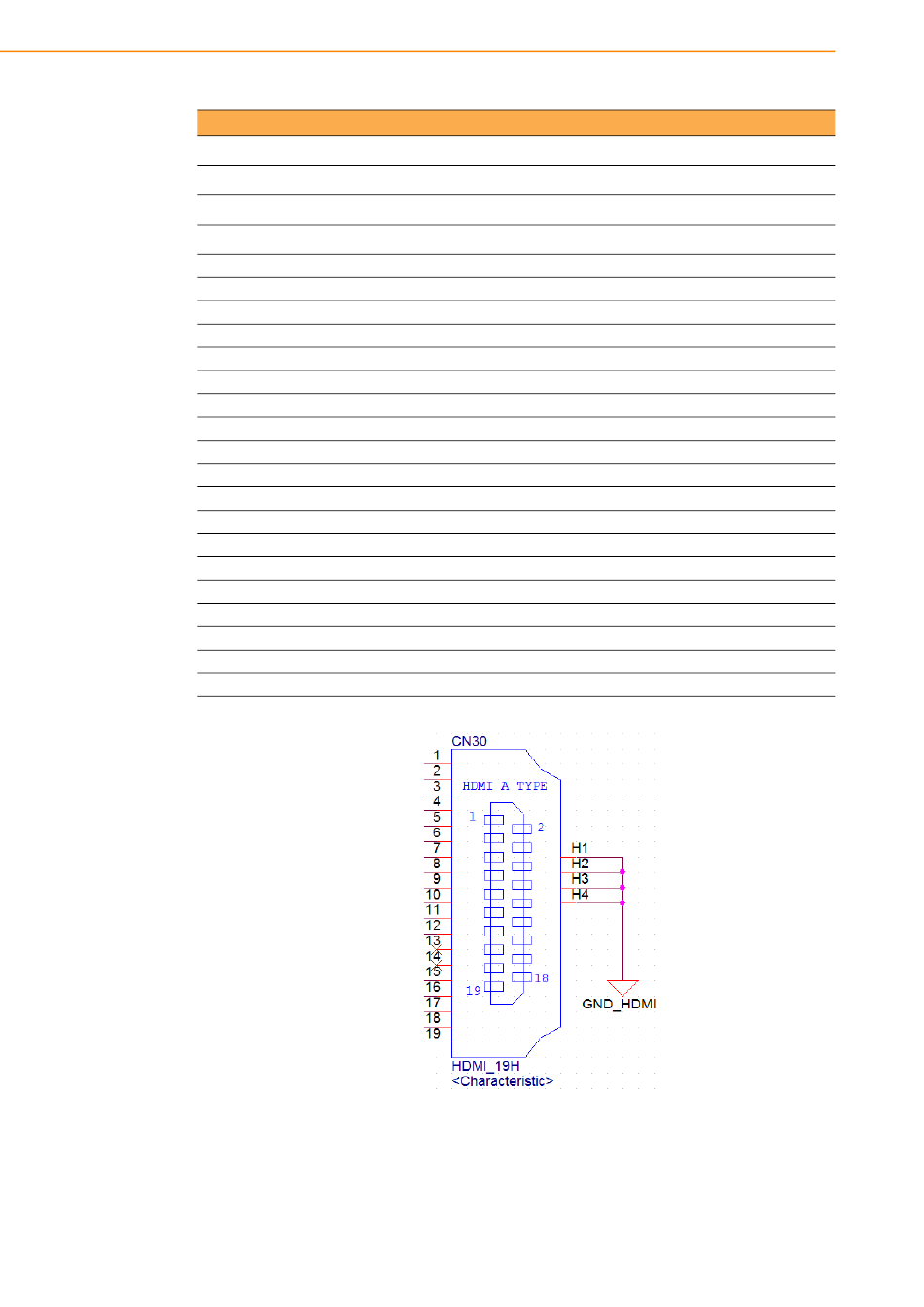

Table A.47: CN30(D), CN24(EF), CN27(G), CN15(HI): HDMI
Part Number
Footprint
Description
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
UTC-318 User Manual
1654011175-01
HDMI_19P_QJ51191-LFB4-7F
HDMI Conn. 19P 0.5mm 90D(F) SMD QJ51191-LFB4-7F
Pin Name
HDMI_TX0+
GND
HDMI_TX0-
HDMI_TX1+
GND
HDMI_TX1-
HDMI_TX2+
GND
HDMI_TX2-
HDMI_TX3+
GND
HDMI_TX3-
NC
NC
HDMI_CLK
HDMI_DAT
GND
+5V
HDMI_DET
74
