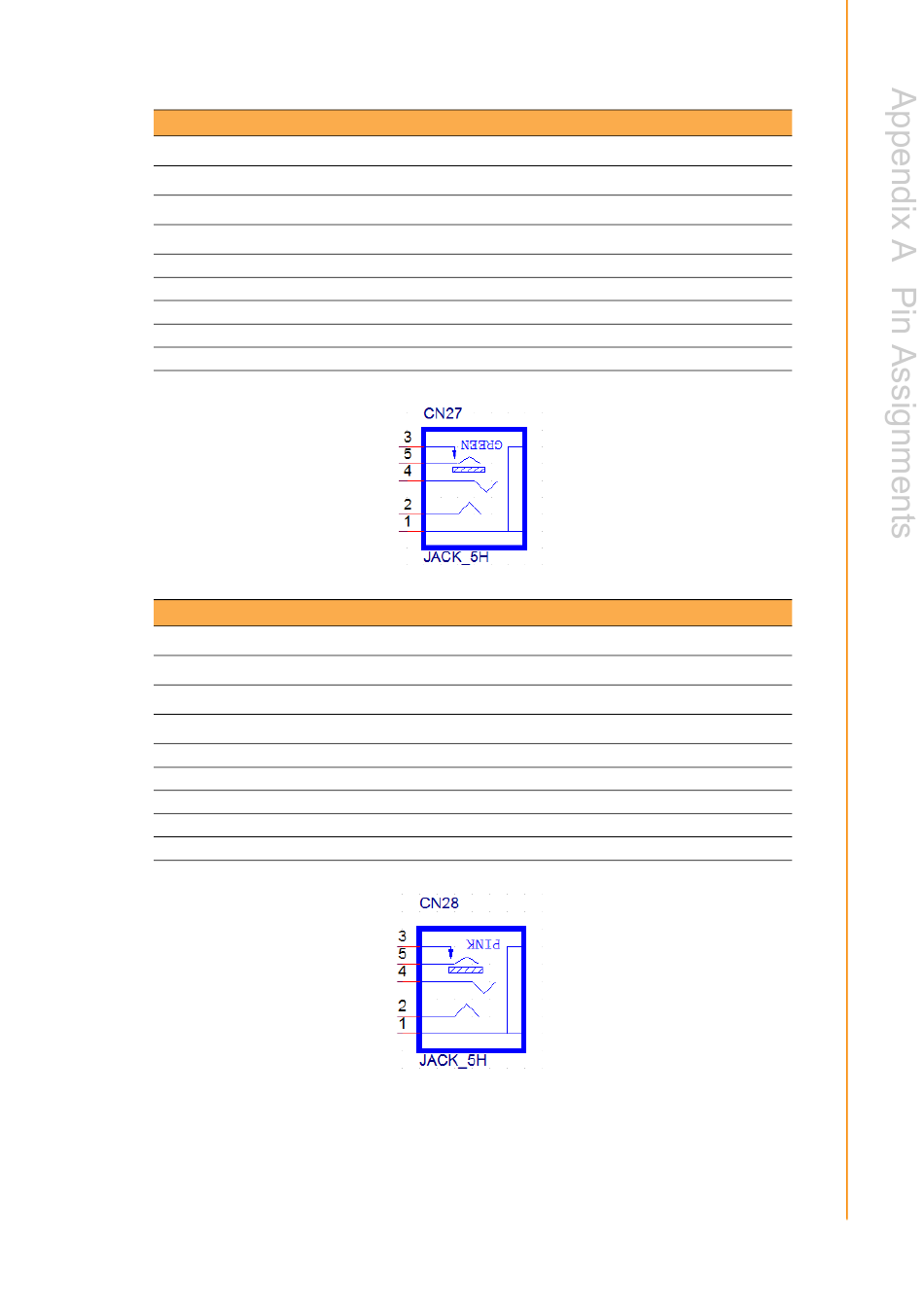

Table A.45: CN27(D), CN21(E), CN22(F), CN25(G), CN66(HI): Line-Out
1652001586
Part Number
KUONYI_PJ-2508PC-5-L
Footprint
PHONE JACK 5P 3.5φ 90D(F) AZALIA GREEN DIP WO/P
Description
Pin Pin Name
1 GND
2 OUT_L
3 JD
4 OUT_R
5 GND
Table A.46: CN28(D), CN22(E), CN21(F), CN24(GHI): Mic-In
1652001584
Part Number
KUONYI_PJ-2508PA-5-L
Footprint
PHONE JACK 5P 3.5φ 90D(F) AZALIA PINK DIP WO/Pb
Description
Pin Pin Name
1 GND
2 MIC_L
3 JD
4 MIC_R
5 GND
