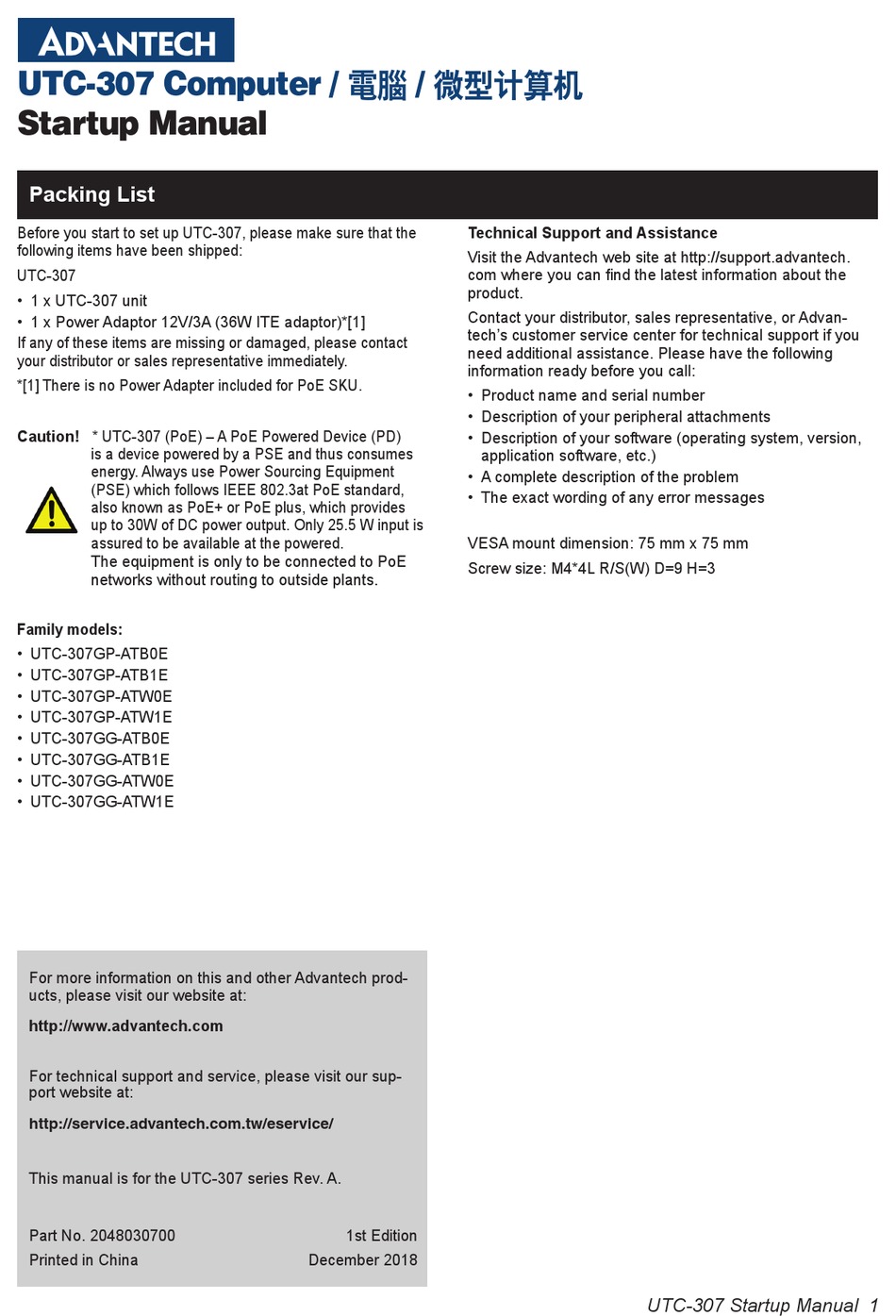

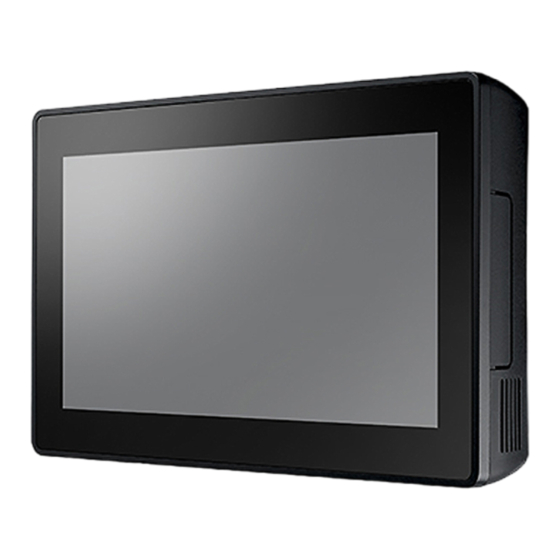

UTC-307 Computer / 电脑 / 微型计算机
Startup Manual
Packing List
Before you start to set up UTC-307, please make sure that the
following items have been shipped:
UTC-307
• 1 x UTC-307 unit
• 1 x Power Adaptor 12V/3A (36W ITE adaptor)*[1]
If any of these items are missing or damaged, please contact
your distributor or sales representative immediately.
*[1] There is no Power Adapter included for PoE SKU.
Caution! * UTC-307 (PoE) – A PoE Powered Device (PD)
is a device powered by a PSE and thus consumes
energy. Always use Power Sourcing Equipment
(PSE) which follows IEEE 802.3at PoE standard,
also known as PoE+ or PoE plus, which provides
up to 30W of DC power output. Only 25.5 W input is
assured to be available at the powered.
The equipment is only to be connected to PoE
networks without routing to outside plants.
Family models:
• UTC-307GP-ATB0E
• UTC-307GP-ATB1E
• UTC-307GP-ATW0E
• UTC-307GP-ATW1E
• UTC-307GG-ATB0E
• UTC-307GG-ATB1E
• UTC-307GG-ATW0E
• UTC-307GG-ATW1E
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website at:
http://service.advantech.com.tw/eservice/
This manual is for the UTC-307 series Rev. A.
Part No. 2048030700
Printed in China
Technical Support and Assistance
Visit the Advantech web site at http://support.advantech.
com where you can find the latest information about the
product.
Contact your distributor, sales representative, or Advan-
tech's customer service center for technical support if you
need additional assistance. Please have the following
information ready before you call:
• Product name and serial number
• Description of your peripheral attachments
• Description of your software (operating system, version,
• A complete description of the problem
• The exact wording of any error messages
VESA mount dimension: 75 mm x 75 mm
Screw size: M4*4L R/S(W) D=9 H=3
1st Edition
December 2018
application software, etc.)
UTC-307 Startup Manual 1
Advertisement
Table of Contents
Related Manuals for Advantech UTC-307GP-ATB0E
Summary of Contents for Advantech UTC-307GP-ATB0E
- Page 1 • UTC-307GP-ATW0E • UTC-307GP-ATW1E • UTC-307GG-ATB0E • UTC-307GG-ATB1E • UTC-307GG-ATW0E • UTC-307GG-ATW1E For more information on this and other Advantech prod- ucts, please visit our website at: http://www.advantech.com For technical support and service, please visit our sup- port website at: http://service.advantech.com.tw/eservice/ This manual is for the UTC-307 series Rev.
-
Page 2: Specifications
Specifications Intel® Celeron® N3350 Intel® Pentium® N4200 ( (UTC-307G) UTC-307G) Base Frequency 1.10 GHz (Dual-Core) 1.10 GHz (Quad-Core) Cache L2 Cache 1MB L2 Cache 2MB 1 x SO-DIMM DDR3L 1866 MHz 1 x SO-DIMM DDR3L 1866 MHz Memory up to 8 GB up to 8 GB Storage 1 x M.2 2242 SSD... -
Page 3: Power Button
UTC-307 Dimensions 32.25 32.25 75X75 VESA M4 SCREW hole 3mm depth 75X75 VESA M4 SCREW hole 3mm depth 173.5 CUT OUT Fully- Integrated I/O POWER BUTTON E. LAN/PoE Port COM W/RS-232 F. USB 3.0 x 2 COM W/RS-232/422/485 G. DC Power Jack LAN Port * UTC-307 PoE SKU –... -
Page 4: Safety Instructions
The sound pressure level at the operator’s position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. -
Page 5: Instructions De Sécurité
être effectuées que par du personnel de service formé. Advantech recommande qu’un contrat de service soit obtenu auprès du service Advantech et que toutes les réparations soient également effectuées par lui ; dans le cas con- traire, le fonctionnement correct de l’appareil peut être compromis.
