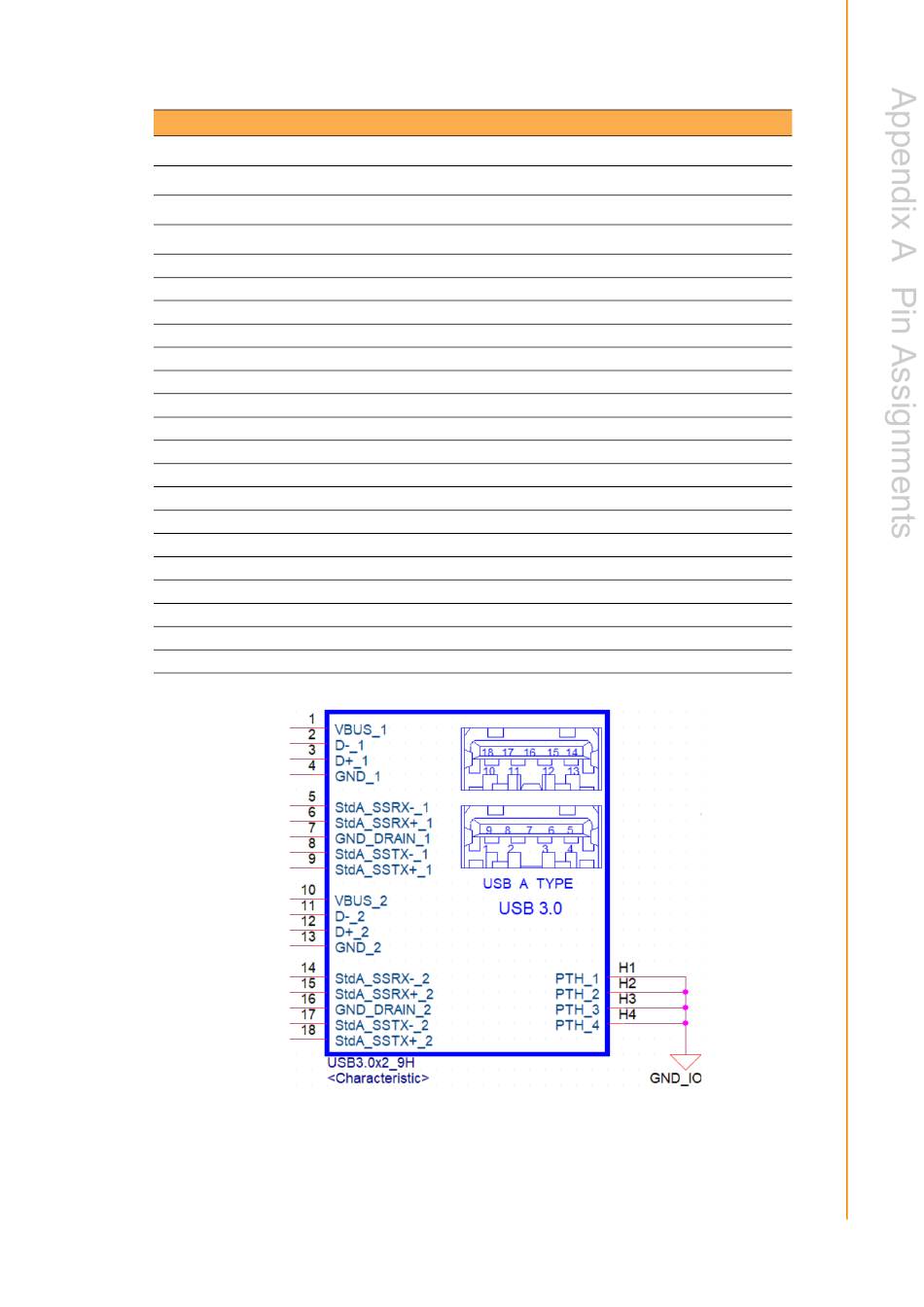

Table A.41: CN20(EF), CN22(G): External USB
1654010969-01
Part Number
USB_9x2P_UEA1112C-8HS6-4F
Footprint
USB CONN. 18P 2.0mm 90D(F) DIP UEA1112C
Description
Pin
Pin Name
1
+5V
2
D-
3
D+
4
GND
5
RX_D-
6
RX_D+
7
GND
8
TX_D-
9
TX_D+
10
+5V
11
D-
12
D+
13
GND
14
RX_D-
15
RX_D+
16
GND
17
TX_D-
18
TX_D+
69
