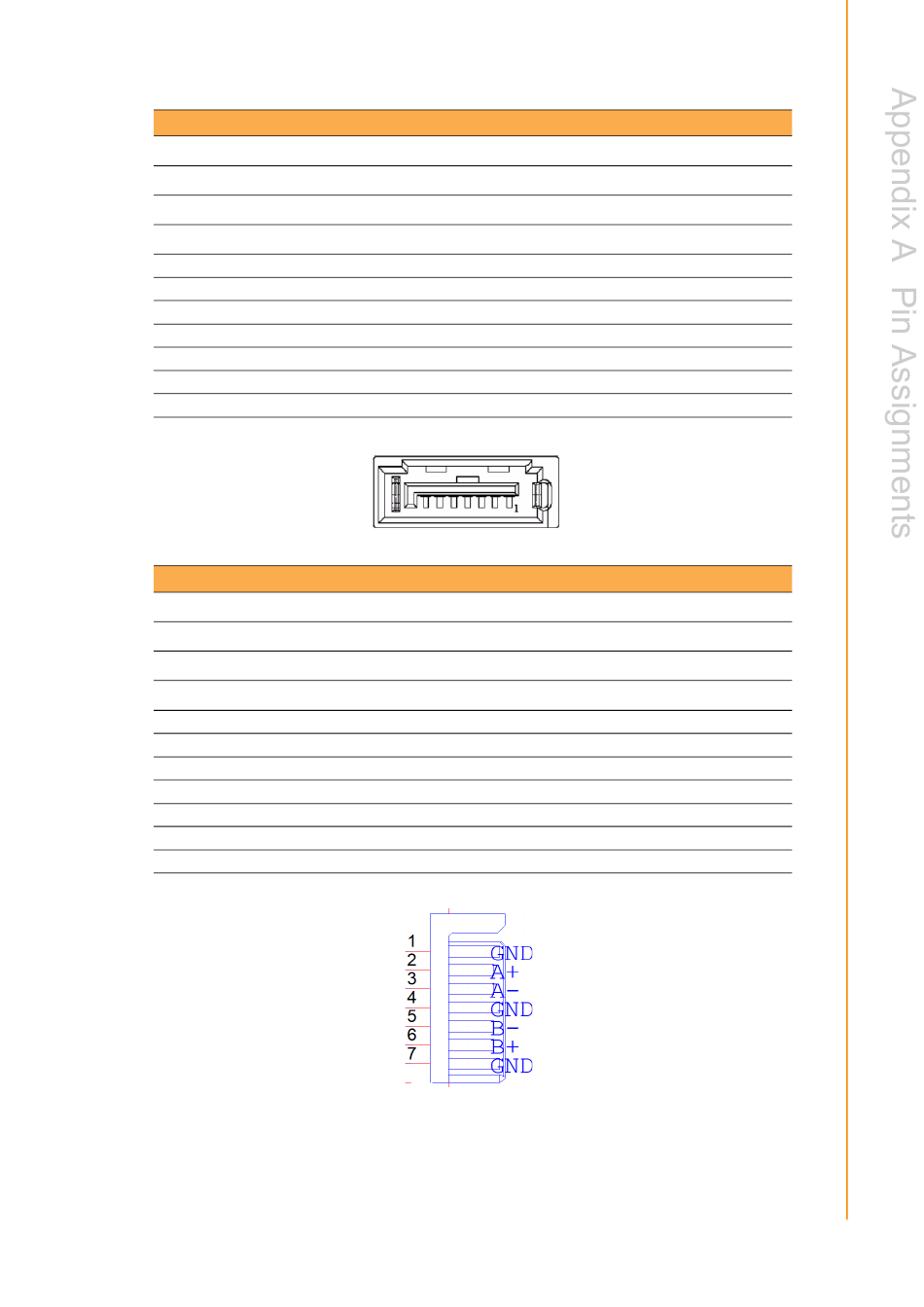

Table A.13: SATA(DEFG): SATA
1654004659
Part Number
WF_5P_98_BOX_D
Footprint
WAFER BOX 5P 2.5mm 180D(M) DIP 2503-WS-5
Description
Pin
Pin Name
1
GND
2
TX+
3
TX-
4
GND
5
RX+
6
RX-
7
GND
Table A.14: SATA1(HI): SATA
1654013471-01
Part Number
sata_7p_watm-07dbn4a3b8uw_d
Footprint
SATA 7P/1.27mm/(F)/NY46/VA/G15u/D/BK/H8.45mm
Description
Pin
Pin Name
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
49
