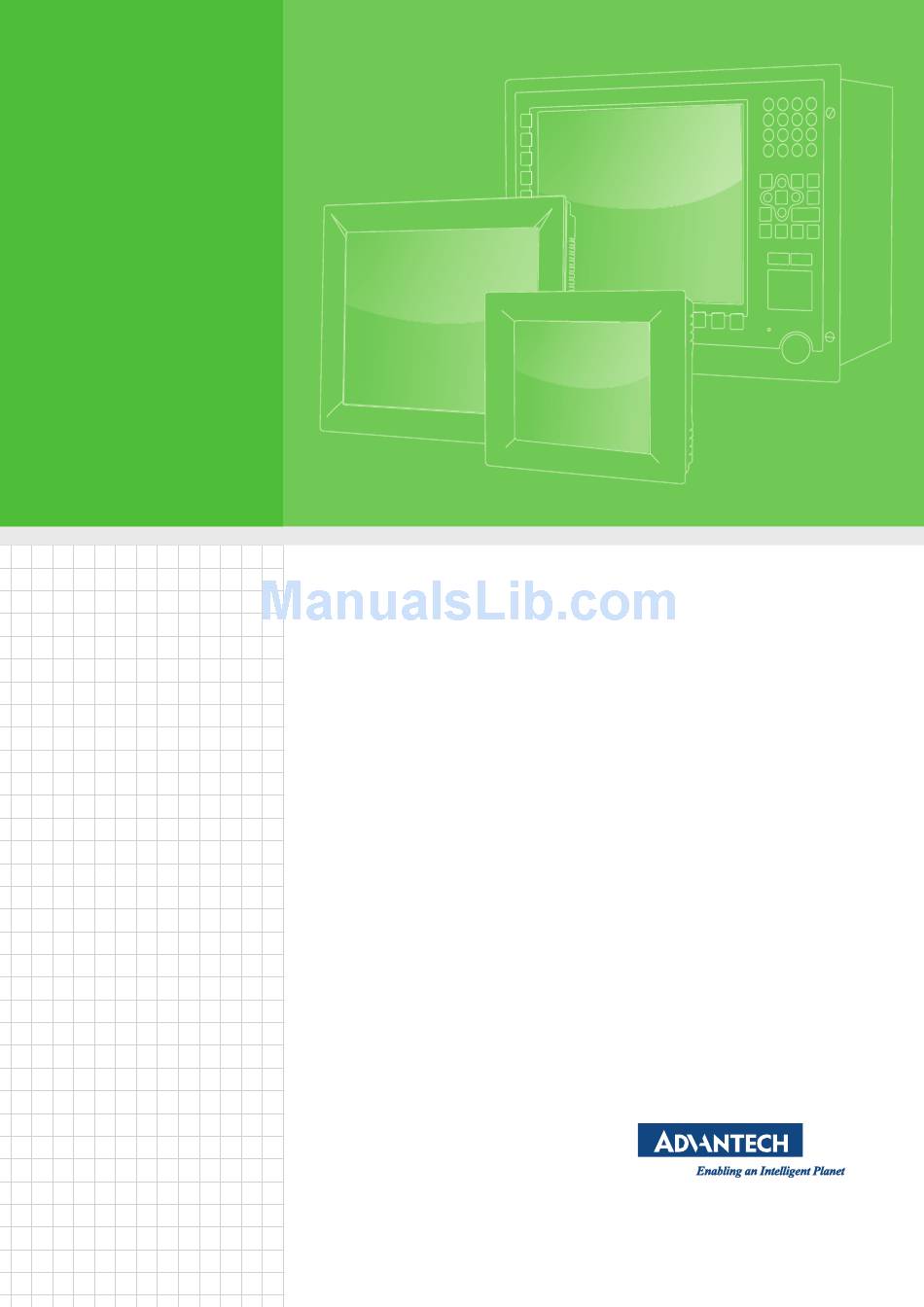

- Page 1 User Manual PPC-3100S/3120S/3150S Intel® Celeron® N2930 Panel PC with 10.4''/12.1''/15'' Color TFT LCD Display...
- Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
-
Page 3: Declaration Of Conformity
This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend using shielded cables. Such cables is available from Advantech. Please contact your local supplier for ordering information. This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. -
Page 4: Safety Instructions
In compliance with IEC 704-1:1982 specifications, the sound pressure level at the operator's position does not exceed 70 dB (A). DISCLAIMER: These instructions are provided according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. - Page 5 For example, “Batteries are at risk of exploding if replaced with an incor- rect type. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manu- facturer’s instructions. Note! Notes provide additional optional information. PPC-3100S/3120S/3150S User Manual...
- Page 6 Revision Date Version Description/Change May 2016 Initial Feb 2017 PPC-3150S specifications added April 2017 PPC-3100S-PBE specifications added PPC-3100S/3120S/3150S User Manual...
-
Page 7: Table Of Contents
Figure 1.1 PPC-31x0S front panel..........2 Rear Panel ....................3 Figure 1.2 PPC-31x0S rear panel..........3 Panel Underside..................3 Figure 1.3 PPC-31x0S underside (excluding PPC-3100S-PBE) . 3 Figure 1.4 PPC-3100S-PBE panel underside......4 Dimensions ....................4 Figure 1.5 PPC-3100S dimensions ..........4 Figure 1.6 PPC-3120S dimensions .......... - Page 8 Wake-on-LAN ................45 4.2.8 SATA Mode Selection..............46 4.2.9 Boot Options ................47 Appendix A BSMI RoHS ........49 BSMI RoHS..................... 50 Appendix B China RoHS ........51 China RoHS .................... 52 Appendix C E-Eye Function........53 PPC-3100S/3120S/3150S User Manual viii...
- Page 9 E-Eye Function..................54 Table C.1: E-Eye Monitoring Function List......... 54 Appendix D Watchdog Timer Programming Example..........55 Watchdog Timer Programming Example ..........56 PPC-3100S/3120S/3150S User Manual...
- Page 10 PPC-3100S/3120S/3150S User Manual...
-
Page 11: Chapter 1 General Information
Chapter General Information This chapter provides general information regarding PPC-3100S/ 3120S/3150S. Introduction Specifications Dimensions... -
Page 12: Introduction
Optional mini PCIe 802.11b/g/n wireless module Front Panel The PPC-3100S/3120S/3150S front panel is a true-flat color TFT LCD touchscreen with 5-wire resistive touch control. The front panel is IP65 rated for dust and water tolerance (Figure 1.1). Touch Screen... -
Page 13: Rear Panel
Rear Panel The PPC-3100S/3120S/3150S rear panel features four VESA mounting (75 x 75 mm) holes and an E-Eye LED display located below the side of product label (Figure 1.2). Figure 1.2 PPC-31x0S rear panel Panel Underside The system I/O located at the panel underside (Figures 1.3 and 1.4) are listed below. -
Page 14: Dimensions
Figure 1.4 PPC-3100S-PBE panel underside Dimensions Figure 1.5 PPC-3100S dimensions Figure 1.6 PPC-3120S dimensions PPC-3100S/3120S/3150S User Manual... -
Page 15: Specifications
Intel® Celeron® N2930 quad-core, 1.83 GHz, 7.5 W Memory 1 x SODIMM DDR3L 1333, up to 8 GB Storage 1 1 x 2.5’ SATA slot (optional, for the PPC-3100S-HDDE model with HDD bracket) Optional 1 x mSATA Storage Network (LAN) 2 x RJ45 LAN... - Page 16 1 x RS-232 1 x RS-232/422/485 I/O Ports 2 x USB 2.0 (only 1 x USB 2.0 for PPC-3100S-PBE) 1 x USB 3.0 1 x Full-size mini PCIe OS Support Windows 7/8.1/10, WES7, WEC7, Android, Linux Power Supply 12 ~ 24 V...
-
Page 17: Ordering Information
PPC-3150S-RAE PPC-3100S-HDDE Bracket for 2.5" SSD/HDD installation Power adapter 100 ~ 240 V , 90 W, 96PSA-A90W19OT-1 19V with PFC PPC-WLAN-B1E Wi-Fi module with antenna PPC-ARM-A03 Arm mount VESA standard PPC-174T-WL-MTE Wall mount kit PPC-Stand-A1E Stand kit PPC-3100S/3120S/3150S User Manual... - Page 18 PPC-3100S/3120S/3150S User Manual...
-
Page 19: Chapter 2 System Installation And Setup
Chapter System Installation and Setup Quick System Tour Memory Card Installation ODD Installation HDD Installation mSATA Installation Wireless LAN Card Installation Mounting the System... -
Page 20: Quick System Tour
Before setting up the panel PC, take a moment to identify the locations of the device controls, drives, connectors, and ports (as shown in Figure 2.3). When placed upright, the PPC-3100S/3120S/3150S front panel should appear as shown in Figure 2.1. -
Page 21: Installation Procedures
E: 2 x Gigabit Ethernet ports B: DC In F: 1 x USB 3.0 and 1 x USB 2.0 C: COM1(RS-232) G: 1 x USB 2.0 (excluding PPC-3100S-PBE) D: COM2(RS-232/422/485) H: E-Eye display Installation Procedures When installing system hardware, adhere to the following order:... -
Page 22: Figure 2.6 Memory Card Installation
Insert the memory card into the corresponding slot on the main board (see the area marked in red in Figure 2.6). Then place the memory thermal pad provided in the accessory box on top of the memory card (Figure 2.7). Figure 2.6 Memory card installation PPC-3100S/3120S/3150S User Manual... -
Page 23: Hdd Installation
Warning! Ensure that the thermal pad (provided in the accessory box) is placed on top of the memory card, as shown in Figure 2.7. 2.2.2 HDD Installation Remove the four retention screws on the HDD bracket (Figures 2.8 and 2.9). Figure 2.8 Retention screws on HDD bracket PPC-3100S/3120S/3150S User Manual... -
Page 24: Figure 2.9 Hdd Module Bracket
Figure 2.9 HDD module bracket Connect the SATA cable provided in the accessory box to the SATA HDD mod- ule (Figure 2.10). Figure 2.10 SATA cable connected to SATA HDD PPC-3100S/3120S/3150S User Manual... -
Page 25: Figure 2.11Secure Sata Hdd With Screws
Affix the SATA HDD bracket to the main board. Tie the SATA power cable in place and then plug the cable into the corresponding connector on the mother- board (Figure 2.12). Figure 2.12 SATA HDD connected to the main board PPC-3100S/3120S/3150S User Manual... -
Page 26: Msata Installation
Insert the full-size mini PCIe card into the socket. Secure the card in place using two screws provided in the accessory box. Next, replace the original bracket with the holed antenna bracket provided in the accessory box (Figure 2.14). Figure 2.14 Installing the wireless LAN card PPC-3100S/3120S/3150S User Manual... -
Page 27: Figure 2.15Hexagonal Screw Location
Next, replace the original bracket with the holed antenna bracket provided in the accessory box (Figure 2.16). Figure 2.16 Installing the half-size mini PCIe card PPC-3100S/3120S/3150S User Manual... -
Page 28: Figure 2.17Full-Size Mini Pcie Lan Antenna Cables
Figure 2.17 Full-size mini PCIe LAN antenna cables Figure 2.18 Half-size mini PCIe LAN antenna cables Remove the two plugs located at the top of the rear cover (Figure 2.19). Figure 2.19 Removing plugs for the antennae PPC-3100S/3120S/3150S User Manual... -
Page 29: Figure 2.20Replacing The Rear Cover
Connect the cable to the main board and secure the rear cover (Figure 2.20) Figure 2.20 Replacing the rear cover Install the external antennae (Figure 2.21). Figure 2.21 Location of external antennae PPC-3100S/3120S/3150S User Manual... -
Page 30: Mounting The System
Drill two pilot holes at the marked locations on the wall. Align the wall mount plate screw holes with the pilot holes. Secure the mount plate to the wall by inserting screws into the two pilot holes and tightening them. Figure 2.22 Wall mount plate PPC-3100S/3120S/3150S User Manual... -
Page 31: Figure 2.23Screw Locations On The Rear Panel
To mount the panel PC on the wall, align the wall mount bracket attached to the panel PC with the wall mount plate on the wall and slide the panel PC down- wards to hang the bracket on the mount plate (Figure 2.24). Figure 2.24 Mounting the panel PC on a wall PPC-3100S/3120S/3150S User Manual... -
Page 32: Panel Mounting
To mount the flat bezel panel PC into a panel, follow the steps below. Cut out a panel corresponding to the size shown in Figures 2.26, 2.27, and 2.28. (unit: mm). Figure 2.26 PPC-3100S cut out dimensions PPC-3100S/3120S/3150S User Manual... -
Page 33: Figure 2.27Ppc-3120S Cut Out Dimensions
Figure 2.27 PPC-3120S cut out dimensions Figure 2.28 PPC-3150S cut out dimensions PPC-3100S/3120S/3150S User Manual... -
Page 34: Figure 2.29Hook Brackets For Panel Mounting
(Figure 2.29). Figure 2.29 Hook brackets for panel mounting Insert the hook brackets into the holes following the direction of the arrows shown in Figure 2.30 and hang the panel PC. Figure 2.30 Hook brackets location PPC-3100S/3120S/3150S User Manual... -
Page 35: Figure 2.31Fasten The Hook Bracket
Tighten the screws to affix the panel PC in place (Figure 2.31). Figure 2.31 Fasten the hook bracket Figure 2.32 Panel mount rear view PPC-3100S/3120S/3150S User Manual... -
Page 36: Arm Mounting
2.3.3 Arm Mounting PPC-3100S/3120S/3150S can be mounted on a VESA-compliant arm mount with a 75 mm interface pad. To affix the panel PC to an arm mount, follow the steps below. Refer to the installation instruction of the mounting arm to correctly mount the arm onto the surface as a base. -
Page 37: Stand Mounting
Use four M4 x 8L screws to affix the VESA bracket to the panel PC. Users can choose between a 75 x 75 mm or 100 x 100 mm VESA mount according to their requirements. Figure 2.34 VESA mount screw holes PPC-3100S/3120S/3150S User Manual... -
Page 38: Figure 2.35Securing The Vesa Mount Base
Use four M4 x 8L screws to secure the base plate to the mount stand (Figure 2.35). Figure 2.35 Securing the VESA mount base Use four M4 x 6L screws to secure the mount stand to the VESA mount bracket (Figure 2.36). Figure 2.36 Securing the VESA mount bracket PPC-3100S/3120S/3150S User Manual... -
Page 39: Figure 2.37Securing The Stand Mount Hinge Cover
Use one M4 x 5L screw to secure the stand mount hinge cover (Figure 2.37). Figure 2.37 Securing the stand mount hinge cover Figure 2.38 Completed stand mount PPC-3100S/3120S/3150S User Manual... - Page 40 PPC-3100S/3120S/3150S User Manual...
-
Page 41: Jumper Settings
Chapter Jumper Settings Motherboard Layout Jumpers and Connectors External COM Ports and Pin Definitions... -
Page 42: Motherboard Layout
Pin header 3P 2.54 mm RTC select jumper Pin header 4P 2.0 mm ATX/AT select jumper Pin header 3P 2.0 mm LVDS PWM power select jumper Pin header 3P 2.0 mm LVDS enable power select jumper Pin header 3P 2.0 mm PPC-3100S/3120S/3150S User Manual... -
Page 43: Lvds Power Select Jumper
LVDS PWM Power Select Jumper (1-2) (2-3) 3.3V Default* 3.2.3 LVDS Enable Power Select Jumper Icon LVDS Enable Power Select Jumper (1-2) (2-3) 3.3V Default* 3.2.4 RTC Select Icon RTC Select (2-3) Normal Default* (3-4) Clear CMOS PPC-3100S/3120S/3150S User Manual... -
Page 44: Com1 Pin 9 Power Select
Figure 3.2 Location of COM1 and COM2 ports COM1: RS-232 COM1 Pin 9 is set as “RI” by default. This setting can be changed to 5 V or 12 V out- put using a jumper. COM2: RS-232/422/485 PPC-3100S/3120S/3150S User Manual... - Page 45 Note! COM2 does not support Ring function. COM1 COM2 RS-232 RS-232 RS-422 RS-485 DATA- DATA+ Ring or 5V/12V output RING PPC-3100S/3120S/3150S User Manual...
- Page 46 PPC-3100S/3120S/3150S User Manual...
-
Page 47: Software Setup
Chapter Software Setup Driver Installation BIOS Setup Program... -
Page 48: Driver Installation
Driver Installation Before installing software on the panel PC, install the corresponding drivers to ensure full functionality. All drivers can be downloaded from the Advantech website http://www.advantech.com Note! Before installing Windows 8.x or Android OS, adjust the BIOS settings as explained in Section 4.2.5 “OS Selection”. Otherwise, OS installation failure will occur. -
Page 49: Entering Bios Setup
After powering on the system, press the <Del> button to access the BIOS Setup screen. After adjusting the settings, press <F4> to save and exit; otherwise, the settings will not be saved in the BIOS. 4.2.3 Adjustment of LCD Brightness Click on the “North Bridge” option in the “Chipset” tab. PPC-3100S/3120S/3150S User Manual... - Page 50 Click on the “Intel IGD Configuration” option. Click on the “Brightness Manual Control” option to choose between six bright- ness levels. PPC-3100S/3120S/3150S User Manual...
-
Page 51: Com2 Mode Selection (Rs232/Rs422/Rs485)
4.2.4 COM2 Mode Selection (RS232/RS422/RS485) Click on the “NCT5523D Super IO Configuration” option in the “Advanced” tab. Click on the “Serial Port 2 Configuration” option. PPC-3100S/3120S/3150S User Manual... - Page 52 Click on the “Serial Port 2 Mode” option to set the COM2 operation mode as RS232, RS422, or RS485. If the COM2 mode is set as “RS485”, the “Auto Flow Control” option can be enabled or disabled. PPC-3100S/3120S/3150S User Manual...
-
Page 53: Os Selection
Click on the “South Bridge” option in the “Chipset” tab. Click on the “OS Selection” option to configure the system OS settings Note! The default “OS Selection” setting is Windows 7. If installing Windows 8.X or Android OS, adjust this setting. PPC-3100S/3120S/3150S User Manual... -
Page 54: Bios At And Atx Setup
4.2.6 BIOS AT and ATX Setup Click on the “South Bridge” option in the “Chipset” tab. Click on “Restore AC Power Loss” and set the “Power On” option to AT and the “Power Off” option to ATX. PPC-3100S/3120S/3150S User Manual... -
Page 55: Wake-On-Lan
4.2.7 Wake-on-LAN Click on the “South Bridge” option in the “Chipset” tab. PPC-3100S/3120S/3150S User Manual... -
Page 56: Sata Mode Selection
Set the “Wake on Function” option to Enabled. 4.2.8 SATA Mode Selection Click on the “IDE Configuration” option in the “Advanced” tab. PPC-3100S/3120S/3150S User Manual... -
Page 57: Boot Options
Click “SATA Mode” to adjust the settings. 4.2.9 Boot Options Click on the “CSM Configuration” option in the “Advanced” tab. PPC-3100S/3120S/3150S User Manual... - Page 58 The default Boot Option Filter setting is “Legacy only”. If this is changed to “UEFI only”, the system can only support Windows 7 (64 bit) or 8.x(64 bit) OS. If UEFI 32-bit OS is required, update the BIOS. PPC-3100S/3120S/3150S User Manual...
-
Page 59: Bsmi Rohs
Appendix BSMI RoHS... -
Page 60: Bsmi Rohs
BSMI RoHS 設備名稱：電腦 型號 （型式） ：PPC-3100S/3120S/3150S Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 多溴聯苯 六價鉻 多溴二苯醚 單元 Unit Polybromina 鎘 Hexavalent Polybrominate 鉛 Lead 汞 Mercury Cadmium chromium d diphenyl (Pb) (Hg) (Cd) biphenyls ethers (PBDE) (PBB) 液晶面板... -
Page 61: Appendix B China Rohs
Appendix China RoHS... -
Page 62: China Rohs
China RoHS Dear Customer, Thank you for choosing an Advantech product. In compliance with the China RoHS standard SJ/T11364, “Marking for the Restriction of the Use of Hazardous Sub- stances in Electrical and Electronic Products”, all hazardous substances present in the product are disclosed below. -
Page 63: Appendix C E-Eye Function
Appendix E-Eye Function... -
Page 64: E-Eye Function
Failure codes outside of E0 ~ E8 suggest the error may be caused by other drivers or software. If certain functions are showing problems but E-Eye shows “FF”, this may be due to limitations in the self-diagnosis function. PPC-3100S/3120S/3150S User Manual... - Page 65 Appendix Watchdog Timer Programming Example...
-
Page 66: Watchdog Timer Programming Example
OUT DX, AL MOV DX, 2FH MOV AL, 00H; bit 0: 0 = pulse mode, 1 = level mode; bit 3: 0 = second mode, 1 = minute mode OUT DX, AL; set second mode, default value PPC-3100S/3120S/3150S User Manual... - Page 67 OUT DX, AL MOV DX, 2FH MOV AL, 05H OUT DX, AL; set timeout value as 5s; 00 = timeout disabled ;----------------------------------------------- ; Exit the Extended Function Mode ;---------------------------------------------- MOV DX, 2EH MOV AL, AAH OUT DX, AL PPC-3100S/3120S/3150S User Manual...
