3.3 mSATA/m.2 Card Installation
1.
Remove the 10 screws on the rear cover.
2.
Remove the 6 screws on the reinforced board.
3.
Insert an mSATA/m.2 card into the slot.
4.
Replace and tighten the screws on the reinforced board.
5.
Replace the rear cover and secure in place with the screws.

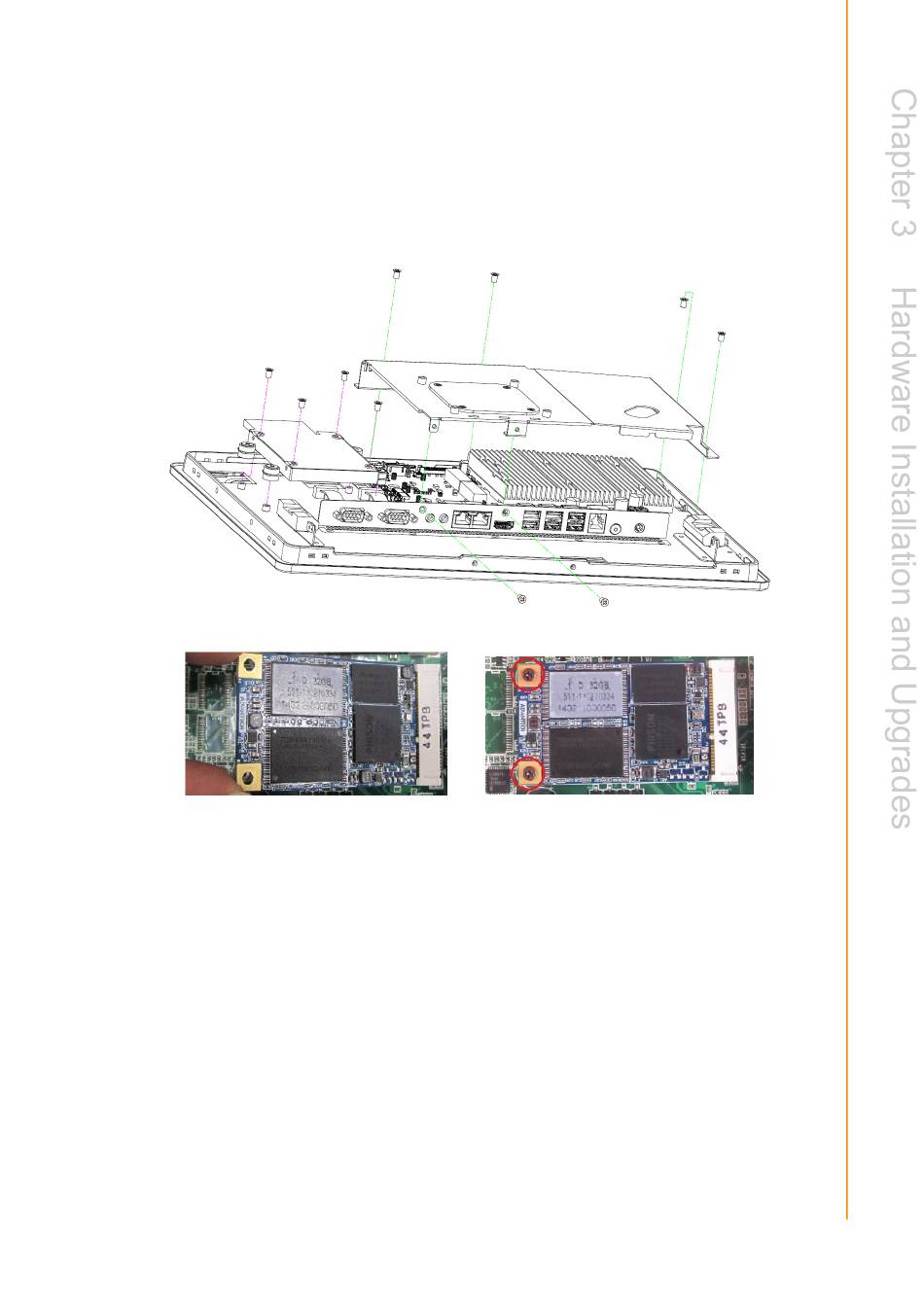

Figure 3.2 Installing an mSATA/m.2 Card
19
UTC-318 User Manual
